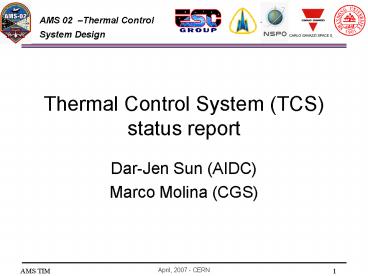

Thermal Control System TCS status report

1
Thermal Control System (TCS)status report

• Dar-Jen Sun (AIDC)
• Marco Molina (CGS)

2
(No Transcript)
3
(No Transcript)
4

• AIDC status report
• Jig design
• Test coupon
• FM H/W preparation
• CGS/SDU status report
• TCS STA integration complete!
• Radiators mechanical and thermal design
• CAB LHP ANALYSIS
• Heaters and thermostats procurement

5
TCS STA Integration completed

• Main radiators STA
• Links STA
• Brackets FM STA
• crates STA
• Tracker radiators STA
• Rods FM

6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
AMS02 STA with SDU
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
Radiators design status

• G. Duchini (CGS)
• A. Assenza (CGS)
• I.Corradino (CGS)
• C. Vettore (CGS)
• Y. Qu (SDU)
• F. Yan (SDU)
• X. Zhu (SDU)
• ZC. Zhao (SDU)

18
Main radiator (RAM) thermal design status

• Heat pipe bending constraint (as recommended by
  the HP manufacturer) has been implemented
• Radiator heater lay-out (two different sets) has
  been confirmed
• J electronics Switch-on sequence analyzed and
  verified
• JPD Close-On-Rise thermostats set-point selected
  (-25C/-19C)
• JPD Close-On-Rise thermostat position depending
  on TVT results on first J/JT/JPD set

19
(No Transcript)
20
RAM radiator heat pipe schedule

• 15th March 2007 heat pipes shape delivery to
  Iberespacio
• 4th April 2007 16 drawings approval
• 29th May 2007 heat pipes ready in Madrid

21
TRACKER radiator heat pipe schedule

• 5th March 2007 heat pipes shape delivery to
  Iberespacio
• 27th March 2007 7 drawings approval
• 17th May 2007 tracker heat pipes ready in Madrid

22
WAKE radiator heat pipes

• 26th April 9th May 2007 heat pipes shape
  delivery to Iberespacio
• 10th May 29th May 2007 drawings approval
• 1th July 19th July 2007 WAKE heat pipes ready
  in Madrid (to be confirmed by IE)

23
RAM Heat pipe layout modification
New Drawing
Old Drawing
24
RAM temperature predictions (hottest case)
25
Main radiator (WAKE) thermal design status

• Heat pipe bending constraint (as recommended by
  the HP manufacturer) has been implemented
• PDS mass saving guidelines implemented
• Embedded heat pipe cold-plate has been replaced
  by a smarter heat pipe layout
• Final heat pipe layout on-going
• First set of 3-D heat pipes (not affected by the
  heat pipe re-arrangement) ready to be sent to
  pipe manufacturer

26
WAKE RADIATOR HP LAYOUT REDESIGN
Original layout 2 horizontal20 vertical
Current Layout ------ 3U HP
27
RAM RADIATOR ASSY
28
RAM RADIATOR ASSY
RADIATOR
REMOVABLE HANDELS
29
RAM RADIATOR ASSY
REMOVABLE POLYCARBONATE PROTECTION (4 PARTS)
(Spaced from the White Painted surfaces)
REMOVABLE PROTECTION
RADIATOR
REMOVABLE HANDLE
30
RAM RADIATOR ASSYRADIATOR PANEL SECTIONS
ROHACELL and SKINS JOINT
31
RAM RADIATOR ASSY HEAT PIPE VENTING
HEAT PIPE VENTING HOLE
HEAT PIPE
32
RAM RADIATOR ASSYTYPICAL INSERTS POSITIONING
33
TRACKER RADIATOR ASSY
34
TRACKER RADIATOR ASSY
REMOVABLE HANDLES
35
TRACKER RADIATOR ASSY
REMOVABLE POLYCARBONATE PREOTECTIONS (3 PARTS)
(Applied on the White Painted surfaces)
36
WAKE RADIATOR
37
WAKE RADIATOR STATUS

• First issue for INNER SKINS and OUTER SKINS
  drawings delivered on 20.04.07.
• To be implemented
• I/F holes for white paint protection panels on
  outer skins
• I/F holes to cab lhp on outer skins
• I/F holes to TB and Thermostats on inner skins

38
INSERTS example of a bonding insert
39
WAKE RADIATOR ASSEMBLY
40
RAM RADIATOR BONDING to USS
41
WAKE RADIATOR BONDING to USS
42
Changes to the FM design (1)

• After STA integration
• MID brackets length has been reduced by 2mm

43
Changes to the FM design (2)

• PANEL cut-out reduced by 3mm
• for MID-BRACKETS (both radiators)
• CAB mounting bolts on lower side of box ( only
  WAKE)

44
CAB 2 phase model

• Gongming Xin (SDU)
• Stefano Zinna (UniBG)

45
CAB LHP 2 Phases Modeling

• Cases needed to run
• Steady State of CAB in Worst Hot Case (105W)
• Steady State of CAB in Worst Cold Case (35.5W)
• CAB Ramp-UP process
• In different CAB/LHP mode
• CAB
• Ramp Up nominal mode (6 CCS CS)
• Ramp Up module failure mode (5 CCS CS)
• LHP
• Nominal mode (2 LHPs working)
• Failure mode (1 LHP failure)

46

• Modeling start with
• SINDA/FLUINT
• parameters based on the preliminary design of CAB
  LHP
• One LHP working (Failure mode of LHP) in the
  beginning.

CAB
LHP Condenser Layout on the Wake Radiator
47
Characteristics of 2 phases model (1 LHP)

• Working fluid--Ammonia
• 4446 thermal nodes, 42 fluid lumps
• Conductance to radiator 800(W/m2/K)Area
• Conductance from Eva-Saddle to CAB Baseplate
  1000(W/m2/K)Area

• Evaporator model shown as below

48
Status

• The modeling has been completed with
• Parametric analysis done for some critical
  parameters (e.g. power, heat transfer coefficient
  in wick-Uw, Back conductance-Uback, and the ratio
  of Uw/Uback)
• Model running for one LHP in both worst hot and
  worst cold cases for CAB
• Results achieved for both cases, but need to be
  reviewed.
• Ramp-Up process (LHP failure mode) ready to run
  once the model is validated.

49
Heaters and thermostats procurement

• M. Molina

50
Thermostats (19 for the EHV, 5 for the Ecrate
and 10 for the RHV)

• Two options
• US source 18 weeks lead time export license
• E.G. 12 weeks for ECAL thermostats
• E.G. 16 weeks for ECAL thermostats intermediate
  consignee change (to allow installation in
  Annecy)
• European source 26 weeks, no license required

51
Thermostats

• Procurement started, on the basis of verbal
  agreement with INFN PI (F. Cervelli and M.
  Incagli) on 26th March 2007
• J. Berdugo statement at JSC we will follow
  Franco CERVELLI, who else? taken literally
• RHV thermostats ordered as well
• Paperwork (proposals from CGS to INFN and
  CIEMAT) still ongoing as per today (NO PROBLEM,
  provided we get the purchase order)
• 5 thermostats (on stock) for E-crates expected
  within 4 weeks (End of May 2007)
• All the others 29 Thermostats expected for
  September 24th

52
Heaters

• 11 weeks lead time
• Expected delivery June 15th, 2007
