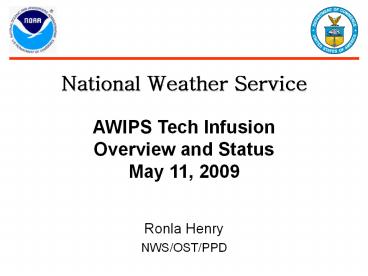

National Weather Service
AWIPS Tech Infusion Overview and Status May 11,
2009

• Ronla Henry
• NWS/OST/PPD

2
Overview

• AWIPS Technology Infusion Scope
• Infrastructure Review
• Government Activities
• Testing
• Training
• Site Migration
• Governance
• Getting Ready

3
AWIPS TechnologyInfusion Scope
4
AWIPS TechnologyInfusion Scope

• AWIPS Technology Infusion (FY2005 FY2014)
• A long-term project which delivers a modern,
  robust software infrastructure that provides the
  foundation for future system level enhancements
  for the entire NWS enterprise
• Phase 1 (FY2007-FY2010)
• Migration of WFO/RFC AWIPS 1 to a modern Service
  Oriented Architecture (SOA) infrastructure
• Phase II (FY2009-FY2011) AWIPS SOA Extension
• Creation of a seamless weather enterprise
  spanning NWS operations
• Migration of NAWIPS into the AWIPS SOA
• Delivery of thin client to support Incident
  Meteorologists, e.g., Fire Weather,
• Integration of orphan systems (e.g., Weather
  Event Simulator to support training requirements)
• Integration of Community Hydrologic Prediction
  System (CHPS ) into AWIPS SOA
• Phase III (FY2009 FY2014) Enterprise Level
  Enhancements
• Data delivery enhancements Smart push-smart
  pull data access
• Visual collaboration enhancements
• Information generation enhancements
• Visualization enhancements

5
AWIPS TechnologyInfusion Roadmap
Phase I AWIPS 1 Migration
OTE / Deployment
NAWIPS Migration
Phase II AWIPS SOA Extension
Thin Client
CHPS
Phase III Enterprise Enhancements
IOC
FOC
Data Delivery- Smart Push/Pull
NWS Integrated Collaboration
Phase 2
Phase 3
Calendar Year
Fiscal Year
IOC
FOC
Streamlined Generation of Products
6
Service Oriented Architecture (SOA)
MigrationTask Orders
Task Order (TO) Delivery Date
Migrate primarily GFE capabilities (TO9) September 2008
Investigate technical issues/questions surrounding migration (TO-DTP) February 2009
Migrate of primarily Hydrologic capabilities (TO10) February 2009
Task Order Development and Transition Planning (DTP) March 2009
SOA Migration Complete (TO11) November 2009
Provide of technical materials supporting training preparation following TOs 8-11 (TO-T1) 3 weeks following TO delivery date

7
Infrastructure
8
SOA MigrationRe-Architecture Approach

• Perform black-box conversion
• Preserve existing functionality, look and feel on
  top of new infrastructure
• No loss of functionality
• Deployed system current with deployed AWIPS
  capability (i.e., Operational Build 9 (OB9))
• Thorough field validation and acceptance before
  deployment
• Use open source projects - No proprietary code
• JAVA and open source projects enable AWIPS II to
  be platform and OS independent
• AWIPS Development Environment (ADE) enables
  collaborative development
• Operating System (OS), Platform independence
  allows non-Linux based research to be easily
  integrated into AWIPS II

9
SOA Architecture Logical Layered ViewLayers
Separated By Simple App Programming Interfaces
(APIs)
Client/Presentation Services
JMX
CAVE
External Programs
Mission Services Layer
Mbean
ProductSrv
IngestSrv
NotifySrv
Hydro Models
AdapterSrv
PersistSrv
AutoBldSrv
IndexSrv
SubscribeSrv
UtilitySrv
LAPS
Security Services /Demilitarized Zone (DMZ)
Enterprise Service Bus - Communication
PurgeSrv
StagingSrv
FORTRAN/C/C Command Line Programs
Data Access Layer
Hibernate
HDF5 API
Localization Store
Platform Layer
PostgreSQL
HDF5
Metadata Index
Data Persistence Store
Spatial Index
10
Government Activities
11
SOA MigrationTesting Approach

• Purpose
• Provide feedback to Raytheon on Task Order (TO)
  software
• deliverables
• Improve software quality in support of
  Operational Testing
• Evaluation (OTE) and Deployment
• Layered Approach
• IVV (Independent Verification Validation)
• Testing Objective Push the system (Stress
  testing) Test to break
• Testing based on TO contents
• Includes menu mapping exercise
• UFE (User Functional Evaluation)
• Testing Objective Provide operational look at TO
  deliverables
• Testing based on TO contents
• Heavily focused on implementation variances of
  end-user functionality
• OTE (Operational Testing Evaluation)
• Testing Objective Verify AWIPS-II operationally
  ready for deployment
• Controlled testing environment at operational
  sites
• Follows evaluation of TO11

http//www.nws.noaa.gov/ost/SEC/AE/Testing.htm
12
SOA MigrationTraining Approach

• Purpose
• Ensure that developers able to utilize migrated
  software
• Ensure that end-users able to configure, monitor,
  and administer system
• Approach
• Development Organizations (GSD, MDL, OHD, SEC)
  planning and executing training
• NWSTD involved in planning and executing
  operational training
• Focus Areas
• Local Application Developer
• Application Focal Point
• System Administration

http//www.nws.noaa.gov/ost/SEC/AE/Training.htm
13
SOA MigrationSite Migration Approach

• Purpose
• Provide structured method to ensure local sites
  migration
• Includes
• Local Application Migration
• Site Migration
• Application Configuration
• Product Format Template Configuration
• Approach
• Team (regions, HQ) plan/coordinate
• Regions/Offices execute

http//www.nws.noaa.gov/ost/SEC/AE/Site_Migration.
htm
14
AWIPS Technology Infusion Governance Approach

• What is it?
• Governance model controls the development, test,
  integration, configuration management, deployment
  and support of the new system -- both hardware
  and software
• Why?
• SOA offers new levels of flexibility and
  extensibility
• New rules needed to exploit system capabilities,
  define limits
• Tension between unlimited modifications and
  ability to support the baseline system

http//www.nws.noaa.gov/ost/SEC/AE/Governance.htm
15
Summary
16
Summary

• AWIPS I application migration underway
• Eight incremental deliveries of infrastructure
  and functionality provided thus far for NWS
  testing and evaluation
• Final incremental delivery of functionality
  (TO11) targeted for Fall 2009
• OTE begins Winter 2009
• Deployment - 2010
• AWIPS SOA Extension projects that will enhance
  NWS operations are underway
• NAWIPS migration in progress
• First incremental delivery of functionality
  provided to users for testing/evaluation, April,
  2009
• Next incremental delivery targeted for Fall 2009
• Thin Client, Data Delivery, CHPS, WES integration
  and Collaboration Projects
• Requirements definition, AWIPS SOA evaluation and
  prototyping - 2009 -gt 2010
• IOC targeted for FY11
