CMS Report

1

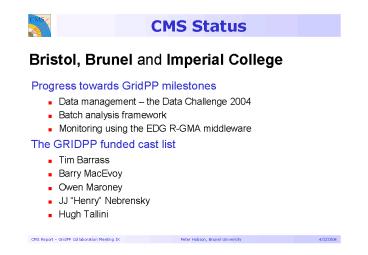

CMS Status
Bristol, Brunel and Imperial College

• Progress towards GridPP milestones
• Data management the Data Challenge 2004
• Batch analysis framework
• Monitoring using the EDG R-GMA middleware
• The GRIDPP funded cast list
• Tim Barrass
• Barry MacEvoy
• Owen Maroney
• JJ Henry Nebrensky
• Hugh Tallini

2
CMS and LCG2

• CMS Data Challenge DC04 has three components
• Tier-0 challenge. Reconstruction at CERN
• Complex enough. Doesnt need grid per se
• But will publish catalog to CERN RLS service
• Distribution challenge. Push/Pull data to
  Tier-1s
• Want to use LCG tools, can use SRB. Questions of
  MCAT/RLS coherence, SRB pool issues etc.
  Analysis/Calibration Aspects
• At Tier-1/2 centers (not at CERN during DC04
  proper)
• Encourage use of LCG2 and GRID3 to run these
• Aim to complete first two in March
• Expect last one to continue and be repeated over
  next 6 months as LCG matures. Factorized from
  Tier0 and distribution challenges
• CMS expert manpower is saturated with work for
  DC04.

3
DC04 Production

• Data Challenge March 2004 nominal
• An end-to-end test of the CMS offline computing
  system
• 25 of full world-wide system to be run flat-out
  for one month
• Key test of our Grid-enabled software components
• Play back digitized data, emulating CMS DAQ -gt
  storage, reconstruction, calibration, data
  reduction and analysis at T0 external T1
• Some T2 involvement as clients of local T1
  centres
• T0 to T1 data transfer
• New transfer management database
• Refinements to schema
• CASTOR issues to be resolved (SRM export, 3Tb
  buffer needed)

4
(No Transcript)
5
DC04 Catalogue Deployment

• Synchronised RLS (LRC RMC) deployment
• Expect to have Oracle DB deployed at CERN and
  CNAF
• Deployment at RAL and FZK could follow this
• May not be achieved on timescale of DC04
• Cannot afford to plan on this being in place
• Tier 1s without RLS will need POOL MySQL
  catalogue
• FNAL, RAL, Lyon, FZK
• Catalogue should be updated by Tier 1 agent
• FCatalog tool copies POOL data from CERN RLS to
  local MySQL catalogue
• Catalogue updated as files are transferred from
  CERN

6
Catalogue Use

• CERN RLS
• Initial registration of POOL data by
  reconstruction jobs
• Registration of files and replicas in SRB by
  GMCat
• RAL, Lyon
• Registration of files produced by analysis jobs
  outside LCG-2
• Only files which are made globally accessible
  in an SRB or SRM server
• CNAF RLS
• Replication of files to LCG-2 SE
• Queries by LCG-2 analysis jobs
• Registration of files produced by LCG-2 analysis
  jobs

7
Distribution of Data from T1 to T2

• LCG-2 sites
• Distribution through EDG replica manager
• Registration in CNAF RLS
• Jobs access data from CNAF RLS
• Non LCG-2 sites
• Tier 2 can access POOL data from Tier 1 MySQL
  catalogue using Catalo tools
• Creates local catalogue XML or local MySQL

8
SRB MCat Failover

• Backup MCat server at Daresbury
• Oracle failover solution to be installed soon
• Maintains mirror copy of Oracle backend between
  RAL and Daresbury
• If RAL MCat has problems will switch to Daresbury
• No need to change SRB server or client
• Minimal downtime of MCat
• Change in DNS registration
• GMCat service in deployment
• Optimisation testing on local MySQL LRC RLS

9
Catalogue Summary

• RLS Catalogue deployment at CERN and CNAF still
  expected
• MCat server operational, backup service improved
• Likely absence of RLS Catalogues at RAL, FZK
• Tier 1s to install local POOL MySQL Catalogues
• agents to populate them
• Onward distribution to Tier 2s
• Detailed configuration requires
• How data is streamed?
• To which Tier 2s?

10
Batch Analysis Framework
Gridified ORCA Submission System GROSS

• Simple UI suitable for non-expert end user
• Extensible architecture (as requirements
  change/get better defined for DC04 and beyond)
• No modification required to ORCA (transparent
  running on Grid).
• No additional s/w required remotely
• Integrates directly to BOSS

11
GROSS System Design
Schematic Architecture
USER
PHYSICS META-CATALOG
UI
MONITORING MODULE
JOB SUBMISSION MODULE
DATA INTERFACE
RB
BOSS
GRID
COMMON BOSS/AF DATABASE
WN
12
How it works
User submits to AF a single analysis TASK which
comprises

• ORCA executable
• ORCA user libraries
• Metadata catalogue query

User additionally specifies

• Which BOSS DB to use
• Any additional DB to write output details to
• Which metadata catalogue to query
• What to do with output data and logs (in sandbox,
  register somewhere, etc).
• Suffix for output filenames

Submission module

• Makes data query on catalogue
• Splits TASK into multiple JOBS (1 job per run)
• Creates a JDL for each JOB
• Creates wrapper script and steer file for each
  JOB
• Submits each job (through BOSS)

13
Wrapping the ORCA job

• ORCA executable wrapper running on WN will
• Set up appropriate ORCA environment
• Copy input sandbox/input data to working area
• Link to correct user libraries
• Run executable
• Deal with output files
• Wrapper is shell script steering file
• One (or many) standard shell script registered in
  db (but easy to modify and re-register)
• Unique steering file created for each job by
  submission system

14
Data Handling

• Data handling part missing right now
• What we need
• Definition of Physics Meta-Catalogue
• Ability to query this meta-catalogue to give
• List of GUIDs per run of data to be included in
  Grid submission JDL. This will direct where the
  job runs (Given that no movement of input data
  will take place i.e. the job will always run
  where the data is).
• Where to catalogue output data for group analysis
  (AF can handle writing to multiple DBs e.g.
  writing to private local BOSS DB and to metadata
  cat.)

15
GROSS Summary

• Tested extensively on ORCA 7.5.0 LCG-1
• Now installed on LCG-2 UI at Imperial College
• Build extra functionality
• Multiple DB support
• Most important missing piece
• Data interface to meta-catalogue (ready to be
  plugged into the rest of the framework).

16
RGMABoss Overview

• CMS jobs are submitted via a UI node for data
  analysis.
• Individual jobs are wrapped in a BOSS executable.
• Jobs are then delegated to a local batch farm
  managed by (for example) PBS.
• When a job is executed, the BOSS wrapper spawns a
  separate process to catch input, output and error
  streams.
• Job status is then redirected to a local DB.

17
Boss
RefDB
BOSS DB
SE
Workload Management System
UI IMPALA/BOSS
input data location
SE
CE
Replica Manager
SE
18
Where R-GMA Fits In

• BOSS designed for use within a local batch farm.
• If a job is scheduled on a remote compute
  element, status info needs to be sent back the
  submitters site.
• Within a grid environment we want to collate job
  info from potentially many different farms.
• Job status info should be filtered depending on
  where the user is located the use of predicates
  would therefore be ideal.
• R-GMA fits in nicely.
• BOSS wrapper makes use of the R-GMA API.
• Job status updates are then published using a
  stream producer.
• An archiver positioned at each UI node can then
  scoop up relevant job info and dump it into the
  locally running BOSS db.
• Users can then access job status info from the UI
  node.

19
Use of R-GMA in BOSS
Sandbox
UI IMPALA/BOSS
WN
BOSS DB
CE/GK servlets
Receiver servlets
Registry
Job
20
Test Motivation

• Want to ensure R-GMA can cope with volume of
  expected traffic and is scalable.
• CMS production load estimated at around 5000
  jobs.
• Initial tests with v3-3-28 only managed about
  400 - must do better. (Note first tests at
  Imperial College a year ago fell over at around
  10 jobs!)

Reported at IEEE NSS Conference, Oregon, USA,
21-24 October 2003
21
Test Design

• A simulation of the CMS production system was
  created.
• An MC simulation was designed to represents a
  typical job.
• Each job creates a stream producer.
• Each job publishes a number of tuples depending
  on the job phase.
• Each job contains 3 phases with varying time
  delays.
• An Archiver collects published tuples.
• The Archiver db used is a representation of the
  BOSS db.
• Archived tuples are compared with published
  tuples to verify the test outcome.

22
Topology
Archiver Mon Box
SP Mon Boxes
Archiver Client
IC
Boss DB
MC Sims
Test verification
Test Output
23
Test Setup

• Archiver SP mon box setup at Imperial College.
• SP mon box IC setup at Brunel.
• Archiver and MC sim clients positioned at various
  nodes within both sites.
• Tried 1 MC sim and Archiver with variable Job
  submissions.
• Also setup similar test on WP3 test bed using 2
  MC sims and 1 Archiver.

24
Results

• 1 MC sim creating 2000 jobs and publishing 7600
  tuples proven to work without glitch.
• Bi-directional 30003000 jobs from Imperial
  College to Brunel (and v.v.) worked without
  problems.
• Demonstrated 2 MC sims each running 4000 jobs
  (with 15200 published tuples) on the WP3 test
  bed. Peak loading was 1000 jobs producing data
  simultaneously.

25
Pitfalls Encountered

• Lots of integration problems.
• Limitation on number of open streaming sockets
  1K.
• Discovered lots of OutOfMemoryErrors.
• Various configurations problems at both imperial
  College and Brunel sites.
• Usual firewall challenges
• Probably explained some of the poor initial
  performance.

Scalability of test is largely dependent on the
specs of the Stream Producer/Archiver Mon
boxes. i.e. gt 1Gb memory and fast processor
26
Overall Summary

• Preparations for a full scale test of CMS
  production over a Grid (T0 T1 some T2) well
  underway. Still on target for 1 March start-up.
• New Batch Analysis framework GROSS being
  deployed (with BOSS and RGMA) via rpm for DC04
• Scalability of RGMA now approaching what is
  needed for full production load of CMS.
