IPDR'org Standardizing NextGeneration Accounting

1

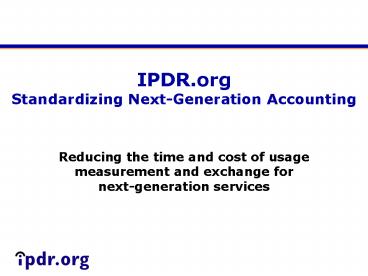

IPDR.orgStandardizing Next-Generation Accounting

• Reducing the time and cost of usage measurement
  and exchange for next-generation services

2
Telecom Industry Trends

• Market
• Desire for choice between flat-rate and
  usage-based billing
• Unrealized revenue from value-added services
• Complex content/connectivity partnerships
• Industry mergers and acquisitions
• Competitive pressures imposing shorter
  time-to-market
• Technology
• Increasing complexity of convergent networks
• Rapid service evolution
• Diverse accounting requirements of
  next-generation services

3
The Solution Internet Protocol Detail Record
Organization (IPDR.org)

• Objective
• To reduce the time and cost of usage measurement
  and exchange for next-generation services.
• Method
• Implement de-facto open standards for IP-based
  support system interoperability, enabling
  providers to deploy next-generation services
  profitably.

4
Industry Support

• Board of Directors - 2003
• ACECOMM, Amdocs, Billing Concepts, Cisco,
  Convergys, Hewlett-Packard, Sprint PCS, Telus,
  XACCT Technologies
• Members
• BSS Amdocs, AMS, Billing Concepts, Convergys,
  CSG Systems, etc.
• OSS ACECOMM, DST Innovis, ECtel,
  Hewlett-Packard, NEC, Openet, etc.
• Equipment Cisco, Marconi, etc.
• Service Providers Infosys, Rogers ATT Wireless,
  Sprint PCS, Telus, TSI Telecommunication
  Services, etc.

5
An Overview of the IPDR.org

• Member-driven, nonprofit organization serving the
  communications industry.
• Established in 1999
• Membership from five continents includes
• Service Providers
• Equipment Vendors
• Support System Vendors
• Clearinghouses

6
Business Drivers Behind IPDR Network Data
Management Usage Specification (NDM-U)

• Migration from flat-rate to usage-based billing
• Increasing network utilization
• Integration of voice, video data networks
• Push for convergent billing capabilities
• Content billing
• Revenue sharing and intercarrier settlements

7
Technology Drivers Behind IPDR NDM-U

• Introduction of new and increasingly
  sophisticated telecommunication services
• Rapidly changing networking technologies
• Industry consolidation
• Fraudulent network access
• Requirements for service level agreement
  monitoring

8
IPDR.org Achievements

• Public distribution of the NDM-U V3 Specification
• Major carrier deployments underway
• Compliance program testing to v.3.1
• Reference Libraries in C Java
• XML XDR binary encodings
• Joint projects with other industry associations
• Cable Laboratories
• TeleManagement Forum
• OSS/J
• IETF

9
Where Does IPDR NDM-U Fit?



Gateways/

gatekeepers


Billing

IPDR


Application
Mediation


Decision support


-
Who

E
-
commerce

Marketing



servers
-
When


Network ops



Aggregation
-
What


Fraud



-
Where

Correlation

CRM


-
Why


Normalization

...



Router

Firewall

Bandwidth Mgmt RSVP, DiffServ

MPLS, Traffic shapers, Proxies
Other NE
Network Service Elements
BSS

Usage Collection

10
NDM-U 3.x

• Stable version complete!
• Forward compatibility
• Compact encoding 51 reduction over XML
• Uses IETF XDR RFC 1832
• Direct translation to/from XML format

11
IPDR NDM-U v3

• Next generation
• Supports all evolving services
• IP-VPN, VOIP, Video, Email, Etc.
• Stable with v3.X
• Forward compatibility
• XML compact encodings
• Binary encoding provides scalability for Tier 1
• XML provides easy interface to any software
• Extensibility
• XML schema supports custom contract definition

12
IPDR Compliance Program

• Provides a buyers guide for purchasers
• Standard format permits apples to apples
  comparisons
• Evaluates results interoperability
• Inexpensive and easy enrollment and testing for
  vendors
• Free to IPDR.org members

13
IPDR v3 Reference Code

• Read/write IPDRs as easily as plain text
• Supports all IPDR flavors
• Available in C and Java
• Liberal license permits use and modification
• Simple APIs hide complex logic
• Read foreign schemas to absorb custom IPDR
  records
• Manage rolling log files and automatic updates to
  partner systems

14
Implementations Underway

• Major carrier deployments
• Multiple wireless heavyweights
• Emergency calling leader
• Smaller VOIP ASP projects
• Continued Envelope-pushing trials
• TMF Catalyst projects
• Service level agreements
• Packet wireless
• hybrid wireline/wireless
• EU-FORM

15
Future Direction Equipment

• IPDR just as applicable for bits as for services
• Joint projects refine and apply service specs for
  manufacturer communities
• Cable Labs
• OSS/J
• International Softswitch Consortium
• 3GPP
• Demands streaming and prepaid capability
• Alignment with service activation and
  provisioning?

16
Future Direction
Inter-Carrier Exchange

• NDM-U technology fully supports exchange
  scenarios
• Joint work ensures support of existing
  settlements networks and technologies
• ATIS OBF EMI settlement
• ITU-T
• Other open dialogs GSM TADIG TAP3, ETIS, etc.

17
Recapitulation

• Usage metering today is overly complex
• Standards are the best solution
• IPDR NDM-U is tried and proven
• What can you do?
• Review www.ipdr.org
• Join IPDR.org general mailing list for updates
• Implement share experiences
• Participate in IPDR.org

18
Further Inquiries

• Aron Heintz
• President
• IPDR Organization
• 1 202-258-5544
• AHeintz_at_IPDR.org
• www.ipdr.org
• Marianne Jenkinson
• Membership Director
• IPDR Organization
• 1 908-735-0956
• MJenkinson_at_IPDR.org
• www.ipdr.org

19

• Addendum Slides
• (The following slides will only be available on
  the members version of the presentation, and will
  not be included on the public version posted to
  the IPDR.org web site)

20
IPDR GenerationEvent Record Generation
1) A call is placed on an IP network
2) A log file is generated
21
IPDR Generation Mediation
3) VoIP usage data is assembled into an IPDR
containing the call details (customer, usage,
etc.)
22
IPDR Generation Billing
4) The IPDR record is sent to a BACC system for
automated, usage-based subscriber billing
23
The Model Driven IPDR Approach

• Service Definition
• (Subset of W3C XML-Schema 1.0)

• Alternative Encoding
• XML Document
• XDR based binary encoding
• Others (e.g. RADIUS, Diameter AVP)

Service Data Encoding

• Alternative Transport
• File based exchange (of XML or XDR)
• Streaming (XDR only)
• Others (e.g. RADIUS UDP, Diameter TCP/SCTP)

Service Data Transport
