Inheritance

1

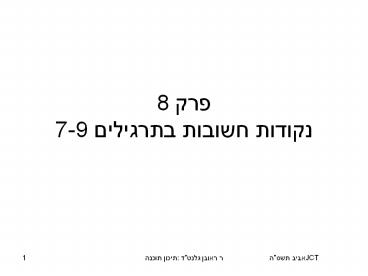

??? 8?????? ?????? ???????? 7-9
2
1. Initializer
3
Inheritance

• Make the PressureSensor and TemperatureSensor
  inherit from the base class Sensor.
• Add directed associations from the Motor to
  the PressureSensor and to the TemperatureSensor.
• Set the multiplicity to 1.

4
Base Class Sensor

• Add attribute name of type OMString
• Add a constructor that receives an argument aName
  of type OMString
• Initialize the attribute in the initializer
  name(aName)
• Create an operation print with implementation
  stdcout ltlt name ltlt

5
Base Class Sensor-Sensor.cpp

• //file Sensor.cpp
• include Sensor.h
• SensorSensor(OMString aName) name(aName)
• void Sensorprint() stdcout ltlt name ltlt

6
Motor Class

• Create a constructor that creates instances of
  both types of Sensor
• setItsTemperatureSensor(new TemperatureSensor(T1
  ))
• setItsPressureSensor(new PressureSensor(P1))

7
Class Motor- Motor.cpp

• //file Motor.cpp
• include Motor.cpp
• include Sensor.h
• MotorMotor()
• setItsTemperatureSensor(new TemperatureSensor(
  T1))
• setItsPressureSensor(new PressureSensor(P1))


8
Derived Sensor Classes

• For both derived Sensor classes
• Create a constructor that has an argument aName
  of type OMString
• Set the Initializer to Sensor(aName)

Sensor(aName)
invokes the Sensor constructor so as to
initialize the name field of the base class.
9
Derived Classes TemperatureSensor.cpp

• //file TemperatureSensor.cpp
• include TemperatureSensor.h
• TemperatureSensorTemperatureSensor(OMString
  aName) Sensor(aName)

10
Animating

• Create a Test component and a Debug configuration
  that creates an initial instance of the Motor
  class
• Save / Generate / Make / Run
• With the browser, note that there are two
  instances of Sensor. Each Sensor has a name that
  has been initialized.

11
User Types

• Using the browser, right-click on the Default
  package and select Add New Type
• add a type tTempUnits declared as
• enum tTempUnits CELSIUS, FAHRENHEIT

An alternative declaration is enum s
CELSIUS, FAHRENHEIT .
12
Attribute Unit

• Add an attribute unit of type tTempUnits for the
  TemperatureSensor.
• Add an argument to the TemperatureSensor
  constructor called aUnit of the same type
• In the initializer add ,unit(aUnit)

13
TemperatureSensor

• Change the read operation to
• stdcout ltlt Temperature ltlt rand() 100 ltlt
  deg
• if ( unit CELSIUS )
• stdcout ltlt C ltlt stdendl
• else
• stdcout ltlt F ltlt stdendl
• In the Motor constructor, add the argument
  CELSIUS as follows
• setItsTemperatureSensor (new
  TemperatureSensor( T1, CELSIUS))

14
2. Container Classes (OMCollection)andIterators
(OMIterator)
15
Using OMIterator

• Rhapsody provides an OMIterator class that can be
  used as follows to iterate through a container

OMCollectionltSensorgt itsSensor // a
container OMIteratorltSensorgt iSensor(itsSensor)
iSensor.reset() // point to first while (
iSensor ! NULL ) (iSensor)-gtprint() //
print iSensor // point to next
16
Collection of Sensors

• Load the Virtual project and save as
  Collection
• Delete from Model the relations between the Motor
  and the Sensors. Check in the Browser that these
  relations have been deleted from the model not
  just the view.
• Add a directed aggregation itsSensor from
  the Motor to the Sensor. Set Multiplicity to
  (many).

17
OMCollection

• Delete implementation of Motor constructor
• Save / Generate / Examine code for Motor
• Note that the relation has been implemented as a
  collection of Sensors
• OMCollectionltSensorgt
  itsSensor
• Note also that there is an operation
• addItsSensor(Sensor
  p_Sensor)

18
OMCollection Motor.h

• ifndef Motor_H
• define Motor_H
• include "PressureSensor.h"
• include "TemperatureSensor.h"
• class Sensor
• public //defined by user
• void addSensor()
• void deleteSensor()
• void pollSensors()
• public //defined by Rhapsody
• OMIteratorltSensorgt getItsSensor() const
• void addItsSensor(Sensor p_Sensor)
• void removeItsSensor(Sensor p_Sensor)
• void clearItsSensor()
• protected
• OMCollectionltSensorgt itsSensor

19
Adding to OMCollection

• In the motor constructor add Sensors
• addItsSensor(new TemperatureSensor(Sensor1,CELSI
  US))
• addItsSensor(new TemperatureSensor(Sensor2,FAHRE
  NHEIT))
• addItsSensor(new PressureSensor(Sensor3) )

20
2.a Dependencies
21
Dependencies

• In order to compile, the Motor needs to include
  the Pressure and Temperature Sensors header
  files. To do this we will add dependencies
  from the Motor to those classes
• Double-click on each dependency and select
  the stereotype Usage.

22
Implementation Includes

• Alternatively instead of drawing dependencies, we
  can just modify the properties for the Motor
  class and for CPP_CG-gtClass-gtImpIncludes add
  TemperatureSensor.h,PressureSensor.h

CPP_CG means C Code Generation.
23
Multiple Relation

• Save / Generate / Make / Run
• Show that the Motor has a collection of three
  Sensors.

24
Statechart

• Create a simple Statechart for the Motor class
  that calls a pollSensors() routine every two
  seconds.

25
pollSensors()

• Create the pollSensors() operation that will poll
  all the Sensors in the collection

OMIteratorltSensorgt iSensor(itsSensor) for (
iSensor.reset() iSensor iSensor )
(iSensor)-gtprint() (iSensor)-gtread()
cout ltlt "---------------------" ltlt endl
Note that if any more Sensors of any other type
are added, the operation still functions!
26
Extended Exercise

• For the Sensor class, add a static attribute
  numberOfSensors of type int with initial value 0.
• In the Sensor Constructor add numberOfSensors
• For the Sensor class, add a virtual Destructor
  with implementation numberOfSensors--
• Add the following to pollSensors()
• cout ltlt Number of sensors ltlt
  SensorgetNumberOfSensors() ltlt endl
• Generate code and execute to check that
  numberOfSensors 3.

27
3. Threads, Active Classes, Statechart Inheritance
28
Concurrency

• We want each Sensor to run on its own thread
  (active class).
• To do so, we need each Sensor to be Reactive
  (class that waits for events).
• So we will create a Statechart for the base
  Sensor class as follows

29
Active Classes

• With the browser, change the concurrency of the
  Sensor class from sequential to active.

30
Inheriting Behavior

• Open the Statecharts for the PressureSensor and
  TemperatureSensor. Note that they have inherited
  the base class Statechart.
• Specialize the behavior of the TemperatureSensor
  as below

Grayed out indicating inherited behavior
31
Starting the Behavior

• Add a call to startBehavior() from the
  TemperatureSensor and PressureSensor constructors
  to initialize the statecharts.

If we had used a composite class, Rhapsody would
have done this for us, but that would have been
too easy !
32
Multi-threads

• Save / Generate / Make / Run
• Check that there are four active threads.
• Setting the focus to a particular thread displays
  the call stack and event queue for that thread.

There will always be one thread called mainThread.
33
Suspending Threads

• Note that a thread can be suspended.

34
Problems with the Design

• With the current design there are a few potential
  problems
• The Motor class needs to know about all the
  different types of Sensor.
• If another class wants access to the Sensors, it
  too will need to depend upon all the different
  types of Sensor.
• Starting the behavior of a Sensor, in the
  constructor is not very elegant.
• Adding a new type of Sensor means finding and
  modifying all classes that use Sensor.

35
4. Singleton, Abstract Factory
36
Improving the Design

• Using the factory method design pattern will
  solve all these concerns.
• A SensorFactory class can be introduced that is
  used by all classes ( ex Motor ) that need to
  get a Sensor. This decouples the Motor class from
  the actual Sensors and can also start the
  behavior of the Sensors.
• The SensorFactory will be implemented using the
  Singleton design pattern (to ensure that there
  is only one instance of SensorFactory).

See the SensorFactory example.
37
The Improved Design
38
The Singleton Design Pattern I
Static attribute
Protected constructor
39
The Singleton Design Pattern II
Static factory operation
Calling the createRandomSensor operation
40
SensorFactorycreateRandomSensor()

• Sensor SensorFactorycreateRandomSensor()
• Sensor aSensor
• OMString aName
• char index10
• //itoa(SensorgetCount(), index, 10)
• strcpy ( index, "1" )
• aName "Sensor" OMString(index)
• switch ( rand() 4 )
• default
• case 0 aSensor new TemperatureSensor(
  aName, CELSIUS )
• break
• case 1 aSensor new TemperatureSensor(
  aName, FAHRENHEIT )
• break
• case 2 aSensor new PressureSensor( aName
  )
• break
• case 3 aSensor new SpeedSensor( aName )
• break
