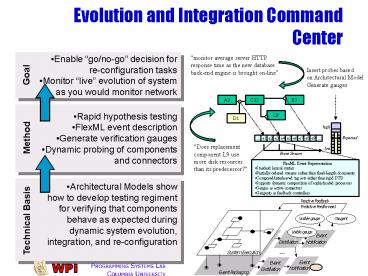

Evolution and Integration Command Center

1
Evolution and Integration Command Center

• Enable go/no-go decision forre-configuration
  tasks
• Monitor live evolution of systemas you would
  monitor network

monitor average server HTTP response time as the
new database back-end engine is brought on-line
Insert probes basedon Architectural
Model Generate gauges
Goal
A2
C22
E3

• Rapid hypothesis testing
• FlexML event description
• Generate verification gauges
• Dynamic probing of componentsand connectors

L9
D1
high
Method
Expected
e1
e2
e3
e4
e5
e6
e7
e8
e9


Does replacementcomponent L9 usemore disk
resourcesthan its predecessor?
low
Event Stream

• FlexML Event Representation
• Standard lexical syntax
• Partially ordered streams rather than
  fixed-length documents
• Composed/interleaved tag sets rather than rigid
  DTD
• Supports dynamic composition of sophisticated
  processors
• Gauges as active connectors
• Gaugents as feedback controllers

• Architectural Models showhow to develop testing
  regimentfor verifying that componentsbehave as
  expected duringdynamic system evolution,integrat
  ion, and re-configuration

Technical Basis
WPI
