Title: Introduction to Scientific Computing on BU


1

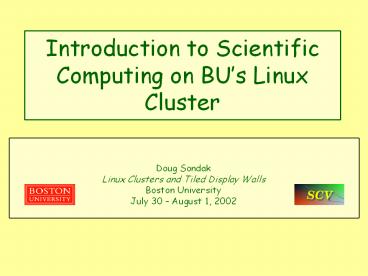

Introduction to Scientific Computing on BUs
Linux Cluster
Doug Sondak Linux Clusters and Tiled Display
Walls Boston University July 30 August 1, 2002
2
Outline
  • hardware
  • parallelization
  • compilers
  • batch system
  • profilers

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
3
Hardware
Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
4
BUs Cluster
  • 52 2-processor nodes
  • specifications
  • 2 Pentium III processors per node
  • 1 GHz
  • 1 GB memory per node
  • 32 KB L1 cache per CPU
  • 256 KB L2 cache per CPU

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
5
BUs Cluster (2)
  • Myrinet 2000 interconnects
  • sustained 1.96 Gb/s
  • Linux

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
6
Some Timings
  • CFD code, MPI, 4 procs.
  • Origin2000 495
  • SP 329
  • Cluster, 2 procs. per box 174
  • Cluster, 1 proc. per box 153
  • Regatta 78

Machine
Sec.
7
Parallelization
Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
8
Parallelization
  • MPI is the recommended method
  • PVM may also be used
  • some MPI tutorials
  • Boston University
  • http//scv.bu.edu/Tutorials/MPI/
  • NCSA
  • http//pacont.ncsa.uiuc.edu8900/public/MPI/

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
9
Parallelization (2)
  • OpenMP is available for SMP within a node
  • mixed MPI/OpenMP not presently available
  • were working on it!

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
10
Compilers
Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
11
Compilers
  • Portland Group
  • pgf77
  • pgf90
  • pgcc
  • pgCC

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
12
Compilers (2)
  • gnu
  • g77
  • gcc
  • g

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
13
Compilers (3)
  • Intel
  • Fortran
  • ifc
  • C/C
  • icc

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
14
Compilers (2)
Polyhedron F77 Benchmarks http//www.polyhedron.c
om/
PG gnu Intel AC 8.66
12.38 6.13 ADI 8.48 9.27
6.83 AIR 16.41 15.65 13.45 CHESS 11.67
10.06 10.16 DODUC 21.35 36.23 18.18 LP8
4.31 7.88 4.16 MDB 3.62 3.81
2.94 MOLENR 11.66 12.72 7.61 PI 24.58
41.95 7.08 PNPOLY 3.81 5.24
4.86 RO 10.75 10.31 3.92 TFFT 18.84
20.24 20.18
15
Compilers (3)
  • Portland Group
  • pgf77 generally faster than g77
  • Intel
  • ifc generally faster than pgf77

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
16
Compilers (4)
  • Linux C/C compilers
  • gcc/g seems to be the standard, usually
    described as a good compiler

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
17
Portland Group
  • -O2
  • highest level of optimization
  • -fast
  • same as -O2 -Munroll -Mnoframe
  • -Minline
  • function inlining

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
18
Portland Group (2)
  • -Mbyteswapio
  • swaps between big endian and little endian
  • useful for using files created on our SP,
    Regatta, or Origin2000
  • -Ktrapfp
  • trap floating point invalid operation, divide by
    zero, or overflow
  • slows code down, only use for debugging

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
19
Portland Group (3)
  • -Mbounds
  • array bounds checking
  • slows code down, only use for debugging
  • -mp
  • process OpenMP directives
  • -Mconcur
  • automatic SMP parallelization

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
20
Intel
  • Need to set some environment variables
  • contained in
  • /usr/local/IT/intel6.0/compiler60/ia32/bin/iccva
    rs.csh
  • source this file, copy it into your .cshrc file,
    or source it in .cshrc
  • theres an identical file called ifcvars.csh to
    avoid (create?) confusion

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
21
Intel (2)
  • -O3
  • highest level of optimization
  • -ipo
  • interprocedural optimization
  • -unroll
  • loop unrolling

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
22
Intel (3)
  • -openmp -fpp
  • process OpenMP directives
  • -parallel
  • automatic SMP parallelization
  • -CB
  • array bounds checking

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
23
Intel (3)
  • -CU
  • check for use of uninitialized variables
  • Endian conversion by way of environment variables
  • setenv F_UFMTENDIAN big
  • all reads will be converted from big to little
    endian, all writes from little to big endian

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
24
Intel (4)
  • Can specify units for endian conversion
  • setenv F_UFMTENDIAN big10,20
  • Can mix endian conversions
  • setenv F_UFMTENDIAN littlebig10,20
  • all units are little endian except for 10 and 20,
    which wil be converted

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
25
Batch System
Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
26
Batch System
  • PBS
  • different than LSF on O2ks, SPs, Regattas
  • theres only one queue
  • dque

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
27
qsub
  • job submission done through script
  • script details will follow
  • qsub scriptname
  • returns job ID
  • in working directory
  • std. out - scriptname.ojobid
  • std. err - scriptname.ejobid

sondak_at_hn003 run qsub corrun 808.hn003.nerf.bu.
edu
28
qstat
  • Check status of all your jobs
  • qstat
  • lies about run time
  • often (always?) zero

sondak_at_hn003 run qstat Job id Name
User Time Use S
Queue ---------------- ----------------
---------------- ------------ -
-------- 808.hn003 corrun sondak
0 R dque
29
qstat (2)
  • S - job status
  • Q - queued
  • R - running
  • E - exiting (finishing up)
  • qstat -f gives detailed status
  • exec_host nodem019/0nodem018/0
  • nodem017/0nodem016/0
  • to specify jobid
  • qstat jobid

30
Other PBS Commands
  • kill job
  • qdel jobid
  • some less-important PBS commands
  • qalter, qhold, qrls, qmsg, qrerun
  • man pages are available for all commands

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
31
PBS Script
  • For serial runs

!/bin/bash Set the default queue PBS -q
dque ppn is cpu's per node PBS -l
nodes1ppn1,walltime003000 cd
PBS_O_WORKDIR myrun
32
PBS/MPI
  • For MPI, set up gmi file in PBS script

test -d /.gmpi mkdir /.gmpi GMCONF/.gmpi/co
nf.PBS_JOBID /usr/local/xcat/bin/pbsnodefile2gmco
nf PBS_NODEFILE gt GMCONF cd PBS_O_WORKDIR NP(
head -1 GMCONF)
Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
33
PBS/MPI (2)
  • To run MPI, end PBS script with (all on one line)

mpirun.ch_gm --gm-f GMCONF --gm-recv
polling --gm-use-shmem --gm-kill 5 -np
NP PBS_JOBIDPBS_JOBID myprog
Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
34
PBS/MPI (3)
  • mpirun.ch_gm
  • version of mpirun that uses myrinet
  • --gm-f GMCONF
  • access configuration file constructed above
  • --gm-recv polling
  • poll continually to check for completion of sends
    and receives
  • most efficient for dedicated procs.
  • Thats us!

35
PBS/MPI (4)
  • --gm-use-shmem
  • enable shared-memory support
  • may improve or degrade performance
  • try your code with and without it
  • --gm-kill 5
  • if one MPI process aborts, kill others after 5
    sec.

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
36
PBS/MPI (5)
  • -np NP
  • run on NP procs as computed earlier in script
  • equals nodes x ppn from PBS -l option
  • PBS_JOBIDPBS_JOBID
  • seems redundant redundant
  • do it anyway
  • myprog
  • run the darn code already!

37
Profiling
Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
38
Portland Group
  • Portland Group Compiler flag
  • function level
  • -Mproffunc
  • line level
  • -Mproflines
  • much larger file
  • creates pgprof.out file in working directory

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
39
PG (2)
  • At unix prompt, type pgprof command
  • will pop up window with bar chart of timing
    results
  • can take file name argument in case youve
    renamed the pgprof.out file
  • pgprof pgprof.lines

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
40
PG (3)
  • option to specify source directory
  • pgprof -I sourcedir pgprof.lines
  • can specify multiple directories with multiple -I
    flags
  • also can use GUI menu
  • Options Source Directory...

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
41
PG (4)
42
PG (5)
  • Calls - number of times routine was called
  • Time - time spent in specified routine
  • Cost - time spent in specified routine plus time
    spent in called routines

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
43
PG (6)
  • Lines profiling
  • with optimization, may not be able to identify
    many (most?) lines in source code
  • reports results for blocks of code, e.g., loops
  • without optimization, doesnt measure what you
    really want
  • initial screen looks like func screen
  • double-click function/subroutine name to get
    line-level listing

44
PG (7)
45
Questions/Comments
  • Feel free to contact us directly with questions
    about the cluster or parallelization/optimization
    issues
  • Doug Sondak sondak_at_bu.edu
  • Kadin Tseng kadin_at_bu.edu

Doug Sondak Linux Clusters and Tiled Display
Walls July 30 August 1, 2002
