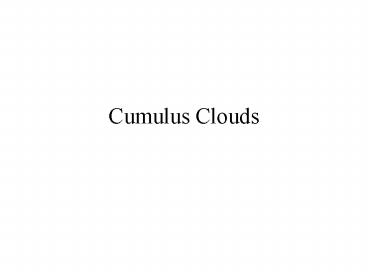

Cumulus Clouds

1
Cumulus Clouds
2
What goes on inside a cumulus cloud?
3
Conceptual Model

• Series of convective plumes rising to form
  individual turrets comprising cloud
• Each rising pulse a toroidal circulation
• Successive toroids give rise to mean upward
  current called updraft
• Sustained downward current between toroids, if
  existing, would be downdraft

4
(No Transcript)
5
Liquid Water Content
6
What causes liquid water content to be below
adiabatic LWC?

• Lateral entrainment
• Neutral mixing
• Dynamic entrainment
• Cloud Top Entrainment

7
Bubble and JetModels of Convection
lt mixing lateral entrainment
8
Dynamic Lateral Entrainment
9
Dynamic Entrainment
10
Effects of Dynamic Lateral Entrainment
11
Effects of Dynamic Lateral Entrainment
12
Cloud Top entrainment
13
Deep Cumulus

• Must consider impact of precipitation on cumulus
  circulation
• Must consider pressure effects because of cloud
  depth
• Thermodynamic pressure, ie hydrostatic pressure
• Dynamic pressure due to inertia of air motions
• Friction layer small compared to cloud and we
  generally ignore friction

14
Vertical Acceleration(using Pressure)
Inertia
Pressure
Buoyancy
15
Vertical Acceleration(Using Total Pressure)
Inertia
Pressure
Buoyancy
16
Vertical Acceleration(using Exner function)
Inertia
Pressure
Buoyancy
17
Traditional Buoyancy




Vapor less dense than dry air
Warm/Cold air rises/sinks
Liquid water loading
Ice water loading
18
Anelastic Approximation

• Neglect frequencies higher than those associated
  with meteorological phenomena such as sound wave
  frequencies
• Similar to incompressible assumption, but for a
  compressible system

19
Continuity Equation
20
Multiply momentum equation (momentum form) by
density
21
Multiply momentum equation (vorticity form) by
density
22
Decomposition of Pressure into Dynamic and
Buoyancy Pressure
23
Dynamics (or inertia) Terms
24
Buoyancy Terms
25
Take divergence of density multiplied by three
momentum equations and then result set to zero
and solve for pressure
or
Where pressure is divided into dynamic and
buoyancy pressure contributions
26
Buoyancy vs. Dynamic Pressure

• Dynamic pressure, , is zero if flow is at
  rest.
• Buoyancy pressure, , is hydrostatic
  pressure for flow at rest.
• Dynamic pressure results from inertia such as
• Rotation (cyclostrophic pressure)
• Straight line accelerations
• Coordinate system accelerations (coriolis)
• Buoyancy pressure results from
• Moisture anomalies
• Thermal anomalies
• Condensate (precipitation drag)

27
Real Buoyancy Acceleration

• True buoyancy acceleration is
• Where we see the acceleration is caused by
  thermal, moisture or precipitation drag anomalies

28
Dynamic Pressure Acceleratrion

• True dynamic pressure gradient acceleration is
• Where we see the acceleration is caused by
  inertial effects of rotation, straight line
  movement and coordinate system movement

29
Conditional Instability of the First Kind

• Occurs when a parcel is statically unstable when
  saturated but stable when dry
• Results in the formation of moist convective
  thermal plumes, ie cumulus clouds
• Instability favors horizontal scales vertical
  scale of overturning, i.e. meso-gamma scale for
  deep convection

30
Three Stages of a Deep Convective Thermal

• Simplest Case
• Conditionally unstable for deep convection
• No environmental wind
• Dry middle layers
• Moist unstable boundary layer

31
Stage 1 Cumulus Stage

• Updraft only
• Cloud droplets only (no precipitation)
• Level of Non-divergence (LND) near top of moist
  Planetary Boundary Layer (PBL)
• Cloud positively buoyant throughout
• Environment neutrally buoyant
• Low pressure under updraft
• High pressure throughout cloud

32
(No Transcript)
33
Stage 2 Mature Stage

• Updraft and downdraft
• Precipitation and cloud droplets throughout cloud
• Level of Non-divergence (LND) at middle levels
• Cloud positively buoyant at middle levels,
  negatively buoyant in lower part
• Cold air dome (density current) at surface
• Environment neutrally buoyant but warming
• Low pressure at middle levels
• High pressure at surface and top of cloud

34
(No Transcript)
35
Stage 3 Dissipating Stage

• Downdraft only
• Precipitation only throughout cloud
• Level of Non-divergence (LND) at upper levels
• Cloud negatively buoyant throughout
• Environment positively buoyant
• Low pressure at middle levels and above in cloud
• High pressure at surface
• Low pressure at surface of environment

36
(No Transcript)
37
Reasons for Breakdown

• Water loading of updraft from precipitation drag
• Cooling due to dynamic entrainment of mid level
  dry air

38
Introduce Environmental Wind Shear to Prevent
Breakdown

• Assume
• two-dimensions, i.e. infinitely long convective
  line
• Straight-line shear with height, I.e. wind speed
  change with without direction change

39
(No Transcript)
40
Three-Dimensional Effect of Wind Shear

• As before but now assume convective plume is
  initially circular rather than infinitely long
• Also start by assuming a straight line shear
  profile again
• Assume westerly shear and veering winds in lowest
  6 km

41
View from South
42
View from East
43
Helicity
44
Convective Richardson Number
45
CAPE
46
Wind Shear
