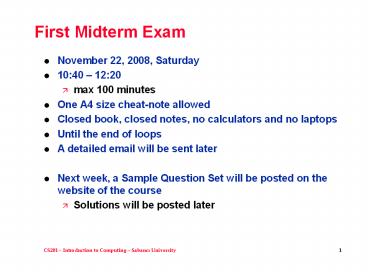

First Midterm Exam

1
First Midterm Exam

• November 22, 2008, Saturday
• 1040 1220
• max 100 minutes
• One A4 size cheat-note allowed
• Closed book, closed notes, no calculators and no
  laptops
• Until the end of loops
• A detailed email will be sent later
• Next week, a Sample Question Set will be posted
  on the website of the course
• Solutions will be posted later

2
Homework 3

• Homework 3 is due November 5, 2008, 1900
• Robot application.
• Be careful where and how you create the robots
• Robot must be created only once within the main
• Examine example robot programs covered in
  recitations
• Scope rules say that each identifier can be used
  only in the compound block in which it is
  declared
• If you receive an undeclared identifier error
  for a robot even you declare it, check where you
  declare and use it!
• Use of functions
• You have to split the task into several functions
• Do not forget to use for robot parameters

3
From Selection to Repetition

• The if statement and if/else statement allow a
  block of statements to be executed selectively
  based on a condition
• cout ltlt "Please enter a non-negative number" ltlt
  endl
• cin gtgt inputnumber
• if (inputnumber lt 0)
• cout ltlt inputnumber ltlt " is negative. Wrong
  Input" ltlt endl
• This piece of code does not ask another input
  number if the number is negative.
• --------------------------------------------------
  --------------------------------------------------
  --
• The while statement repeatedly executes a block
  of statements while the condition is true
• cout ltlt " Please enter a non-negative number" ltlt
  endl
• cin gtgt inputnumber
• while (inputnumber lt 0)
• cout ltlt inputnumber ltlt " is negative! Try
  again" ltlt endl
• cin gtgt inputnumber

4
Semantics of while loop

• if (test) while (test)
• statement list statement list

5
Another simple example

• Calculate the sum of the integer numbers between
  1 and 10
• int sum 0 // this program piece
• int num 1 // calculates the sum of
• while (num lt 10) // integers between and
• // including 1 and 10
• sum sum num
• num 1

6
Easy Example (not in book)

• Input 10 integer numbers and find their sum
• What about having cin gtgt num sum sum num
  10 times?
• not a good solution
• Good solution is to use loops.
• code is developed on board. see sum10nums.cpp
• This type of loops are called counting loops
• number of iterations is known

7
Another easy example (not in book)

• Read a sequence of integer numbers from keyboard
  and find their sum.
• input should finish when user enters 1
• -1 is the sentinel value in this example
• not to be added to the sum
• Code is developed on board (see sumnums.cpp)
• This type of loop is called conditional loop
• number of iterations is not known
• depends on input

8
Anatomy of a loop
sum 0 count 1 while (count lt
10) cin gtgt num sum num count 1
initialization
Loop test expression
Loop body
Update statement
9
Anatomy of a loop

• Initialize variables used in loop body and loop
  test (before loop)
• No general rule. The way of initialization and
  the initial values are to be determined according
  to the application
• The loop test is evaluated before each loop
  iteration
• NOT evaluated after each statement in the loop
  body
• Current value of variables are used for the loop
  test before each iteration
• The loop body must update some variables used in
  the loop test so that the loop eventually
  terminates
• If loop test is always true, loop is infinite
• Infinite loops must be avoided
• Basic rule of designing a loop
• Initialization, loop test and update parts should
  be designed carefully in order to iterate the
  loop as many times as needed
• neither one less nor one more.
• Unfortunately there is no straightforward rule of
  designing a bug-free loop
• you should be able to develop those parts by
  understanding and analyzing the underlying
  problem that needs a loop

10
The for loop

• Initialization, test and update parts are
  combined
• for (initialization loop test expression
  update)
• statement list //loop body
• initialization statement
• executed once before the loop
• test expression
• boolean expression
• checked each time before entering the loop body
• if true execute loop body, if false terminate
  loop
• update statement
• executed after the last statement of the loop
  body in every iteration

11
for loop example

• sum 0
• count 1
• while (count lt 10)
• sum sum count
• count count 1

• sum 0
• for (count 1 count lt 10 count count1)
• sum sum count

12
Example Print a string backwards (revstring.cpp)

• Determine the index of the last character of the
  string, and then access each character backwards
• How many times should the loop iterate ?
• string s int k
• cout ltlt "enter string "
• cin gtgt s
• cout ltlt s ltlt " reversed is "
• k s.length() - 1 // index of last
  character in s
• while (k gt 0)
• cout ltlt s.substr(k,1)
• k - 1
• cout ltlt endl
• What could we use instead of s.substr(k,1) ?
• s.at(k)

13
Reverse String as a function

• First step, what is the prototype?
• string revstring(string s)
• // pre s c0c1c2cn-1
• // post return cn-1c2c1c0
• Second step, how do we build a new string?
• Start with an empty string, ""
• Add one character at each iteration using
  concatenation,
• rev rev s.substr(k,1)
• Use revstring to determine if a string is a
  palindrome

14
See palindrome.cpp for full program

• string revstring(string s)
• // post returns reverse of s, that is
  "stab" for "bats"
• int k s.length() - 1
• string rev "" // start with
  empty string
• while (k gt 0)
• rev rev s.substr(k,1)
• k - 1
• return rev
• bool IsPalindrome(string word)
• // post returns true if and only word is a
  palindrome
• return word revstring(word)

15
Infinite loops

• Infinite loop is something that must be avoided
• happens when the loop condition is always true
• same loop body iterates indefinitely
• sometimes you see an output, sometimes you dont
• press Ctrl-C to stop
• maybe the effect of a wrong or missing update
  statement
• maybe due to a wrong condition may be due to
  another reason
• Example consider the following modified code
  from sum10nums
• Whats the problem in the loop below? What is
  missing?
• count never reaches 10, because count is not
  updated in the loop
• sum 0
• count 1
• while (count lt 10)
• cin gtgt num
• sum num

16
Infinite loops

• What is the problem with the code below?
• cannot say infinite loop, depends on input number
• For example, if num is an odd number, then the
  loop is infinite
• cin gtgt num
• int start 0
• while (start ! num)
• start 2
• cout ltlt start ltlt endl

17
Developing Loops

• Some loops are easy to develop, others are not
• Sometimes the proper loop test and body are hard
  to design
• Practice helps, but remember
• Good design comes from experience, experience
  comes from bad design
• There are other loop statements in addition to
  while,
• for loop
• do-while loop
• similar idea
• some minor differences
• will see later

18
Number Crunching

• Number crunching is a CS term that means a
  computing operation that requires several (and
  sometimes complex) arithmetic operations
• was the job of early computers
• Numeric Analysis
• classical subdiscipline of computer science
• today
• implicitly or explicitly, all operations are
  numeric
• Now we will see some mathematical applications
• factorial calculation
• prime number testing

19
Factorial

• N! 1x2xxN is N factorial used in math,
  statistics
• long factorial(long n)
• // pre 0 lt n
• // post returns n! (1 x 2 x x n)
• Similar to sum, but this time we will calculate a
  product within the loop. At the end we will
  return the final product.
• The loop will iterate n times, multiplying by 1,
  2, , n
• Suppose we use a variable called product to hold
  the result, then product is n! when the loop
  terminates. So we will return it at the end.

20
Factorial

• long Factorial(int num)
• // precondition num gt 0
• // postcondition returns num! (1 x 2 x x num)
• long product 1
• int count 0
• while (count lt num)
• count 1
• product count
• return product
• Issues
• Why did we use long? What happens if we use int
  instead?
• what happens if we initialize count to 1?
• Lets see fact.cpp

21
Factorial (Contd) Using BigInt class

• What is the problem of the previous program?
• integer overflow
• even long is not sufficient (actually there is
  not difference between long and int for 32-bit
  computers like ours)
• 12! is 479,001,600 so what happens with 13! ?
• The type BigInt, accessible via include
  "bigint.h" can be used like an int, but gets as
  big as you want it to be
• Really arbitrarily large?
• No, limited to computer memory, but computers
  most likely run out of time before running out of
  memory
• Disadvantages of using BigInt compared to int?
• processing speed is lower
• uses up more memory
• Use BigInt if you really need it
• Do not forget to add bigint.cpp to your project,
• BigInt is a Tapestry class
• Download wincode.zip file from http//cs.duke.edu/
  csed/tapestry

22
Factorial using BigInt class

• See bigfact.cpp

23
Determining if a number is prime

• Prime number is a natural number which has only
  two divisors 1 and itself
• Some Cryptographic algorithms depend on prime
  numbers
• Determining if a number is prime must be easy
• Actually factoring a number must be hard
• hard in the sense that it must be
  computationally infeasible to factorize in a
  reasonable amount of time
• RSA Cryptosystem
• Rivest, Shamir, Adleman
• based on the factorization problem of large
  numbers
• has been utilized by several security products
  and services
• PGP (Pretty Good Privacy) e-mail security
• WWW security using SSL protocol
• Sophisticated mathematics used for fast
  prime-testing, well do basic prime testing
  thats reasonably fast for small numbers, but not
  good enough for RSA (why not?)
• because our algorithm is based on factorization,
  so it is really slow for large numbers

24
Determining Primeness (continued)

• 1 is NOT prime, 2 is prime, 3 is prime, 5 is
  prime, 17 is prime, 137, 193?
• We do not need to check even numbers other than 2
  (2 is a special case)
• To check 193, divide it by 3, 5, 7, 9, 11, 13
• Note that 14x14 196, so 13 largest potential
  factor?
• we use modulus operator to check divisibility
• Well check odd numbers as potential divisors
• Watch out for 2, it is a special case
• How far should we go to check potential divisors?
• up to and including sqrt(number) 1
• If there was a bigger factor, a smaller factor
  would exist. And this smaller one must have been
  checked before. So we do not need to go beyond
  this limit.
• 1 is there to make sure that there will be no
  problems with precision
• See primes.cpp for code

25
Primeness Check Details

• Special even number check is added before the
  loop to eliminate even numbers to be checked in
  the loop
• In order to make the code more efficient
• int limit int(sqrt(n) 1)
• To assign a double value to an int, a typecast is
  used, to tell the compiler that the loss of
  precision is intentional
• Make typecasts explicit to tell the compiler you
  know what you are doing
• Compiler warnings are avoided
• We will see typecast in more detail later

26
What is next with loops

• Loops are useful instruments in program
  development
• Loops are statements, can be combined with other
  loops, with if statements, in functions, etc.
• Other kinds of looping statements can make
  programming simpler
• for loops
• good for counting loops
• do while loops
• good if the loop body must be executed at least
  once
• nested loops
• loops inside other loops

27
Four Sections of a while loop
28
The for loop

• Initialization, test and update parts are
  combined
• for (initialization test expression update)
• statement list //loop body
• initialization statement
• executed once before the loop
• test expression
• boolean expression
• checked each time before entering the loop body
• if true execute loop body, if false terminate
  loop
• update statement
• executed after the last statement of the loop
  body in every iteration
• several statements in initialization and update
  are separated by comma
• initialization and/or test and/or update parts
  could be missing
• but semicolons are there

29
The for loop

• For loops are good for counting loops (although
  they can be used for conditional loops)
• Number of iterations known before loop begins
• Example sum of 10 input numbers
• Example print a string vertically
• void Vertical(string s)
• // post chars of s printed vertically
• int len int k
• len s.length()
• k 0
• while (k lt len)
• cout ltlt s.substr(k,1) ltlt endl
• k 1
• // for loop alternative 1 // for loop
  alternative 2
• int len int k
• len s.length() int len int k

// for loop alternative 3 int len int k
len s.length() k 0 for( k lt len k
1) cout ltlt s.substr(k,1) ltlt endl
30
Example

• Rewrite the while loop of main of primes.cpp
  using for
• k low while (k lt high) if
  (IsPrime(k)) cout ltlt k ltlt endl
  numPrimes 1 k 1

• for (k low k lt high k 1) if
  (IsPrime(k)) cout ltlt k ltlt endl
  numPrimes 1

31
Shorthand for increment/decrement

• Lots of code requires incrementing a variable by
  one
• Three methods, using and , using , and using

• effectively they are same
• num num 1
• num 1
• num // post increment
• It is also possible to write num
• preincrement
• These differ on when the increment is performed,
  but this difference doesnt matter when used as
  an abbreviation for the statement n 1 in a
  single statement
• Similarly there are postdecrement (and
  predecrement)
• num num - 1 num - 1 num--

32
The do-while loop

• Similar to while loop, but the test is after the
  execution of the loop body
• The while loop may never execute, do-while loop
  executes at least once
• do
• loop body
• while (test ) //executes
  loop while the test is true
• Example Prompt for a number between 0 and 100,
  loop until such a number is entered
• user should enter at least one number
• do
• cout ltlt "enter number in range 0..100 "
• cin gtgt num
• while (num lt 0 num gt 100 )

33
Priming

• Priming reading an initial value before the loop
• do not get confused with prime numbers this is
  something else
• Problem enter numbers, add them up, stop when -1
  entered
• int sum 0
• int num
• cin gtgt num // prime the loop
• while (num ! -1)
• sum num
• cin gtgt num
• cout ltlt "total " ltlt sum ltlt end
• Code duplication exists here input (and perhaps
  prompt) code is repeated before the loop and in
  the loop

34
Pseudo infinite solution using break

• To avoid repeating code, include it in the body
  of the loop only, use a test to break out of the
  loop
• break statement exits (inner-most) loop
• I dont like this kind of loops (Id prefer code
  duplication).
• I do NOT recommend to use break to break the
  loops
• int sum 0
• int num
• while (true) //seemingly infinite loop
• cin gtgt num
• if (num -1)
• break // get out of loop
• sum num
• cout ltlt "total " ltlt sum ltlt end

35
Fence Post Problem

• The problem that occurs when one or more
  operations of the loop body are executed one less
  then the others.
• Example Display integers between 1 and 10
  separated by comma
• 1,2,3,4,5,6,7,8,9,10
• no comma after 10 no comma before 1.
• for (n1 n lt 10 n)
• cout ltlt n ltlt ","
• Problem comma after 10
• for (n1 n lt 10 n)
• cout ltlt n ltlt ","
• cout ltlt n No problem, but code
  duplicates
• Think of other solutions! (see page 175 of
  Tapestry)

36
Nested loops

• Sometimes one loop occurs in another
• Generating 2-dimensional tabular data
• multiplication table
• Sorting vectors (which will be studied much
  later)
• display some geometric figures using character
  (or any other character)
• display rectangles, triangles
• Although other loops can be nested as well, most
  of the time, for loops are used in nested manner

37
Nested loops - Example

• Write a function to display a rectangle of stars
  (height and width are parameters)
• e.g. if height is 4 and width is 7, the output
  should look like
• for (i1 ilt height i)
• for (j1 jltwidth j) // inner loop
  prints one line of stars
• cout ltlt ""
• cout ltlt endl // end of line marker is put to
  the end of each line
• See drawfigures.cpp for the complete function and
  its use in main

38
Nested loops - Example

• Write a function to display a perpendicular
  isosceles triangle of stars (perpendicular side
  length is parameter)
• e.g. if side length is 6 , the output should
  look like
• for (i1 ilt side i)
• for (j1 jlti j) // inner loop prints
  one line of stars
• cout ltlt ""
• cout ltlt endl // end of line marker is put to
  the end of each line
• See drawfigures.cpp for the complete function and
  its use in main

39
Drawfigures Other Considerations

• What about having a function to display a line of
  stars (number of stars is a parameter)
• useful for both rectangle and triangle
• void PrintLine (int numstars)
• // pre numstars gt 0
• // post displays numstars stars in one line
• int i
• for (i1 ilt numstars i)
• cout ltlt ""
• cout ltlt endl // end of line marker is put to
  the end of the line
• in rectangle function, inner loop is replaced by
  a function call
• for (i1 iltheight i)
• PrintLine(width)
• use of PrintLine in triangle function is similar

40
Example Multiplication Table

• On ith line print, i1, i2, i3, ... , ii
• total number of lines is an input. Display lines
  starting with 1.
• See multiply.cpp
• include ltiostreamgt
• include ltiomanipgt // for setw
• using namespace std
• int main()
• int i,k,numlines
• const int WIDTH 4
• cin gtgt numlines
• for(i1 i lt numlines i)
• for(k1 k lt i k)
• cout ltlt setw(WIDTH) ltlt ik
• cout ltlt endl

41
Constants

• Sometimes very useful
• provide self documentation and avoid accidental
  value changes
• like variables, but their value is assigned at
  declaration and can never change afterwards
• declared by using const before the type name (any
  type is OK)
• const double PI 3.14159
• const string thisclass "CS201"
• const int WIDTH 4
• later you can use their value
• cout ltlt PI44
• but cannot change their value
• PI 3.14 causes a syntax error

42
Formatting Output

• We use stream manipulator setw to specify the
  total number of spaces that the next output will
  use
• setw(field length)
• written in cout and affects only the next output
  value
• not the whole cout line
• output is displayed using field length spaces in
  right justified manner (any empty space is on the
  left)
• defined in header file ltiomanipgt, so you have to
  have include ltiomanipgt
• Example
• cout ltlt setw(9) ltlt "cs201"
• output shown is four blanks and cs201

43
Example using robot class (see rectangularscan.cpp
)

• Write a program in which the robot starts at 0,0
  and searches a rectangular space that covers nn
  cells
• n is input (in the example below, n is 8)
• during this journey the robot should pick or put
  things on the cells so that all visited cells
  occupy one thing
