What are Shadows?

1

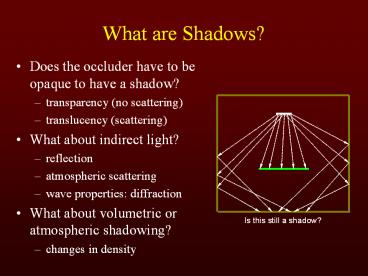

What are Shadows?

• Does the occluder have to be opaque to have a
  shadow?
• transparency (no scattering)
• translucency (scattering)
• What about indirect light?
• reflection
• atmospheric scattering
• wave properties diffraction
• What about volumetric or atmospheric shadowing?
• changes in density

Is this still a shadow?
2
Common Shadow Algorithm Restrictions

• No transparency or translucency!
• Limited forms can sometimes be handled
  efficiently
• Backwards ray-tracing has no trouble with these
  effects, but it is much more expensive than
  typical shadow algorithms
• No indirect light!
• More sophisticated global illumination algorithms
  handle this at great expense (radiosity,
  backwards ray-tracing)
• No atmospheric effects (vacuum)!
• No indirect scattering
• No shadowing from density changes
• No wave properties (geometric optics)!

3
What Do We Call Shadows?

• Regions not completelyvisible from a light
  source
• Assumptions
• Single light source
• Finite area light sources
• Opaque objects
• Two parts
• Umbra totally blocked from light
• Penumbra partially obscured

area light source
shadow
umbra
penumbra
4
Basic Types of Light Shadows
area, direct indirect
area, direct only
point, direct only
directional, direct only
SOFT SHADOWS
HARD or SHARP SHADOWS
simpler
more realistic
more realistic for small-scale scenes,
directional is realistic for scenes lit by
sunlight in space!
5
Goal of Shadow Algorithms
Ideally, for all surfaces, find the fraction of
lightthat is received from a particular light
source

• Shadow computation can be considered a global
  illumination problem
• this includes ray-tracing and radiosity!
• Most common shadow algorithms are restricted to
  direct light and point or directional light
  sources
• Area light sources are usually approximated by
  many point lights or by filtering techniques

6
Global Shadow Component inLocal Illumination
Model
Without shadows
With shadows

• Shadowi is the fraction of light received at the
  surface
• For point lights, 0 (shadowed) or 1 (lit)
• For area lights, value in 0,1
• Ambient term approximates indirect light

7
What else does this say?

• Multiple lights are not really difficult
  (conceptually)
• Complex multi-light effects are many single-light
  problems summed together!
• Superposition property of illumination model
  (Bastos)
• This works for shadows as well!
• Focus on single-source shadow computation
• Generalization is simple, but efficiency may be
  improved

8
Characteristics of Shadow Algorithms

• Light-source types
• Directional
• Point
• Area
• Light transfer types
• Direct vs. indirect
• Opaque only
• Transparency / translucency
• Atmospheric effects
• Geometry types
• Polygons
• Higher-order surfaces

9
Characteristics of Shadow Algorithms

• Computational precision (like visibility
  algorithms)
• Object precision (geometry-based, continuous)
• Image precision (image-based, discrete)
• Computational complexity
• Running-time
• Speedups from static viewer, lights, scene
• Amount of user intervention (object sorting)
• Numerical degeneracies

10
Characteristics of Shadow Algorithms

• When shadows are computed
• During rendering of fully-lit scene (additive)
• After rendering of fully-lit scene
  (subtractive)not correct, but fast and often
  good enough
• Types of shadow/object interaction
• Between shadow-casting object and receiving
  object
• Object self-shadowing
• General shadow casting

11
Taxonomy of Shadow Algorithms

• Object-based
• Local illumination model (Warnock69,Gouraud71,Pho
  ng75)
• Area subdivision (Nishita74,Atherton78)
• Planar projection (Blinn88)
• Radiosity (Goral84,Cohen85,Nishita85)
• Image-based
• Shadow-maps (Williams78,Hourcade85,Reeves87)
• Projective textures (Segal92)
• Hybrid
• Scan-line approach (Appel68,Bouknight70)
• Ray-tracing (Appel68,Goldstein71,Whitted80,Cook84)

• Backwards ray-tracing (Arvo86)
• Shadow-volumes (Crow77,Bergeron86,Chin89)
• More complete surveys found in (Crow77 Woo90)

12
Taxonomy of Shadow Algorithms

• Focus is on the following algorithms
• Local illumination
• Ray-tracing
• Planar projection
• Shadow volumes
• Projective textures
• Shadow-maps
• Will briefly mention
• Scan-line approach
• Area subdivision
• Backwards ray-tracing
• Radiosity

13
Local Illumination Shadows

• Backfacing polygons are in shadow (only lit by
  ambient)
• Point/directional light sources only
• Partial self-shadowing
• like backface culling is a partial visibility
  solution
• Very fast (often implemented in hardware)
• General surface types in almost any rendering
  system!

14
Local Illumination Shadows

• Typically, not considered a shadow algorithm
• Just handles shadows of the most restrictive form
• Dramatically improves the look of other
  restricted algorithms

15
Local Illumination Shadows

• Properties
• Point or directional light sources
• Direct light
• Opaque objects
• All types of geometry (depends on rendering
  system)
• Object precision
• Fast, local computation (single pass)
• Only handles limited self-shadowing
• convenient since many algorithms do not handle
  any self-shadowing
• Computed during normal rendering pass
• Simplest algorithm to implement

16
Planar Projection Shadows

• Shadows cast by objects onto planar surfaces
• Brute force project shadow casting objects onto
  the plane and draw projected object as a shadow

Directional light(parallel projection)
Point light(perspective projection)
17
Planar Projection Shadows

• Not sufficient
• co-planar polygons (Z-fighting) depth bias
• requires clipping to relevant portion of plane
  shadow receiver stenciling

18
Planar Projection Shadowsbetter approach,
subtractive strategy

• Render scene fully lit by single light
• For each planar shadow receiver
• Render receivers stencil pixels covered
• Render projected shadow casters in a shadow color
  with depth testing on, depth biasing (offset from
  plane), modulation blending, and stenciling (to
  write only on receiver and to avoid double pixel
  writing)
• Receiver stencil value1, only write where
  stencil equals 1, change to zero after modulating
  pixel

Texture is visible in shadow
19
Planar Projection Shadowsproblems with
subtractive strategy

• Called subtractive because it begins with
  full-lighting and removes light in shadows
  (modulates)
• Can be more efficient than additive (avoids
  passes)
• Not as accurate as additive. Doesnt follow
  lighting model
• Specular and diffuse components in shadow
• Modulates ambient term
• Shadow color is chosen by user

as opposed to the correct version
20
Planar Projection Shadowseven better approach,
additive strategy

• Draw ambient lit shadow receiving scene (global
  and all lights local ambient)
• For each light sourceFor each planar receiver
• Render receiver stencil pixels covered
• Render projected shadow casters into stenciled
  receiver area depth testing on, depth biasing,
  stencil pixels covered by shadow
• Re-render receivers lit by single light source
  (no ambient light) depth-test set to EQUAL,
  additive blending, write only into stenciled
  areas on receiver and not in shadow
• Draw shadow casting scene full-lighting

21
Planar Projection ShadowsProperties

• Point or directional light sources
• Direct light
• Opaque objects (could fake transparency using
  subtractive)
• Polygonal shadow casting objects, planar
  receivers
• Object precision
• Number of passes Lnum lights, Pnum planar
  receivers
• subtractive 1 fully lit pass, LP special
  passes (no lighting)
• additive 1 ambient lit pass, 2LP receiver
  passes, LP caster passes

22
Planar Projection ShadowsProperties

• Can take advantage of static components
• static objects lights precompute silhouette
  polygon from light source
• static objects viewer precompute first pass
  over entire scene
• Visibility from light is handled by user(must
  choose casters and receivers)
• No self-shadowing (relies on local illumination)
• Both subtractive and additive strategies
  presented
• Conceptually simple, surprisingly difficult to
  get right
• gives techniques needed to handle more
  sophisticated multi-pass methods

23
Projective Texture ShadowsWhat are Projective
Textures?

• Texture-maps that are mapped to a surface through
  a projective transformation of the vertices into
  the textures camera space

24
Projective Texture ShadowsHow do we use them to
create shadows?

• Project a modulation image of the shadow casting
  objects from the lights point-of-view onto the
  shadow receiving objects

Lights point-of-view
Shadow projective texture (modulation image or
light-map)
Eyes point-of-view, projective texture applied
to ground-plane(self-shadowing is from another
algorithm)
25
Projective Texture ShadowsMore examples
Cast shadows from complex objects onto complex
objects in only 2 passes over shadow casters and
1 pass over receivers (for 1 light)
Lighting for shadowed objects are computed
independently for each light source and summed
into a final image
Colored light sources. Lit areas are modulated by
value of 1 and shadow areas can be any ambient
modulation color
26
Ray-tracing Shadows

• Only interested in shadow-ray tracing (shadow
  feelers)
• For a point P in space, determine if it is shadow
  with respect to a single point light source L by
  intersecting line segment PL (shadow feeler) with
  the environment
• If line segment intersects object, then P is in
  shadow, otherwise, point P is illuminated by
  light source L

L
shadow feeler(edge PL)
P
27
Ray-tracing Shadows

• Arguably, the simplest general algorithm
• Can even handle area light sources
• point-sample area source distributed ray-tracing
  (Cook84)

Li
Area light Li
P
P
Shadowi 0
Shadowi 2/5
28
Ray-tracing Shadows
Sounds great, whats the problem?

• Slow
• Intersection tests are expensive
• May be sped up with standard ray-tracing
  acceleration techniques
• Shadow feeler may incorrectly intersect object
  touching P
• Depth bias
• Object tagging
• Dont intersect shadow feeler with object
  touching P
• Works only for objects not requiring
  self-shadowing

29
Ray-tracing Shadows

• How do we use the shadow feelers?
• 2 different rendering methods
• Standard ray-casting with shadow feelers
• Hardware Z-buffered rendering with shadow feelers

30
Ray-tracing Shadows
Ray-casting with shadow feelers
Light

• For each pixel
• Trace ray from eye through pixel center
• Compute closest object intersection point P along
  ray
• Calc Shadowi for point by performing shadow
  feeler intersection test
• Calc illumination at point P

Eye
31
Ray-tracing Shadows
Z-buffering with shadow feelers

• Render the scene into the depth-buffer (no need
  compute color)
• For each pixel, determine if in shadow
• unproject the screen space pixel point to
  transform into eye space
• Perform shadow feeler test with light in eye
  space to compute Shadowi
• Store Shadowi for each pixel
• Light the scene using per-pixel Shadowi values

Light
Eye
32
Ray-tracing Shadows

• Z-buffering with shadow feelers

How do we use per-pixel Shadowi values to light
the scene?

• Method 1 compute lighting at each pixel in
  software
• Deferred shading
• Requires object surface info (normal, materials)
• Could use more complex lighting model

33
Ray-tracing Shadows

• Z-buffering with shadow feelers

How do we use per-pixel Shadowi values to light
the scene?

• Method 2 use graphics hardware
• For point lights
• Shadowi values either 0 or 1
• Use stencil buffer, stencil values Shadowi
  values
• Re-render scene with the corresponding light on
  using graphics hardware but use stencil test to
  only write into lit pixels (stencil1). Should
  perform additive blending and ambient-lit scene
  should be rendered in depth computation pass.
• For area lights
• Shadowi values continuous in 0,1
• Multiple-passes and modulation blending
• Pixel Contribution Ambienti
  Shadowi(DiffuseiSpeculari)

34
Shadow-Mapsfor accelerating ray-traced shadow
feelers
Light

• Previously, shadow feelers had to be intersected
  against all objects in the scene
• What if we knew the nearest intersection point
  for all rays leaving the light?
• The depth-buffer of the rendered scene from a
  camera at the light would give us a discretized
  version of this
• This depth-buffer is called a shadow-map
• Instead of intersecting rays with objects, we
  intersect the ray with the light viewplane, and
  lookup up the nearest depth value.
• If the lights depth value at this point is less
  than the depth to the eye-ray nearest
  intersection point, then this point is in shadow!

Light-ray nearest intersection point
Eye
L
E
Eye-ray nearest intersection point
If L is closer to the light than E, then E is in
shadow
35
Shadow-Mapsfor accelerating ray-traced shadow
feelers

• Cool, we can really speed up ray-traced shadows
  now!
• Render from eye view to accelerate first-hit
  ray-casting
• Render from light view to store first-hits from
  light
• For each pixel-ray in the eyes view, we can
  project the first hit point into the lights view
  and check if anything is intersecting the shadow
  feeler with a simple table lookup!
• The shadow-map is discretized, but we can just
  use the nearest value.
• What are the potential problems?

36
Shadow-MapsProblems with Ray-traced Shadow Maps

• Still too slow
• requires many per-pixel operations
• does not take advantage of pixel coherence in eye
  view
• Still has self-shadowing problem
• need a depth bias
• Discretization error
• Using the nearest depth value to the projected
  point, may not be sufficient
• How can we filter the depth-values? The standard
  way does not really make sense here.

37
Shadow-Mapsfaster way standard shadow-map
approach

• Not normally used as a ray-tracing acceleration
  technique, normally used in a standard Z-buffered
  graphics system
• Two methods presented (Williams78)
• Subtractive post-processing on final lit image
  (like full-scene image warping)
• Additive as implemented in graphics hardware
  (OpenGL extension on InfiniteReality)

38
Shadow-Mapsillustration of basic idea
Shadow-map from light 1
Shadow-map from light 2
Final view
39
Shadow-MapsSubtractive

• Render fully-lit scene
• Create shadow-map render depth from lights view
• For each pixel in final image
• Project point at each pixel from eye screen-space
  into light screen-space (keep eye-point depth De)
• Look up light depth value Dl
• Compare depth values, if DlltDe eye-point is in
  shadow
• Modulate, if point is in shadow

40
Shadow-MapsSubtractive advantages

• Constant time shadow computation!
• just like full-scene image-warping eye view
  pixels are warped to light view and then a depth
  comparison is performed
• Only a 2-pass algorithm
• 1 eye pass, 1 light pass (and 1 constant time
  image-warping pass)
• Deferred shading (for shadow computation)

Zhang98 presents a similar approach using a
forward-mapping (from light to eye, reverses this
whole process)
41
Shadow-MapsSubtractive disadvantages

• Not as accurate as additive (same reasons)
• Specular and diffuse components in shadow
• Modulates ambient term
• Has standard shadow-map problems
• Self-shadowing depth-bias needed
• Depth sampling error how do we accurately
  reconstruct depth values from a point-sampling?

42
Shadow-MapsAdditive

• Create shadow-map render depth from lights view
• Use shadow-map as a projective texture!
• While scan-converting triangles
• apply shadow-map projective texture
• instead of modulating with looked-up depth value
  Dl, compare the value against the r-value (De) of
  the transformed point on the triangle
• Compare De to Dl , if DlltDe eye-point is in shadow

Basically, scan-converting triangle in both eye
and light spaces simultaneously and performing a
depth comparison in light space against
previously stored depth values
43
Shadow-MapsAdditive advantages

• Easily implemented in hardware
• only a slight change to the standard
  perspectively-correct texture-mapping hardware
  add an r-component compare op
• Fastest, most general implementation to date!
• As fast as projective textures, but general!

44
Shadow-MapsAdditive disadvantages

• Computes shadows on a per-primitive basis
• All pixels covered by all primitives must go
  through shadowing and lighting operation whether
  visible or not (no deferred shading)
• Still has standard shadow-mapping problems
• Self-shadowing
• Depth sampling error

45
Shadow-MapsSolving main problems self-shadowing

• Use a depth bias during the transformation into
  light space
• Add a z translation towards the light source
  after transformation from eye to light
• OR
• Add z-translation towards eye before transforming
  into light space
• OR
• Translate eye-space point along surface normal
  before transforming into light space

46
Shadow-Maps

• Solving main problems depth sampling
• Could just use the nearest sample, but how would
  you anti-alias depth?

47
Shadow-MapsDepth sampling normal filtering

• Averaging depth doesnt really make sense
  (unrelated to surface, especially at shadow
  boundaries!)
• Still a binary result, (no anti-aliased softer
  shadows)

48
Shadow-MapsDepth sampling percentage closer
filtering (Reeves87)

• Could average binary results of all depth map
  pixels covered
• Soft anti-aliased shadows
• Very similar to point-sampling across an area
  light source in ray-traced shadow computation

49
Shadow-MapsHow do you choose the samples?
Quadrilateral represents the area covered by a
pixels projection onto a polygon after being
projected into the shadow-map
50
Scanline Algorithmsclassic by Bouknight and
Kelley

• Project edges of shadow casting triangles onto
  receivers
• Use shadow-volume-like parity test during
  scanline rasterization

51
Scanline Algorithms

• Project all other polygons onto each polygon
  being considered for the current scan-line.
• Projection is from the light source (point or
  parallel)
• Perform span determination for the visible
  surface.
• Perform spans again using the projected shadows.
• If object span and shadow span (for the closest)
  object do not overlap, draw the object span as
  normal.
• Unshadowed part is visible, shadowed part is
  hidden.
• If shadow span completely overlaps the object
  span, draw the object span attenuated.
• Otherwise, split the span into two or more
  subspan having either no shadow or complete
  shadow.

52
Scanline Algorithms

• Worst case performance is O(n(n-1)).
• Simplify the process by pre-computing the light
  projections.
• Store as a matrix, with an entry aij indicating
  whether polygon-i occludes polygon-j wrt the
  light source.
• Now, when scan-converting polygon-j, we only need
  to consider those polygons with entries in js
  column.

53
Area-Subdivision Algorithmsbased on
Atherton-Weiler clipping

• Find actual visible polygon fragments
  (geometrically) through generalized clipping
  algorithm
• Create model composed of shadowed and lit
  polygons
• Render as surface detail polygons

54
Area-Subdivision Algorithmsbased on
Atherton-Weiler clipping
55
Multiple Light Sourcesfor any single-light
algorithm

• Accumulate all fully-lit single-light images into
  a single image through a summing blend op
  (standard accumulation buffer or blending
  operations)
• Global ambient lit scene should be added in
  separately
• Very easy to implement
• Could be inefficient for some algorithms
• Use higher accuracy of accumulation buffer
  (usually 12-bit per color component)

56
Area light Sourcesfor any point-light algorithm

• Soft or fuzzy shadows (penumbra)
• Some algorithms have some natural support for
  these
• For restricted algorithms, we can always sample
  the area light source with many point light
  sources jitter and accumulate
• Very expensive many high quality passes to
  obtain something fuzzy
• Not really feasible in most interactive
  applications
• Convolution and image -based methods are usually
  more efficient here
