MapReduce, Hadoop, and MapReduceMerge

1

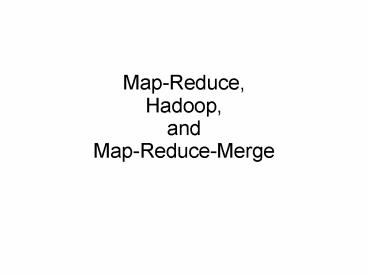

Map-Reduce,Hadoop,andMap-Reduce-Merge
2
Presentation Overview

• What is map-reduce?
• input/output data types
• why is it useful and where is it used?
• Execution overview
• Features
• fault tolerance
• ordering guarantee
• other perks and bonuses
• Hands-on demonstration and follow-along
• Map-reduce-merge

3
What is map-reduce?

• Map-reduce is a programming model (and an
  associated implementation) for processing and
  generating large data sets.
• It consists of two steps map and reduce.
• The map step takes a key/value pair and
  produces an intermediate key/value pair.
• The reduce step takes a key and a list of the
  key's values and outputs the final key/value pair.

4
Types

• map (k1, v1) ? list(k2, v2)?
• reduce (k2, list(v2)) ? list(v2)?

5
Why is this useful?

• Map-reduce jobs are automatically parallelized.
• Partial failure of the processing cluster is
  expected and tolerable.
• Redundancy and fault-tolerance is built in, so
  the programmer doesn't have to worry.
• It scales very well.
• Many jobs are naturally expressible in the
  map/reduce paradigm.

6
What are some uses?

• Word count
• map ltword, 1gt. reduce ltword, gt
• Grep
• map ltfile, linegt. reduce identity
• Inverted index
• map ltword, docIDgt. reduce ltword, list(docID)gt
• Distributed sort (special case)?
• map ltkey, recordgt. reduce identity
• Users Google, Yahoo!, Amazon, Facebook, etc.

7
Presentation Overview

• What is map-reduce?
• input/output data types
• why is it useful and where is it used?
• Execution overview
• Features
• fault tolerance
• ordering guarantee
• other perks and bonuses
• Hands-on demonstration and follow-along
• Map-reduce-merge

8
Execution overview map

• The user begins a map-reduce job. One of the
  machines becomes the master.
• Partition the input into M splits (16-64 MB each)
  and distribute among the machines. A worker
  reads his split and begins work. Upon
  completion, the worker notifies the master.
• The master partitions the intermediate keyspace
  into R pieces with a partitioning function.

9
Execution overview reduce

• When a reduce worker is notified about a job, it
  uses RPC to read the intermediate data from a
  mapper, then sorts it by key.
• The reducer processes its job, then writes its
  output to the final output file for its reduce
  partition.
• When all reducers are finished, the master wakes
  up the user program.

10
What are M and R?

• M is the number of map pieces. R is the number
  of reduce pieces.
• Ideally, M and R are much larger than the number
  of workers. This allows one machine to perform
  many different tasks, improving load balancing
  and speeds up recovery.
• The master makes O(MR) scheduling decisions and
  keeps O(MR) states in memory.
• At least R files end up being written.

11
Example counting words

• We have UTD's fight song
• C-O-M-E-T-S! Go!
• Green, Orange, White!
• Comets! Go!
• Strong of will, we fight for right!
• Let's all show our comet might!
• We want to count the number of occurrences of
  each word.
• The next slides show the map and reduce phases.

12
First stage map

• Go through the input, and for each word return a
  tuple of (ltwordgt, 1).
• Output
• ltC-O-M-E-T-S!, 1gt
• ltGo!, 1gt
• ltGreen,, 1gt
• ltOrange,, 1gt
• ltWhite!, 1gt
• ltComets!, 1gt
• ltGo!, 1gt
• ltStrong, 1gt
• ltof, 1gt
• ...

13
Between map and reduce...

• Between the mapper and the reducer, some gears
  turn within Hadoop, and it groups identical keys
  and sorts by key before starting the reducer.
• Here's the output
• ltC-O-M-E-T-S!, 1gt
• ltComets!, 1gt
• ltGo!, 1,1gt
• ltGreen,, 1gt
• ltOrange,, 1gt
• ltStrong, 1gt
• ltWhite!, 1gt
• ltof, 1gt
• ...

14
Second stage reducer

• The reducer receives the content, one
  key-valuelist pair at a time, and does its own
  processing.
• For wordcount, it sums the values in each list.
• Here's the output
• ltC-O-M-E-T-S!, 1gt
• ltGo!, 2gt
• ltGreen,, 1gt
• ltOrange,, 1gt
• Then it writes these tuples to the final files in
  the HDFS.

15
How can we improve our wordcount?Also, any
questions?
16
Presentation Overview

• What is map-reduce?
• input/output data types
• why is it useful and where is it used?
• Execution overview
• Features
• fault tolerance
• ordering guarantee
• other perks and bonuses
• Hands-on demonstration and follow-along
• Map-reduce-merge

17
Fault tolerance

• Worker failure is expected. If a worker fails
  during a map phase, its workload is reassigned to
  another worker. If a mapper fails during a
  reduce phase, both phases are re-executed.
• Master failure is not expected, though
  checkpointing can be used for recovery.
• If a particular record causes the mapper or
  reducer to reliably crash, the map-reduce system
  can figure this out, skip the record, and proceed.

18
Ordering guarantee

• The implementation of map-reduce guarantees that
  within a given partition, the intermediate
  key/value pairs are processed in increasing key
  order.
• This means that each reduce partition ends up
  with an output file sorted by key.

19
Partitioning function

• By default, your reduce tasks will be distributed
  evenly by using a hash(intrmdt-key) mod N
  function.
• You can specify a custom partitioning function.
• Useful for locality reasons, such as if the key
  is a URL and you want all URLs belonging to a
  single host to be processed on a single machine.

20
Combiner function

• After a map phase, the mapper transmits over the
  network the entire intermediate data file to the
  reducer.
• Sometimes this file is highly compressible.
• The user can specify a combiner function. It's
  just like a reduce function, except it's run by
  the mapper before passing the job to the reducer.

21
Counters

• A counter can be associated with any action that
  a mapper or a reducer does. This is in addition
  to default counters such as the number of input
  and output key/value pairs processed.
• A user can watch the counters in real time to
  see the progress of a job.
• When the map/reduce job finishes, these counters
  are provided to the user program.

22
Presentation Overview

• What is map-reduce?
• input/output data types
• why is it useful and where is it used?
• Execution overview
• Features
• fault tolerance
• ordering guarantee
• other perks and bonuses
• Hands-on demonstration and follow-along
• Map-reduce-merge

23
What is ?

• Hadoop is the implementation of the map/reduce
  design that we will use.
• Hadoop is released under the Apache License 2.0,
  so it's open source.
• Hadoop uses the Hadoop Distributed File System,
  HDFS. (In contrast to what we've seen with
  Lucene.)?
• Get the release from
• http//hadoop.apache.org/core/

24
Preparing Hadoop on your system

• Configure passwordless public-key SSH on
  localhost
• Configure Hadoop
• look at the two configuration files at
  http//utdallas.edu/pmw033000/hadoop/
• Format the HDFS
• bin/hadoop namenode -format
• Start Hadoop
• cd lthadoop-dirgt
• bin/start-all.sh (and wait 20 seconds)?

25
Example grep

• Standard Unix 'grep' behavior run it on the
  command line with the search string as the first
  argument and the list of files or directories as
  the subsequent argument(s).
• grep HelloWorld file1.c file2.c file3.c
• file2.cSystem.out.println(I say HelloWorld!)

26
Preparing for 'grep' in Hadoop

• Hadoop's jobs always operate within the HDFS.
• Hadoop will read its input from HDFS, and will
  write its output to HDFS.
• Thus, to prepare
• Download a free electronic book
• http//utdallas.edu/pmw033000/hadoop/book.txt
• Load the file into HDFS
• bin/hadoop fs -copyFromLocal book.txt /book.txt

27
Using 'grep' within Hadoop

• bin/hadoop jar \
• hadoop-0.18-2-examples.jar \
• grep /book.txt /grep-result \
• search string
• bin/hadoop fs -ls /grep-result
• bin/hadoop fs -cat /grep-result/part-00000
• A good string to try Horace de \S
• Between job runs bin/hadoop fs -rmr /grep-result

28
How 'grep' in Hadoop works

• The program runs two map/reduce jobs in sequence.
  The first job counts how many times a matching
  string occurred and the second job sorts matching
  strings by their frequency and stores the output
  in a single output file.
• Each mapper of the first job takes a line as
  input and matches the user-provided regular
  expression against the line. It extracts all
  matching strings and emits (matching string, 1)
  pairs. Each reducer sums the frequencies of each
  matching string. The output is sequence files
  containing the matching string and count. The
  reduce phase is optimized by running a combiner
  that sums the frequency of strings from local map
  output. As a result it reduces the amount of data
  that needs to be shipped to a reduce task.
• The second job takes the output of the first job
  as input. The mapper is an inverse map, while the
  reducer is an identity reducer. The number of
  reducers is one, so the output is stored in one
  file, and it is sorted by the count in a
  descending order. The output file is text, each
  line of which contains count and a matching
  string.

29
Another example word count

• bin/hadoop jar hadoop-0.18.2-examples.jar \
• wordcount /book.txt /wc-result
• bin/hadoop fs -cat /wc-result/part-00000 \
• sort -n -k 2
• You can also try passing a -r option to
  increase the number of parallel reducers.
• Each mapper takes a line as input and breaks it
  into words. It then emits a key/value pair of the
  word and 1. Each reducer sums the counts for each
  word and emits a single key/value with the word
  and sum.
• As an optimization, the reducer is also used as a
  combiner on the map outputs. This reduces the
  amount of data sent across the network by
  combining each word into a single record.

30
Presentation Overview

• What is map-reduce?
• input/output data types
• why is it useful and where is it used?
• Execution overview
• Features
• fault tolerance
• ordering guarantee
• other perks and bonuses
• Hands-on demonstration and follow-along
• Map-reduce-merge (proposal not implemented)?

31
Does map-reduce satisfy all needs?

• Map-reduce is great for homogeneous data, such as
  grepping a large collection of files or
  word-counting a huge document.
• Joining heterogeneous databases does not work
  well.
• As is, we'd need additional map-reduce steps,
  such as map-reducing one database and reading
  from the others on the fly.
• We want to support relational algebra.

32
Solution

• The solution to these problems is
  map-reduce-merge. It is map-reduce with a new
  additional merging step.
• The merge phase makes it easier to process data
  relationships among heterogeneous data sets.
• Types
• map (k1, v1)a ? (k2, v2)a
• reduce (k2, v2)a ? (k2, v3)a (notice that
  the output v is a list)?
• merge ((k2, v3)a, (k3, v4)ß) ? (k4, v5)?
• If aß, then the merging step performs a
  self-merge (self-join in R.A.).

33
New terms

• Partition selector determines which data
  partitions produced by reducers should be
  retrieved for merging.
• Processor user-defined logic of processing data
  from an individual source.
• Merger user-defined logic of processing data
  merged from two sources where data satisfies a
  merge condition.
• Configurable iterator next slide.

34
Configurable iterators

• The map and reduce user-defined functions get one
  iterator for the values.
• The merge function gets two iterators, one for
  each data source.
• The iterators do not have to move forward they
  can be instrumented to do whatever the user
  wants.
• Relational join algorithms have specific patterns
  for the merging step.

35
Map-reduce-merge example

• Table A emp-id, dept-id, bonus
• 1, B, 100
• 1, B, 50
• 2, A, 0
• 3, A, 150
• 3, A, 100

Table B dept-id, bonus-adjust B, 1.15 A, 0.95
Final table emp-id, bonus 2, 0 3, 237.5 1,
172.5
36
Map-reduce-merge diagram
