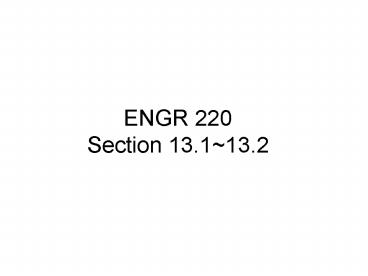

ENGR 220Section 13.113.2
2
(No Transcript)
3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
Buckling of Columns
9
Column Buckling
10
(No Transcript)
11
Ideal Column
BucklingIdeal Column Pin supports at both
centroidLinearly elasticColumn bends in a
single plane
12
(No Transcript)
13
Relate v to Moment via Deflection Equation
14
Deflected shape is a sine curve
15
Column Length
• Shorter is better
• If you double the length then the maximum axial
load decreases by a factor of four.

16
Modulus of Elasticity
• Maximum axial load is independent of the yield
strength of the material.
• High strength steel is no advantage over low
strength steel.

17
Moment of Inertia
• I ? y2 dA
• Second moment of Area
• The load carrying capability of a column
increases as the moment of inertia of a column
increases.
• Columns will buckle about the principal axis
having the least moment of inertia.

18
Efficient Columns have cross sectional area
located as far as possible from centroidal axes.
a-a not
b-b
Circular tubes, Square tubes Better than Solid
sections.
19
Critical Stress
20
21
(No Transcript)
22
(No Transcript)
23
Types of Supports
• Pinned Pinned (Euler Column)
• Fixed Free
• Fixed Fixed
• Fixed Pinned

Moment equation and Boundary Conditions
24
Effective Length Le K L Effective Length
Slenderness Ratio Le/r
25
The Al column is fixed at the bottom and is
braced at the top by cables to prevent movement
along X axis. Determine the largest allowable P
that can be applied. F.S. 3, EAl 70 GPa,
yield stress 215 MPa, A 7.5 x 10-3 m2, Ix
61.3 x 10-6 m4, Iy 23.2 x 10-6 m4
26
13.2 The column consists of a Rigid member
pinned at the bottom and attached to a spring at
the top. When the column is in vertical position,
the spring is unstretched. Determine the critical
load P that can be placed on the column.
27
13.22 Member BD in the truss below, is an A-36
steel rod of radius 2 inches. Determine maximum
load that can be supported by the truss without
causing member BD to buckle. All members are pin
connected.
