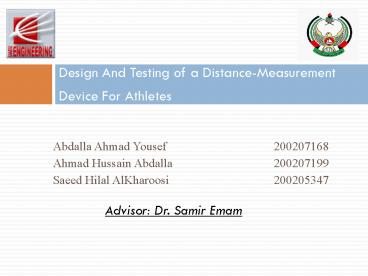

Design And Testing of a Distance-Measurement
Device For Athletes

• Abdalla Ahmad Yousef 200207168
• Ahmad Hussain Abdalla 200207199
• Saeed Hilal AlKharoosi 200205347

Advisor Dr. Samir Emam
2
Outlines

• Project Statement
• Introduction
• Theory of Operation
• Device Design
• Device Circuits
• System Components
• Results Analysis
• Distance Measuring Device Results
• Conclusion
• Recommendations
• Cost Estimation

3
Project Statement

• The aim of our project is to design a distance
  measurement device for athletes.
• This device is useful for measuring the distance
  by player. It is always necessary to evaluate the
  effort of every player to judge his/her
  contribution in a scientific way.
• Our objectives is to get the device size and
  weight as low as possible.
• Safety requirements

4
Introduction

• In the last semester, after search on the
  available distance measuring systems that
  applicable with our devise, it was found that two
  systems are satisfy with the devise either
  using
• Global Positioning System (GPS).
• Accelerometers.
• Accelerometer has been selected based on
  accuracy, size and cost.
• However, some GPS devices are accurate, but its
  expensive and huge which is against our
  objectives.

5
Introduction

• Depending on this selection, the device circuit
  has been designed and its components have been
  specified.
• In this semester, the device has been built by
  assembling the components to each other in proper
  shape (that will be discussed it later in this
  presentation).
• Also, it was tested and checked to enhancements
  and improvements that can be added to achieve
  better accuracy and precision.

6
Theory of Operation

• Method I Double Integration
• Distance
• Velocity
• Acceleration

7
Theory of Operation

• The equations of motion of a particle moving with
  a constant acceleration are given by

8
Method I Double Integration
9
Method I Double Integration

• We express the velocity and displacement over an
  incremental time ?t as

10
Error analysis

• Accumulated error due to the accelerometer
  measurement

11
Error analysis

• The table below shows the accumulated error for
  different types of accelerations.

12
Error Analysis

• Alignment Error due to the misalignment measures
• The accelerometer is measuring the acceleration
  in one direction. One type of error will appear
  due to misalignment of the accelerometer.
• There are two types of misalignment error
• In-plane
• Out of plane

13
Error Analysis

• In-plane Analysis

Misalignment sensor with angle ?
14
Error Analysis

• Out of plane Analysis

Misalignment sensor with angles ? and F
15
Method II Step Counter

• In this way the distance will be calculated by a
  step counter technique.
• When the foot hits the ground there will be pulse
  acceleration. If this acceleration is more than
  certain acceleration (in our case 11 m/s2) then,
  it will be counted as a step.
• We assume a constant distance for each step of a
  human (normally 60 cm for each step). Then, these
  steps will accumulate with each other to get the
  final distance.
• Both methods are based on the same circuit and
  components.

16
Distance Measurement Device Design

• We modified our device circuit by replacing the
  PIC16f819 with the ATMEGA32 from Atmel Company.
• Also, we added new parts to the circuit such as
  reset button and on/off switch and LED.
• The following figures is the picture of the
  device in electrical bread board and the
  schematic diagram for our circuit

17
Distance Measurement Device Circuit
18
Continue..
Measuring device in electrical bread board
19
Micro accelerometer

• ADXL322 (Analog Device Accelerometer).
• The ADXL322 is a small, thin, low power,
  dual-axis accelerometer with signal conditioned
  voltage outputs, which are all on a single
  monolithic IC.
• As it comes mounted in a circuit that its output
  is amplified. It is supplied from DE Company as
  DE-ACC2G.
• ADXL322 has a dimension of 4 mm 4 mm 1.45 mm.

20
DE-ACC2G Accelerometer Characteristics
21
Device Components

• A Microcontroller (MUC) is a type of a
  microprocessor emphasizing self-sufficiency as
  having a built in memory and cost-effective as
  supplying in a cheaper package.
• The type of microcontroller used in our project
  is ATmel Atmega32 chip.

Pin configurations for ATmega32 (from
Atmel)
22
Device Components

• Voltage Regulator
• It is used to obtain the required power supply
  voltage when the device is to be operated from a
  main adapters or batteries. An example of voltage
  regulator is LM7805 voltage regulator IC
  (Integrated Circuit).
• Decoders
• The function of a 7-segment decoder is to convert
  the logic states at the outputs of a BCD (Binary
  Coded Decimal) counter into a form which will
  drive a 7-segment display. The display shows the
  decimal numbers 0-9.

SN7447AN (from Texas Instruments Incorporated)
23
Results Analysis

• Free Fall test for measuring the distance

24
Results Analysis

• Distance for Double integration Method

25
Results Analysis

• Distance for Step Counter Method

26
Results Analysis
27
Results Analysis

• Double Integration Method-
• The error will increase for long distances due to
  accumulated error.
• The device should be parallel to the ground which
  is hard for normal person.
• We assume that the player is moving with variable
  velocity always (no constant velocity).
• Step counter Method-
• Sometimes, if the foot pulse is too strong then
  the device will count it more than one step.
• It assumes a constant step distance for all
  people.
• The device cannot sense if the player is moving
  or stepping in his place.

28
Conclusion

• In this project, two approaches were discussed to
  design the distance measurement device for
  athletes GPS and Accelerometers.
• An advantage of our device is that it can show
  the results for acceleration, velocity and
  distance.
• Also, there are two techniques used in the device
  to get the distance covered by human.
• From the results of step counter method as an
  acceptable results, since the percentage error is
  very small compared to that of the double
  integration method.

29
Conclusion

• Recommendations
• Reducing the size of the device in a very small
  portable package.
• Solving the problem of sensor misalignment.
• Develop a technique to differentiate between
  constant and zero velocity as both they have zero
  acceleration.
• Challenges
• Most of the device components were electrical.
• Programming the microcontroller
• Minimizing the devise size.
