Memory Management

1

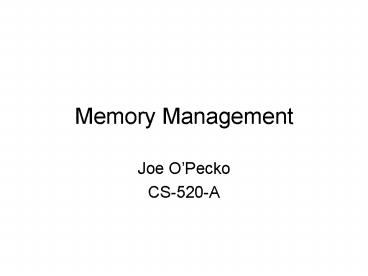

Memory Management

• Joe OPecko
• CS-520-A

2
What is Memory Management?

• The art and the process of coordinating and
  controlling the use of memory in a computer
  system.
• Memory management can be divided into three
  areas
• Memory management hardware (MMUs, RAM, etc.)
• Operating system memory management (virtual
  memory, protection)
• Application memory management (allocation,
  deallocation, garbage collection).

3
What is Virtual Memory?

• An addressing scheme implemented in hardware and
  software that allows non-contiguous memory to be
  addressed as if it is contiguous. The technique
  used by all current implementations provides two
  major capabilities to the system
• Memory can be addressed that does not currently
  reside in main memory and the hardware and OS
  will load the required memory from auxiliary
  storage automatically, without any knowledge of
  the program addressing the memory, thus allowing
  a program to reference more memory than actually
  exists in the computer.
• In multi tasking systems, total memory isolation,
  otherwise referred to as a discrete address
  space, can be provided to every task except the
  lowest level operating system. This greatly
  increases reliability by isolating program
  problems within a specific task and allowing
  unrelated tasks to continue to process.

4
UNIX Memory Management

• UNIX System V and Linux support a demand paging
  virtual memory architecture
• The entire process does not have to reside in
  main memory to execute
• The kernel loads pages for a process on demand
  when the process references the pages
• BSD 4.0 was the first major UNIX implementation
  of a demand paging policy

5
Demand Paging the Good

• Permits greater flexibility in mapping the
  virtual address space of a process into the
  physical memory of a machine
• Allows the size of a process to be greater than
  the amount of available physical memory
• Does not load the pages that are never accessed,
  so saves the memory for other programs and
  increases the degree of multiprogramming.
• Less loading latency at the program startup.
• Less disk overhead because of fewer page reads.
• Ability to run large programs on the machine,
  even though it does not have sufficient memory to
  run the program. This method is better than an
  old technique called overlays.
• Does not need extra hardware support than what
  paging needs, since protection fault can be used
  to get page fault.

6
Demand Paging the Bad

• Individual programs face extra latency when they
  access a page for the first time. So prepaging, a
  method of remembering which pages a process used
  when it last executed and preloading few of them,
  is used to improve performance.
• Memory management with page replacement
  algorithms become slightly more complex.
• Possible security risks, including vulnerability
  to timing attacks.

7
What is memory allocation?

• The process of assigning blocks of memory on
  request
• Typically the allocator, i.e. memory manager,
  receives memory from the operating system in a
  small number of large blocks that it must divide
  up to satisfy the request for smaller blocks
• There are typically many ways to perform this,
  each with their own strengths and weaknesses

8
Kernel Memory Allocator

• The Kernel Memory Allocator (KMA) is a subsystem
  that tries to satisfy the requests for memory
  areas from all parts of the system.
• Some requests come from other kernel subsystems
  needing memory for kernel use.
• Some requests come via system calls from user
  programs to increase their processes address
  space.

9
KMA Goals

• It must be fast. This is crucial since it is
  invoked by all kernel subsystems (including
  interrupt handlers).
• It should minimize the amount of wasted memory.
• It should reduce the memory fragmentation
  problem.
• It should be able to cooperate with other memory
  management subsystems in order to borrow and
  release pages from them.

10
Kernel Memory Allocation

• Linux distinguishes between allocating dynamic
  memory for kernel mode processes from user mode
  processes
• Kernel functions get dynamic memory in a fairly
  straightforward manner
• The kernel is the highest priority component of
  the OS
• The kernel trusts itself no need to insert
  protection code
• User mode processes
• Requests for dynamic memory are nonurgent and can
  be deferred since the process may not access
  additional memory in a timely fashion
• Nontrusted by kernel, so kernel must be prepared
  to catch all addressing errors

11
Page Frame Management

• The kernel must keep track of the current status
  of each page frame
• It must be able to distinguish the page frames
  used to contain pages belonging to processes from
  those that contain kernel code or kernel data
  structures similarly, it must be able to
  determine whether a page frame in dynamic memory
  is free or not.
• This state information is kept in a page
  descriptor of type page. All page descriptors are
  stored in the mem_map array.

12
Memory Zones

• Ideally, a page frame is a memory storage unit
  that can be used for anything storing kernel and
  user data, buffering disk data, and so on.
• However, real computer architectures have
  hardware constraints that may limit the way page
  frames can be used. In particular, the Linux
  kernel must deal with two hardware constraints of
  the 80 x 86 architecture
• The Direct Memory Access (DMA) processors for old
  ISA buses have a strong limitation they are able
  to address only the first 16 MB of RAM.
• In modern 32-bit computers with lots of RAM, the
  CPU cannot directly access all physical memory
  because the linear address space is too small.
• To cope with these two limitations, Linux 2.6
  partitions the physical memory of every memory
  node into three zones. In the 80 x 86 UMA
  architecture the zones are
• ZONE_DMA
• Contains page frames of memory below 16 MB
• ZONE_NORMAL
• Contains page frames of memory at and above 16 MB
  and below 896 MB
• ZONE_HIGHMEM
• Contains page frames of memory at and above 896 MB

13
Zoned Page Frame Allocator
Kernel subsystem that handles memory allocation
requests for groups of contiguous page frames
14
The Buddy System Algorithm

• The kernel must establish a robust and efficient
  strategy for allocating groups of contiguous page
  frames.
• Must deal with a well-known memory management
  problem call external fragmentation, where
  frequent requests and releases of different sized
  groups of contiguous page frames lead to a
  situation in which small blocks are scattered
  inside blocks of allocated page frames.
• Two solutions to avoid external fragmentation
• Use the paging circuitry to map groups of
  noncontiguous free page frames into intervals of
  contiguous linear addresses.
• Develop a suitable technique to keep track of the
  existing blocks of free contiguous page frames,
  avoiding as much as possible the need to split up
  a large free block to satisfy a request for a
  smaller one.

15
The Buddy System Algorithm (cont.)

• Used by the kernel for allocating groups of
  contiguous page frames. (see mm/page_alloc.c)
• All free page frames are grouped into 11 lists of
  blocks that contain groups of 1, 2, 4, 8, 16, 32,
  64, 128, 256, 512, and 1024 contiguous page
  frames
• The physical address of the first page frame of a
  block is a multiple of the group size. E.g. the
  initial address of a 16-page-frame block is a
  multiple of 16 x 212

16
Allocating memory via the Buddy System Algorithm

• The algorithm for allocating, for example, a
  block of 256 contiguous page frames
• First checks for a free block in the
  256-page-frame list
• If no free block, it then looks in the
  512-page-frame list for a free block
• If it finds a block, the kernel allocates 256 of
  the 512 page frames and puts the remaining 256
  into the list of free 256-page-frame blocks.
• If no free 512-page block, kernel looks at the
  next larger list (i.e., a free 1024-page-frame
  block) allocating it and dividing the block
  similarly
• If no block can be allocated an error is reported

17
Reclaiming memory via the Buddy System Algorithm

• The kernel attempts to merge pairs of free buddy
  blocks of size b together into a single block of
  size 2b. Two blocks are considered buddies if
• Both have the same size.
• They are located in contiguous physical
  addresses.
• The physical address of the first page frame of
  the first block is a multiple of 2 x b x 212.
• This is an iterative algorithm if it
  successfully merges released blocks, b is doubled
  and bigger blocks are attempted.

18
Buddy System Example
19
Buddy System Data Structures

• Linux 2.6 uses a different buddy system for each
  zone. Each one relies on the following main data
  structures
• mem_map array contains all the page frame
  descriptors on the system
• An array having 11 elements of type free_area,
  one element for each group size.

20
/proc/buddyinfo

• Used primarily for diagnosing memory
  fragmentation issues. Using the buddy algorithm,
  each column represents the number of pages of a
  certain order (a certain size) that are available
  at any given time.
• The DMA row references the first 16 MB on a
  system, the HighMem row references all memory
  greater than 4 GB on a system, and the Normal row
  references all memory in between.

21
Memory Area Management

• A memory area is a sequence of memory cells
  having contiguous physical addresses and an
  arbitrary length.
• The buddy system algorithm adopts the page frame
  as the basic memory area. This is fine for
  dealing with relatively large memory requests,
  but what about requests for small memory areas,
  say a few tens or hundreds of bytes?
• It would be wasteful to allocate a full page
  frame to store a few bytes. A better approach
  instead consists of introducing new data
  structures that describe how small memory areas
  are allocated within the same page frame. In
  doing so, we introduce a new problem called
  internal fragmentation. It is caused by a
  mismatch between the size of the memory request
  and the size of the memory area allocated to
  satisfy the request.

22
Memory Area Managementearly Linux versions

• Power of 2 allocator
• Provides memory areas whose sizes are
  geometrically distributed in other words, the
  size depends on a power of 2 rather than on the
  size of the data to be stored. In this way, no
  matter what the memory request size is, ensures
  that the internal fragmentation is always smaller
  than 50 percent. Following this approach, the
  kernel creates 13 geometrically distributed lists
  of free memory areas whose sizes range from 32 to
  131, 072 bytes.
• The buddy system is invoked both to obtain
  additional page frames needed to store new memory
  areas and, conversely, to release page frames
  that no longer contain memory areas. A dynamic
  list is used to keep track of the free memory
  areas contained in each page frame.
• Running a memory area allocation algorithm on top
  of the buddy system was not efficient.

23
Slab Allocator

• First adopted in Sun Microsystems Solaris 2.4
  Operating System.
• Views the memory areas as objects
• Does not discard objects which have been
  allocated and subsequently released, but instead
  saves them in memory in order to service new
  requests since kernel functions tend to request
  memory areas of the same type repeatedly
• Avoids internal fragmentation by classifying
  requests for memory areas according to frequency.
• Groups objects into caches, which store objects
  of the same type. E.g. when a file is opened, the
  memory area needed to store the corresponding
  open file object is taken from a slab allocator
  name filp (for file pointer)

24
Slab Allocator

• Performs the following functions
• Allocate memory
• Initialize objects/structures
• Use objects/structures
• Deconstruct objects/structures
• Free memory
• /proc/slabinfo gives full information about
  memory usage on the slab level. (see also
  /usr/bin/slabtop)

25
Alternative KMAs

• Resource Map Allocator
• Simple Power-of-Two Free Lists
• The McKusick-Karels Allocator
• The Buddy System
• SVR4 Lazy Buddy Allocator
• Mach-OSF/1 Zone Allocator
• Solaris Slab Allocator

26
References

• Bach, Maurice J. The Design of the Unix Operating
  System. Prentice Hall, 1994
• Bovet, Daniel P. and Cesati, Marco. Understanding
  the Linux Kernel 3rd Edition. OReilly, 2005
• Knuth, Donald E. The Art of Computer Programming
  Volume 1. Addison Wesley, 1997
• http//en.wikipedia.org/wiki/Buddy_memory_allocati
  on
• http//en.wikipedia.org/wiki/Demand_paging
• http//en.wikipedia.org/wiki/Virtual_memory
• http//www.redhat.com/docs/manuals/enterprise/RHEL
  -4-Manual/ref-guide/s1-proc-topfiles.html
• http//www.usenix.org/publications/library/proceed
  ings/bos94/full_papers/bonwick.a
