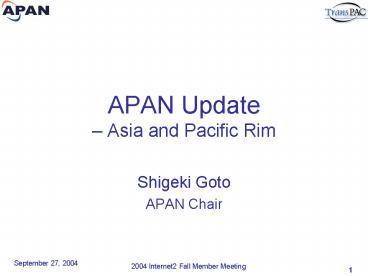

APAN Update

1
APAN Update Asia and Pacific Rim

• Shigeki Goto
• APAN Chair

2
Contents

1. Characteristics of Asia
2. APAN history management
3. APAN regional networks
4. Links between USA and Japan
5. Applications
6. Observatory
7. IRNC proposals

3
World Population
Total 6,071Million
796M
520M
316M
3711M
728M
in 2000
4
Proposal by Asia Broadband Strategic Committee
2010
Along with increased information flow within
Asia, it is forecast that international
information distribution will be balanced in 2010
in terms of volume.
Balanced
North America
Japan
Singapore
Korea
Asia
China
Malaysia
Thailand
162 Gbps
North America
Ref. World trade volume
(Source WTO International Trade Statistics
2000?
413 billion
North America
1 Gbps
42 Gbps
2002
564 billion
428 billion
(Source CIAJ based on Packet Geography 2002,
TeleGeography, Inc.)
5
Short History of APAN

• 1996.3 The idea of APAN was born at APEC
  Symposium in Japan, hinted by Dr. Steve
  Goldstein.
• ltKilnam Chon_at_KAIST Michael McRobbie_at_ANU took
  the lead for realizing the regional broadband
  networks, APAN.gt
• 1997.6 APAN was established, chaired by Kilnam
  Chon.
• 1997.8 Michael McRobbie_at_IU submitted TransPAC
  proposal to NSFs HPIIS solicitation.
• 1998.8 TransPAC was granted as an HPIIS project.
• ltAPAN expanded the members as well as the
  networks.gt
• 2004.6 Most APAN members joined an IU-lead
  proposal for NSFs IRNC solicitation.
• 2004.7 Shigeki Goto was elected APAN Chair.

6
Management Team

• Chair Shigeki Goto (JP)
• Vice Chairs Jianping Wu (CN)
• George McLaughlin (AU)
• Dae Young Kim (KR)
• Auditor Lawrence Wong (SG)
• Dir. of Sec. Wanchai Rivepiboon (TH)

7
APAN Network Topology
8
APAN Regional Groups
9
North Asia
North Asia is the core region of APAN - fat
intra-regional pipes shown left -
inter-regional links of APAN - backbone links
to USA JP TransPAC. JGN2, SINET, IEEAF
TW TWAREN KR APII/KREONet2 HK
Gloriad - peering with DANTE ?? TEIN2 lt
Blue links are (co-)funded by US or EU.gt
Tokyo
Seoul
Beijing
Taipei
Hong Kong
10
South East Asia
Bangkok
Kuala Lumpur
Singapore
South East Asia networks are developing. Inter-reg
ional links are provided by North Asia. Each
country has her own link to US some are
commercial links. SG, MY and TH are working for
intra-regional links, meeting with
TEIN2. Satellite links are required to cover
islands.
11
Oceania
Sydney
AARnet will get the fat pipes to USA, via Hawaii
next month. The link to APAN is via Hawaii or
USA. The direct link between AU and JP is being
studied by both governments.
12
Other regions
- North Asia will make efforts to connect these
regions, together with South East Asia
satellite links might be a solution at the
initial phase. - Efforts from EU US are also
expected.
13
Links between US and JP
IEEAF STL OC192
TransPAC LA OC48
JGN2 CHI OC192
SINET NY OC192

• - TransPAC Layer 3 link and JGN2 link are the
  main APAN links.
• SINET Layer 3 link will provide the backup
  service for APAN.
• IEEAF 8 X GbE links are for GLIF project.

14
Two Backbone Networks in JP

• JGN II is a testbed network for e-Science
  projects as well as advanced networking.
• SINET supports the wide community of education as
  well as research institutes related to
  universities.
• Both networks are working together under the
  competitive environments.

15
Outline of JGN II Network
Legends
lt10Ggt Ishikawa Hi-tech Exchange Center
(Tatsunokuchi-machi, Ishikawa Prefecture)
lt100Mgt Toyama Institute of Information Systems
(Toyama) Fukui Prefecture Data Super
Highway AP (Fukui)
20Gbps 10Gbps 1Gbps Optical testbeds
Access points
lt100Mgt Hokkaido Regional Network Association AP

(Sapporo)
Core network nodes
Sapporo
lt1Ggt Teleport Okayama (Okayama)
Hiroshima University (Higashi Hiroshima)
lt100Mgt Tottori University of Environmental
Studies (Tottori) Techno Ark Shimane
(Matsue) New Media Plaza Yamaguchi
(Yamaguchi)
lt1Ggt Tohoku University
(Sendai) NICT Iwate IT Open Laboratory
(Takizawa-mura, Iwate Prefecture) lt100Mgt
Hachinohe Institute of Technology (Hachinohe,
Aomori Prefecture) Akita Regional IX (Akita)
Keio University Tsuruoka Campus (Tsuruoka,
Yamagata Prefecture) Aizu University
(Aizu Wakamatsu)
lt10Ggt Kyoto University
(Kyoto) Osaka University
(Ibaraki) lt1Ggt NICT Kansai Advanced
Research Center (Kobe) lt100Mgt Lake Biwa Data
Highway AP (Ohtsu) Nara Prefectural
Institute of Industrial Technology (Nara)
Wakayama University (Wakayama)
Hyogo Prefecture Nishiharima Technopolis
(Kamigori-cho, Hyogo Prefecture)
lt100Mgt Niigata University (Niigata)
Matsumoto Information Creation Center
(Matsumoto, Nagano Prefecture)
lt10Ggt Tokyo University (Bunkyo Ward, Tokyo)
NICT Kashima Space Research Center (Kashima,
Ibaraki Prefecture) lt1Ggt Yokosuka Telecom
Research Park (Yokosuka, Kanagawa Prefecture)
lt100Mgt Utsunomiya University (Utsunomiya)
Gunma Industrial Technology Center (Maebashi)
Reitaku University (Kashiwa, Chiba Prefecture)
NICT Honjo Information and Communications Open
Laboratory (Honjo, Saitama Prefecture)
Yamanashi Prefecture Open RD Center
(Nakakoma-gun, Yamanashi Prefecture)
lt10Ggt Kyushu University (Fukuoka) lt100Mgt
NetCom Saga (Saga) Nagasaki
University (Nagasaki) Kumamoto Prefectural
Office (Kumamoto) Toyonokuni Hyper Network AP
(Oita) Miyazaki University (Miyazaki)
Kagoshima University (Kagoshima)
Fukuoka
Sendai
Kanazawa
NICT Kita Kyushu IT Open Laboratory
Nagano
NICT Koganei Headquarters
Osaka
Okayama
Kochi
NICT Tsukuba Research Center
Nagoya
NICT Keihannna Human Info-Communications Research
Center
Otemachi
USA
Okinawa
lt100Mgt Kagawa Prefecture Industry Promotion
Center (Takamatsu) Tokushima University
(Tokushima) Ehime University (Matsuyama)
Kochi University of Technology (Tosayamada-cho,
Kochi Prefecture)
lt100Mgt Nagoya University (Nagoya) University
of Shizuoka (Shizuoka) Softopia Japan (Ogaki,
Gifu Prefecture) Mie Prefectural College of
Nursing (Tsu)
IXInternet eXchange APAccess Point
16
(No Transcript)
17
JGN II link to Chicago

• Procket routers are adopted for OC192 SONET
  circuit for the time being.
• StarLight is an XP focusing on Lambda networks,
  and the software maintenance for Procket routers
  has been terminated by Cisco.
• VLAN will be installed between Abilene and APAN
  via StarLight facilities IU-NICTs ONS15454.

18
Collaborations among multiple Links between US
and JP

• The links have their own objectives as well as
  the policies, defined by the budget.
• Integrated network environments to meet the
  users requirements will be discussed by the
  engineers, followed by the understandings of the
  administrators.
• HOPI will be adopted for the smooth developments
  to Lambda Networks.

19
e-VLBI Demonstration at SC2004 (Pittsburgh)
4 Stations MIT Haystack (Westford) GGAO
(Maryland) Onsala (SE) NICT Kashima (JP)
Date November 8 (Mon) - 10 (Wed) (?) 2 hours
per session Data Rate 130, 259, and 518 Mbps
(constant rate) (Payload 128, 256, and 512
Mbps) Directions From all the stations to
Haystack The result viewed at Pittsburgh Three
formats Mark5, K5, and VSI-E Transport TCP,
UDP, and RTP/RTCP Traffic Requirement Real-time
(jitter, delay?) Packet loss (UDP lt5)
20
e-VLBI network configurationby David Laspley
(August 2004)
21
GRAPE-Data Reservoir 2004 Experiments

• Disk to disk data transfer speed
• Full utilization of 10Gbps for iSCSI disk
  transfer
• High-speed disk to disk data transfer
• TCP network speed record (single and multiple
  stream )
• 10Gbps NIC
• Parallel TCP optimization for LFN (Long Fat Pipe
  Network)
• FPGA (Field Programmable Gate Array) based
  hardware approach
• Software approach
• Dual ported FPGA based intelligent NIC
• Developed by Univ. of Tokyo

22
DR demo at SC2004
Data Reservoir
Atlantic Ocean
Disk server
10G NIC
10G Switch
Tokyo
Disk server
10G NIC
Disk server
Disk server
10G NIC
10G Switch
Pacific Ocean
File server
10G NIC
SCinet
10G Switch
Server
2 port 10GNIC
Server
2 port 10GNIC
Pittsburg
Switch
23
Observatory

• Abilene Observatory is being adopted for
  encouraging network researches
• Netflow Data ( flow-tools, rsync )
• Throughput Data ( iperf BWCTL )
• Latency Information (OWAMP )
• Usage Data (High Resol. SNMP, RRDtool )
• etc.
• User Interface based on Weather Map
• Raw data will be provided to authorized
  researchers.

24
IRNC proposals

• APAN is a loosely-coupled network consortium, and
  didnt adopt a single proposal to NSFs IRNC
  solicitation.
• APAN-JP most APAN members have joined a
  proposal lead by Indiana Univ.
• CSTNet KREONet2 have joined NCSAs proposal,
  Gloriad.
• AARNet WIDE have joined UICs proposal.
• All groups have participated APAN Workshop in
  Cairns after submitting the respective proposals.
  We have agreed we will work together under the
  flag APAN, though we might belong to different
  IRNC projects.

25
References

1. APAN www.apan.net or www.jp.apan.net
2. History http//apan.net/meetings/cairns2004/prese
   ntation/assembly-mcrobbie.ppt
3. JGN II http//www.jp.apan.net/meetings/0407-cairn
   s/JGN2.ppt
4. SINET http//www.sinet.ad.jp/english/index.html
5. e-VLBI http//www.jp.apan.net/meetings/040831-noc
   /masaki.ppt
6. GRAPE-DR http//www.jp.apan.net/meetings/040831-
   noc/hiraki.ppt
