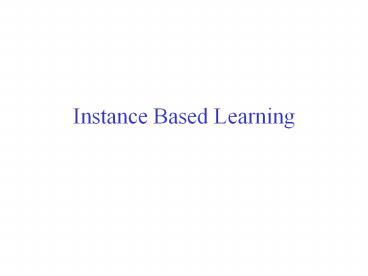

Instance Based Learning

1
Instance Based Learning
2
Nearest Neighbor

• Remember all your data
• When someone asks a question
• Find the nearest old data point
• Return the answer associated with it
• In order to say what point is nearest, we have to
  define what we mean by "near".
• Typically, we use Euclidean distance between two
  points.

Nominal attributes distance is set to 1 if
values are different, 0 if they are equal
3
Predicting Bankruptcy
4
Predicting Bankruptcy

• Now, let's say we have a new person with R equal
  to 0.3 and L equal to 2.
• What y value should we predict?

And so our answer would be "no".
5
Scaling

• The naïve Euclidean distance isn't always
  appropriate.
• Consider the case where we have two features
  describing a car.
• f1 weight in pounds
• f2 number of cylinders.
• Any effect of f2 will be completely lost because
  of the relative scales.
• So, rescale the inputs to put all of the features
  on about equal footing

6
Time and Space

• Learning is fast
• We just have to remember the training data.
• Space is n.
• What takes longer is answering a query.
• If we do it naively, we have to, for each point
  in our training set (and there are n of them)
  compute the distance to the query point (which
  takes about m computations, since there are m
  features to compare).
• So, overall, this takes about m n time.

7
Noise

• Someone with an apparently healthy financial
  record goes bankrupt.

8
Remedy K-Nearest Neighbors

• k-nearest neighbor algorithm
• Just like the old algorithm, except that when we
  get a query, we'll search for the k closest
  points to the query points.
• Output what the majority says.
• In this case, we've chosen k to be 3.
• The three closest points consist of two "no"s and
  a "yes", so our answer would be "no".

Find the optimal k using cross-validation
9
Other Variants

• IB2 save memory, speed up classification
• Work incrementally
• Only incorporate misclassified instances
• Problem noisy data gets incorporated
• IB3 deal with noise
• Discard instances that dont perform well
• Keep a record of the number of correct and
  incorrect classification decisions that each
  exemplar makes.
• Two predetermined thresholds are set on success
  ratio.
• If the performance of exemplar falls below the
  low threshold it is deleted.
• If the performance exceeds the upper threshold it
  is used for prediction.

10
Instance-based learning IB2

• IB2 save memory, speed up classification
• Work incrementally
• Only incorporate misclassified instances
• Problem noisy data gets incorporated
• Data Who buys gold jewelry
• (25,60,no) (45,60,no) (50,75,no) (50,100,no)
• (50,120,no) (70,110,yes) (85,140,yes)
  (30,260,yes)
• (25,400,yes) (45,350,yes) (50,275,yes)
  (60,260,yes)

11
Instance-based learning IB2

• Data
• (25,60,no)
• (85,140,yes)
• (45,60,no)
• (30,260,yes)
• (50,75,no)
• (50,120,no)
• (70,110,yes)
• (25,400,yes)
• (50,100,no)
• (45,350,yes)
• (50,275,yes)
• (60,260,yes)

This is the final answer. I.e. we memorize only
these 5 points. However, lets compute gradually
the classifier.
12
Instance-based learning IB2

• Data
• (25,60,no)

13
Instance-based learning IB2

• Data
• (25,60,no)
• (85,140,yes)

Since so far the model has only the first
instance memorized, this second instance gets
wrongly classified. So, we memorize it as well.
14
Instance-based learning IB2

• Data
• (25,60,no)
• (85,140,yes)
• (45,60,no)

So far the model has the two first instances
memorized. The third instance gets properly
classified, since it happens to be closer with
the first. So, we dont memorize it.
15
Instance-based learning IB2

• Data
• (25,60,no)
• (85,140,yes)
• (45,60,no)
• (30,260,yes)

So far the model has the two first instances
memorized. The fourth instance gets properly
classified, since it happens to be closer with
the second. So, we dont memorize it.
16
Instance-based learning IB2

• Data
• (25,60,no)
• (85,140,yes)
• (45,60,no)
• (30,260,yes)
• (50,75,no)

So far the model has the two first instances
memorized. The fifth instance gets properly
classified, since it happens to be closer with
the first. So, we dont memorize it.
17
Instance-based learning IB2

• Data
• (25,60,no)
• (85,140,yes)
• (45,60,no)
• (30,260,yes)
• (50,75,no)
• (50,120,no)

So far the model has the two first instances
memorized. The sixth instance gets wrongly
classified, since it happens to be closer with
the second. So, we memorize it.
18
Instance-based learning IB2

• Continuing in a similar way, we finally get, the
  figure in the right.
• The colored points are the one that get
  memorized.

This is the final answer. I.e. we memorize only
these 5 points.
19
Instance-based learning IB3

• IB3 deal with noise
• Discard instances that dont perform well
• Keep a record of the number of correct and
  incorrect classification decisions that each
  exemplar makes.
• Two predetermined thresholds are set on success
  ratio.
• An instance is used for training
• If the number of incorrect classifications is ?
  the first threshold, and
• If the number of correct classifications ? the
  second threshold.

20
Instance-based learning IB3

• Suppose the lower threshold is 0, and upper
  threshold is 1.
• Shuffle the data first
• (25,60,no)
• (85,140,yes)
• (45,60,no)
• (30,260,yes)
• (50,75,no)
• (50,120,no)
• (70,110,yes)
• (25,400,yes)
• (50,100,no)
• (45,350,yes)
• (50,275,yes)
• (60,260,yes)

21
Instance-based learning IB3

• Suppose the lower threshold is 0, and upper
  threshold is 1.
• Shuffle the data first
• (25,60,no) 1,1
• (85,140,yes) 1,1
• (45,60,no) 0,1
• (30,260,yes) 0,2
• (50,75,no) 0,1
• (50,120,no) 0,1
• (70,110,yes) 0,0
• (25,400,yes) 0,1
• (50,100,no) 0,0
• (45,350,yes) 0,0
• (50,275,yes) 0,1
• (60,260,yes) 0,0

22
Instance-based learning IB3

• The points that will be used in classification
  are
• (45,60,no) 0,1
• (30,260,yes) 0,2
• (50,75,no) 0,1
• (50,120,no) 0,1
• (25,400,yes) 0,1
• (50,275,yes) 0,1

23
Rectangular generalizations

• When a new exemplar is classified correctly, it
  is generalized by simply merging it with the
  nearest exemplar.
• The nearest exemplar may be either a single
  instance or a hyper-rectangle.

24
Rectangular generalizations

• Data
• (25,60,no)
• (85,140,yes)
• (45,60,no)
• (30,260,yes)
• (50,75,no)
• (50,120,no)
• (70,110,yes)
• (25,400,yes)
• (50,100,no)
• (45,350,yes)
• (50,275,yes)
• (60,260,yes)

25
Classification

• If the new instance lies within a rectangle then
  output the rectangle class
• If the new instance lies in the overlap of
  several rectangles, then output the class of the
  rectangle whose center is the closest to the new
  data instance.
• If the new instance lies outside any of the
  rectangles, output the class of the rectangle,
  which is the closest to the data instance.
• The distance of a point from a rectangle is
• If an instance lies within rectangle, d0
• If outside, d distance from the closest
  rectangle part, i.e. distance from some point in
  the rectangle boundary.

Class 1
Class 2
Separation line
