Title: Solving Some of the Problems in Collaboration


1

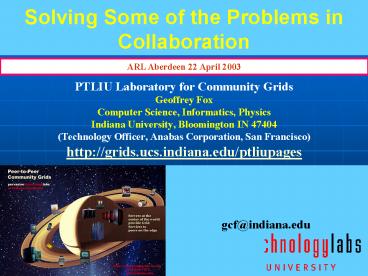

Solving Some of the Problems inCollaboration
ARL Aberdeen 22 April 2003
  • PTLIU Laboratory for Community Grids
  • Geoffrey Fox
  • Computer Science, Informatics, Physics
  • Indiana University, Bloomington IN 47404
  • (Technology Officer, Anabas Corporation, San
    Francisco)
  • http//grids.ucs.indiana.edu/ptliupages

gcf_at_indiana.edu
2
Abstract
  • We address the challenges of building reliable
    collaboration environments and the opportunities
    to address this using modern Internet and Grid
    technologies. We examine two key building blocks
  • namely a common dynamic messaging environment and
  • systematic use of Web Services including one to
    support session specification and control.
  • We present our prototype audio-video conferencing
    Web Service and messaging environment
    NaradaBrokering. We describe a core collaboration
    Web Service defined with an XML protocol XGSP
    subsuming the capabilities of H323, SIP and JXTA.
  • At this stage we have demonstrated various
    component ideas and are working on integrating
    them. We will discuss and hopefully demonstrate
  • a) Integration of Access Grid, desktop video and
    Polycom systems
  • b) Integration of SIP into XGSP with VOIP and
    Microsoft Messenger
  • c) Better software multicast support for Access
    Grid
  • d) Use of publish subscribe media servers
    supporting codec conversion and firewall
    tunneling.
  • e) Demonstration of codec conversion with
    integration of conferencing (H261) and streaming
    (RealVideo) clients
  • We hope to complete integration (alpha release)
    by July 2003.

3
Grid Computing Making The Global Infrastructure
a Reality
  • Fran Berman, Anthony J.G. Hey, Geoffrey Fox
  • ISBN 0-470-85319-0
  • Hardcover 1080 Pages
  • Publication March 2003
  • http//www.grid2002.org
  • Chapters 18 22 and 43 discuss topics in todays
    seminar

4
Some Basic Observations/Goals
  • Web Services interact with messages
  • Everything (including applications like
    PowerPoint) will be a Web Service?
  • Note few applications today have message-based
    I/O
  • Computers are fast and getting faster. One can
    afford many strategies that used to be
    unrealistic
  • All messages can be publish/subscribe
  • Software message routing for performance (QoS)
    and multicast
  • XML will be used for most interesting data and
    meta-data
  • Currently Grids are just Web Service approach
    to distributed information and computing systems

5
Classic Grid Architecture
Resources
Content Access
Composition
Middle TierBrokers Service Providers
Netsolve
Security
Collaboration
Computing
Middle Tier becomes Web Services
Clients
Users and Devices
6
Message Passing on the Grid
  • The system consists of a sea of message-based
    Services
  • Services inject and extract messages whose
    transport and manipulation is support by a
    logically distinct sea of brokers/routers
  • They support publish/subscribe, adaptive routing,
    filtering, workflow
  • They separate logical and actual transport
  • These form a federated XML database and support
    asynchronous collaboration
  • These process real-time messages in about a
    millisecond and support synchronous collaboration
  • For collaboration, this implies one can
  • Unify Collaboration Control (H323,SIP ..) as a
    Web Service
  • Provide single collaboration messaging
    environment (Audio/Video, shared display, text
    chat )
  • Develop a generic support for Collaborative Web
    Services

7
Peer to Peer Grid
Peers
Service FacingWeb Service Interfaces
Peers
User FacingWeb Service Interfaces
Peer to Peer Grid
A democratic organization
8
Problems from Tango and all Others
  • Clients were unreliable addressed by better
    windows and moving collaboration from Browser to
    an application
  • Networks were unreliable and firewalls are a
    problem
  • Not a lot of progress with QoS at network level
  • Some QoS problems are due to different
    collaboration streams interfering
  • Use application level QoS with highly robust
    managed messaging
  • Very hard to customize each application in
    shared state event model
  • Offer shared display
  • Convert Applications to Web Services
  • Many different standards H323, SIP, Access Grid,
    T120
  • Unify as single XML standard
  • Inconvenient to customize user interfaces
  • Use portlet technology supporting desktop and PDA
    clients

9
Portals and Web Services
  • Web Services allow us to build a component model
    (see CCA) for resources.
  • Each resource naturally has a user interface
    (which might be customized for user)
  • Web Service lt--gt Portlet
  • Natural to use a component model for portal
    building displayed web page from collection of
    portlets
  • So can customize each portlet and customize which
    portlets you want
  • Apache Jetspeed seems good open source technology
    supporting this model
  • Being used by NCSA and DoD HPCMO

10
WSRP Structure of a Portlet
  • Each Web Service naturally has a user interface
    specified as just another port
  • This gives each Web Service a Portlet view
    specified (in XML as always) by WSRP (Web
    services for Remote Portals)
  • So component model for resources automatically
    gives a component model for user interfaces
  • When you build your application, you define
    portlet at same time

Application as a WSGeneral Application Ports
Interface with other Web Services
PortalUser ProfileAggregateUI Fragments
Client
WSRP isWeb Services for Remote Portals1st
Meeting OASIS March 18 2002
User Face ofWeb ServiceWSRP Ports define WS as
a Portlet
11
HPCMO OKC Jetspeed Portal
12
NCSA Jetspeed Computing Portal
13
Collaboration and Web Services
  • Collaboration has
  • Mechanism to set up members (people, devices) of
    a collaborative sessions
  • Shared generic tools such as text chat, white
    boards, audio-video conferencing
  • Shared applications such as Web Pages,
    PowerPoint, Visualization, maps, (medical)
    instruments .
  • b) and c) are just shared objects where objects
    could be Web Services but rarely are at moment
  • We can port objects to Web Services and build a
    general approach for making Web services
    collaborative
  • a) is a Service which is set up in many
    different ways (H323 SIP JXTA are standards
    supported by multiple implementations) we can
    make it a WS quite easily

14
XGSP MCU Architecture
Use Multiple Media servers to scale to many
codecs and many versions of audio/video mixing
High Performance (RTP)and XML/SOAP and ..
NB Scales asdistributed
Gateways convert to uniform XGSP Messaging
15
XGSP Introduction
Registration Method Session Command Method Query Method
Registration Method Session Channel Binding Method Query Method
Collaboration as a WS
  • Registration Method
  • registration server with its alias name and
    current location
  • Session Command Method
  • Membership Control Commands, Session Control
    Commands
  • Query Method
  • discover various properties about the system
  • Session Channel Binding Method (Specific to A/V)
  • bind the RTP channels of a client into the media
    server

16
XGSP Example
  • ltSessionDesgt
  • ltSessionNamegt PervasiveTech Seminar
    lt/SessionNamegt
  • ltSessionIDgt 1234567 lt/SessionIDgt
  • ltSessionCreatorgt Ahmet_at_indiana.edu
    lt/SessionCreatorgt
  • ltSessionInfogt this is a meeting on the XGSP
    lt/SessionInfogt
  • ltSessionPlacegt Lobby Room lt/SessionPlacegt
  • ltSessionTimegt
  • ltStartTimegt (EastTime) 1000AM lt/StartTimegt
  • ltEndTimegt (EastTime) 1200AM lt/EndTimegt
  • lt/SessionTimegt
  • ltSessionURIgt http//grids.ucs.indiana.edu/ag
    lt/SessionURIgt
  • ltSessionParticipantsgt
  • ltParticipantgt Wenjun_at_156.56.103.129
    lt/Participantgt
  • ltParticipantgt Hasan_at_156.56.103.27
    lt/Participantgt
  • ltParticipantgt Shrideeper_at_156.56.103.111
    lt/Participantgt
  • lt/SessionParticipantsgt
  • ltContactInfogt wewu_at_indiana.edu lt/ContactInfogt
  • lt/SessionDesgt

17
Shared Event Collaboration
  • True shared events shares the events (like URL
    or PowerPoint file name/slide ) that specify
    state of an application
  • However all collaboration is about sharing some
    sort of event
  • Audio/Video conferencing shares events specifying
    in compressed form audio or video
  • Shared display shares events corresponding to
    change in pixels of a framebuffer
  • Instant Messengers share updates to text message
    streams
  • Using Web services makes universal as exposes
    updates of all kinds as messages
  • Using NaradaBrokering makes messaging universal

18
Application with W3C DOM Structure as a Web
Service
Data
Resource Facing Ports
Application as a Web service Application Model
Remaining W3C DOM Semantic Events
MVCM Model
Control
User FacingPorts
View
CControl
Events as Messages
Rendering as Messages
Application Viewand SelectedControl
V View
19
Application as a Web service
From Collaboration As a WS
Events
Rendering
From Master
Participating Client
20
Collaboration Shared Display
  • Sharing can be done at any point on object or
    Web Service pipeline

SharedDisplay
Shared Web Service
Shared Export
Shared Event
Master
Event(Message)Service
Shared Display shares framebuffer with
eventscorresponding to changedpixels in master
client.
Object Display
As long as pipeline uses messages, easy tomake
collaborativeWindows framebuffers and in fact
most applications do NOT expose a message based
update interface
Object Display
21
Shared Input Port (Replicated WS) Collaboration
Collaboration as a WSSet up Session with XGSP
Master
Event(Message)Service
OtherParticipants
22
Shared Output Port Collaboration
Collaboration as a WSSet up Session with XGSP
Web Service Message Interceptor
Master
WS Display
WS Viewer
Text Chat Whiteboard Multiple masters
Event(Message)Service
OtherParticipants
WSDisplay
WS Viewer
23
H323 Client (Polycom) in XGSP Session
24
vic and RealVideo views of Single stream
25
vic and RealVideo views of multiple streams
26
Polycom view of multiple video streams
27
vic views of multiple video streams
28
Software in the XGSP MCU
  • Core Components are Open source
  • openh323 is basis of H323 Gateway
  • NIST SIP stack is basis of SIP Gateway
  • NaradaBrokering is open source messaging from
    Indiana
  • Java Media Framework basis of Media Servers
  • Can have proprietary modules such as
  • Anabas Shared Display
  • Instant Messengers
  • DIVX MPEG4
  • HearMe VOIP

29
Collaborative PDA
  • Extendable to more general universal access
  • Can implement filter either as an insertion in
    message stream or in batch mode where a Service
    subscribes to event stream (one collaborative
    application or sharedlet), filters it and
    reposts to a different stream
  • We developed first case with a special adaptor
    that is essentially a NaradaBrokering node that
  • Has added filters controlled by client profile
  • Has stripped down special purpose link protocol
    HHMS (Hand held message service) optimized for
    PDA
  • Currently implemented as MyProfessor for Windows
    CE iPAQ and Palm OS Cell-PDA combination
  • Have implemented shared display, SVG, Text chat,
    Instant Messenger (using Jabber)

30
Real-time Community Collaboration
  • Desktop PC, local wireless (802.11b) and the rest
    of the world (Sprint PCSVision as glimpse of next
    generation cell phones)
  • Reconcile different protocols, different display
    areas, different O/S and different network
    bandwidths

Text Chat
31
Real-time Community Collaboration
PowerPoint via Shared Pixels
32
Real-time Community Collaboration
Scalable Vector Graphics (SVG) via Shared Web
Service
33
CustomizedUser-FacingPorts
(NaradaBrokering)Event Service
Universal Access With JetspeedWeb Services,MVC
Model for applications Asynchronous Messaging
34
Comparison with other approaches
35
Status of XGSP Collaboration
  • We have demonstrated most key ideas but wont
    have real alpha integrated system until June
  • Need to add RealAudio
  • Need to improve audio handling (silence
    suppression) in media server
  • Add other collaborative tools many prototypes
    (shared display, shared PowerPoint, Games)
  • Could link at server (MCU) not client
  • Include Beihang tools like MPEG4
  • Production version of PDA interface
  • Messaging (NaradaBroker) available today full
    functionality by August
  • Aiming at 1000 students interacting with each
    other across Internet2 using A/V and Shared
    Display Summer 2003 (NOT broadcast Webcast)

36
NaradaBrokering Publish/Subscribe Distributed
Event/Message System http//www.naradabrokering.or
g MQSeries/JMS P/S applied to Collaboration,
Grid, P2P(JXTA) Supports UDP, TCP/IP, Firewalls
(actual transport ? user call) Used in other
projects Collaboration, Portal and Handheld
37
NaradaBrokering
  • Based on a network of cooperating broker nodes
  • Cluster based architecture allows system to scale
    to arbitrary size
  • Originally designed to provide uniform software
    multicast to support real-time collaboration
    linked to publish-subscribe for asynchronous
    systems.
  • Now has five major core functions
  • Message transport (based on performance
    measurement) in heterogeneous multi-link fashion
  • General publish-subscribe including JMS JXTA
    and support for RTP-based audio/video
    conferencing
  • Distributed XML data-base using P/S XPATH
    metaphor
  • Filtering for heterogeneous clients
  • Federation of multiple instances of Grid services
    as illustrated by JXTA peer-group linkage

38
Narada Broker Network
(P2P) Community
For message/events service
Broker
Broker
(P2P) Community
Resource
Broker
Hypercube topology for brokers? Tree for distance
education with teacher at root
Broker
Broker
(P2P) Community
Software multicast
Broker
(P2P) Community
39
Engineering Issues Addressedby Event / Messaging
Service
  • Application level Quality of Service e.g.
    give audio highest priority
  • Tunnel through firewalls proxies
  • Filter messages to slow (collaborative/real-time)
    clients
  • Choose Hardware or Software multicast
  • Scaling of software multicast
  • Efficient calculation of destinations and
    routes.
  • Integrate synchronous and asynchronous
    collaboration with same messaging, control,
    archiving for all functions
  • Transparently replace single server JMS systems
    with a distributed solution.
  • Provides reliable inter-peer group messaging for
    JXTA
  • Open Source (high quality) messaging

40
NaradaBrokering Communication
  • Applications interface to NaradaBrokering through
    UserChannels which NB constructs as a set of
    links between NB Broker waystations which may
    need to be dynamically instantiated
  • UserChannels have publish/subscribe semantics
    with XML topics
  • Links implement a single conventional data
    protocol.
  • Interface to add new transport protocols within
    the Framework
  • Administrative channel negotiates the best
    available communication protocol for each link
  • Different links can have different underlying
    transport implementations
  • Implementations in the current release include
    support for TCP,UDP, Multicast, SSL and RTP.
    HTTP, HTTPS support will be available in Feb 2003
    release.
  • Supports communication through proxies such as
    iPlanet, Netscape and Apache.
  • Supports communication through firewalls such as
    Microsoft ISA, Checkpoint.

41
Note on Optimization
  • Note in parallel computing, couldnt do much
    dynamic optimization as aiming at microsecond
    latency
  • Natural to use hardware routing
  • In Grid, time scales are different
  • 100 millisecond quite normal network latency
  • 30 millisecond typical packet time sensitivity
    (this is one audio or video frame) but even here
    can buffer 10-100 frames on client (conferencing
    to streaming)
  • 1 millisecond is time for a Java server to
    think
  • Jitter in latency (transit time) due to routing,
    processing (in NB) or packet loss recovery is
    important property
  • Grid needs and can tolerate significant dynamic
    optimization

42
Performance/Routing in Message-based Architecture
B2
B3
  • In traveling from cities A to B (say 3 separate
    passengers), one chooses between and changes
    transport mechanism at waystations to optimize
    cost, time, comfort, scenic beauty
  • Waystations are now NB brokers where one chooses
    transport protocol (individual or collective)
  • Able to choose between car, type of car, plane,
    train etc
  • Able to dynamically create waystations to cope
    with problems and acts as hubs for multicast
    messages
  • Knows about traffic jams and can assign the HOV
    lane

43
Sender/receiver/broker - (Pentium-3, 1 GHz, 256
MB RAM). 100 Mbps LAN. JDK-1.3, Red Hat Linux 7.3
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
Narada Performance Web Service
  • Performance measurements are used by Links in
  • Reconfiguring Connectivity between nodes
  • Deciding underlying transport protocol
  • Determining possible filtering
  • Each node determines performance of links of
    which it is endpoint
  • Individual node web services are aggregated as
    another Web Service
  • Factors measured include
  • Transit delays, bandwidth, Jitter, Receiving
    rates.
  • Performance measurements are
  • Spaced out at increasing intervals for healthy
    channels.
  • Factors selectively measured for unhealthy
    channels.
  • No repeated measurements of bandwidth for
    example.
  • Injected into Narada network as XML events

Administrative Interface
49
Narada/JMS and Collaboration
  • Collaboration involves sharing resources and
    synchronous collaboration involves coordinating a
    common view of a resource between multiple
    clients
  • Typically one client is in charge and others
    get initial and updated resource from this
    master
  • Specification of initial state of resource and
    its change are just XML events and we (Anabas
    and Indiana) have used first JMS and now
    NaradaBrokering to implement the transport of
    update events between collaborating clients
  • Update events include
  • text you type into text chat or Instant Messenger
  • URL defining shared browser
  • Change in framebuffer for (most flexible) shared
    display
  • Microsoft events for shared PowerPoint (file
    replicated between clients)

50
Commercial CollaborationSystems
Centra
Anabas
WebEx
Placeware
51
NaradaBrokering with Dynamic Shared Display
52
NaradaBrokering and JMS (Java Message Service)
(commercial JMS)
53
NaradaBrokering and JXTA
Narada-JXTA provides JXTA guaranteed long
distance delivery
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
UDP
Works
Start
Connection Complete
Stream Media Types
Doesnt Work
TCP
Works
Start
Reliable Data Stream
Doesnt Work
Windows ?
Works
WinINET Try SSL first then HTTP
Doesnt Work
NaradaBrokeringLink Transport FirewallHeuristic
Try SSL Over HTTPS Proxy
Does HTTPS Proxy Exist
Works
Yes
Doesnt Work
Try HTTP Over HTTP Proxy
Does HTTP Proxy Exist
Works
Yes
Doesnt Work
Try SSL Over Direct
Try HTTP Direct
Fake SSL Over Direct
Works
Doesnt Work
Doesnt Work
Works
58
Architecture of Message Layer
  • Need to optimize not only routing of particular
    messages but classic publish/subscribe problem of
    integrating different requests with related
    topics (subscribe to sports/basketball/lakers and
    sports)
  • Related to Akamai, AOL caching and Server
    optimization problem

Hypercube ofNB Brokers (logical not physical)
N100 for Distance Education Scale to billions of
grid nodes?
1-gt N Grid Nodes
59
NaradaBrokering Status
  • Basic System available for download has been
    used as engine of several Audio/Video (largely
    USB video cameras) and Anabas sessions with upto
    30 participants JMS compatibility tested
  • Next few months devoted to testing and improving
    administrative support of deployment
  • Multiple distributed broker
  • Performance monitoring integrated
  • Firewall WS Security integration
  • JXTA Peer-to-peer integration
  • Full integration of Java NIO with thread pool

June ?August 2003
About PowerShow.com
