MODIS Albedo Subsets for Selected Field sites

1

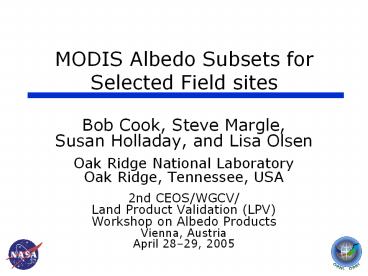

MODIS Albedo Subsets for Selected Field sites

• Bob Cook, Steve Margle,
• Susan Holladay, and Lisa Olsen
• Oak Ridge National Laboratory
• Oak Ridge, Tennessee, USA
• 2nd CEOS/WGCV/
• Land Product Validation (LPV)
• Workshop on Albedo Products
• Vienna, Austria
• April 2829, 2005

2
Collaborators / Contributors

• Jeff Morrisette, Nazmi El Saleous
  (NASA GSFC)
• Crystal Schaaf and Ranga Myneni (Boston
  University)
• Steve Running and Faith Ann Heinsch (University
  of Montana)
• Giri Palanisamy and Tammy Beaty (ORNL)

3
Goal

• To provide subsets of MODIS Land Products in a
  format and spatial scale useful to field
  investigators
• Facilitates interaction between remote sensing
  scientists and field investigators
• Easily compare satellite data with ground-based
  measurements
• Used for validation of MODIS Land Products

4
MODIS ASCII Subsets

• Subsets of Terra and Aqua MODIS Land Products for
  280 sites worldwide (field sites or flux towers)
  in an easy-to-use ASCII format
• 7 km x 7 km centered on flux tower or field sites
• Two annual products, four 8-day products, two
  16-day product, and calculated albedo, from 2000
  to present

MODIS Products
Surface Reflectance
Surface Temperature
Land Cover
NDVI / EVI
LAI / fPAR
Net Photosynthesis
Annual NPP
Albedo
Reflectance BRDF Adjusted
5
MODIS Subset Sites Albedo Related

• BSRN Sites
• Toravere, Estonia
• Tateno, Japan
• Payerne, Switzerland
• Barrow, Alaska
• S. Great Plains, Oklahoma
• Fort Peck, Montana
• Bondville, Illinois
• Boulder Colorado
• Penn State, Pennsylvania
• Goodwin Creek, Mississippi

• Other Sites
• Guzelyayla , Turkey
• Ovacik, Turkey
• Arabia1, Saudi Arabia
• Ngotto Forest, Cent.African Rep.
• RAC, Central African Republic
• Nile Delta, Eqypt
• Novara, Italy
• Po Valley, Italy
• Hapex-Sahel, Niger
• Lamto, Cote D'Ivoire
• Nigeria, Nigeria
• Suchow, China
• Mammoth Mountain, CA, USA
• ARS-NE PLRC, PA, USA
• Pleasant Plains, IL, USA
• Allegheny Nat. Forest, PA, USA

6
MODIS Subset Sites Albedo Related

• Greenland (Denmark)
• Crawford_Point 2
• Crawford_Point 1
• DYE-2
• JAR1
• JAR2
• Saddle
• South Dome
• SM2
• Summit
• ETH/CU Swiss Camp

7
MODIS ASCII Subset Web Site http//www.modis.orn
l.gov/modis/
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
User-selects optical depth and szn
12
Albedo Calculated from MODIS BRDF Product

• MODIS BRDF Albedo Model Product (MOD43B1)
  contains parameters for calculating albedo for
  visible, near-IR, and shortwave
• Black Sky albedo
• ƒ(parm 1, parm 2, parm 3, szn)
• White Sky albedo
• ƒ(parm 1, parm 2, parm 3)
• Blue Sky albedo
• ƒ(white sky albedo, black sky albedo, optical
  thickness)

13
(No Transcript)
14
Quality Assurance

• Provide quality assurance data layers
• Including snow

Toravere BSRN, Estonia, January 1, 2005
15
Information at bottom of Grid Display
16
MODIS ASCII Subsets Web-Based Data
Visualization GridToravere BSRN, Estonia
17
(No Transcript)
18
MODIS ASCII Subsets Web-Based Data
Visualization Time Series Toravere BSRN,
Estonia
Visible Broadband Blue Sky Albedo (fraction)
Pixel Values
Mean Value of Pixels
Percent of Pixels that met QC Criteria
Year
19
Additional data compiled for albedo validation

• Broadband Diffuse Irradiance Climatology for the
  selected MODIS ASCII Subset Sites (n 254)
• Based on AERONET data
• Prepared by Privette and Hoffman
• Available from ORNL
• ftp//daac.ornl.gov/data/eos_land_val/albedo/
• Subsets of Optical Depth (MOD04) for 24 sites
• Summit, ETH_CU_Swiss_Camp, Tateno,
  Fort_Peck_Montana, Payerne, BARC, Barton_Bendish,
  BOREAS_BERMS, Jornada, Lake_Tahoe, Mandalgobi,
  Metolius_Old_Pine, Tapajos, North_Temperate_Lakes
• Available from NASA GSFC
• ftp//windhoek.nascom.nasa.gov/private/ichoku/MAPS
  S/

20
Future Plans MODIS ASCII Subsets

• Continue to offer subsets of Collection 4 MODIS
  Land Products from Terra and Aqua
• Add Continuous Vegetation Field subsets when
  available
• Evaluate current sites and seek additional sites
  for future processing / reprocessing (e.g.,
  Collection 5 in late-2005)
• To have your field site added to the MODIS Subset
  Collection, we need the geographic coordinates
  (to four significant decimal places 10s of
  meters) and your commitment to share data

21
Need site location good to 0.0001 degree
1 minute uncertainty yields /- 2 km or 25 pixels
Uncertainty of /- 1 minute
22
Future Plans MODIS Subset Pilot

• Tool to enable on-the-fly subsetting and
  visualization
• For any area in North America up to 200 x 200 km
• For pre-selected sites for the rest of the world
• Incorporate albedo calculation from MOD43B
  parameters

23
MODIS ASCII Subsets Web Site www.modis.ornl.g
ov/modis/
Contact Bob Cook ORNL DAAC cookrb_at_ornl.gov
