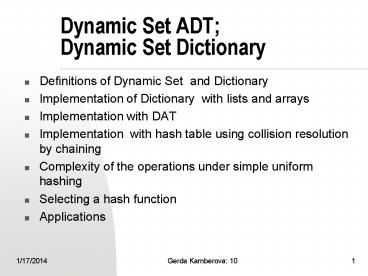

Dynamic Set ADT; Dynamic Set Dictionary

1
Dynamic Set ADT Dynamic Set Dictionary

• Definitions of Dynamic Set and Dictionary
• Implementation of Dictionary with lists and
  arrays
• Implementation with DAT
• Implementation with hash table using collision
  resolution by chaining
• Complexity of the operations under simple uniform
  hashing
• Selecting a hash function
• Applications

2
Dynamic Sets ADT

• GOAL investigate data structures and algorithms
  that support efficient implementation of various
  operations on sets.
• Dynamic sets may change size over time
• Key identifier of an element.
• Operations
• Search
• Insert
• Delete
• Min
• Max
• Predecessor
• Successor

3
Dictionary Go look it up!

• Primary use store data so they can be located
  quickly using keys.
• Examples of dictionary
• the set of bank accounts
• the set of windows opened by GUI
• student database
• the symbol table used by compilers
• Dictionary ADT A dynamic set which support
  Search, Insert, Delete, possibly Update.
• Hash Table data structure implements
  Dictionary
• worst-case time to perform the operations is
  O(n)
• expected time is O(1)

4
Dictionary ADT
x

• Dictionary of records, T.
• Each record has (key,data),
• Keys are distinct
• x is a reference to a dictionary record
• Operations
• insert(T,x) inserts the record pointed to by x
  into T
• delete(T,x), removes record point by x from T
• search(T,key), returns a pointer to the record
  with the given key, or null if no record has
  that key
• update(T,oldrec,newrec), updates the record
  pointed by oldrec to have the record pointed to
  by newrec.
• Example
• x search(key)
• delete(x)

key
data
5
Implementation of Dictionary

• Input size n, number records in the dictionary
• Worst-case complexity sing lists and arrays

Insert T(n) Search T(n) Delete T(n) Update T(n) Space Complx.
Unsorted Dbl-lnkd
Sorted Dbl-lnkd
Sorted Array
6
Implementation of Dictionary DAT

• Direct-access table, T
• Datum or reference corresponding to key k is
  stored in slot k.
• If T(k)NULL, no record with key k.
• Example, r5

T
0





U
1
3
2
3
0
4
4
7
DAT Complexity of the operations

• DirectAddress_Search( T, key k)
• return Tk
• DirectAddress_Insert( T, ptr x to element)
• Tkey(x)x
• DirectAddressDelete( T, ptr x to element)
• Tkey(x) NULL
• Each operation time.
• Moderate r, rlt1000
• What if the number of keys, n , stored at any
  particular time much smaller than r?
• Example student dictionary, 109, n4000.

8
Hash Table
T

• A version of DAT where item with key k is stored
  at slot h(k)
• The keys do not have to be integers
• h is a hash function, maps keys to integers,
• h hashes to slot

0
1
2
U
3
h
4
hash function
m-1
9
Hash Tables

• Hash tables are typically one of the most
  efficient ways of implementing a Dictionary ADT,
  particularly if we know something about the
  distribution of the key values
• Hash tables do not support efficiently operations
  that rely on relative order of data elements, for
  example fining min, max or sorting
• Since
• h hashes multiple keys to the same slot.
• Collision occurs when two keys hashed to the
  same slot
• Cannot avoid collision. Must resolve it.

10
Collision resolution by chaining

• Put all elements that hush to the same slot in an
  unsorted doubly-linked list, where the hash table
  entry, T(h(k)), is a pointer to the first item
  in the list

h
hash function
U
11
Implementation of a Dictionary using hashing with
collision resolution by chaining

• T is the hash table, x is a ptr to a record
• key(x) returns the key of the record pointed by x
• ChainedHash_Search( T, k )
• search key k in the unsorted list Th(key)
• ChainedHash_Insert( T, x )
• insert the record pointed by x at the head
  of the list Th(key(x))
• ChainedHash_Delete( T, x )
• delete x from the doubly-linked list
  Th(key(x))

12
Time complexity analysis of hashing with
collision resolution by chaining

• Computing h(k), h(k)
• Insert worst case
• Search worst-case, all keys hash to the same
  slot,
• Delete
• Update , (including delete and reinsert
  if key changes).
• Load factor , average
  number keys per slot
• m size of the hash table
• n number records currently in the dictionary

13
Average-case time complexity using hashing with
collision resolution by chaining

• Assume simple uniform hashing for any key k,
  h(k) is equally likely to hash to any of the m
  slots of the table T
• Search the expected time to search is the time
  to hash the key, plus the expected length of the
  list at the hashed slot.
• Let T(j) the linked list at slot j
• Let be R.V. denoting the length of T(j) ,
  j1,..,m.
• What is the distribution of . For
  i0,1,2,,n,

14
Average-case time complexity using hashing with
collision resolution by chaining

• Search (cont) T(j) is the linked list at slot
  j, is RV denoting the length of T(j) ,
  j1,..,m. The distribution of
• The expected length is

15
Average-case time complexity using hashing with
collision resolution by chaining

• Assumed simple uniform hashing
• Search the expected time to search is the
  expected length to hash,
• , plus E(T(j)),
• The average-csea complexity for search is
  ,
• i.e. one plus the avg number keys per slot
• If
• Insert, Delete, Update

16
Selecting a hash function (HF)

• A good HF should not give preference to some
  slots over others
• HF should distribute keys uniformly, i.e. a key
  is equally likely to hash to any of the slots
  simple uniform hashing (SUH)
• If the keys are drawn from U according to
  distribution P, and K the RV representing the
  key drawn, for SUH
• Example
• U0, 1
• P is the uniform distribution over 0,1, h
  that achieves SUH is given by
• For m100, h(0.5)50, h(0.25)25,
• The problem is that we do not know the key
  distribution P, so we cannot check (1). In
  practice, heuristics are used to derive HF.

17
Selecting a hash function

• Regularity condition hash function should be
  independent of any patterns in the data. Similar
  keys should not hash to similar or close slots
• Assume keys are natural numbers, if not will
  re-map them to the naturals.
• Division Method for selecting HF
• HF should depend on the complete data (all bits)
  m should not be power of 2 or 10. Why?
• m10000 376218705
  593598705
• Best select m to be prime, not close to powers of
  2 or 10
• Given n,
• decide what load factor (avg search time) the
  application can tolerate
• Select m to be prime, close to n/load factor and
  not close to power of 2
• Run experiments and test that that h does SUH

18
Selecting a hash function

• Multiplication method
• Define
• Advantage value of m is not critical
• Good choice of A,
• Usually, m is power of 2 (easy to implement,
  multiplication by 2 is a shift)

19
ADT Dictionary

• Hashing the preferred way to implement
  Dictionary
• Achieves O(1) avg time to search when the load
  factor is close to 1 (gt0.8 rule of thumb)
• O(1) time to insert, delete, update
• Collision resolution how to deal with keys that
  hash to the same slot.
• Collision resolution by chaining maintains
  unsorted doubly linked lists at the slots
  (overhead for maintaining the lists)
• Selecting a hush function
• Division method
• Multiplication method

20
Applications of hashing

• Compiler use hashing in symbol table
  implementation (to keep track of defined
  variables).
• Graph problems where nodes are identified by
  names instead numbers
• Game playing software to keep transposition
  table (of already encountered lines of play)
• On-line spell checkers (without error
  correction). The whole dictionary is pre-hashed
  and words can be checked in constant time.
