Miss Penalty Reduction Techniques (Sec. 5.4)

1

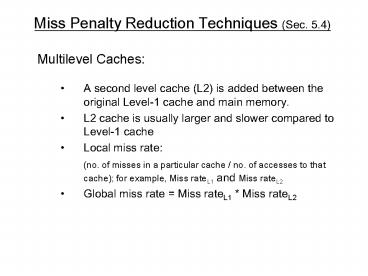

Miss Penalty Reduction Techniques (Sec. 5.4)

• Multilevel Caches
• A second level cache (L2) is added between the
  original Level-1 cache and main memory.
• L2 cache is usually larger and slower compared to
  Level-1 cache
• Local miss rate
• (no. of misses in a particular cache / no. of
  accesses to that cache) for example, Miss
  rateL1 and Miss rateL2
• Global miss rate Miss rateL1 Miss rateL2

2
Miss Penalty Reduction Techniques (Sec. 5.4)

• Multilevel Caches (contd.)
• 1000 mem references,40 misses in L1 cache20
  misses in L2 cacheCompute various miss rates.
• Miss rate L1 40/1000 4
• Miss rate L2 20/40 50Global Miss rate 4
  x 50 2
• Ave Mem Access time Hit timeL1 Miss rateL1 x
  Miss PenaltyL1
• Miss PenaltyL1 Hit timeL2 Miss rateL2 x Miss
  PenaltyL2

3
Miss Penalty Reduction Techniques (Contd)
Example on Page 420 2-way set associative
increases hit time by 0.1 CC Hit timeL2 for
direct mapped 10 CC Local Miss rateL2 for
direct mapped 25 Local Miss rateL2 for 2-way
set associative 20 Miss penaltyL2 50
CC Whats the impact of L2 cache associativity on
the miss penalty? Miss penalty 1-wayL1
10(0.25x50) 22.5 CC Miss Penalty 2-wayL1
10.1 (0.20 x50) 20.1CC
4
Miss Penalty Reduction Techniques (Contd)

• Early Restart and Critical Word First
• Early Restart Send to CPU the requested word as
  soon as it arrives
• Critical Word First Get the requested word from
  the memory first, send it to the CPU and then
  load the block in the cache
• Giving Priority to Read Misses Over Write
• Serve reads before completing the writes
• In write-through cache, write buffers complicate
  memory accesses they may hold a location needed
  on a read miss.
• Wait on a read miss until the write buffer is
  empty, or
• Check the contents of the write buffer and
  continue
• Merging Write Buffers
• This technique was covered in Sec. 5.2, Fig 5.6.

5
Hit Time Reduction Techniques (Sec. 5.5)

• Small and Simple Cache
• Small caches can fit on the same chip as the
  processor
• Simple caches such as direct-mapped caches have
  low hit time
• Some L2 cache designs keep the tags on chip and
  the data off chip

6
Hit Time Reduction Techniques (Contd)

• Avoiding Address Translation During Indexing of
  the Cache
• Virtual caches use virtual addresses for the
  cache, instead of physical addresses
• Virtual addressing eliminates address translation
  time from a cache hit
• Virtual caches have several issues
• Protection is checked during virtual to physical
  address translation
• Whenever a process is switched, virtual addresses
  refer to different physical addresses
• Multiple virtual addresses for the same physical
  address could result in duplicate copies of the
  same data in a virtual cache
• A compromise is a virtually indexed but
  physically tagged cache.

7
Hit Time Reduction Techniques (Contd)

• Pipelined Cache Access
• Tag and data portions are split, so they can be
  addressed independently
• Data from the previous write is written while tag
  comparison is done for the current write
• Thus writes can be performed back to back at one
  per clock cycle

8
Main Memory and its Organization (Sec. 5.6)

• Main memory is the next lower level memory after
  cache
• Main memory serves the demands of a cache as well
  as the I/O interface
• Memory bandwidth is the number of bytes read or
  written per unit time
• Assume a basic memory organization as follows
• 4 CC to send an address
• 24 CC for the access time per word
• 4 CC to send a word of data
• A word is 4 byte
• A cache block is 4 words
• Miss Penalty 4 x (4 244) 128 CC
• Band width 16/128 1/8 byte per CC

9
Achieving Higher Memory Bandwidth

• Wider Main Memory
• Increase the width of the cache and the main
  memory (Figure 5.31 b)
• If the main memory width is doubled, the miss
  penalty will be 2 x ( 4244) 64CC, and the
  bandwidth will be 16/64 ¼ byte per CC
• There is added cost of a wider bus and a
  multiplexer between the cache and the CPU
• The multiplexer may be on the critical timing
  path
• A second level cache helps, as the multiplexer
  comes between level 1 and level 2 caches
• Another drawback is that minimum increments are
  doubled or quadrupled
• There are some issues with error correction that
  complicate the design further

10
Achieving Higher Memory Bandwidth (Contd)

• Simple Interleaved Memory
• Memory chips are organized in banks to read or
  write multiple words at a time
• The banks are often one word wide (Figure 5.32)
• The miss penalty in our ongoing example, with
  four banks is 4244x4 44CC, and the bandwidth
  will be 16/44 0.36 byte per CC
• Power vs. performance trade off
• Independent Memory Banks
• A generalization of interleaving
• Allows multiple independent accesses, with
  independent memory controllers, and separate
  address and data lines
• Used in an environment where several devices,
  such as I/O devices and multiple processors,
  share the memory bandwidth.
