OpenMP: Introduction

1

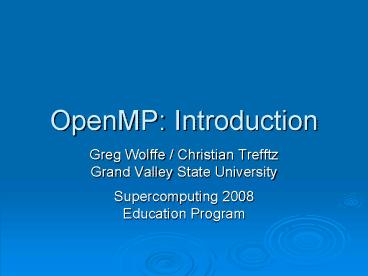

OpenMP Introduction

• Greg Wolffe / Christian Trefftz
• Grand Valley State University
• Supercomputing 2008
• Education Program

2
Moores Law Value ramp
Pentium 4
Pentium Pro
Pentium
486
386
286
8086
3
Performance Inflection Point
4
Multi-Core Architecture
5
Power Consumption Superlinear
Pentium 4
Pentium 4
Pentium Pro
Pentium
486
6
Power Efficiency
7
Conclusion ? Parallelism

• Hardware
• Going parallel (many-core)
• Servers / laptops / devices
• Software?
• Herb Sutter of Microsoft in Dr. Dobbs Journal
• The free lunch is over. Software performance
  will no longer increase from one generation to
  the next as hardware improves unless it is
  parallel software.

8
Threads and Parallel Programming

• Process A unit of work managed by an OS with its
  own address space and OS managed resources.
• Thread resources within a process that execute
  the instructions in a program. Threads have their
  own program counter and a private memory region
  (a stack), but share the other resources within
  the process including the heap.
• Threads are the natural unit of execution for
  parallel programs on shared memory hardware.

9
Demo Multiple Threads

• Multi-core in action
• Multi-threaded program
• OpenMP-multipleThreads.cpp
• OpenMP-multipleThreads.exe
• C w/OpenMP using Visual Studio
• Multi-core CPU in laptops
• Windows Performance Monitor
• Visualization

10
OpenMP

• Portable API for shared memory thread-based
  parallelism
• C/C and Fortran
• Fork-Join model

Master thread
Fork
parallel region
Join
Master thread
11
OpenMP Fundamentals

• Environment variables
• export OMP_NUM_THREADS4
• Library functions
• omp_set_num_threads (4)
• Compiler directives (pragmas)
• pragma omp parallel num_threads (4)

12
OpenMP Programming

• Source code
• include omp.h
• pragma omp parallel
• parallel region
• Compiling
• g -fopenmp filename.cc o filename

13
Directive Responsibility

• Work-sharing
• Data scoping
• Synchronization
• Scheduling

14
OpenMP Work Sharing

• Parallel region partition work
• Each thread executes same code
• Parallel for loop partition iterations
• Threads share iterations of loop
• Parallel section functional parallelism
• Threads perform different tasks

15
Demo Hello, World

• Sequential code
• Uh, well skip that
• Multi-threaded code
• OpenMP-helloWorld.cc
• Compile/Execute
• Uses default number of threads
• Note I/O not protected!

16
OpenMP Data

• Shared threads access a single copy of the data
  object
• Private each thread gets volatile copy
• Firstprivate initialized from master
• Lastprivate masters copy updated with last
  value of last thread

17
Problem Numerical Integration

• Mathematically
• Approximately
• Rectangle
• Height f(xi)
• Width ?x

4
f(x)
1
x
18
Demo Parallel Loop

• Sequential code
• pi.cc
• Multi-threaded code
• OpenMP-forLoop.cc
• Compile/Execute
• Note some data should not be shared!
• Compute Speedup
• Vary problem size
• Use more threads

19
Critical Section Problem

• Shared memory system ? shared data
• Shared data ? concurrent access
• Concurrent access ? corrupted variables
• Critical section problem ensure correct
  access to shared data

20
Data Corruption
415
413
Dec
3
Inc
5
Core1
Core2
Core1
Core2
Core1
Core2
Memory 4
Memory 4
Memory ?
21
Concurrency Control

• Synchronization
• Mutex ensures exclusive access to critical
  section of code
• Barrier causes a group of threads to pause
  until all have reached a defined point
• Signalling
• Conditional Wait waits for some event signals
  when it occurs
• Broadcasting signals a group of waiting threads

22
Mutual Exclusion

• // program code
• entry
• // access shared data
• exit
• // program code

Critical Section
23
Barrier
Barrier
24
Conditional Wait
thread_1
thread_1
thread_2
thread_2
wait
wait
signal
signal
25
Broadcast
thread_1
thread_1
thread_2
thread_n
thread_2
thread_n

wait
wait
wait
wait
signal
signal
26
OpenMP Synchronization

• pragma omp master
• pragma omp critical
• pragma omp atomic
• count
• pragma omp barrier
• reduction ( sum)

27
Demo Critical Section

• Unprotected code
• OpenMP-criticalSection.cc
• Execute
• Note use synchronization constructs to solve
  critical section problem
• Verify correctness

28
OpenMP Scheduling

• Static splits iteration space into blocks of
  size chunk
• Dynamic assign blocks to threads as they become
  idle (uneven workloads)
• Guided adjusts chunk-size exponentially until
  all assigned

29
Problem Mandelbrot Set

• Set of points in the complex plane
• which remain bounded
• Varying number of iterations varying workload

30
Demo Uneven Workload

• Graphical code
• OpenMP-Mandelbrot.cc
• Execute and Time
• Sequential and parallel
• Experiment with various scheduling strategies to
  improve performance

31
Acknowledgements

• Multi-core
• www.intel.com/multi-core
• Multi-Core Programming
• Shameem Akhter and Jason Roberts
• Intel Press, 2006.
• OpenMP
• www.openmp.org
• Parallel Programming in OpenMP
• Chandra, Dagum, Kohr, Maydan, McDonald, and Menon
• Morgan Kaufmann Publishers, 2001.
