OptIPuter Optical Architecture

1

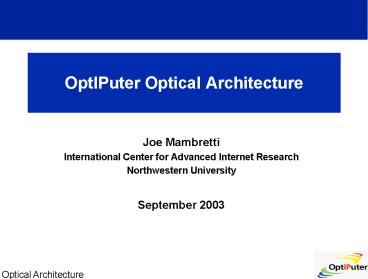

OptIPuter Optical Architecture

• Joe Mambretti
• International Center for Advanced Internet
  Research
• Northwestern University
• September 2003

2
OptIPuter Optical Architecture Themes

• The OptIPuter Shapes Itself to Meet the Precise
  Needs of the Application Requirements vs. Todays
  Environments in which the Application must be
  Compromised to Conform to Infrastructure
  Restrictions
• The OptIPuter Enables the Creation of Dynamic
  Virtual Computers Instantiations, Releasing
  Resources after Use
• Resources Include Optical Networking Components
• Dynamic Lightpaths Supported by Next Generation
  Optical Networks
• For the OptIPuter, the Network is No Longer a
  Network, but a Large Scale, Distributed System
  Bus
• An Optical Backplane Based on Dynamically
  Provisioned Datapaths, Including Lightpaths
• Also, the OptIPuter Uniquely Addresses the Needs
  of Extremely Large Scale Sustained Data Flows
  Even Those Exhibiting Dynamic Unpredictable
  Behaviors
• Achieving These Goals Requires New Architecture,
  Methods and New Technologies at All Levels L1
  L7

3
Apps
Clusters
C O N T R O L P L A N E
Dynamically Allocated Lightpaths


OptIPuter Team Research Agenda
Switch Fabrics
Physical Monitoring
Multi-Leveled Architecture
4
OptIPuter Control Plane Paradigm Shift
OptIPuter Distributed Device, Dynamic Services,
Visible Accessible Resources, Integrated As
Required By Apps
Traditional Provider Services Invisible, Static
Resources, Centralized Management
Invisible Nodes, Elements, Hierarchical, Centrall
y Controlled, Fairly Static
Unlimited Functionality, Flexibility
Limited Functionality, Flexibility
5
Optical Layer Control Plane
Client Controller
Client Layer Control Plane
Management Plane
UNI
Optical Layer Control Plane
Controller
Controller
Controller
Controller
Controller
I-UNI
CI
CI
Client Device
CI
Client Layer Traffic Plane
Optical Layer Switched Traffic Plane
6
OMNInet Testbed Used for OptIPuter Experiments
iCAIR, Northwestern
EVL UIC
Photonic
DOT Grid Clusters
10 GE
l
10 GE
Photonic
1
PP
10/100/ GIGE
PP
Node
10 GE
l
10 GE
Node
2
NWUEN-1
8600
8600
10/100/ GIGE
Optera 5200 10Gb/s TSPR
l
3
l
4
Optera Metro 5200 OFA
NWUEN-5
INITIAL CONFIG 10 LAMBDAS (ALL GIGE)
CAMPUS FIBER (16)

CAMPUS FIBER (4)
NWUEN-6
NWUEN-2
NWUEN-3
EVL/UIC OM5200
StarLight
TECH/NU-E OM5200
10 GE
l
PP
1
Photonic
10/100/ GIGE
10 GE
l
INITIAL CONFIG 10 LAMBDA (all GIGE)
8600
2
Node
CAMPUS FIBER (4)
Fiber
l
3
l
4
LAC/UIC OM5200
NWUEN-8
NWUEN-9
NWUEN-7
NWUEN-4

• 8x8x8l Scalable photonic switch
• Trunk side 10 G WDM
• OFA on all trunks

DataCom Ctr
10GE LAN PHY (Dec 03)
10 GE
PP
Photonic
10 GE
8600
To CaNet 4
Node
10/100/ GIGE
OMNInet is a SONET-Free Zone
Research Partnership Nortel, SBC, iCAIR, EVL, ANL
7
Testbed Extensions, e.g., for PIN Experiments
OptIPuter and Inter-Domain Intelligent Signaling
SURFNET/ NetherLight (Holland)
CAnet4 (Canada)
StarLight
IWIRE (Illinois)
PIN
OMNInet (Chicago)
GMPLS Signaling
Gigabit Cluster
Gigabit Cluster
Source Oliver Yu
Other Interdomain Projects at CANARIE, UoA, et al
8
PIN Architecture
PIN 3
PIN 1
PIN 2
Inter-domain Routing
Inter-domain Routing
Routing Table
Routing Table
Routing Table
Dispatcher
Dispatcher
Dispatcher
Inter-domain Signaling
Inter-domain Signaling
Translator
Translator
Translator
Generic signaling message
Intra-Domain Signaling
ODIN
Intra-Domain Signaling
GMPLS Control Plane 1
Control Plane 2
Control Plane 3
User A
User B
Domain 3
Domain 1
Domain 2
Source Oliver Yu
9
Multi Domain Lambda setup
Broker
user request
OGSI wrapper
OGSI wrapper
AAA
PDC
AAA
PDC
SURFnet
Hosts_at_UvA
Hosts_at_EVL
StarLight
NetherLight
Chicago
Amsterdam
Source Cees De Laat
PDC Policy Controller AAA Authentication,
Authorization, Audits
10
OptIPuter Optical Architecture Year 1 Results

• Requirements
• Identified General Application Requirements for
  OptIPuter Services (e.g. Photonic Data Services
  w/ UIC LAC)
• Determined Middleware Requirements and Components
• Determined Testbed Requirements
• Architecture
• Designed Preliminary Optical Architecture
• Designed A Framework and Protocol Implementation
  Model for the OptIPuter Distributed Optical
  Backplane
• Designed and Created a Method for Optical Dynamic
  Intelligent Network Service Layer for Dynamically
  Switched Wavelength Based DWDM
• Created Preliminary Architecture for Intra and
  Interdomain Signaling
• Began Designing Methods Allowing Lightpath
  Channels to be Extended to Edge Devices
• Began Creating Enhanced Interfaces e.g., to
  GMPLS Libraries, TL1 APIs et. al.
• Formulated Strategies to Enable Secure Optical
  VPN Across the OptIPuter backplane
• Created Concepts for First-Phase Architecture for
  Large Flow Cut Through Method
• Examined Potential For Management Information
  Base (MIB) to support distributed OptIPuter
  backplane management.
• Examined SNMP-type Concepts for Management
  Architecture

11
OptIPuter Optical Architecture Year 1 Results

• Implementations, Experiments, Extensions, et al
• Implemented Component Prototypes
• Conducted Multiple Experiments, in Simulation, on
  Lab Equipment, and on Large Scale Physical
  Testbeds, Metro, Regional, and International
• Created Implementation of Signaling and Resource
  Management Architecture Within a OGSA/OGSI
  Context
• Implemented Globus v.3 in a Prototype OptIPuter
  Environment on OMNInet Testbed
• Demonstrated Capabilities, Published Results
• Worked with Standards Bodies Involved in Related
  Efforts, IETF, GGF

12
OptIPuter Optical Architecture Year 2 Goals

• Development of Optical Network Control
  Technologies, Incorporating New Network
  Performance Metrics, Analysis and Protocol
  Parameters
• Refinement of Optical Backplane Architecture
• Development of New Techniques for Optical Control
  and Switching
• Development of Enhanced Inter-Relationships Among
  Components
• Interfaces to Edge Resources, e.g., Clusters,
  Storage Devices (with Industry Partners)
• Methods for Survivability, Reliability,
  Restoration (with Oliver Yu)
• Development of New Lightpath Management Methods,
  e.g., More SNMP vs OSS oriented (with George
  Clapp)
• Enhanced Policy Development (with Cees De Laat)
• Investigation of Scheduling Methods

13
OptIPuter and Related Standards Initiatives
ITU
OIF
IETF
P-P Internetworking Intra-Domain
Interoperability Inter-Domain Interoperability MPL
S GMPLS Link Management CAMP TE CR LDP TE
RSVP IP-over-Optical OBGP
G.ASON UNI PNNI TE RSVP TE CR LDP Hierarchical
Support Architecture Inter-Domain
Interoperability Intra-Domain Autonomous Process
O-NNI O-UNI
GGF
HPN
WG White Paper on Optical Grid To be Released
During GGF9 in Oct
