Title: Compact Fluorescent


1

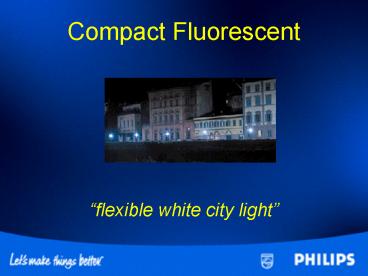

Compact Fluorescent
flexible white city light
2
Compact Fluorescent Introduction
The Quality of Light has become more important
over the last decade. Especially in outdoor
applications where flexible white light with good
colour properties is required. Compact
fluorescent lamps with non-integrated gear offer
a well balanced solution to this demand. MASTER
PL-L Outdoor as part of the MASTER PL-L family
and MASTER PL-T are Philips Lighting's
suggestion for Outdoor use.
3
Compact Fluorescent Application
  • Residential areas
  • Parks, squares
  • Linear illumination
  • Under canopies
  • - in storage areas
  • - in public transport stations

4
Compact Fluorescent Benefits Features
  • MASTER PL-T
  • High quality, flexible white light
  • CRI gt 80
  • 3 white light colour temperatures
  • dimmable
  • Low sensitivity to outside temperatures
  • gt90 of max. output between -10C and 70C
  • Service life of 8.000 hours
  • equals two years in public lighting

5
Compact Fluorescent Benefits Features
  • MASTER PL-L Outdoor
  • Benefits as MASTER PL-L
  • Philips patented bridge technology rendering
    maximum light output at low temperature
  • at 15C (without heat cap)
  • at 7C (with heat cap)
  • Extended range
  • 3 wattages in 2 colour temperatures
  • MASTER PL-L
  • High quality, flexible white light
  • CRI gt 80
  • 3 white light colour temperatures
  • dimmable
  • Service life of 16.000 hours
  • 90 lumen maintenance
  • 90 survivors
  • Environmentally friendly
  • Mercury content reduced to 4 mg

6
Compact Fluorescent Benefits Features
  • MASTER PL-L
  • 18, 24, 36 W
  • 4-pin lamp base 2G11
  • operated with EM or HF gear
  • Colour 2700K - 3000K - 4000K
  • (827 - 830 - 840)
  • 40, 55 and 80W
  • 4-pin lamp base 2G11
  • HF operated
  • Colour 3000K - 4000K
  • (830 - 840)
  • MASTER PL-L Outdoor
  • 24, 36 and 55 W
  • 4-pin lamp base 2G11
  • HF operated
  • Colour 3000K - 4000K
  • (830 - 840)
  • MASTER PL-T 4P
  • 18, 26, 32 and 42W
  • 4-pin lamp base GX24q
  • operated with EM or HF gear
  • Colour 2700K - 3000K - 4000K
  • (827 - 830 - 840)

7
Compact Fluorescent Benefits Features
Inside the luminaire
  • By modification of the bridge position near the
    lamp head, the maximum lumen output is achieved
    at lower temperatures of approx. 15 C (without a
    heatcap)
  • In dedicated luminaires a heat cap is
  • placed at the top of the lamp so
  • achieving a maximum output at 7C

8
Compact Fluorescent Range Overview
Colour Temp. (K)
Lamp base
Type designation
CRI
Colour
designation
MASTER PL-L 24W/830/4P
82
Neutral white
2G11
3000
2G11
MASTER PL-L 36W/830/4P
82
Neutral white
3000
MASTER PL-L MASTER PL-L Outdoor
Neutral white
MASTER PL-L 55W/830/4P
82
3000
2G11
MASTER PL-L 24W/840/4P
82
Cool White
4000
2G11
Cool White
MASTER PL-L 36W/840/4P
82
4000
2G11
Cool White
MASTER PL-L 55W/840/4P
82
2G11
4000
MASTER PL-T 26W/827/4P
82
Warm White
2700
GX24q
MASTER PL-T 32W/827/4P
82
Warm White
2700
GX24q
MASTER PL-T 42W/827/4P
82
Warm White
2700
GX24q
Neutral White
3000
GX24q
MASTER PL-T 26W/830/4P
82
Neutral White
MASTER PL-T 32W/830/4P
82
3000
GX24q
Neutral White
3000
GX24q
MASTER PL-T 42W/830/4P
82
MASTER PL-T 26W/840/4P
82
GX24q
4000
Cool White
MASTER PL-T 32W/840/4P
Cool White
82
4000
GX24q
MASTER PL-T 42W/840/4P
82
Cool White
4000
GX24q
9
Compact Fluorescent Technical Specification
Lamp Power (W)
Lamp Efficacy (lm/W)
Light Output (lm)
Type designation
Unit
European Ordering Code
pack
75
25
261540 40
MASTER PL-L 24W/830/4P
24W
1800
80
MASTER PL-L 36W/830/4P
36W
2900
25
261588 40
MASTER PL-L MASTER PL-L Outdoor
85
MASTER PL-L 55W/830/4P
55W
4800
25
261625 40
MASTER PL-L 24W/840/4P
24W
1800
75
25
261564 40
80
MASTER PL-L 36W/840/4P
36W
2900
25
261601 40
85
25
261649 40
MASTER PL-L 55W/840/4P
55W
4800
MASTER PL-T 26W/827/4P
69
1800
26W
25
625472 15
MASTER PL-T 32W/827/4P
75
2400
32W
25
625502 15
MASTER PL-T 42W/827/4P
76
3200
42W
25
560285 15
MASTER PL-T 26W/830/4P
1800
25
625489 15
69
26W
2400
MASTER PL-T 32W/830/4P
75
25
625519 15
32W
MASTER PL-T 42W/830/4P
42W
3200
76
25
763952 15
MASTER PL-T 26W/840/4P
26W
25
625496 15
69
1800
MASTER PL-T 32W/840/4P
75
2400
25
625526 15
32W
MASTER PL-T 42W/840/4P
42W
25
763976 15
76
3200
10
Compact Fluorescent Product Pictures
11
Compact Fluorescent References
Swift Court, Eastwood - UK MASTER PL-L 36W
installation
