Global Peer-to-Peer Replication Utilizing Sybase Replication Server

1

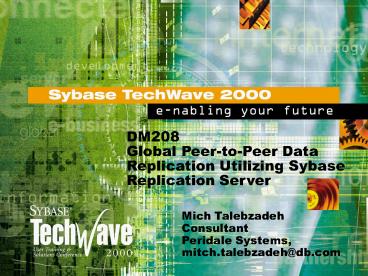

DM208 Global Peer-to-Peer Data Replication
Utilizing Sybase Replication Server
Mich Talebzadeh Consultant Peridale
Systems, mitch.talebzadeh_at_db.com
2
Aimed At Audience with

• Full Familiarity with Sybase ASE
• Working knowledge of Sybase's Replication Server
  Products
• Knowledge of UNIX and shell scripting useful.

3
Topics Covered

• Reasons for Peer-to-Peer Replication
• Project Issues to be Addressed
• Planning for a Replication System
• Issues to be Addressed
• Peer-to-Peer Replication Implementation

4
Topics Covered

• Tuning Replication Server for Better Performance
• Monitoring the Latency and Delivery of Data
• Use Replication Server to Measure the Volume of
  Replication Traffic on a Daily Basis

5
Reasons for Peer-to-Peer Replication

• Need to Provide Business Solutions to a Community
  Scattered Around the Globe
• Limitations of Traditional Techniques Using a
  Central Database Repository in a Major Location
  with Applications Connected Remotely are
• Limited Application Performance Because of the
  Geographical Distance
• Degradation in Network Response When the Traffic
  over the WAN Gets Heavy. For Example, Remote DSS
  Versus Local Transaction Inputs

6
Reasons for Peer-to-Peer Replication

• The Data Server Becomes a Bottleneck As a Larger
  Business Community Contends for Access
• Data Becomes Unavailable When There is a Network
  Failure.
• Impact on Maintenance Tasks When Remote Users
  Logged In.

7
Reasons for Peer-to-Peer Replication

• A typical third-party application may not access
  data in the most efficient way. For example, if
  the Application Makes a Large Number of Discreet
  Queries to the Database, Connection Latency
  between the Application and Data Server could
  Cause Start-Up Delays
• If the Application were to Crash, the System
  Becomes Unusable to Traders and Has an
  Unacceptable Business Impact.

8
Project Issues to Be addressed

• The Package Eligibility for Replication
• The Availability of Required Band-width
• The Technical Knowledge of the Package or
  Application to Be Replicated
• Local DBA Support for Sybase Replication

9
Planning For A Replication System

• Start A Pilot Project with One Way Replication
  Between Two Sites (Not to be confused with Sybase
  Warm Standby)
• Establish the volume of data growth and Deltas on
  a Daily Basis on the Replicated Database
• Establish the Bandwidth between the Two Replicate
  Sites. May have to Improve the Bandwidth
• Identifies External Feeders to the Database

10
Planning For A Replication System

• Best Option to set up the Pilot on the Local and
  the Remote Sites, otherwise use two different
  Servers Locally linked via a WAN Simulator
• Decide on What to Replicate
• Replicate Tables and Turn off Triggers for
  Replicated Transactions
• Not Replicate Tables and Let Triggers Insert the
  Records
• Replicate Stored Procedures

11
Issues to Be Addressed

• If Table Replication
• Which Tables you are Replicating
• Does the Table Being Replicated Meets Criteria
  for Replication
• Does the Table Have Primary Key
• How is the Unique ID on the Table Generated
• Determine Rows and Columns to Be Replicated

12
Issues To Be Addressed

• Time Zones Dependency and Handling Time Stamps.
  Discuss and Agree with Business on How to Handle
  These. Remember Remote Locations Mean Different
  Time Zones. Serious Business Implication
• Managing Conflicts in Peer-to-Peer Replication
• Managing Inserts
• Conflicting Updates
• Let Us Take a Look at These Site Specific
  Solutions.

13
Issues To Be Addressed

• Managing Inserts
• A typical local table will include inserts from
  local application in addition to inserts
  delivered via replicated transactions. In a
  peer-to-peer set up both tables are
  bi-directional.
• Designers tend to use unique IDs to uniquely
  identify records in a table. Primary keys or
  unique clustered indexes are usually built on the
  unique ID.

14
Issues To Be Addressed

• The unique ID for a given table tends to be a
  monolithically incrementing number, a 32-bit
  integer, stored in a table, the so-called
  table_next_row_id and retrieved from this table.
• Inter site conflicts occur when rows are inserted
  in a local table and distributed to the remote
  table. If the remote table has already a record
  with the same unique ID, the replicated insert
  will be rejected, and the data at the remote
  table will be inconsistent with the local table.
• Possible solutions are

15
Issues To Be Addressed

• Add a location key to the tables if not already
  there. Include the location key in the primary
  key for replicated tables. This is useful if the
  application is at the design stage. As
  replication implementation is normally an after
  thought, this approach may not be possible
  without a substantial change to database schema
  and code. Beware of Maintenance and Retrofitting.
• Localise the table_next_row_id and DO NOT
  replicate it. Allocate ranges for next_row_id
  column for each location. A 32-bit integer
  provides ability to store up to 2 billion unique
  values. For a lifetime of a typical application
  this range is far more than enough to cater for
  all sites.

16
Issues To Be Addressed

• For example, you can allocate the following
  ranges
• Location Reserved range for next_row_id
  Column
• London 1-100,000,000
• Hong Kong gt100,000,000 and lt 150,000,000
• Tokyo gt 150,000,000 and lt 200,000,000

17
Issues To Be Addressed

• Conflicting Updates
• The best way to handle conflicting updates from
  different sites is to construct the application
  and the environment so that conflicts cannot
  happen. However, in majority cases one needs to
  rely on business rules to reduce/eliminate the
  conflicts. These rules are application specific.
  For example for a trading system these could be

18
Issues To Be Addressed

• On performing simultaneous new trade on the same
  holding on different site, problem will occur on
  calculated field, such as quantity, PL,
  Furthermore, there are no signals, which warn the
  users, when the problem occurs. The adopted
  solution is to recalculate these fields (nightly)
  so that the following day when the portfolio is
  loaded, they will have the correct figure.
• However, we have not yet encountered such problem.

19
Issues To Be Addressed

• On simultaneous update on the same order. This
  could happen due to a mistake. The business rule
  is whoever created the order should be the one
  who updates the order. If this happens the
  quantity (PL) data will be out of synch. Again
  there will be no warning message to indicate this
  and it will be very difficult for IT support to
  detect it. The traders/ users will inform
  Application support that PL or quantity is
  wrong. The Application support group needs to
  check the historical order and amend it
  appropriately. Once this is carried out, the
  correct details will be replicated to other sites
  and the databases will be in sync again.

20
Issues To Be Addressed

• Make Sure that the IT and Business Managers plus
  Application Support are Aware of the Fact that
  Technology is Not a Substitute for Business Rules
  and Ultimately they are Responsible For
  Consistency of the Data.

21
Peer-to-Peer Replication Implementation

• For Simplicity We Illustrate the Peer-to-Peer
  Implementation Among Three Sites. Although This
  Model Can be Expanded Further to Include
  Additional Sites
• We Have the Following

22
Peer-to-Peer Replication Implementation
23
Peer-to-Peer Replication Set UP
24
Peer-to-Peer Replication Implementation

• Basics
• Create Replication Servers on all Three sites.
  Each Replication Server Will Handle the Local
  RSSD and the Local Database to Be Replicated
• Choose the ID Server for Replication Where the
  Replication and Support Knowledge is Highest
• Ideally All Sites Should Have Sybase sa and
  root Access to all Servers. As a Minimum the ID
  Server Site Should Have Access to All These

25
Peer-to-Peer Replication Implementation

• Create the Diagnostics Run Files for Replication
  Servers so the DBA May Observe Each Replicated
  Transaction Performed by the Server (Invaluable
  in Identifying Problems).
• This is Achieved by Replacing the Repserver
  Binary with the repserver.diag Binary in the Run
  File and Adding the Following Entry to the
  Replication Server .cfg File
• traceDSI,DSI_CMD_DUMP

26
Peer-to-Peer Replication Implementation

• Create error class rs_sqlserver_error_class
  (default sql server error class) in ID
  replication server only.
• This will Handle Sql Server Errors in
  Replication Server. The default error action for
  all errors returned by Sql Server is to Stop
  Replication! You Can Assign Action to the Created
  Error Class etc. Very Important!
• Error Actions are Stored in Table
  rs_erroractions. Use rs_helperror error_no, v to
  Get Information About the Errors.

27
Peer-to-Peer Replication Implementation

• Turn off trigger settings For Each Replicated
  Database in the Repserver Controlling that
  Database. Use configure connection command with
  dsi keep triggers option set to off. For
  example in lon_rep_server run the following
  command
• configure connection to london_sql_server.db set
  dsi_keep_triggers to off
• Create Interfaces Files with All Sql Server and
  Repserver Entries for All Sites. Ensure that the
  Application Servers also have All the Relevant
  Information for All Sql Servers

28
Peer-to-Peer Replication Implementation

• Creating Direct Routes
• In our triangle diagram, we need to create routes
  in order for our three replication servers to
  send messages to destination replication servers.
• A route is a one-way message stream that sends
  requests from one replication server to another,
  carrying data modification commands, replicated
  functions and stored procedures. In this design
  the routes are created as follows

29
Peer-to-Peer Replication Implementation

• Route type Source destination
• Direct lon_rep_server hk_rep_server
• Direct lon_rep_server tyo_rep_server
• Direct hk_rep_server lon_rep_server
• Direct hk_rep_server tyo_rep_server
• Direct tyo_rep_server lon_rep_server
• Direct tyo_rep_server hk_rep_server

30
Peer-to-Peer Replication Implementation

• For example in lon_rep_server run the following
  command to create route to hk_rep_server and
  tyo_rep_server respectively
• create route to hk_rep_server set username
  hk_rep_server_rsi set password hk_rep_server_rsi_p
  s
• create route to tyo_rep_server set username
  tyo_rep_server_rsi set password
  tyo_rep_server_rsi_ps

31
Peer-to-Peer Replication Implementation

• Where hk_rep_server_rsi is the RSI username
  already created by rs_init when you created the
  hk_rep_server. hk_rep_server_rsi_ps is the
  default password for such user etc. Use
  rs_helproute in any RSSD to check the status of
  the routes created.
• Keep all passwords below 30 characters. If you
  want to change password for RSI user etc, do so
  when creating the repserver. Makes life easier
  later.

32
Peer-to-Peer Replication Implementation

• Loading the Database to Be Replicated
• In order to perform the initial load of the
  database to be replicated, you may consider the
  following steps
• Decide where you are going to load your initial
  database. In our case we chose London as the
  starting point. Otherwise you may have to merge
  databases. Requires a good migration plan
• dbcc the database and perform update statistics
  in London.
• Review all the primary keys for tables to be
  replicated.

33
Peer-to-Peer Replication Implementation

• Turn off all replication flags in the user
  tables. Use sp_setreptable table_name, false
• Do dbcc settrunc(ltm,ignore) on the database
• Dump transaction with truncate_only
• Dump database to the dump directory.
• Ftp the dump file to the remote servers. May
  consider zipping the file etc.
• On the BCP site load the database

34
Peer-to-Peer Replication Implementation

• Load the database from the dump file in remote
  locations
• Localise the so-called local tables. For example
  if you have table_next_row_id, set next_row_id
  column to the appropriate starting values for
  location etc
• Adding databases is quite straightforward. For
  example
• Add the London Production database to the
  replication system using lon_rep_server
• Add the Hong Kong database to the replication
  system using hk_rep_server
• Add the Tokyo database to the replication system
  using tyo_rep_server

35
Peer-to-Peer Replication Implementation

• Creating Replication and Subscription Definitions
• All the Information you need is in the database
  to be replicated
• Use the Local Repserver and SQL Server to Create
  Replication Definitions for the Database to be
  Replicated
• You will need to extract information from system
  tables sysobjects, syscolumns systypes and
  syskeys, provided that you have defined primary
  keys for your tables!

36
Peer-to-Peer Replication Implementation

• I have prepared shell scripts which will
  automatically generate replication definitions
  for all tables. This script takes the format
• genrepdef.ksh -R ltREP_SERVER_NAMEgt -S
  ltSQL_SERVER_NAMEgt -D ltDATABASE_NAMEgt
• where the parameters refer to the repserver
  controlling the database, the name of the SQL
  server and the database name respectively.
• In the same way, you can create subscription
  definitions using script
• gensubdef.ksh -R ltREP_SERVER_NAMEgt -S
  ltSUBSCRIBER_SERVERgt -D ltDATABASE_NAMEgt

37
Peer-to-Peer Replication Implementation

• Where the parameters refer to the repserver in
  which subscriptions are defined, the name of the
  SQL server which subscribes to the replication
  definitions and the database name respectively.
• Use activate.ksh, validate.ksh and checksub.ksh
  to complete the subscription process.

38
Peer-to-Peer Replication Implementation

• In summary for replications we have

39
Peer-to-Peer Replication Implementation

• Likewise for subscriptions we have

40
Peer-to-Peer Replication Implementation

• At the end of subscription definitions you should
  have two subscription definitions for each
  replication definitions. In other words, doing
  sp_helpsub for each table should give you 3x2
  subscriptions 6 lines. This should be shown in
  any RSSD database.
• Use of Function Strings to Apply Local Timestamps
• Replication Server converts functions to commands
  for destination data servers, and submits them to
  these data servers.

41
Peer-to-Peer Replication Implementation

• For example, a new row inserted in the source
  table causes Replication Server to distribute an
  rs_insert function specific to that table to the
  subscriber databases.
• A possible solution for applying local timestamps
  at replicate database would be to modify
  rs_insert for a given source table to invoke an
  RPC at the destination database. The RPC in turn
  inserts local timestamp to the subscribed table
  as shown below

42
Peer-to-Peer Replication Implementation

• alter function string tran_history_db_rd.rs_insert
  for rs_sqlserver_function_class output rpc
• 'execute ins_tran_history_sp
• _at_time_stamp ?time_stamp!new?,
• _at_action ?action!new?,
• _at_table_name ?table_name!new?,
• _at_row_id ?row_id!new?,
• _at_host_name ?host_name!new?,
• _at_user_name ?user_name!new?,
• _at_pid ?pid!new?
• go

43
Peer-to-Peer Replication Implementation

• create procedure ins_tran_history_sp
• ( _at_time_stamp datetime null, _at_action int
  null,
• _at_table_name varchar(24) null, _at_row_id int
  null,
• _at_hos_tname varchar(24 ) null, _at_user_name
  varchar(24) null,
• _at_pid numeric(35) null)
• as
• begin transaction
• insert into tran_history
• ( timestamp, action, table_name, row_id,
  host_name,user_name,
• pid)

44
Peer-to-Peer Replication Implementation

• values
• ( getdate(), _at_action, _at_table_name, _at_row_id,
• _at_hostname, _at_user_name, _at_pid)
• commit transaction
• go

45
Tuning Replication Server for Better Performance

• There are some configuration parameters that can
  be altered in order to get better performance
  from the Replication Servers
• init_sqm_write_delay - stable queue manager waits
  for at least init_sqm_write_delay milliseconds
  for a block to fill before it writes the block to
  the correct queue on the stable device (default
  is 1000). Try decreasing this parameter.
• init_sqm_max_write_delay - a flush to the queue
  is guaranteed to happen after waiting for
  init_sqm_max_write_delay, if the DSI or RSI
  thread reading the queue is unable to connect to
  the target or has been suspended (default 10000).
  Decrease this parameter if required.

46
Tuning Replication Server for Better Performance

• sqt_max_cache_size - need to increase this value
  if there are a lot of open transactions and or
  large transactions. Memory for sqt_max_cache_size
  is taken from the global memory pool (default is
  131072 bytes)
• batch_sz - the larger the batch_sz the less often
  the truncation point is updated (default 1000
  commands). Try increasing this value

47
Monitoring the Latency and Delivery of Data

• It is a common practice for DBAs to set up a DBA
  specific table in the replicated database and try
  to check the latency and health of the
  replication system by updating data in this
  table. In its simplest form one can insert or
  update records in this table and see if the data
  is being replicated to the other sites. The time
  taken for data to get to the remote site will
  give an indication of latency.

48
Monitoring the Latency and Delivery of Data

• Although the above method can be used as a simple
  monitoring tool it suffers from the following
  drawbacks
• It is not an indicator of whether the business
  transactions arrive in remote sites in a timely
  manner
• DBA table is normally used by one application,
  for example a cron job via a simple transaction.
  User applications create a larger number of
  transactions and the data delivery is impacted by
  the following

49
Monitoring the Latency and Delivery of Data

• Concurrency
• Size of the user tables
• Locking mechanism employed by the application
• It should be noted here that the maintenance user
  trying to deliver the replicated data could be
  blocked by local users. If the statistics on the
  user tables are not current then the replicated
  data may take a longer time to be delivered
  resulting in remote users being blocked waiting
  for locks to be released.

50
Monitoring the Latency and Delivery of Data

• It is important to get a more realistic estimate
  of replication delivery. A possible solution
  would be to look at the entries in an audit or
  transact history table in the replicate database
  and check the delivery timestamp. By comparing
  the timestamps for records delivered and
  adjusting for servers clock difference, the
  latency can be estimated.

51
Use Replication Server to Measure the Volume of
Replication Traffic

• Use Replication Command admin who, sqm
• Take the Column First Seg.Block. This is the
  first undeleted segment and block number in the
  queue. As we go through the day the Seg. Block
  value increases. When the Replication is shutdown
  these values are reset. Take readings at the
  different time intervals, the difference in the
  values read gives an indication of data passed to
  a replication queue over the time.
• Need to convert blocks read to MB

52
Received0 Server Current
Previous Start of
Received/Sent Sent1
Read(S.Blk) Read(S.Blk) Day
Read(S.Blk) today/MB 1050
hk_server.db 40196.52 40196.35
40171.60 24.87 1051
hk_server.db 8487.27
8487.24 8472.60 14.48 1160
bcp_server.db 34872.64
34872.47 34844.20 28.69 1161
bcp_server.db 5245.16
5245.13 5236.18
8.97 1170 lon_server.db
3742.25 3742.25 3733.60
8.45 1171 lon_server.db
45706.58 45705.62 45660.20
46.59 1180
ny_server.db 21153.49 21153.32
21124.23 29.41 1181
ny_server.db 2709.48 2709.45
2702.48 7.00 1190
tyo_server.db 14081.53 14081.36
14053.30 28.36 1191
tyo_server.db 2664.40 2664.37
2656.28 8.19
53
Use Replication Server to Measure the Volume of
Replication Traffic

• Stable queues are composed of segments stored on
  disk partitions.
• Each segment has a megabyte of message space,
  divided into 64 blocks of 16K
• Take the reading at Start of day (Say 11PM)
• No_of_16K_Blocks_cur (Seg.Block_cur -1) 64
  ( Seg.Block_cur - int(Seg.Block_cur) ) 100
• No_of_16K_Blocks_start (Seg.Block_start -1)
  64 ( Seg.Block_start - int(Seg.Block_start) )
  100
• Traffic today (MB) ( No_of_16K_Blocks_cur -
  No_of_16K_Blocks_start ) / 64

54
Total Messages attributed to different servers up
to now are London Production
55.05MB Hong Kong
39.36MB Tokyo
36.55MB New York
36.41MB London bcp
37.66MB DBA specific traffic
(estimate) 44.84MB Application traffic
160.17MB Sum total all sites
205.02MB
