Title: From Business To System Use Cases

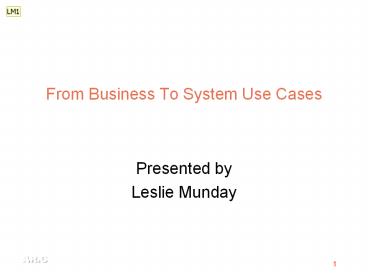

1
From Business To System Use Cases
  • Presented by
  • Leslie Munday

2
Agenda/Contents
  • The purpose of this presentation is to give an
    overview of the connection between the Business
    Modeling, Enterprise Architecture and
    Requirements disciplines of the PRC Dev Case.
  • In the next two hours we will cover
  • Business Use Cases (BUCs)
  • Traceability From BUCs To Stakeholder
    Requirements
  • Allocation Of Business Activities
  • Candidate System Use Cases (CSUCs)
  • Traceability From CSUCs To BUCs
  • System Use Cases (SUCs)
  • Traceability From SUCs To BUCs

3
Intended Audience
  • This presentation will demonstrate how AWS
    relates business use cases to system use cases.
  • At the end of this presentation you will
    understand how to
  • allocate business activity to systems
  • create a candidate system use case model
  • manage traceability between BUCs and SUCs.

4
Prerequisites
  • In order to fully understand this presentation
    you should have previous experience with
  • Business use case modeling.
  • System use case modeling.
  • Modeling with Rational Rose.
  • Managing traceability with RequisitePro.

5
Use Cases Revisited
  • What is a Use Case
  • Primary actor - Initiates the use case
  • Secondary actors - Interfaces with the use case
  • Precondition - The state immediately before the
    use case begins
  • Basic flow step - A required step in the use case
    flow
  • Alternative flow step - An unexpected step in the
    use case flow
  • Postcondition(s) - A state immediately after the
    use case completes.

6
Types Of Use Case
  • Business(BUC) Describes a story involving the
    interaction of people and the things they are
    manipulating or using.
  • System(SUC)
  • Describes a story of an interaction between an
    actor (could be a person or a machine) and the
    system being constructed.
  • System use cases are the result of a desire to
    automate parts of business use case.
  • Candidate System Use Case(CSUC)
  • An allocation of a BUC step to a SUC.

7
Rose-ReqPro Association
  • Associate package to project.
  • Disassociate package from Project.

8
Use CaseReqPro Association
  • New Create item in ReqPro.
  • Associate Link to ReqPro item.
  • Open Display associated ReqPro item.
  • Disassociate Unlink from associated ReqPro item.

9
Use Case-ReqPro Commands
  • Requirement Properties ? New - Creates an
    associated ReqPro requirement of the appropriate
    type (SUC or BUC).
  • Use Case Document ? New Creates a use case
    specification of the appropriate type (SUC or
    BUC) and creates an associated ReqPro
    requirement.
  • Requirement Properties ? Associate Links the
    use case to a ReqPro requirement.
  • Use Case Document ? Associate - Links the use
    case to a ReqPro to a Specification.
  • View RequisitePro Association Shows you which
    project this use case is linked to.

10
Traceability Tree
  • Shows how Stakeholder Requests are realized by
    Business Use Cases.

11
Activity Diagrams
  • Describe the steps in a use case, as activities
    connected by transitions.
  • Show alternate flows, as transitions leaving
    decision boxes.
  • Show parallel activities with synchronization
    bars.
  • Indicate the preconditions to the use case, as a
    start state.
  • Indicate postconditions of the use case, as end
    states.
  • Show who performs the business activities, and
    what systems they are allocated to by placing
    activities in swimlanes.
  • (Optionally) Defines objects that are produced
    and consumed by activities.

12
BUC Diagram
13
A BUC Activity Diagram
14
A System Use Case Diagram
15
What Is The Connection?
  • Steps in a BUC must be realized by a SUC,
    otherwise they are manual activities.
  • The SUC automates steps in a BUC in an order to
    reduce
  • manual effort.
  • the risk of making mistakes.
  • duplication of work.
  • other factors (cost, speed, etc).

16
Swimlanes In Business Activity Diagrams
  • Swimlanes allow the activities in the BUC to be
    allocated to actors.
  • Actors may be people or systems.
  • Add a swimlane for each actor, worker and
    potential system that will perform and activity.
  • Place the activity in its appropriate swimlane.

17
Swimlane Example
18
Linking BUCs And SUCs
  • Create a requirement specification in ReqPro for
    the BUC.
  • Create a requirement in ReqPro for the SUC.
  • Open the properties window for the SUC and add a
    Trace From BUC link.
  • OR
  • Open the properties window for the BUC and add
    Trace To SUC link.
  • A BUC will have many SUC links. A SUC may have
    many BUC links.

19
Create Requirements For Steps
  • Each activity in the BUC has an equivalent step
    in the BUC specification.
  • Each step in the BUC specification is associated
    with an equivalent requirement in the ReqPro BUC
    package.
  • Each activity is labeled with the identifier
    given by ReqPro to the equivalent requirement.

20
ReqPro BUC Steps
21
Activity Diagram With Identifiers
22
Traceability Report Between BUC Steps and BUC
activities
23
Candidate System Use Cases
  • Are how we get from BUCs to SUCs in Rational
    Rose.
  • In the Candidate System Use Case Package, a CSUC
    exists for each activity in the BUC activity
    diagram.
  • The CSUC is given the same name as the activity
    (including identifier).
  • The CSUC is not linked to the BUC Activity, so we
    use a SoDA report to check consistency.
  • Using the trace to link in the CSUC requirement,
    the CSUC is linked to the actual SUCs.)

24
Business Allocation Diagram
  • Shows activities allocated to candidate systems

25
CSUC Diagram
  • Shows CSUCs Traced to the BUC

26
SoDA Report Of Rose Traceability
  • Return Book
  • BUCS1.Requesting Patron Details gt
    BUCS1.Requesting Patron Details
  • Traceability to Return Book found.
  • BUCS4.Changing Customer Record gt BUCS4.Changing
    Customer Record
  • Traceability to Return Book found.
  • BUCS6.Filing Customer Record gt CS6.Filing
    Customer Record
  • Traceability to Return Book found.
  • BUCS8.Finding Who Book Is Checked To gt No
    Candidate System Use Case found.
  • BUCS9.Changing Check-Out Details gt
    BUCS9.Changing Check-Out Details
  • No traceability link found.

27
CSUC Diagram II
  • Shows CSUCs Traced to SUCs

28
BUC To SUC Traceability
  • Enter the traceability links into ReqPro

29
Traceability Tree
Traceability tree showing how Stakeholder Requests
are realized by System Use Cases.
30
Summary
  • STRs manually entered into ReqPro, or through the
    Vision document.
  • BUCs entered into Rose and attached to BUC
    requirements in ReqPro.
  • BUC specifications attached to BUC requirements
    in ReqPro.
  • BUC requirements traced from STRs in ReqPro.
  • BUC activities attached to BUC in Rose activity
    diagram.
  • BUC Activities traced to BUC specification using
    a SoDA report.
  • BUC activities allocated to systems in Rose BAD.
  • BUC traced to CSUCs using a Rose traceability
    diagram.
  • BUC activities traced to CSUCs using a SoDA
    report.
  • CSUCs traced to SUCs in Rose traceability
    diagram.
  • SUCs attached to SUC requirements in ReqPro.
  • SUCs trace to BUCs in ReqPro.

31
Traceability Overview
