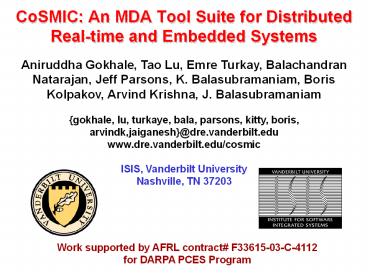

CoSMIC An MDA Tool Suite for Distributed
Real-time and Embedded Systems
Aniruddha Gokhale, Tao Lu, Emre Turkay,
Balachandran Natarajan, Jeff Parsons, K.
Balasubramaniam, Boris Kolpakov, Arvind Krishna,
J. Balasubramaniam gokhale, lu, turkaye, bala,
parsons, kitty, boris, arvindk,jaiganesh_at_dre.vand
erbilt.edu www.dre.vanderbilt.edu/cosmic ISIS,
Vanderbilt University Nashville, TN 37203
Work supported by AFRL contract F33615-03-C-4112
for DARPA PCES Program
2
Research Synopsis
Model Driven Approach for Distributed Real-time
Embedded Middleware

• Develop, validate, help to standardize
  technologies that
• Model
• Analyze
• Synthesize
• Provision
• multiple layers of middleware for distributed
  real-time and embedded (DRE) systems that require
  simultaneous control of multiple quality of
  service properties end-to-end

ltCONFIGURATION_PASSgt ltHOMEgt ltgt
ltCOMPONENTgt ltIDgt ltgtlt/IDgt
ltEVENT_SUPPLIERgt ltevents this component
suppliesgt lt/EVENT_SUPPLIERgt
lt/COMPONENTgt lt/HOMEgt lt/CONFIGURATION_PASSgt
3
Distributed Real-time Embedded Systems
The Future
The Past

• Network-centric large-scale
• Dynamic context
• Stringent simultaneous quality of service (QoS)
  demands
• Part of larger systems
• Resource constrained

• Stringent simultaneous quality of service (QoS)
  demands
• Part of larger systems
• Resource constrained

4
DRE Systems The Challenges Ahead (1/2)

• There is a limit to how much application
  functionality can be factored into broadly
  reusable COTS middleware
• Middleware has become extremely complicated to
  use, configure, provision statically
  dynamically

• There are now multiple middleware technologies to
  choose from

5
DRE Systems Challenges Emergence of Component
Middleware (2/2)

• Context
• Component middleware gaining importance (CCM,
  J2EE, .NET)
• Components encapsulate application core logic
• Components possess
• Event sinks sources
• Connection points e.g., receptacles
• Interfaces e.g., facets
• attributes
• Containers provide execution environment for
  components with common operating requirements
• Containers communicate via a middleware bus

• Challenges
• Accidental complexities configuring the
  middleware
• Accidental complexities deploying semantically
  compatible components

6
Our Solution Model-Driven Middleware for DRE
Systems

• Key Benefits
• Preserves DRE application functional systemic
  QoS properties as high level models
• Domain-specific languages analysis/synthesis
  tools transform models to customize underlying
  multi-layered middleware platforms
• Leverages shapes standards for wider
  applicability

ltCONFIGURATION_PASSgt ltHOMEgt ltgt
ltCOMPONENTgt ltIDgt ltgtlt/IDgt
ltEVENT_SUPPLIERgt ltevents this component
suppliesgt lt/EVENT_SUPPLIERgt
lt/COMPONENTgt lt/HOMEgt lt/CONFIGURATION_PASSgt

• Related Work
• MIC, Vanderbilt (Sztipanovits, Karsai, et al)
• Ptolemy, UC Berkeley (Lee et al)
• Cadena, KSU (John Hatcliff et al)
• Quality Connector, LMCO (Joe Cross et. al)

7
MDA-Component Middleware Integration

• Our tool suite is called CoSMIC
• CoSMIC Component Synthesis using Model
  Integrated Computing

• Goals
• Configuring and deploying application services
  end-to-end
• Composing components into component servers
• Configuring application component containers
• Synthesizing application component
  implementations
• Synthesizing middleware-specific configurations
• Synthesizing dynamic QoS provisioning and
  adaptation logic
• Synthesizing middleware implementations

8
Current Target Middleware CIAO CORBA Component
Model
RT Event Channel

• Focus on infrastructure support for composition
  of the following aspects
• CIDL compiler to synthesize component descriptor
  metadata stubs/skeletons
• RT event channel integration with CIAO containers
• Assembly deployment framework
• Collaboration with Washington University

www.dre.vanderbilt.edu/CIAO
Component Integrated ACE ORB (CIAO)
9
Boeing Bold Stroke Current Target Domain

• Avionics Product Line Component Model
• DRE system with 3,000 domain-specific software
  components, 3-5 million lines of C code
• 100 developers
• Mission-control software for Boeing military
  aircraft, e.g., F-18 E/F, Harrier, UCAV
• Leverages the ACETAO middleware
• Used as Avionics Open Experimental Platform (OEP)
  for DARPA/IXO PCES MoBIES programs
• Moving towards using CIAO CCM

10
Component Assembly Deployment (1/3)
CONTEXT

• Application components are partitioned, assembled
  and then deployed in a way that provides optimum
  resource utilization delivers required QoS to
  the application
• e.g., Bold Stroke scenarios involve assembling
  deploying hundreds of components
• Assembly deployment can be scripted by using
  XML descriptors deployment tools

11
Component Assembly Deployment (2/3)
PROBLEMS
XML file in excess of 3,000 lines for medium
sized scenarios
Existing practices involve handcrafting the XML
descriptors
lt! Associate components with impls
--gtltcomponentfilesgt ltcomponentfile
idRateGenerator"gt ltfileinarchive
nameHouseRateGen.csd"/gt lt/componentfilegt
ltcomponentfile idHiResGPS"gt
ltfileinarchive nameaGPS.csd"/gt
lt/componentfilegt ltcomponentfile
idcockpitDisplay"gt ltfileinarchive
namenavDisplay-if.csd"/gt lt/componentfilegt
lt/componentfilesgt
Partitioning, Distribution and Deployment done in
ad hoc manner
Modifications in assembly requires modifying XML
file
12
Component Assembly Deployment (3/3)
SOLUTION

• Status
• Component Assembly Descriptor Modeling Language
  (CADML) developed in GME
• Used to model synthesize CAD files for
  Boldstroke product scenarios in CIAO

• Next Steps
• Analyze application QoS requirements and
  determine effective partitioning of functionality
  and
• Synthesize component assembly descriptors using
  logical resources
• Deploy system on physical resources using
  existing assembly

13
Configuring Middleware End-to-End (1/3)
CONTEXT

• Middleware must be configured with the
  appropriate systemic metadata end-to-end
• e.g., in Bold Stroke example, appropriate
  priority banded connections must be set between
  application services

14
Configuring Middleware End-to-End (2/3)
PROBLEMS
Determine right marshaling optimizations
Determine right concurrency strategy
Determine right demux strategy
Configuring subset of underlying transports
Determine right connection mgmt policy

• Highly flexible middleware tend to provide
  numerous configuration knobs that can be
  configured to deliver required systemic
  properties to applications
• Existing techniques of metadata configurations
  rely on ad hoc manual selection of configuration
  parameters

15
Configuring Middleware End-to-End (3/3)

• Status
• Options Configuration Modeling Language (OCML)
  developed in GME
• Used by TAO developers to model TAO ORB
  configuration options and option constraints
• Validate user-provided option descriptor file
• Next Steps
• Develop modeling paradigm to express QoS
  requirements
• Interactive tool to synthesize options descriptor
  file based on application QoS requirements
• Benchmarking on Emulab testbed
• Tools to generate html documentation of options

SOLUTION
16
Concluding Remarks

• CoSMIC Tools Applying MDA to address
• the end-to-end deployment aspect of DRE
  applications
• the component container configuration aspect
• the middleware configuration aspect
• the dynamic QoS provisioning adaptation aspect

• Current Status
• Modeling paradigm and generators developed for
  CCM component assembly deployment
• Modeling paradigm and constraint checker to
  determine semantic compatibility of ORB
  configuration options

17
Downloading the Middleware Tools

• Beta and Stable release can be accessed from
  http//www.dre.vanderbilt.edu/Download.html

• http//www.dre.vanderbilt.edu/cosmic

18
