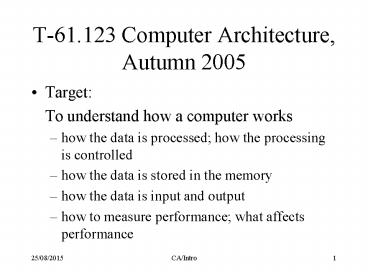

T-61.123 Computer Architecture, Autumn 2005

1
T-61.123 Computer Architecture, Autumn 2005

• Target
• To understand how a computer works
• how the data is processed how the processing is
  controlled
• how the data is stored in the memory
• how the data is input and output
• how to measure performance what affects
  performance

2
Course Administration

• Instructor Dr. Seppo Haltsonen
  (seppo.haltsonen_at_evtek.fi)
• Course assistants (tark_at_hut.fi)
• give all kind of help
• can be best contacted by e-mail and during
  tutorial sessions

3
Course Administration

• Materials
• http//www.cis.hut.fi/Opinnot/T-61.123/
• mostly in English
• Newsgroup opinnot.tik.tark

4
Teaching

• 11 lectures on Thursdays at 16.15 starting on
  15th September
• in Finnish
• 6 tutorial sessions, extra points available
• every second week, starting on week 38
• for time and place see the course homepage
• individual project

5
Project

• Write and test a MIPS program.
• For assistants consulting hours see the course
  homepage.
• Report deadline is 9th December.
• If late at most two weeks, the grade will be
  reduced by 2 after that a new topic will be
  given next year.
• Detailed instructions will be given later.

6
Assessment

• exam grade 2/3 project grade
  1/3
• course grade
• Exam contains 5 problems, max 6 points each to
  pass one has to get at least 12 points.

7
Useful Previous Knowledge

• Basic knowledge of computers
• Basic knowledge of programming
• instructions, program structures
• Fundamentals of computer technology
• gates, combinational circuits, flip-flops,
  registers, sequential circuits

8
Textbook

• David A. Patterson and John L. Hennessy, Computer
  Organization Design The Hardware/Software
  Interface, 2nd Edition, Morgan Kaufmann, 1998
• 2nd Edition?
• Yes, 50 text changed, all exercises changed, all
  examples modernised, new sections,
• You can also use the 3rd edition.

9
Support Materials

• http//www.mkp.com/cod2e.htm
• Web extensions of the books contents
• Three sets of lecture slides
• SPIM simulator
• Lecture slides are mostly based on the above
  slide sets (especially those of Tod Amon)

10
What Computers Are

• Computers are programmable electronic devices.
• They solve problems using algorithms.
• They consist of hierarchical layers of hardware
  and software.

11
An Algorithm

• Compute the average age of a group of people.
• 1. n number of people input
• 2. sum 0
• 3. i 1
• 4. sum sum age of person i input
• 5. i i1
• 6. if i ? n then go to 4
• 7. sum sum/n
• 8. average age sum output

12
What Algorithms Involve

• data (operands and results)
• operations
• control (order of operations)
• see computer block diagram!

13
Hardware Layers

• structures on silicon or other materials
• electronic components (transistors etc.)
• logic components (gates, flip-flops)
• logic circuits (adders, registers, counters,
  etc.)
• functional units (ALU, multiplier, shifter,
  register file, control unit)
• computer components (CPU, memory, I/O unit)
• computer system

14
Software Layers

• Machine language
• 0010 1011 1101 1000
• 1001 0111 0101 1110
• Assembly language
• MOV A, 3CH
• ADD A, 20H
• High-level language
• y 15
• x (yy-5, 30/y)

15
Abstractions

• hardware and software layers are called
  abstractions
• abstractions are a way to cope with complexity
• lower-level details are hidden to offer a simpler
  model at higher levels

16
Concepts Definition One

• Computer architecture
• attributes of a system visible to a programmer
  instruction set, data types, I/O mechanisms,
  addressing of memory
• Computer organisation
• hardware details transparent to a programmer
  operational units and their interconnections,
  peripheral interfaces, memory technology

17
An Example

• Architectural issue has the computer a multiply
  instruction or not?
• Organisational issue has the computer a special
  multiply unit or does it repeatedly use the add
  unit?

18
Concepts Definition Two

• Computer architecture
• Instruction set architecture
• Machine organisation
• Instruction set architecture interface between
  the hardware and low-level software

19
Instruction Set Architecture

• Organisation of storage registers, memory
• Representations of data
• Instruction set
• Instruction formats
• Modes of addressing and accessing data
• Exceptional conditions

20
Instruction Set Architecture

• Advantage enables different implementations of
  the same architecture
• Disadvantage may prevent using new innovations

21
Machine Organisation

• Implementation, capabilities and performance
  characteristics of functional units
• Interconnections of these units
• Information flows between these units
• Control of information flow
• VHSIC Hardware Description Language (VHDL)
  descriptions

22
Block Diagram of a Computer
CPU
ALU
Input Unit
Output Unit
Control Unit
Register Unit
Memory
23
Computer Blocks

• CPU (Central Processing Unit)
• ALU (Arithmetic and Logic Unit) calculations
• Register unit data, memory addresses
• Control unit control of the whole computer
• Memory data, programs
• I/O unit communication with the surroundings

24
Instruction Cycle

• Fetch instruction
• Decode instruction
• Fetch operands
• Execute operation
• Store result
• Locate next instruction

25
Instruction Fetch
Increment PC to locate next instruction.
26
Technology Changes

• vacuum tube ? transistor ? IC ? VLSI
• Moores law number of transistors on a single
  chip doubles every 1.5 years
• Consequences of Moores law (and other
  improvements)
• processor performance and memory capacity double
  every 1.5 years
• computers get smaller, faster and cheaper

27
Contents of the Course

• Introduction
• Performance issues
• MIPS instruction set architecture
• Datapath (ALU)
• Control
• Memory hierarchy
• I/O interface

28
Related Course T-61.124 Computer Architecture
Project

• The MIPS R2000/3000 is studied in greater detail
  than in T-61.123.
• The students design a RISC microprocessor.
• The design is done using available building
  blocks and some parts designed by the students
  using the VHDL language.
• The work is done in groups of 1-3 students.

29
Related Course T-61.124 Computer Architecture
Project

• Introductory lecture on Thursday 8th December at
  16.15
• Lecturers consulting hours in January and
  February
