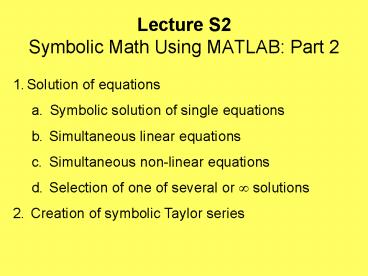

Lecture S2 Symbolic Math Using MATLAB: Part 2

1
Lecture S2Symbolic Math Using MATLAB Part 2

• Solution of equations
• Symbolic solution of single equations
• Simultaneous linear equations
• Simultaneous non-linear equations
• Selection of one of several or ? solutions
• Creation of symbolic Taylor series

2
Solution of symbolic equations

• Find the two solutions to the classic quadratic
  equation, ax2 bx c 0. What is the first
  step?
• syms a b c x
• Step 2 Define the equation eq'ax2bxc0'
• Step 3 Solve the equation x solve(eq,x)
• Step 4 If more than one solution, pull out the
  one you want. In this case, how would you select
  the first?
• x x(1) What do you get?
• Step 5 If desired, substitute desired values for
  variables, e.g. a 3, b 1, c 10. What
  command?
• subs(x,a,b,c,3,1,10)
• ans -0.1667 1.8181i

3

• Find the solution to e2x3y. Do step 1
• clear, syms x y Do step 2
• eq 'exp(2x) 3y' Do step 3
• xsolve(eq,x) x
  1/2log(3y)
• Is this natural log or log base 10?
• Now, just for fun, ezplot(x)
• What are the two axes?

4
Solution of simultaneous linear equations

• Solve 2x-3y4z5, y4zx10, -2z3x4y0 step 1?

• clear, syms x y z step 2?
• eq1'2x-3y4z5', eq2'y4zx10',
  eq3'-2z3x4y0' step 3?
• x,y,zsolve(eq1,eq2,eq3,x,y,z)
• x -5/37, y 45/37, z 165/74
• Note while the symbols in the equations can be
  in any order (unlike MATLAB's numerical methods),
  the results are given in alphabetical order so
  you must be careful what you put inside the
  brackets.
• How do you convert to floating point numeric
  format?
• xdouble(x), ydouble(y), zdouble(z)

5
Selection of one of infinite solutions

• How many solutions are there for sin(x)1/2?
• What does the solve command give?
• clear, syms x, eq'sin(x)1/2', xsolve(eq,x)
  gives x pi/6 (0.5236)
• Suppose you want the solution for x between 2 and
  3. See gtgt mhelp fsolve (the mhelp indicates that
  fsolve is in the Maple kernel and so is not
  available in the student version). Unusual
  syntax
• clear, xmaple('fsolve(sin(x)1/2,x,2..3)') x
  2.6179938779914943653855361527329
• whos, 2x

6
How to use solution for further calc'ns? x
str2double(x), y2x, whos
7
(No Transcript)
8
Taylor series

• Uses differentials to generate a polynomial
  approximation to an expression about a point.
• Syntax taylor(expression,order,variable,point)
• Example Expand ex about x 0 to order 5.
• clear, syms x, Tay_expxtaylor(exp(x),5,x,0)
  1x1/2x21/6x31/24x4
• Compare at x 2 with the exact value.
• approxsubs(Tay_expx,x,2), exactexp(2),
  frac_errabs(1-approx/exact)
• approx 7, exact 7.38905609893065, frac_err
  0.05265301734371
• Graph Taylor and exact on same using ezplot

9
ezplot(Tay_expx), hold on, ezplot(exp(x)), hold
off
Which one's the Taylor approximation, red or blue?
10
Test yourself

• Solve the following equations simultaneously
  for x and y axbyx23 cxby0
• Select the second solution and set a1, b2, c3.
• What are these as double type variables?
• Find the fifth order Taylor series approximation
  for sin2(x)e-x about x?.
• What is the percent error of this approximation
  at x 1.1 ??
