Title: Temperature Thermocouples


1

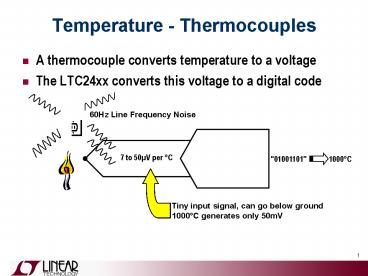

Temperature - Thermocouples
  • A thermocouple converts temperature to a voltage
  • The LTC24xx converts this voltage to a digital
    code

60Hz Line Frequency Noise
7 to 50µV per C
01001101 1000C
Tiny input signal, can go below ground1000C
generates only 50mV
