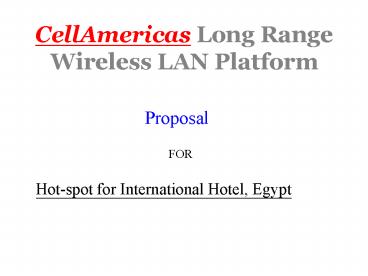

CellAmericas Long Range Wireless LAN Platform

1
CellAmericas Long Range Wireless LAN Platform
Proposal
FOR
Hot-spot for International Hotel, Egypt
2
Network Description

• Wireless ADSL connectivity hotel guest.
• Blanketed hotel area (indoor) 28 Floors, 60m x
  12m each floor area

3
Networking Scenario

• 26 floors for guest room
• Each floor area 60m x 12m

Main building Total 26 floors 1 unit of long
range AP at the corridor for each floor, total 26
APs Long range WEC at guest rooms
Flank building Total 13 floors 1 unit of long
range AP at the corridor for each floor, total 13
APs Long range WEC at guest rooms
Lobby Floors, total 2 floors 4 unit of long
range AP deployed for each floor, total 8 APs.
Normal PCMCIA is available in this area
4
Operating Scenario at guest room floor 1 x
long range AP for WL-2402/WEC at each floor for
the guest rooms.
Guest Rooms
Corridor
Guest Rooms
5
Operating Scenario at lobby floor 2 x long
range AP for each lobby floor. WL-2402 long range
WEC and normal PCMCIA are both available.
Clients can do roaming among the APs at whole
building (whole hotel)
6
Network Component 1 Indoor AP
WL-2401 AP (200mW) with rubber omni antenna For
covering the area in the hotel building (just
like the GSM base and the WL-2402 can do roaming
between the APs)
7
Network Component 2 Mobile WEC
WL-2402/Mobile WEC with rubber omni antenna in
guest room for the guest or in hotel building
for the staff
8
Component 3
A-1000 Network Administrator for client
authentication and management.
250 subscriber account 10 guest account DHCP
server Authentication User Management Traffic
Report Current Status Monitoring Firewall Rout
e re-Direction and Extension Service
Expansion Bandwidth management..
