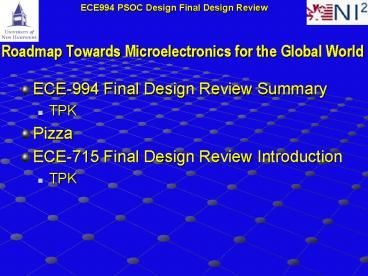

Roadmap Towards Microelectronics for the Global
World
  • ECE-994 Final Design Review Summary
  • TPK
  • Pizza
  • ECE-715 Final Design Review Introduction
  • TPK

GNAT
2
Long-term Objectives
ECE-994
  • Flexible PSOC Network Architecture
  • Support Homeland Security and other applications
  • Tools
  • Enable applications developers to develop
  • Curriculum
  • Prepare Undergraduate, Graduate, Practicing
    Engineers

Math Works
GNAT
3
Flexible PSOC Network Architecture Status
  • 6 XUP Development Boards operational
  • BIST
  • Internet Access
  • Analog I/O supplemental module acquired
  • MicroStrain Glink
  • Preliminary experience with ADXL-330
    microaccelerometer
  • Applications
  • Tabletop demo
  • Container Security
  • PLUTO

4
Tools Status
  • Xilinx
  • ISE
  • Blockset
  • Matlab/Simulink
  • GNU
  • PPC 405

5
Curriculum Status
  • History
  • ECE-994
  • XUP Hardware
  • Development Tools
  • Class Lectures
  • Current
  • ECE-715
  • Generic Sensor Signal Preprocessor Design Phase
  • Fabrication
  • Future
  • ECE-715
  • Test and Evaluation
  • ECE-992 / IEEE Workshop
  • ECE-668

6
(No Transcript)
7
(No Transcript)
8
Applications
  • Table-top-demo
  • Find a coffee cup on the lecture table
  • 4 Nodes
  • Container Security
  • Monitor and track cargo containers
  • Detect WMD
  • PLUTO
  • Mines and Tunnels
  • Sensor Nets and Robotics

9
Table-top Demo
10
(No Transcript)
11
Cargo Security
12
ApplicationsU.S. Virtual Sea Border Project -
phase III
V. Applications Current Ambient Designs
WAN
Alarm Availability
   NI2 Center for Infrastructure Expertise
13
PLUTO
V. Applications New directions Projects PLUTO
  • Platform
  • Internet accessible
  • Laboratory
  • Virtual
  • Underground
  • Experimental Mine Barbara
  • Tunnel
  • And mine related
  • Observations
  • Experiments
  • Modeling
  • Sensor evaluation and testing

14
Schematic Diagram of Experimental Gallery
V. Applications New directions Projects PLUTO
  • Dense array of wireless sensor units for
  • Pressure
  • Temperature
  • Optical Radiation
  • Combined with some sensors to determine chemical
    composition

Wireless Access Point connected to Optical
Backbone
Mobile robotic sensor vehicle
15
HW Technology
GNAT Node
GNAT Node
GNAT Node
GNAT Node
XUP
Virtex
GNAT Node
PPC405
Sensor
Interface
16
SW Technology
  • PPC
  • Linux OS
  • C-Code
  • Network
  • MPI
  • OS

17
ECE994 Goal
  • Develop Curriculum and materials to prepare
    students to design and implement microelectronic
    systems using best practices of the US high
    tech industry today
  • Integration of IP modules and sensor devices with
    FPGA-based SoC
  • Networking of SoCs
  • Global Network Academic Test --
  • Collaborative and distant learning techniques for
    distributed team management and design
  • In-situ and remote development scenarios

18
ECE994 Additional Support
  • MicroStrain, Inc.
  • www.microstrain.com
  • IRobot, Corp.
  • www.irobot.com
  • Analog Devices
  • www.analog.com
  • Intellitech
  • www.intellitech.com

19
ECE994 FDR
20
Sit! Rest!
21
Roadmap Towards Microelectronics for the Global
World
Manga...Manga...Eat...Eat!!!
Ready to Resume
22
Resume
23
Roadmap Towards Microelectronics for the Global
World
  • Introduction
  • Prof Andrzej Rucinski
  • GNAT
  • ECE-994 Final Design Review
  • Class
  • Pizza
  • IEEE
  • ECE-715 Final Design Review
  • Class

24
ECE715 FDR
25
ADXL330 Basic unit cell sensor building block
26
EVAL-ADXL330Z
27
Overall Generic Sensor Network
28
Node Top-Level Diagram
29
Generic Preprocessor Top-level Diagram
30
Thank You
  • Muchas Gracias
  • Dziekuje za uwage

31
Thanks
32
END Presentation
  • Following slides for backup only
  • DO NOT PRINT

33
ECE994 Programmable System on a Chip (PSoC) Design
The UNH and the University of Tennessee are
offering this course in PSoC systems engineering
in response to the challenges of
  • flat world, globalization and outsourcing
    facing todays engineering profession
  • and the demand for systems engineers by major
    United States employers


TECHNICAL CURRENCY PROGRAMS
34
XUPV2P Block Diagram
35
XUPV2P BIST
36
G-Link COTS Wireless Sensor Node
37
Microstrain G-Link
V. Current technology trends and COTS COTS
Wireless Sensing
58 mm
  • Supports simultaneous streaming from multiple
    nodes to PC
  • Available with 2g or 10g range
  • Datalogging rates up to 2048 Hz
  • Real-time streaming rates up to 736 Hz
  • On-board memory stores up to 1,000,000
    measurements
  • Communication range up to 70m line-of-sight
  • Low power consumption for extended use

38
Conceptual Block Diagram
V. Applications Current Ambient Designs
presented at SiCon 02 S.W. Arms, T.P. Kochanski,
et. al.
39
V. Applications New directions Projects PLUTO
Experimental Mine Barbara
Virtual Mine Barbara
Gdansk
40
ADXL330 Basic unit cell sensor building block
41
EVAL-ADXL330Z
42
The University of New Hampshire and the National
Infrastructure Institute thanks you for attending
today!
43
ADXL330 FEATURES
  • 3-axis sensing /- 3g Full Scale
  • Small, low-profile package
  • 4 mm 4 mm 1.45 mm LFCSP
  • Low power
  • 180 µA at VS 1.8 V (typical)
  • Single-supply operation
  • 1.8 V to 3.6 V
  • 10,000 g shock survival
  • Excellent temperature stability
  • BW adjustment with a single capacitor per axis
  • RoHS/WEEE lead-free compliant

44
ADXL330 Operation
  • The surface micromachined sensor element is made
    by
  • depositing polysilicon on a sacrificial oxide
    layer
  • then etched away leaving the suspended sensor
    element
  • The actual sensor has tens of unit cells
  • Uses differential capacitor (CS1 and CS2) formed
    by
  • center plate -- part of the moving beam
  • and two fixed outer plates
  • The two capacitors
  • equal at rest (no applied acceleration)
  • When acceleration is applied, the mass of the
    beam causes it to move closer to one of the fixed
    plates while moving further from the other
  • This change in differential capacitance is then
    interrogated

45
Conditioning Electronics
46
Conditioning Electronics
  • 1MHz square wave drives the fixed capacitor
    plates
  • differentially by a the two square wave
    amplitudes 180º out of phase
  • When at rest
  • the two capacitors C1 C2
  • voltage output at their electrical center 0
  • When the beam begins to move
  • Delta capacitance produces an output signal at
    the center plate
  • Output amplitude increase with the acceleration
  • Output from center plate is buffered by A1 and
    applied to a synchronous demodulator
  • The direction of beam motion affects the phase of
    the signal
  • synchronous demodulation extracts the amplitude
    information
  • output is amplified by A2 to produce VOUT the
    acceleration output voltage

47
ADXL330
48
Nonlinear error in accelerometer sensor response
over the 5gacceleration range.
49
Magnitude of gravitational acceleration as the
sensor is rotated in a circle
50
A/D Error Sources
  • Quantization error
  • Non-linearity
  • Aperture error

51
Sensor Processing Block Diagram
Sampling Clock
A/D Quantization
Analog Signal Conditioning
Anti-aliasing Filter
Sensing Transducer
Sampling
Digitized Signal
52
Nyquist
53
Anti-Aliasing
54
Signal to Noise
  • Noise gt 0 ! For all T gt 0
  • PNoise B
  • Signal to Noise PSignal / PSignalNoise
  • Dynamic Range
  • Full Scale Range
  • Headroom
  • Floating Point

55
Sensor Processing Block Diagram
Sampling Clock
A/D Quantization
Analog Signal Conditioning
Anti-aliasing Filter
Sensing Transducer
Sampling
Digitized Signal
56
What is a Sensor Network
Signal Conditioning
Sensor
Control
Processing
Comm
Storage
Comm Link
User Interface
User
Model
57
Node Architecture - SoC
Current technology trends and COTS Current
Ambient Designs
  • Technology
  • FPGA Xillinx, Altera, Actel
  • Functions
  • (Capabilities / IP Cores)
  • Wireless communication
  • Cryptography
  • Management
  • Internet Protocol Signalization
  • I/O bus - sensors

Wireless Antenna 1
Wireless Antenna 2
Switch
Communication
FPGA SoC
Management
Cryptography
CPU
I/O bus
Digital Lock
External sensors
GPS
58
Microstrain G-Link
V. Current technology trends and COTS COTS
Wireless Sensing
58 mm
  • Supports simultaneous streaming from multiple
    nodes to PC
  • Available with 2g or 10g range
  • Datalogging rates up to 2048 Hz
  • Real-time streaming rates up to 736 Hz
  • On-board memory stores up to 1,000,000
    measurements
  • Communication range up to 70m line-of-sight
  • Low power consumption for extended use

59
iSensorTM
60
ADXL330 Package
61
BANDWIDTH Limiting withCX, CY, AND CZ
  • Capacitors added to XOUT, YOUT, and ZOUT pins to
    implement low-pass filtering for
  • antialiasing
  • and noise reduction
  • The equation for the 3 dB bandwidth is
  • F-3 dB 1/(2p(32 kO) C(X, Y, Z))
  • or more simply F3 dB 5 µF/C(X, Y, Z)
  • The tolerance of the internal resistor (RFILT)
    typically varies as much as 15 of its nominal
    value (32 kO)
  • the bandwidth varies accordingly
  • A minimum capacitance of 0.0047 µF for CX, CY,
    and CZ is recommended in all cases

62
Capacitance vs Bandwidth
63
ADXL330 Noise
  • Has the characteristics of white Gaussian noise
  • contributes equally at all frequencies and is
    described in terms of µg/vHz
  • (the noise is proportional to the square root of
    the accelerometer bandwidth)
  • The user should limit bandwidth to the lowest
    frequency needed by the application to maximize
    the resolution and dynamic range of the
    accelerometer

64
Typical noise of the ADXL330
  • With the single-pole, roll-off characteristic
    determined by

65
Peak-to-Peak Noise
  • Peak value of the noise can only be estimated by
    statistical methods
  • Table of probabilities of exceeding various peak
    values, given the rms value

66
Estimate of Peak-to-Peak Noise
67
Noise Signal
68
SELF TEST with ST Pin
  • When ST pin is set to VS, an electrostatic force
    is exerted on the accelerometer beam
  • The resulting movement of the beam allows the
    user to test if the accelerometer is functional
  • The typical change in output is -500 mg
    (corresponding to -150 mV) in the X-axis, 500 mg
    (or 150 mV) on the Y-axis, and -200 mg (or -60
    mV) on the Z-axis
  • ST pin may be left open circuit or connected to
    common
  • (Never expose the ST pin to voltages greater than
    VS 0.3 V.
  • If this cannot be guaranteed due to the system
    design (for instance, if there are multiple
    supply voltages), then a low VF clamping diode
    between ST and VS is recommended

69
ADXL330
  • A complete 3-axis acceleration measurement system
    on a single monolithic IC
  • Measurement range of 3 g minimum
  • Contains a polysilicon surface micromachined
    sensor and signal conditioning circuitry to
    implement an open-loop acceleration measurement
    architecture
  • The output signals are analog voltages that are
    proportional to acceleration

70
ADXL330
  • Polysilicon surface micromachined structure built
    on top of a silicon wafer
  • Polysilicon springs suspend the structure over
    the surface of the wafer and provide a resistance
    against acceleration forces
  • Deflection is measured using a differential
    capacitor that consists of independent fixed
    plates and plates attached to the moving mass
  • The fixed plates are driven by 180 out-of-phase
    square waves
  • Acceleration deflects the moving mass and
    unbalances the differential capacitor
    proportional to acceleration
  • Phase-sensitive demodulation gives acceleration
    magnitude and direction
  • The user then sets the signal band-width of the
    device by adding a capacitor to ground
  • The demodulator output is amplified and brought
    off-chip through a 32 kO resistor
  • This filtering improves measurement resolution
    and helps prevent aliasing

71
Xilinx Virtex II Development Board for XUP
72
MicroBlaze-based Embedded Design
I-Cache BRAM
Local Memory Bus
Flexible Soft IP
BRAM
Configurable Sizes
D-Cache BRAM
Off-Chip Memory
FLASH/SRAM
73
PowerPC-based Embedded Design
Full system customization to meet performance,
functionality, and cost goals
74
Clive Max MaxfieldThe Design Warriors Guide
to FPGAs Devices Tools, and FlowsElsevier 2004
Price 67.93Format  Adobe Reader PDF
www.ebookmall.com/ebook/149053-ebook.htm
75
(No Transcript)
76
(No Transcript)
77
(No Transcript)
78
Traditional VLSI Design Flow
79
Why PSOC
  • Obvious advantage simpler and quicker design
    . most of the design is already done
  • Cell arrays, mask programmable gate arrays
  • Field Programmable devices PLD, FPGA
  • Less obvious easier re-use, modularity
  • Still less obvious easier collaborative and
    remote design
  • May be cheaper
  • More flexible
  • Easy to fix
  • Reconfigurable on the fly

80
Why Not PSOC until recently
  • Not enough capabilities
  • Clock speed
  • Gates
  • I/O
  • Memory
  • Less developed tools
  • Too Expensive
  • Too hard to test and verify
  • Now on-chip monitoring

81
Cost of Masks
82
Cost of Fabs
83
Trade-offs
  • Mask sets now define costs of full custom
  • Need very large volume and no changes to justify
  • Design personnel and tools as well as time to
    market now define the bounds of ASICs
  • Cost of raw devices now define the bounds of FPGA
    and PSOC

84
Systems Implementation
85
Intelligent Sensor Network Functions
II. Key pieces of the core technology
  • Determine the local value of some parameter
  • Multiple types of sensors with different sampling
    rates
  • Detect events of interest and estimate
    parameters
  • traffic entering intersection / speed
  • Classify a detected object
  • Is a vehicle a car, a mini-van, a light truck, a
    bus, etc.
  • Track an object
  • Follow an emergency vehicle en route to a fire

86
Network Self-organization Essential
II. Key pieces of the core technology
  • Given
  • The large number of nodes
  • Potential hostile locations
  • Nodes failure
  • Individual nodes may become disconnected
  • New nodes may join the network
  • To maintain high degree of overall connectivity
    manual configuration is not feasible
  • Must be able to periodically reconfigure itself

87
Collaborative signal processing
II. Key pieces of the core technology
  •  Improve performance in the detection/estimation
    of events of interest
  • Useful to fuse data from multiple sensors
  • Requires transmission of both data and control
    messages
  • May put constraints on the network architecture

88
Querying Ability
II. Key pieces of the core technology
  • May want to query
  • individual nodes
  • group of nodes in a region
  • Data fusion drives required network Bandwidth
  • Network connectivity and bandwidth may limit
    amount of the data transmitted across the network
  • Local sink nodes will collect the data from a
    given area and can create summary messages
  • Direct query to the regional sink node
  • Possible penalty is increased response time

89
Sit! Rest!
90
Part 2 Rest stop
91
Virtex-II Pro Development SystemCurriculum on a
Chip
92
Hardware Reference Manual
93
XUPV2P Features
  • Virtex-2 Pro XC2VP30 FPGA with
  • 30,816 Logic Cells
  • 136 18-bit multipliers,
  • 2,448Kb of block RAM,
  • 2 PowerPC Processors
  • DDR SDRAM DIMM that can accept up to 2Gbytes of
    RAM
  • 10/100 Ethernet port
  • USB2 port
  • Compact Flash card slot
  • XSGA Video port
  • Audio Codec
  • SATA, and PS/2, RS-232 ports
  • High and Low Speed expansion connectors,
  • large collection of available expansion boards

94
XUPV2P
  • Can function as a
  • digital design trainer,
  • microprocessor development system,
  • host for embedded processor cores and complex
    digital systems.
  • Expansion connectors can accommodate
    special-purpose circuits and systems for years to
    come
  • Supported by world-class design tools, including
  • ISE Foundation,
  • Chipscope-Pro,
  • Embedded Developer's Kit (EDK),
  • and System Generator (WebPack cannot be used).
  • Applications that include an embedded processor
    require EDK, and those that do not include a
    processor can use ISE

95
XUPV2P Block Diagram
96
XUPV2P BIST
97
Demonstration Reference Designs
  • XUPV2P Demonstration Design uses the AC 97 audio
    codec as the audio A/D and D/A to the Xilinx
    XC2VP30 FPGA, for capturing audio to be filtered
    and played back to the user's speakers.
  • Video Decoder using VDEC-1 uses an Analog Devices
    ADV7183B to sample the incoming analog video and
    convert it to digital values according to the
    video standards ITU-R.656 and ITU-R BT.601.
  • Slide Show using 256 MB DDR Memory reads binary
    graphic data (.bmp) stored on a compact flash and
    presents it on an external display monitor.
  • Ethernet MAC OneWire implements a web server
    running on the XUP-V2Pro Development System, with
    a OneWire core. The WEB server will display the
    user DIP switches and control the LEDs from your
    browser.
  • OneWire implements a a OneWire core. The core
    reads the silicon serial number and displays it
    on the terminal window through a UART.
  • PS2 implements a core which reads in the
    characters typed in on a keyboard connected to
    either of the two PS2 ports and displays it on
    the terminal window through a UART.
  • Edge Detection shows how a 2-D Image filter can
    be efficiently realized using n-tap MAC FIR
    Filters.

98
XUPV2P Demonstration Design
  • Uses the AC 97 audio codec as the audio A/D and
    D/A to the Xilinx XC2VP30 FPGA, for capturing
    audio to be filtered and played back to the
    user's speakers.
  • The filtered or unfiltered digital audio data is
    presented to a 64 point FFT to convert the time
    domain audio, to frequency domain spectral
    information.
  • The output of the FFT is sampled and displayed
    graphically using character mapped graphics to an
    800 X 600 pixel VGA resolution display using
    Fairchild FMS3818 D/A to take the digital data
    from the FPGA to the SVGA analog output.

99
Power PC 405 Block
100
Valuable Reference Docs
101
Virtex-II Platform FPGA User Guide
  • Chapter 1, The Virtex-II Pro / Virtex-II Pro X
    FPGAFamily
  • Chapter 2, Timing Models
  • Chapter 3, Design Considerations
  • Chapter 4, Configuration
  • Chapter 5, PCB Design Considerations
  • Appendix A, BitGen and PROMGen Switches and
    Options
  • Appendix B, Platform Flash Family PROMs
  • Appendix C, Choosing the Battery for VBATT

102
PowerPC Processor Reference Guide
  • Introduction to the PPC405, provides a general
    understanding of the PPC405 as an implementation
    of the PowerPC embedded-environment architecture.
  • Operational Concepts, introduces the processor
    operating modes, execution model,
    synchronization, operand conventions, and
    instruction conventions.
  • User Programming Model, describes the registers
    and instructions available to application
    software.
  • PPC405 Privileged-Mode Programming Model,
    introduces the registers and instructions
    available to system software.
  • Memory-System Management, describes the operation
    of the memory system, including caches. Real-mode
    storage control is also described in this
    chapter.
  • Virtual-Memory Management, describes
    virtual-to-physical address translation as
    supported by the PPC405. Virtual-mode storage
    control is also described in this chapter.

103
PowerPC Processor Reference Guide
  • Exceptions and Interrupts, provides details of
    all exceptions recognized by the PPC405 and how
    software can use the interrupt mechanism to
    handle exceptions.
  • Timer Resources, describes the timer registers
    and timer-interrupt controls available in the
    PPC405.
  • Debugging, describes the debug resources
    available to software and hardware debuggers.
  • Reset and Initialization, describes the state of
    the PPC405 following reset and the requirements
    for initializing the processor.
  • Instruction Set, provides a detailed description
    of each instruction supported by the PPC405.

104
PowerPC Processor Reference Guide
  • Register Summary, is a reference of all registers
    supported by the PPC405.
  • Instruction Summary, lists all instructions
    sorted by mnemonic, opcode, function, and form.
    Each entry for an instruction shows its complete
    encoding. General instruction-set information is
    also provided.
  • Simplified Mnemonics, lists the simplified
    mnemonics recognized by many PowerPC assemblers.
    These mnemonics provide a shorthand means of
    specifying frequently-used instruction encodings
    and can greatly improve assembler code
    readability.
  • Programming Considerations, provides information
    on improving performance of software written for
    the PPC405.
  • PowerPC 6xx/7xx Compatibility, describes the
    programming model differences between the PPC405
    and PowerPC 6xx and 7xx series processors.
  • PowerPC Book-E Compatibility, describes the
    programming model differences between the PPC405
    and PowerPC Book-E processors.

105
PowerPC 405 Processor Block Reference
GuideEmbedded Development Kit
  • Chapter 1, Introduction to the PowerPC 405
    Processor, provides an overview of the PowerPC
    embedded-environment architecture and the
    features supported by the PowerPC 405 processor
    block.
  • Chapter 2, Input/Output Interfaces, describes
    the interface signals into and out of the PowerPC
    405 processor block. Where appropriate, timing
    diagrams are provided to assist in understanding
    the functional relationship between multiple
    signals.
  • Chapter 3, PowerPC 405 OCM Controller,
    describes the features, interface signals, timing
    specifications, and programming model for the
    PowerPC 405 on-chip memory (OCM) controller. The
    OCM controller serves as a dedicated interface
    between the block RAMs in the FPGA and OCM
    signals available on the embedded PowerPC 405
    core.
  • Chapter 4, PowerPC 405 APU Controller,
    describes the Auxiliary Processor Unit
    controller, which allows the designer to extend
    the native PowerPC 405 instruction set with
    custom instructions that are executed by an FPGA
    Fabric Co-processor Module (FCM). The APU
    controller is available only for Virtex-4 family
    devices.

106
PowerPC 405 Processor Block Reference
GuideEmbedded Development Kit
  • Appendix A, RISCWatch and RISCTrace Interfaces,
    describes the interface requirements between the
    PowerPC 405 processor block and the RISCWatch and
    RISCTrace tools.
  • Appendix B, Signal Summary, lists all PowerPC
    405 interface signals in alphabetical order.
  • Appendix C, Processor Block Timing Model,
    explains all of the timing parameters associated
    with the IBM PPC405 Processor Block.

107
Current Technology Trends and COTS
IV. Current technology trends and COTS
  • Network Architectures
  • Processor Scalability
  • COTS Wireless Sensor Elements

108
NIST on Sensor Network Architecture
IV. Current technology trends and COTS
Network Architecture for Ambient Intelligence
  • With the coming availability of low cost, short
    range radios along with advances in wireless
    networking, it is expected that wireless ad hoc
    sensor networks will become commonly
    deployed...Each node may have sufficient
    processing power to make a decision, and it will
    be able to broadcast this decision to the other
    nodes in the cluster.  One node may act as the
    cluster master, and it may also contain a longer
    range radio using a protocol such as IEEE 802.11
    or Bluetooth -- http//w3.antd.nist.gov/wahn_ssn.s
    html

109
Processor Performance
IV. Current technology trends and COTS Processor
Scalability
110
G-Link COTS Wireless Sensor Node
111
Microstrain G-Link
V. Current technology trends and COTS COTS
Wireless Sensing
58 mm
  • Supports simultaneous streaming from multiple
    nodes to PC
  • Available with 2g or 10g range
  • Datalogging rates up to 2048 Hz
  • Real-time streaming rates up to 736 Hz
  • On-board memory stores up to 1,000,000
    measurements
  • Communication range up to 70m line-of-sight
  • Low power consumption for extended use

112
Net - Internet
113
Discussion of ECE-994 Project
  • Major portion of the ECE-994
  • Should relate to the technical material in the
    course i.e. PSOC or FPGA
  • Should be based and take full advantage of the
    XUP Development Kit
  • Should be related to the work of the Rucinski
    Group and the CIDL
  • Is most successful when it involves all
    collaboratively

114
ECE-994 Project
  • A major focus of CIDL and Rucinski Group is on
    Distributed Sensor Networks that feature
  • Ad-hoc robust and efficient network capability
  • coming and going of nodes without a reboot
  • Self organization or self reorganization to
    optimize performance
  • Distributed processing and storage
  • Capability of interfacing with many types of
    sensors
  • Based on standards and opensource as much as
    possible
  • Maximal adaptability, reconfigurability to serve
    many possible applications in security and safety

115
ECE-994 Project Ideas
  • Building a concept demo of a generic node in a
    sensor network
  • Combine core FPGA for control and processing with
    external
  • sensors
  • A/D such as the Digilent AIO1
  • http//www.digilentinc.com/Products/Detail.cfm?Pro
    dAIO1Nav1ProductsNav2Accessory
  • Communications
  • Based on MPI for network OS and coordination

116
ECE-994 ProjectTasks
  • Form the team chose a team leader
  • Research the XUP Development Kit
  • Decide on a preferred project and a back-up
  • Decide on who is responsible for what aspect and
    the timetable
  • Develop your formal Project Proposal and
  • be prepared to formally present it

117
Ambient Node in an Intelligent Network
Applications
V. Applications Current Ambient Designs
  • Web Interrogation / U.S. Virtual Sea Border -NI2
    Project
  • PLUTO -- Tunnel, Mine Monitoring System Project
  • Ocean Deep Underwater Research Project
  • Intelligent Communication Network Project

118
Ambient Node in an Intelligent Network US Virtual
Sea Border Project
V. Applications Current Ambient Designs
  • Phase I Interactive Communication Link ICL -
    (secure chat audio/video communication between
    captain deck and command control third party)
  • Phase II Security Managements System - SMS - (
    phase I the management system with container
    communication, Node availability checking,
    Graphical interface for command control and
    website access for the end users (like cargo,
    ship, etc, owners))
  • Phase III Ambient Security Control System -
    ASCS ( phase II more node sophisticated sensors
    with node display and portable controller
    scanners for investigation team)

   NI2 Center for Infrastructure Expertise
119
ApplicationsU.S. Virtual Sea Border Project -
phase III
V. Applications Current Ambient Designs
WAN
Alarm Availability
   NI2 Center for Infrastructure Expertise
120
Container Security System Design Criteria
V. Applications Current Ambient Designs
  • Distributed processing minimizes need for on the
    air bandwidth and lowers system power
    consumption
  • Each device has unique address, network is ad
    hoc
  • Node based data storage for storing dynamic
    waveforms
  • Capable of deployment of over 1000 nodes, using
    one RF transmission frequency to one receiver
  • Small size, easy to place in the field
  • Low power, long battery life
  • Long transmission range
  • Capable of automated Internet data delivery

121
Container Security System Architecture
V. Applications Current Ambient Designs
  • Encrypted digital data is transmitted via a TDMA
    wireless network (1/3 mile range), to a local
    receiver
  • An 802.11b hierarchical, spoke-and-hub receiver
    network (1-2 mile range), enables monitoring of
    thousands of individual sensors and containers
  • Additional Features
  • Advanced signal processing
  • Geolocation
  • Intelligent triggering
  • Local storage
  • Local interrogation with portable receivers.

122
Conceptual Block Diagram
V. Applications Current Ambient Designs
presented at SiCon 02 S.W. Arms, T.P. Kochanski,
et. al.
123
Concept of PLUTO
V. Applications New directions Projects PLUTO
  • Satisfy requirement for flexible, accessible
    testbed to
  • Gather experimental data for validation
  • Develop and test operational sensors
  • Platform Laboratory for Underground and Tunnel
    Observations
  • Use an experimental underground mine as a
    laboratory to perform experiments to model mines
    and tunnels
  • Polands Central Mining Institute operates the
    Experimental Mine Barbara that provides an
    ideal testbed
  • George Markowsky et. al., "Anywhere, Anytime,
    Any Size, Any Signal Scalable, Remote
    Information Sensing and Communication Systems",
    2002
  • Kazimierz Lebecki, "Zagrozenia Pylowe w
    Górnictwie", 2004

124
PLUTO
V. Applications New directions Projects PLUTO
  • Platform
  • Internet accessible
  • Laboratory
  • Virtual
  • Underground
  • Experimental Mine Barbara
  • Tunnel
  • And mine related
  • Observations
  • Experiments
  • Modeling
  • Sensor evaluation and testing

125
Schematic Diagram of Experimental Gallery
V. Applications New directions Projects PLUTO
  • Dense array of wireless sensor units for
  • Pressure
  • Temperature
  • Optical Radiation
  • Combined with some sensors to determine chemical
    composition

Wireless Access Point connected to Optical
Backbone
Mobile robotic sensor vehicle
126
V. Applications New directions Projects PLUTO
Experimental Mine Barbara
Virtual Mine Barbara
Gdansk
127
Node Architecture - SoC
V. Applications New directions SOC Architecture
  • Technology
  • FPGA Xillinx, Altera, Actel
  • Functions
  • (Capabilities / IP Cores)
  • Wireless communication
  • Cryptography
  • Management
  • Internet Protocol Signalization
  • I/O bus - sensors

Wireless Antenna 1
Wireless Antenna 2
Switch
Communication
FPGA SoC
Management
Cryptography
CPU
I/O bus
Digital Lock
External sensors
GPS
128
Architecture Node FPGA Implementation
V. Applications New directions SOC Architecture
129
Ambient Node in an Intelligent Network
Applications Future Steps
V. Applications New directions Future Steps
  • Ambient Network
  • Power Management
  • Signalization of Sensors Network
  • Inter-network communication
  • Node Addressing
  • US VSB Project
  • Cargo container anomalies specification
  • Procedures Countermeasures

130
Sensor Networking and Synthetic RealityOutline
  • I. Introduction and definitions
  • II. Key pieces of the core technology
  • III 1950s digital sensor networking
  • IV. Current off the shelf technology
  • V Applications
  • VI. Areas that still need lots of work and the
    future
  • VII. Conclude

131
Key Technical Challenges
  • VI. Areas that still need lots of work and the
    future
  • Efficient networking configuration and routing
  • To enable rapid, ad hoc networking of any number
    of either fixed or mobile devices
  • Collaborative signal and information processing
  • To detect, classify, and track events and
    localized patterns of events
  • Distributed microdatabases over a spatio-temporal
    interval
  • Stored in the devices
  • Queriable by multiple users
  • Methods for dynamic programmability of the
    network
  • Methods for security and information assurance to
    enable
  • Intrusion detection, intrusion tolerance, and
    survivable operation in the face of failure and
    compromise
  • Power efficient elements
  • Interactive, dynamic fully-immersive, real-time
    access
  • Middleware for remote, secure, control and access
  • User-friendly development tools for the
    applications creators

132
What of the future?Highly speculative no
promises
VI. Areas that still need lots of work and the
future
  • Sensors with great sensitivity, specificity and
    flexibility
  • Nano-scale and meso-scale?
  • Fully integrated plug and play sensor modules
    with signal processing, storage and
    communications in a single package
  • Global, collaborative real-time access to sensor
    networks
  • Sensors that know what you want to find out and
    can be your friend

133
Sensor Networking and Synthetic RealityOutline
  • I. Introduction and definitions
  • II. Fundamentals of sensors and signals
  • III. Key pieces of the core technology
  • IV. Project Lincoln
  • 1950s digital sensor networking and synthetic
    reality
  • V. Current off the shelf technology
  • VI. New directions Projects NEPTUNE, VLAB, PLUTO
  • VII. Areas that still need lots of work and the
    future
  • VII. Conclude

134
Some Observations
  • VII. Conclude
  • System perspective is critical to success
  • Only as good as integrated hw / sw
  • Reusability modularity of hardware
  • Reusability modularity of software
  • Software is far behind Hardware in
    price/performance, improvement/decade\
  • Lacking Easy to use Tools for Wireless
    Communications
  • Design, Implementation and Testing
  • Need for collaboration on all scales
  • Synergistic Model MIT Model Combine
  • University fundamental r and concept d,
    education and training
  • with industrial applied rd
  • And entrepreneurial funding sources

135
References Links
VII. Conclude
  • Ambient Intelligence http//ambient.media.mit.edu
    /vision.html, http//courses.media.mit.edu/2005spr
    ing/mas961/readings.html,
  • Signal Processing http//www.techonline.com/commu
    nity/ed_resource/20771, http//www.dspguide.com/pd
    fbook.htm
  • NIST Sensor Networks http//w3.antd.nist.gov/wahn
    _ssn.shtml
  • Blue Gene http//www.internetnews.com/ent-news/ar
    ticle.php/3432221
  • Cell Processor http//cell.scei.co.jp/index_e.htm
    l, http//www.mc.com/products/view/index.cfm?id96
    typeboards
  • Bluetooth http//www.bluetooth.com/bluetooth/
  • NEPTUNE, etc.http//www.whoi.edu/mr/pr.do?id1578
  • CAVE http//www.cs.vu.nl/7Erenambot/vr/cases/mol
    .htm, http//www.evl.uic.edu/pape/CAVE/
  • Fledermaushttp//www.ivs3d.com/products/technolog
    y/thebat.html
  • More VR http//www.sgvl.geo.su.se/index.php?optio
    ncom_contenttaskviewid42Itemid148,
    http//www.ccom-jhc.unh.edu/, http//archive.ncsa.
    uiuc.edu/Cyberia/VETopLevels/VR.Interface.html,
    http//www.ccom.unh.edu/vislab/CenterofWorkspaceIn
    teraction.mov http//www.research.ibm.com/journal
    /sj/393/part3/paradiso.html
  • VLAB http//vlab.psnc.pl/gen_info.html
  • MIT ILAB http//icampus.mit.edu/ilabs/
  • Central Mining Institute http//www.gig.katowice.
    pl/gig/index_english.php
  • Microstrain Wireless Modules http//www.microstra
    in.com/2400g-link_specs.aspx
  • MIT Project Oxygen http//oxygen.lcs.mit.edu/Kno
    wledgeAccess.html
  • SAGE, Project Lincoln http//www.mitre.org/about/
    photo_archives/sage_photo.html

136
CONTACT INFO
  • VII. Conclude
  • University of New Hampshire, Durham, NH, USA
  • Thaddeus Paul Kochanski, Ph.D.
  • Tel 781 861 6167
  • tpz4_at_unh.edu
  • tedpk_at_alum.mit.edu
  • Andrzej Rucinski, Ph.D.
  • Tel 603 862 1381
  • andrzej.rucinski_at_unh.edu
  • Central Mining Institute, Katowice, Poland
  • Kazimierz Lebecki, D.Sc.
  • Tel 48 32 3246520, mobile 48 607 384563
  • kazimierz.lebecki_at_neostrada.pl
  • http//www.gig.katowice.pl/gig/index_english.php

137


ECE994.
Programmable System-on-a-Chip (PSoC) Design 2007
IEEE International Conference on Microelectronic
Systems Education (http//www.mseconference.org/)
and the Special Issue of IEEE
Transactions on Education IEEE Computer
Society IEEE Critical Infrastructure
Dependability Initiative and the IEEE Central New
England Council Mentor Graphics High Education
Program (http//www.mentor.com/company/higher
ed/index.cfm) XILINX University Program
(http//www.xilinx.com/univ/index.htm)
Textbook Clive Max Maxfield, The Design
Warriors Guide to FPGAs Devices Tools, and
Flows, Elsevier 2004 First,
138

ECE994. Programmable System-on-a-Chip (PSoC)
Design Catalog Description Overview of Field
Programmable Gate Arrays (FPGAs),
Application-Specific Integrated Circuits (ASICs),
System-on-a-Chip (SoC), and Programmable SoC
(PSoC) networks and constellations. Intellectual
Property (IP) module design in VHDL and synthesis
oriented implementation using multiple
technologies (Altera and Xilinx). Integration
of IP modules and sensor devices with an existing
SoC. Collaborative and distant learning
techniques for distributed team management and
design. In-situ and remote development scenarios.
4 credits Lab. The goal of the experimental
course is to prepare students to design and
implement microelectronic systems using best
practices of the US high tech industry today.
Course Coordinator Dr. Andrzej Rucinski,
University of New Hampshire Kingsbury W321,
andrzej.rucinski_at_unh.edu, 603-862-1381 Instructor
s Dr. Don Bouldin, University of Tennessee
Programmable System-on-a-Chip (PSoC) Dr. Kent
Chamberlin, University of New Hampshire Global
Education Microelectronic Systems network
(GEMS) Dr. Ted Kochanski, University of New
Hampshire - Global Ambient Intelligence Network
(GAIN)
139
Milestones
  • Ted is making an automated graph here
  • ECE715 (since 1986)
  • ECE777 (since 1995)
  • ECE911 (Spring 2006)
  • IEEE Workshop (Fall 2005)
  • ECE994 (Fall 2006)
  • ECE992/ECE777/IEEE Workshop (Spring 2007)

140
(No Transcript)
About PowerShow.com
