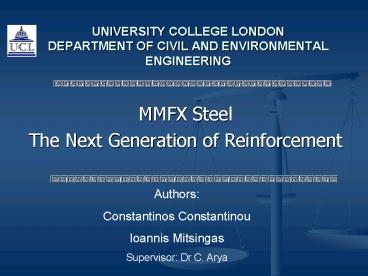

• MMFX Steel
• The Next Generation of Reinforcement

Authors Constantinos Constantinou Ioannis
Mitsingas Supervisor Dr C. Arya
2
Corrosion Costs in all Industrialized
Nations
amount to 3 of the GNP of each country.

• H.H. UhHg (M.I.T) T.P. Hoar (University of
  Cambridge, U.K.)

3
Microcomposite Multistructural Formable Steel

• Awarded, patented chemical composition and
  unique steel microstructure minimizes the
  formation of micro galvanic cells in the steel
  structure, preventing corrosion initiation
• High Design Yield Strength allows for design
  reduction of rebar quantities and simplifies
  installation

4
Comparison to normal steel
5
Mechanical Properties
Yield Strength 1130 GPa
Elastic Modulus 200 GPa
6
Current Usages

• Bridges
• High Rise Buildings
• Residential Housing in Coastal Areas

7
Constructing the Beam
8
Steel Cage Fabrication
Cross Section
9
Comparable Ribbing, but Resistance to corrosion
evident in colour difference
120 mm Link Spacing
10
Beam Prior to Instrumentation
11
Testing
Theory
Practice
12
Deflection Analysis
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
Beam 2 Fails in flexure at 61.3 kN
26
(No Transcript)
27
Crack Widths

• Crack widths analysis carried out
• to BS8110 and EC2 for both beams

28
Beam 2 First Crack Appears at 7.5 KN
29
(No Transcript)
30
(No Transcript)
31
Crack widths

• All actual cracks are smaller than the predicted
  ones
• MMFX steel is corrosion resistant so larger
  cracks can be acceptable

32
Crack Propagation At 30 kN
33
Marketing Prospects
34

• Cost is estimated to be 2-3 times the price of
  Grade 460 Steel
• Only produced in the USA at the moment
• but
• Higher Design Yield Strength can lead to smaller,
  more underdesigned members
• Maintenance Costs reduced/eliminated due to the
  non-corrosive nature of the steel

35
Conclusion

• MMFX steel bars meet BS8110 and EC2 deflection
  and crack width criteria
• Good basis for further research
• Favourable prospects for usage in the UK and
  other parts of the world.

36
Thank you
(The authors would like to assure everyone that
no beams were hurt during the making of this
project)
