Understanding and Using Patterns in Software Development

1

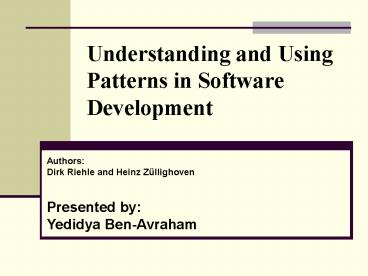

Understanding and UsingPatterns in Software
Development
AuthorsDirk Riehle and Heinz Züllighoven
Presented by Yedidya Ben-Avraham
2
Purpose

• Present crucial characteristics of a pattern.
• Relate pattern types to the main models built
  during software development.
• Analyze different pattern forms to describe
  patterns based on their intended use.
• Propose pattern handbook.

3
Definition of a Pattern

• A pattern is the abstraction from a concrete form
  which keeps recurring in specific non-arbitrary
  contexts.
• The form of a pattern consists of a finite number
  of visible and distinguishable components and
  their relationships.
• A context constrains the pattern and gives birth
  to its form.

4
Example Pattern

• The Distinction of Tools and Materials
• An application domain for developing a software
  system, should separate tools from materials and
  analyze the ways tools are used to work on
  materials.
• A pencil is seen as a tool used to fill in a form
  as its material.
• The distinction between tools and materials
  serves as a (high-level) software design pattern.

• Tool objects work on material objects.

5
Example collection of tools and materials in the
office domain.
6
Patterns and Models

• Software engineering distinguishes between three
  main models and pattern types
• Models
• Application domain model
• Software design model
• Implementation model
• Patterns
• Conceptual patterns
• Design patterns
• Programming patterns

7
Conceptual patterns

• A conceptual pattern is described by an
  application domain.
• Conceptual patterns should be based on metaphors
  found in the application domain.
• Conceptual patterns should be geared towards a
  restricted application domain.

8
Example

• Model-View-Control
• View - The view has the task of presenting the
  data to the user.
• Controller This is the part of the interface
  that lets the user change the model data.
• Model - encapsulates the data and the functions
  managing them.

View
Controller
Model
9
Design patterns

• A design pattern is described by means of
  software design constructs.
• Design patterns should fit the conceptual space
  opened by conceptual patterns.

10
Example

• Observer
• Subject A subject may have any number of
  dependent observers.
• Observers All observers are notified whenever
  the subject undergoes a change in state.

11
Programming patterns

• A programming pattern is described by means of
  programming language constructs.
• Example of an implementation pattern is a C style
  loop found in many C program.
• for (i0 iltmax i) ...

12
Model and pattern interrelationships

• Application domain analysis and high-level system
  design are identified using conceptual patterns.
• Software designs are developed using design
  patterns.
• Software systems are implemented using
  programming patterns.

13
Example for the application of the software
design pattern Tool and Material Coupling.
14
Pattern Description Forms

• Most researchers seem to agree that patterns
  should be presented in a structured form.
• Three pattern forms stand out.
• Alexandrian form
• Design Pattern Catalog form
• General form

15
Alexandrian form

• This form consists of at least three sections
• Problem
• Context
• Solution
• The intended use of this pattern form is to guide
  users to generate solutions for the described
  problems.

16
Alexandrian form table for describing patterns.
17
Design Pattern Catalog form

• A structured form is used to describe
  object-oriented software design patterns using a
  template.
• Template consists of a number of sections
• Structure and its dynamics are the form of a
  pattern.
• Motivation, applicability and consequences
  sections capture the context of the pattern.
• The intended use of this pattern form is also to
  help users create solutions to problems. They
  focus less on when to apply the pattern but more
  on the actual structure and dynamics of the
  pattern itself.

18
A general form

• The general pattern form consists of two sections
• Context
• Pattern
• The intended use of this description form is to
  discuss the structure and dynamics of the
  recurring form and its context without promoting
  a specific way of using the pattern.

19
Pattern Handbook

• A pattern handbook is needed.
• A pattern handbook is defined as
• Being a handy work of print that concisely
  summarizes the relevant concepts from a domain.

20
Pattern Handbook (Contd.)

• A pattern handbook for software development might
  consist of the following sections
• An introduction and overview.
• An outline of the characteristics of the
  respective application domain
• Typical workplaces
• Types of cooperation and communication
• Standard problems and their solutions.
• A section on an appropriate development strategy
• Ex Evolutionary software development with
  prototypes and participatory design.
• A structured pattern set
• Conceptual patterns
• Software design patterns
• Programming patterns (depending on the level of
  detail appropriate).

21
Questions ?
22
References

• 1. A Metamodeling Approach to Pattern-Based
  Model Refactoring, Robert France, Sudipto Ghosh,
  Eunjee Song and Dae-Kyoo Kim, IEEE - Software,
  September 2003
• 2. Automatic Generation of User Interfaces using
  the Set Description Language, Edoardo Ardizzone,
  Vincenzo Cannella, Daniele Peri and Roberto
  Pirrone, IEEE
• 3. Building an OMT-Editor Using Design Patterns
  An Experience Report, Bart Wydaeghe, Kurt
  Verschaeve, Bart Michiels, Bruno Van Damme, Evert
  Arckens and Viviane Jonckers, IEEE - Technology
  of Object-Oriented Languages and Systems , 1998

23
References (Contd.)

• 4. Observer Pattern using Aspect-Oriented
  Programming, Eduardo Kessler Piveta and Luiz
  Carlos Zancanella, 2003, http//www.cin.ufpe.br/s
  ugarloafplop/final_articles/20_ObserverAspects.pdf

• 5. Understanding and Using Patterns in Software
  Development, Dirk Riehle and Heinz Züllighoven,
  IEEE, 1996
• 6. What is a pattern?, Aleksandra Teanovic,
  IEEE Computer Society Press, 1996,
  http//www.ida.liu.se/uweas/Lectures/DesignPatter
  ns01/tesanovic-WhatIsAPattern.pdf
