Derivation of the 2D Rotation Matrix PowerPoint PPT Presentation

presentation player overlay
1 / 3
About This Presentation
Transcript and Presenter's Notes

Title: Derivation of the 2D Rotation Matrix


1

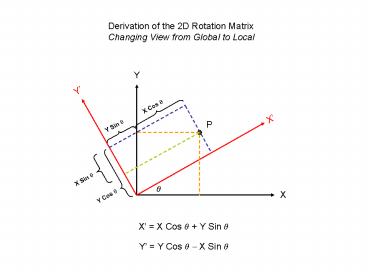

Derivation of the 2D Rotation Matrix Changing
View from Global to Local
X X Cos q Y Sin q
Y Y Cos q - X Sin q
2
Derivation of the 2D Rotation Matrix Changing
View from Local to Global
X X Cos q - Y Sin q
Y X Sin q Y Cos q
3
Conversion of Equations to Matrix Form
From Global to Local
X X Cos q Y Sin q
Y Y Cos q - X Sin q
From Local to Global
X X Cos q - Y Sin q
Y X Sin q Y Cos q
