MQ Series

1

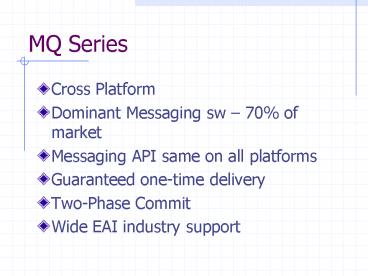

MQ Series

• Cross Platform
• Dominant Messaging sw 70 of market
• Messaging API same on all platforms
• Guaranteed one-time delivery
• Two-Phase Commit
• Wide EAI industry support

2
What is it?
MQSeries is a middleware product from IBM that
runs on multiple platforms and enables
applications to send messages to other
applications. Basically, the sending
application PUTs a message on a Queue, and the
receiving application GETs the message from the
Queue. The sending and receiving applications do
not have to be on the same platform, and do not
have to be executing at the same time.
MQSeries takes care of all the storage, logging
and communications details required to guarantee
delivery of the message to the destination queue.
In most cases, it will take care of translating
the data when the source and destination use
different character sets (EBCDIC on MVS vs. ASCII
on NT or Unix). All the applications have to do
is know the name of the Queue and agree on the
meaning of the message.
3
MQ Series API (basic)

• Connect to a Queue Manager
• Open a queue
• Put or get messages
• Close a queue
• Commit or roll back
• Disconnect

4
Advanced features

• Triggering automatically starting an
  application to process a message
• IMS CICS Bridges reusing legacy transactions
  without modification
• Confirmation of message arrival, delivery
• Grouping of messages
• Load balancing

5
MQ Application environments

• IMS transaction
• IMS BMP
• IMS batch
• OS/390 Batch
• TSO
• CICS

• DB2 Stored Procedure
• VB program on Windows
• C program on Windows or Unix

Supported languages include VB, C/C, PL/1 and
Cobol
6
Local Queuing
7
Distributed Queuing
8
Distributed Queuing
9
Server to Server
Unix or NT Server Hosting Queue Manager Server
sw (WebSphere, UP, IIS, Apache, Web server)
OS/390 hosting Queue Manager IMS DB2 .
Client PCs (no MQ sw at all)
10
Server to Server -

• Server application gets its data using MQ.
  Clients do not use MQ API
• Guaranteed Delivery in effect
• Server license required

11
Client to Server
Unix or NT Server Hosting Queue Manager, MQ
Client support, other server sw
OS/390 hosting Queue Manager IMS DB2
Client PCs (MQ client sw)
12
Client to Server

• Client applications use MQ API (linked
  differently)
• MQ processing actually occurs on server within
  client support modules
• Client licenses free
• Guaranteed delivery not supported over client
  server link

13
To what problems is MQ the solution?

• Fast, asynchronous inter-system notification.
• Data propagation
• Transferring data from mainframe systems to
  PC/Unix systems
• Transferring data from PC/Unix systems to
  mainframe systems

14
ProblemSolution
An event in an IMS system requires action by a
midrange system. Modify the IMS program to PUT
a message to the midrange system. The midrange
system can be configured to start the
application whenever a message arrives.
15
ProblemSolution

• An event in an midrange system requires action by
  a
• mainframe system.
• Modify the midrange program to PUT a message to
• the mainframe system. The mainframe system can
• process the message
• Immediately
• At set intervals
• On a schedule

16
CAD - MQ Architecture
MQ

• New BMP, cycles every x minutes
• Reads all messages from queue into buffer
• Sorts on sequence number
• Processes each in proper order

CAD to ECS
ECS Database
ECS to CAD
existing ECS MPPs modified to 1 add XML
formatting to some data 2 MQPUT to UP incoming
queue

MQ
MQSEND
17
ProblemSolution
A PC user needs to request an overnight report
that needs data from IMS, DB2 and other
files. A VB program puts the report requirements
on a queue which is read by a batch job
18
ProblemSolution
Web server needs data from legacy IMS/CICS
transaction. Web server puts a message to the
MQ-IMS/CICS Bridge, which runs the transaction
and returns the results on a queue
(screen-scraping without the 3270).
19
ProblemSolution
VB app needs data from DB2, SQL Server and
IMS VB client app puts messages on queues on NT
and mainframe systems, triggering programs which
populate reply queues on an NT system, which the
VB app will read to present to the user. The VB
client need not wait for the report to be
completed. It could spawn a separate thread that
would monitor the reply queues and notify the
user when the report was complete.
