Backdoors in the Context of Learning (short paper)

1

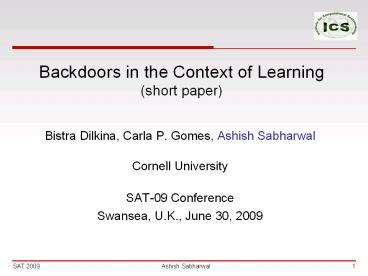

Backdoors in the Context of Learning(short paper)

• Bistra Dilkina, Carla P. Gomes, Ashish Sabharwal
• Cornell University
• SAT-09 Conference
• Swansea, U.K., June 30, 2009

2
SAT Gap between theory practice

• Boolean Satisfiability or SAT
• Given a Boolean formula F in conjunctive normal
  forme.g. F (a or b) and (a or c or d) and
  (b or c)determine whether F is satisfiable
• NP-complete note worst-case notion
• widely used in practice, e.g. in hardware
  software verification, design automation, AI
  planning,
• Large industrial benchmarks (10K vars) are
  solved within seconds by state-of-the-art
  complete/systematic SAT solvers
• Even 100K or 1M not completely out of question
• Good scaling behavior seems to defy
  NP-completeness!
• Real-world problems have tractable sub-structure

Backdoors help explain how solvers canget
smart and solve very large instances
3
Backdoors to Tractability
A notion to capture hidden structure

• Informally
• A backdoor to a given problem is a subset of
  its variables such that, once assigned values,
  the remaining instance simplifies to a tractable
  class.
• Formally
• define a notion of a poly-time sub-solver
  handles tractable substructure of problem
  instance e.g. unit prop., pure literal
  elimination, CP filtering, LP solver,
• Weak backdoors for finding feasible solutions
• Strong backdoors for finding feasible solutions
  or proving unsatisfiability

4
Are backdoors small in practice?
Enough to branch on backdoor variables to solve
the formula? heuristics need to be good on only
a few vars
The notion of backdoors has provided powerful
insights, leading totechniques like
randomization, restarts, and algorithm portfolios
for SAT
5
This Talk Motivation

• Traditional backdoors are defined for a basic
  tree-search procedure, such as pure DPLL
• Oblivious to the now-standard (and essential)
  feature of learning during search, i.e, clause
  learning for DPLL
• Note state-of-the-art SAT solvers rely heavily
  on clause learning, especially for industrial and
  crafted instances
• provably leads to shorter proofs for many
  unsatisfiable formulas
• significant speed-up on satisfiable formulas as
  well
• Does clause learning allow for smaller
  backdoorswhen capturing hidden structure in SAT
  instances?

6
This Talk Contribution

• Affirmative answer
• First, must extend the notion of backdoors to
  clause learning SAT solvers take
  order-sensitivity into account
• Theoretically, learning-sensitive backdoors for
  SAT solvers with clause learning (CDCL solvers)
  can be exponentially smaller than traditional
  strong backdoors
• Initial empirical results suggesting that in
  practice,
• More learning-sensitive backdoors than
  traditional (of a given size)
• SAT solvers often find much smaller
  learning-sensitive backdoors than traditional ones

7
DPLL Search with Clause Learning

• Input CNF formula F
• At every search node
• branch by setting a variable to True or
  Falsecurrent partial variable assignment ?
• consider simplified sub-formula F?
• apply a poly-time inference procedure to
  F?(e.g. unit prop., pure literal test, failed
  literal test / probing)

• Contradiction ? learn a conflict clause
• Solution ? declare satisfiable and exit
• Not solved ? continue branching

sub-solver for SAT
8
Backdoors and Search with Learning
Search order matters!
9
Traditional Backdoors

• Definition Williams, Gomes, Selman 03
• A subset B of variables is a strong
  backdoor(for F w.r.t. a sub-solver S) if for
  every truth assignment ? to variables in B,
• S solves F?.
• Issue oblivious to previously learned clauses
  sub-solver must infer contradiction on F? for
  every ? from scratch.

either finds a satisfying assignment for For
proves that F is unsatisfiable
10
New Learning-Sensitive Backdoors

• Definition
• A subset B of variables is a learning-sensitive
  backdoor(for F w.r.t. a sub-solver S) if there
  exists a search order s.t. a clause learning
  solver
• branching only on the variables in B
• in this search order
• with S as the sub-solver at each leaf
• solves F.

either finds a satisfying assignment for For
proves that F is unsatisfiable
11
Theoretical Results
12
Learning-Sensitive Backdoors Can Provably be Much
Smaller

• Setup
• Sub-solver unit propagation
• Clause learning scheme 1-UIP
• Comparison w.r.t. traditional strong backdoors
• Theorem 1 There are unsatisfiable SAT instances
  for which learning-sensitive backdoors are
  exponentially smaller than the smallest
  traditional strong backdoors.
• Theorem 2 There are satisfiable SAT instances
  for which learning-sensitive backdoors are
  smaller than the smallest traditional strong
  backdoors.

used Rsat for experiments
13
Proof Idea Simple Example
x is a learning-sensitive backdoor (of size 1)
Learn 1-UIP clause (?q)
x0
x1
With clause learning, branching on xin the right
order suffices to prove unsatisfiability
14
Proof Idea Simple Example

• In contrast, without clause learning, must branch
  onat least 2 variables in every proof of
  unsatisfiability!
• every traditional strong backdoor is of size
  2
• Why?
• every variable, in at least one polarity, only in
  long clausese.g., ?p1, q, r, ?a do not appear
  in any 2-clauses
• therefore, no unit prop. or empty clause
  generation by fixing this variable to this value
• therefore, this variable by itself cannot be a
  strong backdoor

15
Proof Idea Exponential Separation

• Construct an unsatisfiable formula F on n vars.
  such that
• certain long clauses must be used in every
  refutation(i.e., removing a long clause makes F
  satisfiable)
• many variables in at least one polarity appear
  only in such long clauses with ?(n) variables
• Controlled unit propagation / empty clause
  generation
• Must branch on essentially all variables of the
  long clauses to derive a contradiction
• Such variables must be part of every traditional
  backdoor set
• With learning conflict clauses from previous
  branches on O(log n) key variables enable unit
  prop. in long clauses

16
Order-Sensitivity of Backdoors

• Corollary (follows from the proof of Theorem 1)
• There are unsatisfiable SAT instances for which
  learning-sensitive backdoors w.r.t. one value
  ordering are exponentially smaller than the
  smallest learning-sensitive backdoors w.r.t.
  another value ordering.

17
Experimental evaluation
18
Learning-Sensitive Backdoors in Practice

• Preliminary evaluation of smallest backdoor size
  Reporting best found backdoors over 5000
  runs of Rsat (with clause learning) or
  Satz-rand (no learning)
• up to 10x smaller than traditional on satisfiable
  instances
• often 2x or less smaller than traditional on
  unsatisfiable instances

19
How hard is it to find small backdoor sets with
learning?
Recently reported in a paper at
CPAIOR-09(backdoors in the context of
optimization problems)

• Considering only the size of the smallest
  backdoor does not provide much insight into this
  question
• One way to assess this difficulty
• How many backdoors are there of a given
  cardinality?
• Experimental setup
• For each possible backdoor size k, sample
  uniformly at random subsets of cardinality k from
  the (discrete) variables of the problem
• For each subset, evaluate whether it is a
  backdoor or not

20
Backdoor Size Distribution
E.g., for a Mixed Integer Programming
(MIP)optimization instance
21
Added Power of Learning
E.g., for a Mixed Integer Programming
(MIP)optimization instance
22
Summary

• Defined backdoors in the context of learning
  during search (in particular, clause learning for
  SAT solvers)
• Proved that learning-sensitive backdoors can be
  smaller than traditional strong backdoors
• Exponentially smaller on unsatisfiable instances
• Somewhat smaller on satisfiable instances (open?)
• Branching order affects backdoor size as well
• Future work stronger separation for satisfiable
  instances detailed empirical
  study
