Title: Declarative Routing: Extensible Routing with Declarative Queries


1

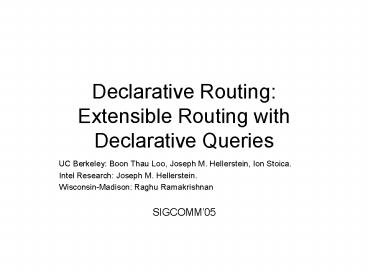

Declarative RoutingExtensible Routing with
Declarative Queries
  • UC Berkeley Boon Thau Loo, Joseph M.
    Hellerstein, Ion Stoica.
  • Intel Research Joseph M. Hellerstein.
  • Wisconsin-Madison Raghu Ramakrishnan
  • SIGCOMM05

2
Outlines
  • Abstract
  • System Model
  • The Basics
  • Challenges
  • Expressiveness
  • Security
  • Optimization
  • Stability and Robustness
  • Evaluation
  • Conclusion

3
Abstract (1)
  • Problem The Internet routing infrastructure is
    difficult to supply new applications.
  • Other researches on the above problem
  • New hard-coded routing protocols
  • In order to change or upgrade a routing protocol,
    must get access to each router. This is more
    tedious.
  • Active Networks allows one to apply new routing
    functionality without the direct access to
    routers.
  • Difficulties in both router performance and the
    security and reliability of the resulting
    infrastructure.
  • Overlay networks allows third parties to replace
    Internet routing with new, from-scratch
    implementation of routing functionality that run
    at the application layer.
  • Simply move the problem from the network layer to
    the application layer that third parties have
    control.
  • This paper explores a new point to strike a
    better balance between the extensibility and
    robustness of a routing infrastructure.
  • Declarative Routing to express routing protocols
    using a database query language.

4
Abstract (2)
  • Ideas based on an observation
  • Recursive query languages studied in the
    deductive database literature are a natural fit
    for expressing routing protocols. Deductive
    database query languages focus on identifying
    recursive relationships among nodes of a graph,
    and are well suited for expressing paths among
    nodes in a network.
  • Basic mechanism
  • A routing protocol is implemented by writing a
    simple query in a declarative query language like
    Datalog, which is then executed in a distributed
    fashion at some or all of the nodes.
  • The future applications
  • Individual end-user will explicitly request
    routes with particular properties, by submitting
    route construction queries to the network.
  • An administrator at an ISP might re-configure the
    ISPs routers by issuing a query to the network.
  • The simplicity and safety of declarative routing
    has benefits over the current relatively fragile
    approaches to upgrading routers.

5
Outlines
  • Abstract
  • System Model
  • The Basics
  • Challenges
  • Expressiveness
  • Security
  • Optimization
  • Stability and Robustness
  • Evaluation
  • Conclusion

6
System Model (1)
  • We model the routing infrastructure as a directed
    graph, where each link is associated with a set
    of parameters (e.g., loss rate, available
    bandwidth, delay).
  • The nodes can either be IP routers or overlay
    nodes.
  • Fully distributed implementation
  • Like traditional routers, the nodes maintain
    links to their neighbors, compute routes, and set
    up the forwarding state.
  • But, instead of running a traditional routing
    protocol, each node runs a general-purpose query
    processor.

7
System Model (2)
8
System Model (3)
  • The query processor can read the neighbor table,
    and install entries into the forwarding table.
  • This simple interface is the only interaction
    between the query processor and the core
    forwarding logic.
  • Declarative query
  • Both routing protocols and route requests can be
    expressed.
  • The results of the query are used to establish
    router forwarding state.
  • Base tuples the local information that the node
    reads.
  • E.g. link tuple
  • link (source, destination, ), a copy of an entry
    in the neighbor table.
  • Derived tuples the generated intermediate data.
  • E.g. path tuple
  • path (source, destination. pathVector, cost)
  • Lifetime of a query
  • Each query is accompanied by a specification of
    the lifetime.
  • During this period, neighbor table updates would
    trigger the re-computation of some of the
    existing derived and result tuples.

9
Outlines
  • Abstract
  • System Model
  • The Basics
  • Challenges
  • Expressiveness
  • Security
  • Optimization
  • Stability and Robustness
  • Evaluation
  • Conclusion

10
The Basics (1)
  • A Datalog program (a query) consist of a set of
    declarative rules.
  • rule form
  • ltheadgt - ltbodygt
  • Variable names begin with an upper-case letter.
  • Function symbols, predicates and constants begin
    with an lower-case letter.
  • Ex.
  • NR1 path(S, D, P, C) - link(S, D, C), P
    f_concatPath( link(S, D, C), nil ).
  • NR2 path(S, D, P, C) - link(S, Z, C1), path(Z,
    D, P2, C2), C C1 C2, P f_concatPath(
    link(S, Z, C1), P2 ).
  • Query path(S, D, P, C)
  • Since both S and D are unbound variables, this
    query will compute the full transitive closure
    consisting of the paths between all pairs of
    reachable nodes.
  • Pitfall
  • The above query will not terminate due to the
    generation of path tuples with cycles.
  • Solution add an extra predicate f_inPath(P2, S)
    false to rule NR2.

11
The Basics (2)
  • Query Plan Generation
  • Before executing a query, we need to generate a
    query plan.
  • A query plan a dataflow diagram consisting of
    relational operators that are connected by arrows
    indicating the flow of tuples. Figure 2.

12
Query Plan
13
The Basics (3)
  • Query Plan Distributed Execution
  • Upon receipt of the Datalog query, each node
    creates the query plan. Figure 3 (First, ignore
    query initial dissemination)
  • Query Initial Dissemination
  • Flood
  • Piggy-back
  • Embedded the query into the first data tuple sent
    to each neighboring node.
  • Optimization Nodes not involved in the query
    computation will not receive the query.

14
Query Plan Distributed Execution (1)
Each Iteration represent the traversal of a
cloud in Figure 2.
15
Query Plan Distributed Execution (2)
  • A node needs to take up to k iterations to
    converge to a steady state when receiving a
    query. k is the diameter of the network.
  • The total time taken for a query to converge is
    proportional to 2k.
  • The initial query takes up to k iterations to
    reach the farthest node from the query node.

16
The Basics (4)
  • Distance Vector Protocol Expression
  • DV1 path(S, D, D, C) - link(S, D, C)
  • DV2 path(S, D, Z, C) - link(S, Z, C1), path(Z,
    D, W, C2), C C1 C2
  • DV3 shortestCost(S, D, minltCgt) - path(S,D, Z,
    C).
  • DV4 nextHop(S, D, Z, C) - path(S, D, Z, C),
    shortestCost(S, D, C).
  • Query nextHop(S, D, Z, C)
  • Count-to-Infinity problem
  • Using split-horizon a method of preventing a
    routing loop in a network.
  • The basic principle is simple Information about
    the routing for a particular packet is never sent
    back in the direction from which it was received.
  • Modification
  • include(DV1, DV3, DV4)
  • DV2 path(S, D, Z, C) - link(S, Z, C1), path(Z,
    D, W, C2), C C1 C2, W ? S.
  • DV5 path(S, D, Z, 8) - link(S, Z, C1), path(Z,
    D, S, C2).

17
Outlines
  • Abstract
  • System Model
  • The Basics
  • Challenges
  • Expressiveness
  • Security
  • Optimization
  • Stability and Robustness
  • Evaluation
  • Conclusion

18
Challenges
  • Four challenges to justify the feasibility of
    declarative routing
  • Expressiveness
  • How to express various routing policies? Any
    limitation?
  • Security
  • Is it safe enough to execute queries issued by
    untrusted third-parties?
  • Efficiency
  • How to adapt or develop the Query Plan Generation
    to perform the queries well in a large network?
  • How to reduce the redundant work performed by
    various routing queries issued concurrently?
  • Stability and Robustness
  • Since the network is dynamic, how to efficiently
    maintain the robustness and accuracy of long term
    routes?

19
Outlines
  • Abstract
  • System Model
  • The Basics
  • Challenges
  • Expressiveness
  • Security
  • Optimization
  • Stability and Robustness
  • Evaluation
  • Conclusion

20
Expressiveness
  • Main goal here is
  • To illustrate the natural connection between
    recursive queries and network routing.
  • To highlight the flexibility, ease of programming
    and ease of reuse afforded by a query language.
  • Routing protocols to be expressed
  • Best-Path Routing
  • Policy-Based Routing
  • Dynamic Source Routing
  • Link State

21
Expressiveness Best-Path Routing
  • From base rules in the first Network-Reachability
    example
  • NR1 path(S, D, P, C) - link(S, D, C), P
    f_concatPath( link(S, D, C), nil ).
  • NR2 path(S, D, P, C) - link(S, Z, C1), path(Z,
    D, P2, C2), C f_compute(C1, C2), P
    f_concatPath( link(S, Z, C1), P2 ).
  • BPR1 bestPathCost(S, D, AGGltCgt) - path(S,D, P,
    C).
  • BPR2 bestPath(S, D, P, C) - path(S, D, P, C),
    bestPathCost(S, D, C).
  • Query bestPath(S, D, Z, C)
  • If best-path is the shortest-path, replace
    f_compute with f_sum, and AGG with min.
  • Then, add an extra condition f_inPath(P2, S)
    false to rule NR2 to avoid cycles in paths.
  • Additionally, QoS requirement can be specified
    with certain of constraints.
  • Add an extra constraint Cltk to the rules NR1 and
    NR2 to restirct the set of paths to those with
    costs below a loss or latency threshold k.

22
Expressiveness Policy-Based Routing
  • To restrict the scope of routing by precluding
    paths that involve undesirable nodes.
  • include(NR1, NR2)
  • PBR1 permitPath(S, D, P, C) - path(S, D, P, C),
    excludeNode(S, W), f_inPath(P, W) false.
  • Query permitPath(S, D, P, C).
  • An additional table excludeNode is introduced.
  • excludeNode(S, W) reresents that node S does not
    carry any traffic for node W. This table is
    stored at each node S.
  • We can generate bestPath tuples meeting the above
    policy by adding BPR1 and BPR2.

23
Expressiveness Dynamic Source Routing
  • Flip the order of path and link in the body of
    rule NR2 to using left recursion, we get DSR.
  • include(NR1)
  • DSR1 path(S, D, P, C) - path(S, Z, P1, C1),
    link(Z, D, C2), f_concatPath(P1, link(Z, D, C2)),
    C C1 C2.
  • Query path(S, D, P, C).
  • We can also generate bestPath tuples by adding
    BPR1 and BPR2.

24
Expressiveness Link State
  • Flood the links to all nodes in the network.
  • LS1 floodLink(S, S, D, C, S) - link(S, D, C).
  • LS2 floodLink(M, S, D, C, N) - link(N, M, C1),
    floodLink(N, S, D, C, W), M ? W.
  • Query floodLink(M, S, D, C, N)
  • Then, if all the links are available at each
    node, a local version of the Best-Path query is
    executed locally using the floodLink tuples.

25
Outlines
  • Abstract
  • System Model
  • The Basics
  • Challenges
  • Expressiveness
  • Security
  • Optimization
  • Stability and Robustness
  • Evaluation
  • Simulation
  • Experiments
  • Conclusion

26
Security
  • Security is a key concern with any extensible
    system.
  • Bound on the resource consumption
  • Queries written in Datalog language have
    polynomial time and space complexity in the size
    of the input.
  • Termination of an augmented Datalog query
  • The addition of arbitrary functions, the time
    complexity of a Datalog program is no longer
    polynomial.
  • Several powerful static tests for termination
    18.
  • Side-effect-free language
  • Taking a set of stored tables as input and
    produce a set of derived tables.
  • The execution is standboxed within the query
    engine.
  • As a result, Datalog eliminates many of the risks
    usually associated with extensible systems.
  • Still many other security issues (but orthogonal
    to network extensibility, and wont be addressed)
  • Denial-of-service attacks
  • Compromised routers

27
Outlines
  • Abstract
  • System Model
  • The Basics
  • Challenges
  • Expressiveness
  • Security
  • Optimization
  • Stability and Robustness
  • Evaluation
  • Simulation
  • Experiments
  • Conclusion

28
Optimization (1)
  • Pruning Unnecessary Paths
  • The Inefficiency
  • Queries with aggregates start by enumerating all
    possible paths.
  • Solution
  • Using a query optimization technique, aggregate
    selections 25, 22.
  • E.g. Figure 3
  • By maintaining a min-so-far aggregate value for
    the current shortest path cost from node a to its
    destination nodes, we can selectively avoid
    sending path tuples to neighbors if we know they
    can not be involved in the shortest path.
  • In general, aggregate selections are useful when
    AGG function can be used to prune communication.

29
Optimization (2)
  • Subsets of Sources and Destinations (2
    techniques)
  • Magic Sets Rewrite
  • To limit query computation to the relevant
    portion(nodes) of the network.
  • E.g. if nodes b and c are the only nodes issuing
    the path query (After this, only nodes reachable
    from b and c participate in this query)

30
Optimization (3)
  • Left-Right Recursion Rewrite
  • To generate best paths from magicSources to
    magicDsts nodes, Best-Path-Pair (Using left
    recursion)

31
Optimization (4)
  • If all nodes are running the same query, then
    using right-recursion to directly utilize path
    info sent by neighboring nodes.
  • If only a small of subset of nodes are issuing
    the same query, using left-recursion to lower
    message overhead.
  • Drawback of Best-Path-Pair
  • No sharing if magicSource(b) is added.

32
Optimization (5)
  • Multi-Query Sharing

33
Outlines
  • Abstract
  • System Model
  • The Basics
  • Challenges
  • Expressiveness
  • Security
  • Optimization
  • Stability and Robustness
  • Evaluation
  • Simulation
  • Experiments
  • Conclusion

34
Stability and Robustness (1)
  • Each query is accompanied by a lifetime. During
    this period, changes in the network might result
    in some re-computation.
  • Using continuous queries to re-compute new
    results based on changes in the network
  • Each router is responsible for detecting changes
    to its local information and reporting these
    changes to its local query processor.
  • E.g. consider the Network-Reachability query

35
Stability and Robustness (2)
36
Outlines
  • Abstract
  • System Model
  • The Basics
  • Challenges
  • Expressiveness
  • Security
  • Optimization
  • Stability and Robustness
  • Evaluation
  • Conclusion

37
Evaluation (Size of network)
38
Evaluation (All-Pairs Shortest Paths 1)
39
Evaluation (All-Pairs Shortest Paths 2)
  • Two observations
  • Convergence latency for the Best-Path query is
    proportional to the network diameter, and
    converges in the same time compared to the path
    vector protocol.
  • Per-node communication overhead increases
    linearly with the number of nodes.
  • Both observations are consistent with the
    scalability properties of the traditional
    distance vector and path vector protocols

40
Evaluation (Source/Destination Queries 1)
41
Evaluation (Source/Destination Queries 2)
42
Evaluation (Mixed Query Workload)
43
Outlines
  • Abstract
  • System Model
  • The Basics
  • Challenges
  • Expressiveness
  • Security
  • Optimization
  • Stability and Robustness
  • Evaluation
  • Conclusion

44
Conclusion
  • Observation
  • Finding a connection between two different domain
    might address some difficult problems in one by
    using the techniques from the other
    (well-studied).
Write a Comment
User Comments (0)
About PowerShow.com
