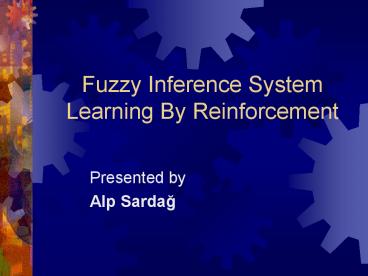

Fuzzy Inference System Learning By Reinforcement

1
Fuzzy Inference System Learning By Reinforcement

• Presented by
• Alp Sardag

2
A Comparison of Fuzzy Classical Controllers

• Fuzzy Controller Expert systems based on if-then
  rules where premises and conclusions are
  expressed by means of linguistic terms.
• Rules close to natural language
• A priori knowledge
• Classical Controller Need analytical task model.

3
Design Problem of FC

• A priori knowledge extraction is not easy
• Disagreement between experts
• Great number of variables necessary to solve the
  control task

4
Self Tunning FIS

• A direct teacher based on input-output set of
  trainning data.
• A distal teacher does not give the correct
  actions, but the desired effect on the process.
• A performance measure EA
• A critic gives rewards and punishment with
  respect to state reached by the learner. RL
  methods.
• There are no more than two fuzzy sets activated
  for an input value

5
Goal

• To overcome the limitations of classical
  reinforcement learning methods, discrete state
  perception and discrete actions.
• NOTE In this paper MISO FIS is used.

6
A MIMO FIS
FIS is made of N rules of the following form
Ri ith rule of the rule base Siinput
variables Lij linguistic term of input variable
its membership function ?Lij YNOoutput
variables Oij linguistic term of output variable
7
Rule Preconditions

• Membership functions are triangles and trapezoids
  (altough not differentiable).
• because they are simple
• Sufficient in a number of application
• Strong fuzzy partition used
• All values activate at least one fuzzy set, the
  input universe is completely covered.

8
Strong Fuzzy Partition Example
9
Rule Conclusions

• Each of i rule has No corresponding conclusions
• For Each Rule the truth value with respect to S
  is computed with
• where T norm is implemented by a product
• The FIS outputs are

10
Learning

• Number and positions of the input fuzzy labels
  being set using a priori knowledge.
• Structural Learning consists in tuning the
  number of rules.
• FACL and FQL learning are reinforcement learning
  methods that deal with only the conclusion part.

11
Reinforcement Learning
NOTE state observability is total.
12
Markovian Decision Problem

• S a finite discrete state
• U a finite discrete action
• R primary reinforcements RSxU?R
• P transition probabilities
• PSxUxS ?0,1.
• State evaluation function

13
The Curse of Dimensionality

• Some form of generalization must be incorporated
  in state representation. Various function
  approximators used
• CMAC
• Neural Networks
• FIS the state space encoding is based on a
  vector corresponding to the current state.

14
Adaptive Heuristic Critic

• AHC is made of two components
• Adaptive Critic Element Critic developed in an
  adaptive way from primary reinforcements,
  represent an evaluation function more informative
  than the one given by the environment through
  rewards and punishment (V(S) values).
• Associative Search Element selects actions which
  lead to better critic values

15
FACL Scheme
16
The Critic
At time step t, the critic value is computed with
conclusion vector
TD error is given by
TD-learning update rule
17
The Actor

• When the rule Ri is activated, one of the Ri
  local action is elected to participate in the
  global action, based on its quality. The global
  action triggered
• where ?-greedy is a function implementing
  mixed exploration-exploitation strategy.

18
Tunning vector w

• TD error, the improvement measure except in the
  beginning is a good approximator of the optimal
  evaluation function. The actor learning rule

19
Meta Learning Rule

• Update strategie for learning rate
• Every parameter should have its learning rate.
  (?1?n)
• Every learning rate should be allowed to vary
  over time. (in order V values to converge)
• When the derivative of a parameter have the same
  sign for several consecutive time steps, its
  learning rate should be increased.
• When the parameter derivative sign alternates for
  several consecutive time steps, its learning rate
  should be decreased. Delta-Bar-Delta rule

20
Execution Procedure

• Estimation of evaluation function corresponding
  to the current state.
• Computation of the TD error.
• Tunning of parameter vector v and w.
• Estimation of the new evaluation function for the
  current state with new conclusion vector vt1.
• Learning rate updating with Delta-Bar-Delta rule.
• For each activated rule, election of the local
  action computation and triggering of the global
  action Ut1.

21
Example
22
Example Cont.

• The number of rules is twenty five.
• For the sake of simplicity, the discerete actions
  available are the same for all rules.
• The discerete action set
• The reinforcement function

23
Results

• Performance measure for distance
• Results
