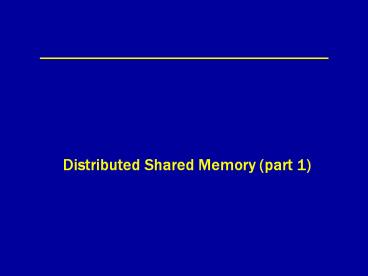

Distributed Shared Memory (part 1)

1
Distributed Shared Memory (part 1)
2
Distributed Shared Memory (DSM)
shared memory
network
mem0
mem1
mem2
memN
...
proc0
proc1
proc2
procN
3
Shared memory programming

• Standard pthread
• synchronizations
• Barriers
• Locks
• Semaphores

4
Sequential SOR

• for some number of timesteps/iterations
• for (i0 iltn i )
• for( j1, jltn, j )
• tempij 0.25
• ( gridi-1j gridi1j
• gridij-1 gridij1 )
• for( i0 iltn i )
• for( j1 jltn j )
• gridij tempij

5
Parallel SOR with Barriers (1 of 2)

• void sor (void arg)
• int slice (int)arg
• int from (slice (n-1))/p 1
• int to ((slice1) (n-1))/p 1
• for some number of iterations

6
Parallel SOR with Barriers (2 of 2)

• for (ifrom iltto i)
• for (j1 jltn j)
• tempij 0.25 (gridi-1j
  gridi1j gridij-1 gridij1)
• barrier()
• for (ifrom iltto i)
• for (j1 jltn j)
• gridijtempij
• barrier()

7
Differences between SMP and Software DSM

• Delay tradeoffs, such as block size
• Software gt traps cost of read/write misses
• Goals of caches multiprocessor performance,
  dist. system transparency
• bus vs. long networks reliance on serialization
  and broadcast.

8
Consequent differences in protocols and
applications

• Bigger block size
• Cost amortization, higher hit ratio for larger
  blocks?
• Reduced overhead
• But therefore...
• Migration vs. Replication
• False sharing increases
• DSM protocol more complex Must handle lost,
  corrupted, and out-of-order packets
• Above, coupled with cost of traps, gt SDSM
  consistency cost much higher!

9
Results of high consistency costs

• Manage sharing more carefully
• Align data to page boundaries

10
Consistency Models

• Sequential Consistency
• All processors observe the same order
• Must correspond to some serial order
• Only ordering constraint is that reads/writes of
  P1 appear in the same order, but no restrictions
  on relative ordering between processors.

11
Common consistency protocols

• Write update
• Multicast update to all replicas
• Write invalidate
• Invalidate cached copies in p2, p3
• Cache miss if p2/p3 access X
• Valid data from other cache

12
Conventional Implementation

• As proposed by Li Hudak, TOCS 86.
• Use virtual memory to implement sharing.
• Shared memory divided up by virtual memory pages.
• Use single-writer, multiple-reader
  write-invalidate coherence protocol.
• Keep pages in one of three states
• invalid, read-only, read-write

13
Example
shared memory
proc0
proc1
proc2
procN
14
Example Read Access Hit
read
proc0
proc1
proc2
procN
15
Example Write Access Hit
write
proc0
proc1
proc2
procN
16
Example Read Access Miss
read
proc0
proc1
proc2
procN
17
Example Read Fault
read
fault
proc0
proc1
proc2
procN
18
Example Replication on Read
read
proc0
proc1
proc2
procN
19
Example Write Access Miss
write
proc0
proc1
proc2
procN
20
Example Write Fault
write
fault
proc0
proc1
proc2
procN
21
Example Write Invalidation
write
proc0
proc1
proc2
procN
22
Example Write Access to Read-Only
write
proc0
proc1
proc2
procN
23
Example Write Fault
write
fault
proc0
proc1
proc2
procN
24
Example Write Invalidation
write
proc0
proc1
proc2
procN
25
How to Remember Locations?

• Broadcast on miss (as in SMP).
• Static home.
• Dynamic home or owner.

26
Ownership and Owner Location

• Owner is the last writer.
• Owner maintains copyset.
• Every processor maintains probable owner (not
  always the real owner).

27
Ownership Location

• Every read or write miss is sent to (local)
  probable owner.
• If owner, handle appropriately, else forward to
  probable owner.

28
Ownership Modification

• If write miss, new writer becomes owner, and all
  forwarders set probable owner to requester.
• If read miss, set probable owner to responding
  processor.

29
Example

• Initially, owner(page0) p0, and probable
  owner(page0) p0 everywhere.
• Write miss by p1, sends message to its probable
  owner (p0), handled there, new owner p1,
  probable owner(0) on p0 1.
• Read miss by p2, sends message to probable owner
  (p0), forwarded to probable owner (p1), handled
  there, probable owner(0) on p2 becomes p1.

30
Implement synchronizations

• Use messages to implement synchronizations

31
Barriers

• Designate one processor as barrier manager.
• When a process waits at a barrier, it sends an
  arrival message to the barrier manager and waits.
• When barrier manager has received all messages,
  it sends a departure message to all processes.

32
Locks

• Designate one process as the lock manager for a
  particular lock.
• When a process acquires a lock, it sends an
  acquire message to the manager and waits.
• Manager forwards message to last acquirer.
• If lock free, send lock grant message.
• If lock held, hold on to request until free, and
  then send lock grant message.

33
Problem False Sharing

• Concurrent access to different data within the
  same consistency unit.
• With page as consistency unit, lots of
  opportunity for false sharing.
• Two flavors
• read-write
• write-write

34
Read-Write False Sharing
x
y
35
Read-Write False Sharing (Cont.)
w(x)
w(x)
w(x)
r(x)
r(y)
r(y)
synch
36
Read-Write False Sharing (Cont.)
w(x)
w(x)
w(x)
r(x)
r(y)
r(y)
synch
37
Write-Write False Sharing
w(x)
w(x)
w(x)
r(x)
w(y)
w(y)
synch
38
Summary

• Software shared memory on distributed memory
  hardware.
• Uses virtual memory.
• Home migration to improve locality
• important because of high latencies.
• Sequential consistency suffers from false sharing
