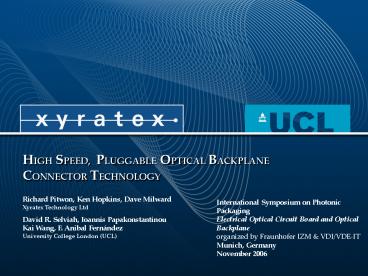

HIGH SPEED, PLUGGABLE OPTICAL BACKPLANE
CONNECTOR TECHNOLOGY
Richard Pitwon, Ken Hopkins, Dave Milward Xyratex
Technology Ltd
International Symposium on Photonic
Packaging Electrical Optical Circuit Board and
Optical Backplane organized by Fraunhofer IZM
VDI/VDE-IT Munich, Germany November 2006
David R. Selviah, Ioannis Papakonstantinou Kai
Wang, F. Anibal Fernández University College
London (UCL)
2
THE STORLITE PROJECT
Purpose British government funded initiative to
investigate incorporation of optical backplanes
into high bandwidth systems and develop solutions
Duration June 2003 November 2005
Xyratex Investigation into optical backplane
connector technology and prototype solution
development
Exxelis Ltd Optical PCB manufacture
University College London Investigation into
performance enabling polymer waveguide structures
and characterisation
2 ISPP Electro-Optical Circuit Board
Munich 2006
3
RESEARCH OBJECTIVES
  • Investigation of current state of the art in
    optical PCB technology research
  • Polymeric waveguide fabrication and
    characterisation
  • Optical PCB Design Rules
  • Investigation into low-cost technology drivers
  • Method of pluggable daughtercard connection to an
    optical backplane
  • Development of prototype solutions
  • Parallel optical transceiver and pluggable
    optical backplane connector
  • Development of prototype demonstration assembly

3 ISPP Electro-Optical Circuit Board
Munich 2006
4
RESEARCH AND DEVELOPMENT OVERVIEW
  • High speed parallel optical transceiver
  • Opto-mechanical registration interface
  • Low-cost optical backplane connection mechanism
  • Low cost precision optical alignment and assembly
    method
  • Optical PCB interface coupling method
  • Prototype demonstration unit

4 ISPP Electro-Optical Circuit Board
Munich 2006
5
HIGH BANDWIDTH BACKPLANE ENVIRONMENTS
16 Drive EBOD Storage System
12 Drive SBOD Storage System
48 Drive RAID Storage System
5 ISPP Electro-Optical Circuit Board
Munich 2006
6
HIGH BANDWIDTH BACKPLANE
Dual Port Disk Drives
Power Module
Air Flow Channels
High Speed Connectors To Controllers
Controller Module
Multi Layer Interconnect Backplane
6 ISPP Electro-Optical Circuit Board
Munich 2006
7
BACKPLANE ENGAGEMENT MODEL
Orthogonal daughtercard engagement to backplane
Embedded optical channels to carry high speed
serial signals between cards
Copper layers to carry power, control signals and
low speed signals
High bandwidth backplane
7 ISPP Electro-Optical Circuit Board
Munich 2006
8
PROPOSED COUPLING PRINCIPLE
Surface emitting photonics used on daughtercard
interface
Butt-coupling scheme allows for minimum number of
intermediary optical interfaces
Optical Waveguides
Copper Traces
Backplane
Copper Planes
8 ISPP Electro-Optical Circuit Board
Munich 2006
9
PARALLEL OPTICAL TRANSCEIVER DESIGN
  • Quad duplex parallel optical transceiver
  • 10.3 Gbps per channel (82 Gb/s aggregate
    bandwidth)
  • Electronic daughtercard connector
  • Flexible and rigid PCB sections
  • Optical backplane interface

Active opto-mechanical coupling interface
Rigid optical interface
Rigid base section
Electronic connector
Flexible mid-section
9 ISPP Electro-Optical Circuit Board
Munich 2006
10
PHOTONIC INTERFACE DESIGN
PIN Array
Source Microsemi Corporation
VCSEL Array
Source ULM Photonics GmbH
MT compatible interface
GRIN Lens Array
Source GRINTech GmbH
10 ISPP Electro-Optical Circuit Board
Munich 2006
11
OPTOELECTRONIC PCB WITH MT SOCKET INTERPOSER
11 ISPP Electro-Optical Circuit Board
Munich 2006
12
MT - SOCKET INTERPOSER ON THE TOP OF BACKPLANE
12 ISPP Electro-Optical Circuit Board
Munich 2006
13
ACTUAL ALIGNMENT OF THE COMPONENT
13 ISPP Electro-Optical Circuit Board
Munich 2006
14
SUPPORT DAUGHTERCARD DESIGN
  • 4 Port 10 GbE LAN Physical Relay board

Transceiver receptacle
PCB material Rogers 4350 on outer layers
Host interface
4 XFP ports
14 ISPP Electro-Optical Circuit Board
Munich 2006
15
CHARACTERISATION SETUP
Physical layer relay board
MT patchcord for stand alone testing
  • Test traffic 10 GbE LAN (10.3 Gbps)
  • VCSEL bias current 11.91 mA
  • VCSEL modulation current 9.8 mA
  • Divergence 25
  • Output optical power 0.43 mW
  • Average optical jitter 31.2 ps (Pk Pk)

15 ISPP Electro-Optical Circuit Board
Munich 2006
16
CONNECTOR MECHANISM
Principal Function Elevation and retraction of
optical interface
16 ISPP Electro-Optical Circuit Board
Munich 2006
17
ALIGNMENT METHOD BASED ON MT CONCEPT
17 ISPP Electro-Optical Circuit Board
Munich 2006
18
POLYMER OPTICAL WAVEGUIDE TECHNOLOGY
18 ISPP Electro-Optical Circuit Board
Munich 2006
19
POLYMER WAVEGUIDE CHARACTERISTICS
Waveguide Material UV-curable polymeric acrylate
(Truemode) Propagation loss _at_ 850 nm 0.04
dB/cm Heat degradation resilience up to 350C
Waveguide properties Size 70 µm x 70 µm Core
index 1.556 Cladding index 1.526 Numerical
aperture 0.302
Waveguide Array Centre to centre pitch 250 µm
19 ISPP Electro-Optical Circuit Board
Munich 2006
20
PROTOTYPE DEMONSTRATOR CONSTRUCTION
Passive Electrical Backplane
Separate passive electrical backplane
20 ISPP Electro-Optical Circuit Board
Munich 2006
21
PROTOTYPE DEMONSTRATOR CONSTRUCTION
Daughtercard Guide Features
21 ISPP Electro-Optical Circuit Board
Munich 2006
22
PROTOTYPE DEMONSTRATOR CONSTRUCTION
Daughtercard Power Supply
22 ISPP Electro-Optical Circuit Board
Munich 2006
23
PROTOTYPE DEMONSTRATOR CONSTRUCTION
Daughtercard to Optical Backplane Coupling
Evaluation
23 ISPP Electro-Optical Circuit Board
Munich 2006
24
PROTOTYPE DEMONSTRATOR CONSTRUCTION
Optical Backplane Integration
Separate optical PCB
24 ISPP Electro-Optical Circuit Board
Munich 2006
25
PROTOTYPE DEMONSTRATOR CONSTRUCTION
Complete Demonstration Unit
25 ISPP Electro-Optical Circuit Board
Munich 2006
26
TEST AND CHARACTERISATION
Optical Coupling Characterisation Test traffic
10 GbE LAN (10.3 Gbps) Wavelength 850 nm
Arrangement Active connector waveguide -
patchcord
Reference Signal No Waveguide Jitter 0.34
UI Relative Loss 0 dB
Multimode MT fibre patchcord
10 cm Waveguide with Isapropanol Jitter 0.36
UI Relative Loss 4.5 dB
10 cm Waveguide Diced and Polished Jitter 0.56
UI Relative Loss 6.9 dB
10 cm Waveguide Diced Only Jitter 0.89
UI Relative Loss 7.9 dB
Active prototype connector
26 ISPP Electro-Optical Circuit Board
Munich 2006
27
TEST AND CHARACTERISATION
High Speed Network Link Evaluation
Arrangement Test traffic source (10 GbE
LAN) Fibre cable XFP Port 1 (Rx) Daughtercard
1 Connector 1 (Tx) Optical PCB Connector 2
(Rx) Daughtercard 2 XFP Port 2 (Tx) Fibre
cable Traffic Capture
Bit Error Rate lt 10-12
27 ISPP Electro-Optical Circuit Board
Munich 2006
28
CONTOUR MAP OF VCSEL AND PD MISALIGNMENT
  • (a) Contour map of relative insertion loss
    compared to the maximum coupling position for
    VCSEL misalignment at z 0.

(b) Same for PD misalignment at z 0. Resolution
step was ?x ?y 1 µm.
  • Dashed rectangle in the middle of the maps
    corresponds to the expected relative insertion
    loss according to the calculated misalignments
    along x and y in text slides.
  • The minimum insertion loss was 4.4 dB,
    corresponded to x 0, y 0, z 0

28 ISPP Electro-Optical Circuit Board
Munich 2006
29
TOLERANCES ALONG X, Y AND Z FOR CONNECTOR
COMPONENTS
X y Z
MT-plug ?3 µm (pin-to-pin) ?3 µm (pin-to-GRIN) ________
MT-socket ?3 µm (hole-to-hole) ?3 µm (hole-to-waveguide) ________
OPCB features 2.5 µm (increase in registration wall-to-wall spacing due to overexposure) ?2.5 µm (due to 5 µm extra spacing between feet of interposer) ?1 µm (core thickness control) 10 µm (accuracy of dicing in respect to the dicing lines on the board) 2.5 µm (backstop shift due to overetching)
Tolerance of MT interposer socket to waveguides ?8 µm or ?3 µm if overexposure widening is known and reproducible ?4 µm 12.5 µm or 10 µm if overexposure widening is known and reproducible
Combined tolerance of VCSEL and PIN to waveguides ?11 µm or ?6 µm if overexposure widening is known and reproducible ?7 µm 12.5 µm or 10 µm if overexposure widening is known and reproducible
29 ISPP Electro-Optical Circuit Board
Munich 2006
30
RELATIVE INSERTION LOSS OF VCSEL AND PD AS THEY
MOVE AWAY FROM THE OPCB WAVEGUIDES.
30 ISPP Electro-Optical Circuit Board
Munich 2006
31
CROSSTALK MEASUREMENT 1
Power received at the end of 0th waveguide as a
function of the lateral distance of the VCSEL
from its center. The boundaries and the centers
of the waveguides on the backplane are marked. In
the cladding power drops at a rate of 0.011 dB/µm
31 ISPP Electro-Optical Circuit Board
Munich 2006
32
CROSSTALK MEASUREMENT 2
Signal-to-cross-talk (SCR) levels that 0th
waveguide experiences from its adjacent
waveguides.
32 ISPP Electro-Optical Circuit Board
Munich 2006
33
CROSSTALK MEASUREMENT 3
SCR experienced by waveguides number 1 and 4 and
of waveguides number 2 and 3 from the array of
four in the connector if all are in use.
Dashed-dot lines determine the boundaries of the
maximum expected cross-talk based on current
connector tolerances.
33 ISPP Electro-Optical Circuit Board
Munich 2006
34
STABILITY TESTING OF THE MT SOCKET INTERPOSER 1
Insertion loss and signal to cross-talk (SCR) as
a function of mating cycle for 75 engagements.
34 ISPP Electro-Optical Circuit Board
Munich 2006
35
STABILITY TESTING OF THE MT SOCKET INTERPOSER 2
Histogram of insertion loss
35 ISPP Electro-Optical Circuit Board
Munich 2006
36
THE CANDEO PROJECT
Purpose Industrial collaborative effort to
develop commercial technology drivers for optical
backplane and connector technology and drive the
proliferation of optical backplane technology
into the industrial sector
Xyratex Commercial development of proprietary
parallel optical transceiver technology
Samtec Commercial development of optical
backplane engagement mechanism
36 ISPP Electro-Optical Circuit Board
Munich 2006
37
CANDEO CURRENT STATUS
Phase I (currently underway)
  • High speed parallel optical transceiver design
    modified for commercial design
  • Single stage optical backplane engagement
    mechanism developed
  • Commercial form factor module designed and
    developed
  • First mechanical prototype on exhibition by
    Samtec and Xyratex at Electronica 2006, Samtec
    booth 419 in Hall B4

37 ISPP Electro-Optical Circuit Board
Munich 2006
38
INTEGRATED OPTICAL AND ELECTRONIC PCB
MANUFACTURING
Purpose To compare multimode, polymer waveguide
manufacture techniques for large area optical
backplanes and to develop design rules.
Academic Partners University College London
(UCL) Waveguide design, modelling,
measurement Heriot-Watt University Direct UV
laser waveguide fabrication Loughborough
University Laser ablation, surface treatment,
printing waveguide fabrication,
flip-chip assembly Industrial Partners Xyratex
End user and project manager BAE Systems End
user Renishaw End user Exxelis Polymer
chemistry, lithographic waveguide
fabrication Cadence PCB layout tools Rsoft
Design Optical modeling tools Xaar print head
technology
38 ISPP Electro-Optical Circuit Board
Munich 2006
39
SUMMARY
  • Xyratex White Papers
  • An Optical Backplane Connection System with
    Pluggable Active Board Interfaces
  • (available from Xyratex website)
  • Pluggable Optical Backplane Connector Technology
    (available)
  • Optical vs Copper Cost and Performance
    Evaluation (pending)
  • www.xyratex.com

Intellectual Property 7 patent applications
related to optical PCB interconnect and
communication structures and methodologies
39 ISPP Electro-Optical Circuit Board
Munich 2006
40
SUMMARY
  • UCL Publications (available from UCL website)
  • Papers published on waveguide devices
  • Sources misalignment x, y, z
  • Detector misalignment x, y, z
  • Straight tapered waveguide
  • Bends
  • Propagation loss
  • Thermal optics switch
  • Power splitter

40 ISPP Electro-Optical Circuit Board
Munich 2006
41
Acknowledgements UK Department of Trade and
Industry EPSRC Exxelis Dr Navin Suyal Prof.
Frank Tooley
Thank You for Your Attention
Richard C A Pitwon Senior Photonics Engineer Ken
Hopkins Hardware Architect Dave
Milward Development Manager E-mail
rpitwon_at_xyratex.com
David R Selviah F. Anibal Fernández Senior
Academics Ioannis Papakonstantinou Postgraduate
Researcher Kai Wang Research Fellow E-mail
d.selviah_at_ee.ucl.ac.uk
41 ISPP Electro-Optical Circuit Board
Munich 2006
About PowerShow.com
