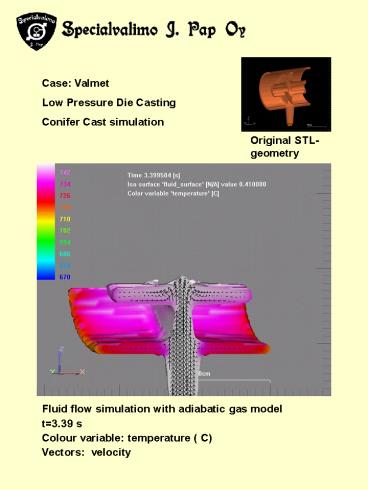

Fluid flow simulation with adiabatic gas model

1
Case Valmet Low Pressure Die Casting Conifer
Cast simulation
Original STL-geometry
Fluid flow simulation with adiabatic gas
model t3.39 s Colour variable temperature (
C) Vectors velocity
2
Case Valmet Low Pressure Die Casting Conifer
Cast simulation
Original STL-geometry
Fluid flow simulation with adiabatic gas bubble
model t7.67 s Colour variable temperature (
C) Vectors velocity
3
Case Valmet Low Pressure Die Casting Conifer
Cast simulation
Original STL-geometry
Solidification simulation Colour variable
solidfraction
4
Case Valmet Low Pressure Die Casting Conifer
Cast simulation
Original STL-geometry
Solidification simulation Colour variable solid
fraction
