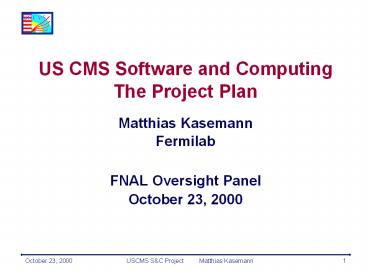

US CMS Software and Computing

1

• US CMS Software and Computing
• The Project Plan
• Matthias Kasemann
• Fermilab
• FNAL Oversight Panel
• October 23, 2000

2
Talk Outline

• Overview of the US CMS Project Management Plan
• Scope of the US CMS SC project
• Organization of the US CMS SC Project
• Relation to Intl CMS
• Status and Future Evolution of the PMP
• Current status of the US CMS SC Project

3
LHC Software Computing Challenges

• Geographical dispersion of people and resources

• Complexity the detector and the LHC environment
• Scale Petabytes per year of data

• Physicists
• (360 from US)
• 150 Institutes
• 32 Countries

Major challenges associated with ? Coordinated
Use of Distributed computing resources ? Remote
software development and physics analysis ?
Communication and collaboration at a
distance RD New Forms of Distributed Systems
Data-Grids
4
US and Worldwide Data Grid
Bunch crossing per 25 nsecs.100 triggers per
secondEvent is 1 MByte in size
Experiment
PBytes/sec
Online System
100 MBytes/sec
Offline Farm,CERN Computer Center
Tier 0 1
0.6 - 2.5 Gbits/sec
Air Freight
HPSS
France Center
Italy Center
UK Center
FNAL Center
Tier 1
2.4 Gbits/sec
Tier 2
622 Mbits/sec
Tier 3
Physicists work on analysis channels. Each
institute has 10 physicists working on one or
more channels
Institute 0.25TIPS
Institute
Institute
Institute
100 - 1000 Mbits/sec
Physics data cache
Tier 4
Workstations
5
The Goal of the SC Project

• To provide the software and computing resources
  needed to enable US physicists to fully
  participate in the physics program of CMS
• Allow US physicists to play key roles and exert
  an appropriate level of leadership in all
  stages of computing related activities
• From software infrastructure to reconstruction
  to extraction of physics results
• From their home institutions, as well as at CERN

This capability should extend to physicists
working at their home institutions
6
US-CMS Software and Computing Project

• Aug 1998 First presentation to DOE/NSF
  (Newman Taylor)
• 12/98 - 6/00 Project Management Plan (PMP)
• 11/98, 5/99 Favorable DOE/NSF Peer
  Reviews Funding for Software Engineers
• 11/98 - 12/99 Biannual Reports and Discussion at
  JOG
• 7/99 - Acting Software and Computing Board
  L1/L2 PMs
• 12/99 Submission of Draft PMP to DOE/NSF
• 1/00 WBS, Draft Funding Profile for
  2000-2006 Presented at DOE/NSF Peer Review
• 3/00 Start Up Funding for UF Subproject
• 5/17/00 GriPhyN ITR Proposal (Grid IT RD)
• 5/20/00 SC Organization Approved and PMP by US
  CMS CB
• 5/30/00 DOE/NSF Proposed Funding Profile
• 6/12/00 US CMS Response, Discussion at JOG
• 6/25/00 Finalize updated PMP, sent to
  collaboration
• 6/29/00 Quarterly Progress Report at DOE
• 6/00 - 11/00 Update Requirements and Costs
  Refine WBS
• 7/00 - 10/00 Plan Tier2 Center Prototype Startup
• 11/14/00 Project Baselining Review by DOE/NSF
• 11/00 L1 PM Starts Appoints L2 PMs (CAS, UF)

7
Outline of Software and Computing Plan

• Goals of the Project
• Project Organization
• Upper Level Project Management
• Interrelationship with Other Entities
• Evolution of the US CMS Software and Computing
  Project
• Newest Version is October 20, 2000 (separated
  Project Plan Management Plan from WBS, milestones
  and budget)
• Additional Documents describe
• High Level Milestones, Work Breakdown Structure,
  and Budget for the User Facilities Subproject
• High Level Milestones, Work Breakdown Structure,
  and Budget for the Core Applications Subproject
• High Level Milestones, Work Breakdown Structure,
  and Budget for Overall Project
• Appendix
• CMS Software Milestones and WBS

8
Participants/Key Players

• CERN
• International CMS
• US CMS
• US Funding agencies
• US Universities and National Labs
• US Physicists

9
Key Management Entities

• Level 1 Project Manager deputy
• Level 2 Project Manager for Core Applications
  Software
• Level 2 Project Manager for User Facilities
• The Advisory Software and Computing Board -- ASCB
• The Fermilab Director or Designee advised by the
  Project Management Group
• The Fermilab Computing Division
• US funding agencies and Joint Oversight Group

10
Organization of US CMS SC Project
US Funding Agencies and Fermilab (CMS Host
Institution)
Fiscal Authority
Software and Computing Project Project Manager
Policy reporting
US CMS Advisory Software and Computing
Board (USASCB)
Liaison

Support
Core Applications Software
User Facilities
Reconstruction Detector Software and Physics
Groups
11
US CMS Software and Computing Scope

• The US CMS Software and Computing Project
• Core Application Software
• User Facilities
• Tier 1 and Tier 2 regional Centers
• Networking support
• CERN--US/Fermilab
• Internal to US
• Reconstruction and Detector Software
• Physics Analysis

• These are closely related but are dealt with
  outside of this particular project as an
  extended project or as related activities

12
CAS Subproject

• To support the design, development, modeling
  optimization and commissioning of software
  related to detectors being constructed by US CMS
• To provide its share of the framework and
  infrastructure software required to support data
  analysis and simulation for CMS
• For remote collaborative tools to enable the
  distributed model of computing that permits
  members of US CMS to carry out analysis whether
  they are at home in the US or visiting or
  resident at CERN
• To satisfy any specialized needs required to
  carry out data analysis activities of interest to
  members of US CMS

In addition to developing software, this
subproject will also provide expert programming
personnel to assist the physicists in developing
reconstruction and physics analysis programs by
serving as mentors, reviewers, advisers and,
where appropriate as software tool-writers. This
will ensure that the software produced will be
easy to integrate into the whole system, will be
efficient in its use of hardware resources, and
will be maintainable and adaptable for the full
life of the CMS data analysis.
13
UF Subproject

• The goal of the User Facilities Subproject is to
  provide the enabling infrastructure of software
  and computing that will allow US physicists to
  fully participate in the physics program of CMS.
• To this end the subproject will acquire, develop,
  install, integrate, commission and operate the
  hardware and software for the facilities required
  to support the development and data analysis
  activities of USCMS.
• This subproject will include a major Tier1
  regional computing center at Fermilab to support
  US physicists working on CMS. It is appropriately
  sized to support this community which comprises
  20 of the full CMS collaboration.
• Tier 2 Centers are part of the User Facilities
  Subproject

14
Tier 2 Centers

• Tier 2s will partner with a Tier 1 which will
  provide support and liaison with CERN.
• US CMS Tier 2 Centers (or the CMS parts of
  multiple customer centers) appear as Level 3
  WBS items under the UF project, and the UF Level
  2 manager has specific responsibilities with
  respect to them
• Tier 1 interfaces to the Tier 2s in the US
• The Tier 2 CMS representative is a L3 manager of
  the US SC project

15
Organization of US CMS Projects
16
Role of the ASCB
The US CMS Software and Computing Board provides
crucial input and feedback for the US CMS
Software and Computing project. It advises the
Level 1 Project Manager and provides liaison to
US CMS.

• Helps in Development of the Project Plan
• Advises on Scientific and Technical Policy
• Advises on appointments
• Provides Continuous Project Input and Feedback
  throughout the life of the construction project

17
Composition of ASCB

• Specifies elected and Ex Officio members
• six members elected at large from the US CMS
  collaboration
• the US CMS Physics Coordinator (also elected)
• the Chair of the US CMS Collaboration Board
  (ex-officio)
• the Head of the Fermilab Computing Division
  (ex-officio)
• the CMS Project Manager for Core Software
  Computing (ex-officio)
• the Project Manager of the US CMS Construction
  Project (ex-officio).
• Level 1 Project Manager of the US CMS Software
  and Computing Project (ex-officio)
• Two Level 2 Project Managers of the US CMS
  Software and Computing Project (ex-officio)

• The 7 elected members will choose a chairperson
  from among the 6 members who were elected at
  large
• Term is 2 years, 3 positions elected every year

18
Relation to CMS

• To create a strong linkage between the US CMS
  Software and Computing Project and the overall
  CMS Project, the CMS L2 manager will be an ex
  officio member of the USASCB.
• The USASCB will have the responsibility for
  providing liaison between the US CMS Computing
  Project and the CMS Software and Computing Board.
• The US CMS Software and Computing Project Level
  1 Project Manager will act as liaison to the CMS
  Software and Computing Technical Board.

19
(No Transcript)
20
US-CMS Sub-System Links to International CMS
US-CMS
CMS
Collaboration Board
Management Board
Steering Committee

Muon PM
HCAL PM
EMU PM
TRIDAS PM
HCAL PM
ECAL PM
TRIDAS PM
Tracker PM
ECAL PM
Magnet PM
Tracker PM
SW/Comp. PM
Common Proj. PM
Note Subsystem Institution and Finance Boards
are omitted for clarity
SW/Comp. PM
21
Extended Lines of Communication

• CMS SCB

• CMS SCTB

• Collaboration-elected members, chair of US CMS
  CB, Physics Coordinator
• Construction Project Technical Director
• FNAL CD -- head of CD
• Technical -- L1, L2 PMs
• CMS -- SC Project Manager

• US SC L1PM

• US ASCB

Joint Oversight Group
Project Management Group
Fermilab Director or Designee

• Fermilab Director or Designee -- aka FNAL
  Deputy Director and Assoc. Director for Research

• Technical -- L1, L2 PMs
• Collaboration -- chair of USASCB and chair of
  US CMS CB
• Construction Project Technical Director
• Head of FNAL CD

Software and Computing Project Project Manager
22
External Review Committee

• The chair of the PMG will establish a standing
  external review committee that will periodically
  examine and evaluate all aspects of the US CMS
  Software and Computing Project.

23
Formal Agreements with CMS

• The US CMS collaboration will be contributing to
  CMS computing in a variety of ways, each of which
  will have an appropriate formal mechanism for
  establishing milestones, deliverables, and
  specifications.
• Levels of support for production activities,
  including those required to support the design,
  testing, simulation, and commissioning of the
  detector should be supported by MOUs negotiated
  with CMS by the L1PM with input from the US ASCB
  and with the approval of the PMG and funding
  agencies.

24
Formal Agreements with CMS (contd)

• The software development that directly relates to
  the international CMS effort should be developed
  as part of the CMS software and computing plan
  and approved, presumably as part of the project
  plan for the US CMS Software and Computing
  Project, by the PMG and the funding agencies.
• Software efforts specifically in support of US
  physicists or intended to solve particular
  problems specific to the US, should be developed
  as part of the project plan with substantial
  input from US ASCB and approved by the PMG and,
  if required, by the funding agencies.

25
The Project Organization Status

• Advisory Software and Computing Board (ASCB)
• Chair I. Gaines (FNAL) for 1 year
• Elected Members P. Avery (Florida) for 2 years
• S. Dasu (Wisconsin) for 1 year
• S. Eno, (Maryland) for 1 year
• S. Kunori (Maryland) for 2 years
• D. Stickland (Princeton) for 2 years
• Physics Coordinator J. Branson (UCSD) for 2
  years
• Chair of US CMS CB H. Newman (Caltech),
  ex-officio
• Construction Project Manager D. Green (FNAL),
  ex-officio
• Intl CMS SC Coordinator M. Pimia
  (CERN) ex-officio
• Head of FNAL/CD M. Kasemann ex-officio
• Acting L1 PM M. Kasemann ex-officio
• Acting L2 PM CAS L. Taylor ex-officio
• Acting L2 PM UF V. ODell ex-officio
• Level 1 Project Manager L. Bauerdick (DESY/ZEUS
  -gt FNAL)
• Appointment Confirmed by JOG 6/00
• Starts November 2000

26
US CMS SC Subprojects Status

• Core Application Software Subproject
• Resource-loaded WBS for CMS and US CMS
• Task- Oriented Requirements US Support
• US part 9 (2000) - 13 (2004) FTEs of software
  engineering
• User Facilities Subproject
• Implement RD and Prototype Systems 1999-2003
• Preproduction ODBMS and Event-distribution
  systems
• Simulated Event service for PRS and ORCA teams
• Implement Production Systems in 2004-2006
• Replenish and Upgrade from 2006 -
• Staff
• Tier 1 35 FTEs by 2006, partly leveraged from
  FNAL/CD
• Tier 2 5 ? 1.5 FTEs 7.5 FTEs

Caltech,NEU, Princeton,UC Davis FNAL
FNAL Tier 2 sites
27
US CMS SC Data Grid

• Deploy computing resources as hierarchical grid
• Tier 0 ? Central laboratory computing resources
  (CERN)
• Tier 1 ? National center (Fermilab / BNL)
• Tier 2 ? Regional computing center (Universities)
• Tier 3 ? University group computing resources
• Tier 4 ? Individual workstation/CPU
• Data Grid to reflect the predominant role of
  data in the distributed analysis Concept
  developed by Caltech, U. Florida and FNAL
• This concept and Tiers has been adopted
  throughout Europe by the EU Grid Project
• We have to start implementation of Tier 1 and
  Tier2 RD systems now to
• Support physics and HLT studies
• Support software development
• Perform RD on distributed data analysis

28
US CMS Tier2 planning

• FY 2000/1 Build basic services HLT milestones
• 1-2 prototype-Tier 2 Studies with ORCA
• FY 2001 Initial Grid system File replication
  service work with Tier 1 Multi-site cached file
  access
• FY 2002 Second set of Tier2 CMS Data
  Challenges centers SC TDR and Physics TDR
• FY 2003/4 Tier 2 centers 5-Scale Data
  Challenge at last set of sites
  PhysicsTDR production data grid test
• FY 2004/5 Production-quality 20 Production
  Grid System CMS Mock Data Challenge
• FY 2005/6 Full distributed system Final
  Production Shakedown
• RD systems leverage existing resources at
  Universities
• Funding for Tier 2s to come mostly from NSF
  initiatives

29
US CMS Tier 2 Centers

• Discussed at US CMS Collaboration Board, May 20,
  2000
• Agreed start deployment of 1 prototype Tier 2
  center
• Query sent to each US CMS institute
• Interest and plans to participate in Tier2 RD
  now?
• Who can work on it?
• Result
• Ready to started now Caltech UC Davis
  UCSD 9/00 Florida, 4/01 Univ. of Iowa
  Iowa State 4/01
• Start later for production Boston, Maryland,
  Minnesota Wisconsin
• Next steps
• Consolidate Tier2 plans for
• RD on distributed data analysis
• possibility to contribute to Monte Carlo
  production
• Possible leverage from Universities

30
First Prototype Tier 2 in California

• Caltech UC San Diego UC Davis
• Hardware Plan Cost
• 80 Dual CPU Disk Linux Nodes 200 k 40 in
  Caltech, 40 in UCSD
• Sun Data Server with RAID Array 30 k partly
  from Caltech
• Tape Library 20 k in Caltech
• LAN Switches 50 k
• Collaborative Infrastructure Upgrades 10 k
• Installation and Infrastructure 30 k
• Net Connect to Abilene 0 k
• Tape Media and Consumables 10 k
• Staff (Ops and System Support) 50 k
• Gigabit data access at UC Davis 30 k
• Total Estimated Cost (First Year) 430 k
• UCSD cost sharing
  -50 k
• UC Davis cost sharing -30 k
• Cost 350 k
• Status
• Funding allocation request submitted to
  start first Tier 2 center in California

31
PMP Status/Summary - I

• WBS exists for the two major subprojects
• Resource estimates exist
• Revised recently
• With input from Intl CMS planning during
  Hoffmann Review at CERN
• After first funding guidelines received from DOE
  in May
• Milestones and timelines exist and are frequent
  and aggressive enough to drive the project and
  its oversight
• Key management roles are identified
• ASCB elected in September 2000
• L1 PM identified, starts November 2000
• Key interfaces are worked out in a manner
  consistent with the collaborative nature of CMS
  and US CMS and with their scientific culture
• Key interfaces are worked out with funding
  agencies and CMS
• A draft of a full Project Management Plan exists
• We separated the stable (project organization
  and oversight) aspects of the plan from the more
  changeable aspects (funding dependent). We
  created two documents
• Project Management and Work Breakdown Structure
• Schedules, Milestones, and Budgets (finishing now)

32
PMP Status/Summary - II

• The plan draws strength and exploits the synergy
  between
• US Universities and Fermilab
• Software Professionals and physicists
• It takes advantage of and contributes to key
  developments in the US in information technology
• Drive towards a high speed network infrastructure
• Development of ever better network software and
  applications such as grid computing concepts
• It takes advantage through the Tier2 centers of
  the significant strengths of US universities in
  the area of computer science and information
  technology

• These are key elements to its eventual success
