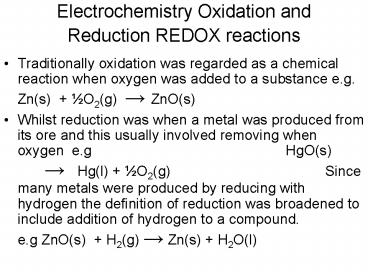

Electrochemistry Oxidation and Reduction REDOX reactions

1
Electrochemistry Oxidation and Reduction REDOX
reactions

• Traditionally oxidation was regarded as a
  chemical reaction when oxygen was added to a
  substance e.g.
  Zn(s)
  ½O2(g) ? ZnO(s)
• Whilst reduction was when a metal was produced
  from its ore and this usually involved removing
  when oxygen e.g
  HgO(s) ? Hg(l) ½O2(g)
  Since many metals
  were produced by reducing with hydrogen the
  definition of reduction was broadened to include
  addition of hydrogen to a compound.
  e.g ZnO(s) H2(g) ? Zn(s) H2O(l)

2

• However it was soon recognised that there were
  many similar reactions that did not involve
  oxygen or hydrogen e.g. Zn(s)
  S(s) ? ZnS(s)
  and
  2ZnS(s) C(g) ?
  2Zn(s) CS2(l)
• It did not make sense to make up new names for
  each type of reaction and when the electronic
  theory of matter was developed the basic unity
  behind these reaction was seen.

3
Oxidation and electrons

• What is happening in both of the oxidation
  reactions to the zinc is
  Zn(s) ½O2(g) ?
  ZnO(s) Zn(s)
  S(s) ? ZnS(s)
  Zn(s) ? Zn2 2 e-
  i.e the zinc was losing two
  electrons
• and either an oxygen atom or a sulphur atom was
  picking up two electrons from the zinc
  O 2e- ? O2-
  S 2e- ? S2-

4
Reduction and electrons

• In the case of the reduction the following was
  happening. ZnO(s) H2(g) ? Zn(s)
  H2O(l) 2ZnS(s) C(g) ? 2Zn(s)
  CS2(l) Zn2 2e- ? Zn(s)

  i.e. the zinc was gaining two electrons

5
Summarising
6
Oxidation can not occur without reduction

• You should have noticed in all these reaction
  that as something is being reduced another
  element or compound is being oxidised e.g

  ZnO(s) H2(g) ? Zn(s) H2O(l)
  The zinc is
  being reduced (gaining electrons) but the
  hydrogen atoms in the H2 molecule are losing
  electrons
• Zn2 2 e- ? Zn

• H2 ? 2H 2e-
• Because oxidation can not occur without reduction
  taking place somewhere in the overall reaction we
  call these reactions REDUCTION OXIDATION
  reactions or

7
Half equations.

• We have seen that we can split these reactions
  into half equations, one of which is the
  oxidation
  Zn(s) ? Zn2 2 e- (1)
• And the other is that of the oxygen being reduced
  O 2e- ? O2-
  Since it
  is oxygen molecule that is reacting we should
  write O2 4e- ? 2O2- (2)
• And by combining the two we get the overall
  reaction. This is done by
• (a) making sure we have the same number of
  electrons involved in the oxidation as well as
  the reduction

8

• We do this by multiplying equation 1 by 2 2Zn(s)
  ? 2Zn2 4 e-
• Then we add the equations together
  2Zn(s) O2 4e- ? 2Zn2 4e- 2O2-
• We can simplify and add standard states
  2Zn(s) O2(g) ? 2Zn2(s) 2O2- (s)

9
Oxidation Numbers and Oxidation states

• When we are looking at REDOX reactions it is
  useful to introduce the concept of an oxidation
  number or oxidation state. This tells us how
  oxidised or reduced an element is in a compound
  compared to its elemental state. So something
  in a 3 state can be though of as having lost 3
  electrons. However it is important to know that
  the oxidation state of a compound does not tell
  you anything about the bonding in a compound. It
  is purely a bookkeeping tool. . So in many
  compounds C is 4 e.g. in CCl4, but CCl4 does
  not consist of ions it is a covalent liquid.

10
Oxidation numbers continued
11
Rules for assigning oxidation numbers

• Work through the following rules in the order
  given. Stop as soon as the oxidation number has
  been assigned
•
  Oxidation number
• The sum of the oxidation
  numbers of all
  the atoms in the
  species is equal to its
  total charge
• For all atoms in their elemental form 0
• For elements of Group 1 1
  of Group 2
  2
  of Group 13 (except B) 3 for M3

  1 for M
  of Group 14 (except C and
  Si) 4 for M4


  2 for M2

12
Rules for assigning oxidation numbers( continued)

• 4 For hydrogen 1 in combination with
  non- metals -1 in combination with
  metals
• 5 For Flourine -1 in all compounds
• For oxygen -2 unless combined with F
  -1 in superoxides
  (O22-)
  ½ in superoxides (O2-)
• Cl,Br,I -1 unless combined with F or O

13
Examples

• Working out the oxidation state on an element is
  not too difficult provided the rules are followed
• What is oxidation state of S in SO2
• Nox(S) 2 x Nox(O) 0
• Nox(S) 2 x -2 0
• Nox(S) 4 0
• Nox(S) 4

14
Examples continued

• What is the oxidation state of Cl in ClO4-
• Nox(Cl) 4 x Nox(O) -1
• Nox(Cl) 4 x -2 -1
• Nox(Cl) -1 8
• Nox(Cl) 7
• What is the oxidation state of Cr in Cr2O7Na2
• 2Nox(Cr) 7 x Nox(O) 2Nox(Na) 0
• 2Nox(Cr) (7 x -2) (2 x 2) 0
• 2Nox(Cr) 14 2 0
• 2Nox(Cr) 12
• Nox(Cr) 6

15
Self test questions

• What is the oxidation state of the underlined
  elements in each of the following compounds
• MnO2, UF6 BrO3- Na2FeO4

16
Balancing equations (Acid conditions)

• Potassium nitrogen ? Chromium3
  Potassium
  dichromate monoxide
  nitrate
• K2Cr2O7 NO Cr3
  KNO3
• Skeletal Equations
  Cr2O72- ? Cr3

  NO ? NO3-
• Balance all elements except O H and e-
  Cr2O72- ? 2Cr3
  NO ? NO3-
• Balance O and H
  (a) add H2O to
  balance O
  Cr2O72- ? 2Cr3 7H2O
  NO 2H2O ? NO3-

17
Balancing equations (Acid conditions)

• (a) add H to balance H
  Cr2O72- 14H ?
  2Cr3 7H2O NO 2H2O
  ? NO3- 4H
• (b) Balance the charges by adding electrons
  (1) Cr2O72- 14 H 6e- ?
  2Cr3 7H2O (2) NO
  2H2O ? NO3- 4H 3e-

18
Balancing equations (Acid conditions)

• Balance the number of electrons on both equations
  and add
  1 x
  (1) 2 x (2)
  Cr2O72- 14 H 6e-
  2NO 4H2O ? 2Cr37H2O
  2NO3- 8H 6e-
• Simplify and cancel
  Cr2O72- 6H 2NO ? 2Cr33H2O 2NO3-

• Put in standard states
  Cr2O72- (aq) 6H(aq)
  2NO(g) ? 2Cr3 (aq) 3H2O(l)
  2NO3-(aq)

19
Balancing equations (Acid conditions)

• Of course the H ions are present as H3O ions
  but for simplicities sake and convention they are
  just represented as H

20
Balancing equations (Basic conditions)

• Potassium Bromide Manganese
  Bromate permanganate Dioxide
• 1 Skeletal l Equation
  MnO4- ? MnO2

  Br-
  ? BrO3-
• Balance all elements except O H and e-
  MnO4- ? MnO2

  Br- ? BrO3-
• Balance O and H (a) add H2O to balance O
  MnO4- ? MnO2 2H2O

  Br- 3H2O ? BrO3-

21

• Balancing equations basic conditions continued
• (b) Balance the H atoms by adding H2O to the side
  needing H atoms and the same number of OH- to the
  other side.
  MnO4- 4H2O ? MnO2 2H2O
  4OH- Br- 3H2O 6OH- ?
  BrO3- 6H2O
• (c) Add electrons to balance charge

  (1) MnO4- 4H2O 3e- ? MnO2 2H2O
  4OH- (2) Br- 3H2O
  6OH- ? BrO3- 6H2O 6 e-

22

• Balancing equations basic conditions continued
• Balance the number of electrons on both sides 2 x
  (1) (2) 2MnO4- 8H2O 6e- Br- 3H2O
  6OH- ? 2MnO2 4H2O 8OH-
  BrO3- 6H2O 6 e-
• Simplify and cancel
  2MnO4- H2O
  Br- ? 2MnO2 2OH- BrO3-
• Add standard states

  2MnO4-(aq)H2O(l)Br-(aq)?
  2MnO2(s)2OH- (aq) BrO3-(aq)

23
Self test questions

• Balance the following equations in acid solution,
  given the following skeletal equations.
• H3PO4 ? H3PO3
• IO3 - ? I2
• Balance the following equations in basic
  solution, given the following skeletal equations.

• NO2 - ? NO
• SO4 2- ? SO32-

24
Oxidising and reducing reagents

• Cl2 is a powerful oxidising agent and Na is a
  powerful reducing agent. The half equations for
  the formation of NaCl being
• Na (s) ? Na e-
  Cl2 e- ? 2Cl-
  2Na Cl2 ? 2NaCl
  If
  we look at the half equation we can se that the
  chlorine (the oxidising agent) has been reduced
  and Na the reducing agent has been oxidised, this
  is perfectly general.

25
(No Transcript)
26
The electrochemical series.

• We know that gold does not rust, but what if it
  was put in an atmosphere of fluorine what would
  happen then. We are in fact able to predict what
  would happen because of the electrochemical
  series. This is a series of half reactions
  arranged in the ordering of their reducing
  ability. We are able to construct this series
  because in a REDOX reaction electrons are
  transferred.

27
Electrons produced by oxidation leave a
galvanic cell at the anode (?), travel through
the external circuit, and reenter the cell at the
cathode (?), where they cause reduction. The
circuit is completed inside the cell by migration
of ions through the salt bridge. A salt bridge is
unnecessary when the two electrodes share a
common electrolyte. (Taken from Atkins and Jones
without permission)
28
The reaction of CuSO4 and Zn

• In this cell we have the reaction of zinc metal
  and copper sulphate
• Zn CuSO4 ? ZnSO4 Cu
• Zn ? Zn2 2e-
• Cu2 2e- ? Cu(s)
• The electrode at which the copper which is being
  reduced is called the CATHODE and is the positive
  terminal. The electrode at which the zinc is
  being oxidised is call the ANODE and is the
  negative terminal In order to complete the
  circuit the two solutions are connected via a
  salt bridge which allows ions to flow through it
  If we left this cell for long enough eventually
  all the zinc anode would dissolve into solution.

29
This schematic picture of a galvanic cell
indicates the identities of the anode and
cathode, displays the oxidation and reduction
half-reactions, and shows the direction of
electron flow. (Taken from Jones and Atkins
without permission)
30
Reaction of copper metal and silver nitrate.

• If we had carried out the reaction using a silver
  electrode instead of a zinc electrode a current
  would again flow, but this time it would be the
  silver that precipitated out and the copper
  electrode that eventually all dissolved away. So
  this time it would be the copper electrode would
  be the anode and the silver electrode would be
  the cathode

31

• So we can see that zinc will displace copper from
  solution but that copper will displace silver.
  Putting it another way we see that copper is a
  better reducing agent than silver but that zinc
  is better reducing agent than either copper or
  silver.

32
Standard electrode potentials.

• What have done here is produce an electrochemical
  cell. We can think that an electrode the
  following situation occurring
• M Mn ne-
• The better the reducing agent the more the
  equilibrium lies over the right hand side.

33
Voltages and cells.

• If we had used a voltmeter in the circuit we
  would find that the bigger voltage would be
  developed for Zn/Ag, the second biggest by Zn /Cu
  and the smallest by Cu/Ag. So we can see that
  the voltage in a cell is governed the tendency of
  the metal ions to go into solution represented by
  the equilibrium we have shown above. So by
  measuring the voltage (and the direction of flow
  of the electrons) in a series of cells we will be
  able to arrange oxidising and reducing agents in
  an electrochemical series.

34
Figure 18.12 The cell potential can be thought
of as being the difference of the two reduction
potentials produced by the two electrodes. The
cell potential is positive if the cathode has a
higher potential than the anode. (Taken from
Jones and Atkins without permission)

• Ag

  Cu

  Zn
  A
  Ladder with an uneven tread

35

36
Figure 18.11The cell described in Self-Test
18.5A.
37
The standard hydrogen electrode.

• The standard electrode consists of a piece of
• platinum foil coated with fine particles of
  platinum.
• It is immersed into a solution of hydrogen ions
  and
• hydrogen gas is bubbled over it. Provided all
  the
• components are in their standard states, and the
• concentration of H(aq) ions is 1 mol dm-3 and
  the
• pressure is 1 atmosphere for the H2 gas the
  standard
• electrode potential Eº is define as 0 V
• (Of course in reality there are not H ions
  present but H3O ions)

38
Other couples

• Electrode potentials can also be measured for
  reactions of the type
• Mn ? M(n1) e- such as
• Co2 ? Co3 e-
• To measure this potential we place a platinum
  electrode into a solution which is both 1M in
  Co2 and Co3 and connect it into a circuit.

39
Figure 18.13 The variation of standard
potentials in the main groups of the periodic
table. Note that the most negative values occur
in the s block and the most positive values occur
close to fluorine. Taken from Jones and Atkins
without pernission)
40
(No Transcript)
41
Points to note about standard electrode
potentials.

• The Eº values are also known a standard reduction
  potentials In all the couples the oxidized
  species is listed first e.g. (K(aq)/K(s) not
  K(s)/K(aq)
• Eº can be measured at different temperatures and
  it does vary with temperatures except for
  H(aq)H2 which is always defined to be 0.0
• Some values of E can not de determined directly
  e.g . (K(aq)/K(s) but instead have to obtained
  from other data.
• The Eº really only applies to a couple so for .
  (K(aq)/K(s) Eº means that in aqueous solution K
  ions are formed not K-
• The Eº values can be used to predict if a
  reaction will go.

42
The cell diagram

• The is a convention to drawing an electrochemical
  cell which is
• reactant ? product reactant ? product
  (-anode)
  ( cathode) (in which oxidation
  (In which reduction
  takes place)
  takes place)
  where the symbol denotes the salt bridge
• Examples
• Pt H2(g) H(aq) Co3(aq) Co2(aq) Pt
• Zn(s) Zn2 (aq) Pt H(aq) H2(aq)(g)

43
Predicting if a reaction will go from Eº values.

• Write down both half-reactions. The reaction
  which has the most negative (or least positive)
  value should be placed at the top.
• Draw anticlockwise arrows to predict if a
  reaction will occur.
• The ends of the arrows show what will be formed
  (or left) at the end of the reaction (or lack of
  reaction)

44

• Example
• Will H2 gas reduce Ce4 to Ce3
  2H(aq) 2e- ?
  H2(g) Eº 0.00 V
  Ce4(aq) e- ? Ce3 Eº 1.61 V
• Draw anticlockwise arrows
•

  .
  2H(aq) 2e- ? H2(g) Eº 0.00 V
  Ce4(aq) e-
  ? Ce3 Eº 1.61 V

45
(No Transcript)
46

• Example 2
• Will I2 react with an aqueous solution of NaCl
• I2(aq) 2e- ? 2I-(aq) Eº 0.54
  Cl2(aq) 2e- ? 2Cl-(aq) Eº 1.36
• .

47
Self test questions

• Using the standard reduction potentials in the
  table given before say whether or not the
  following reactions will occur
• F2(aq) 2Br-(aq) ? Br2(aq) 2F-(aq)
  Mg(s) 2Fe3(aq) ? Mg2(aq)
  2Fe3(aq) Ag(s)
  2H(aq) ? Ag(aq) H2(g) 2Fe3(aq)
  2Cl-(aq) ? 2Fe2(aq) Cl2(aq)

48
(No Transcript)
49
(No Transcript)
50
The activity Series for metals

•

  E /V
• K(aq) e- ? K(s) -2.92 Ca2(aq)
  2e- ? Ca(s) -2.87 Na(aq) e- ?
  Na(s) -2.71 Mg2(aq) 2e- ? Mg(s) -2.37
  Al3(aq) 3e- ? Al(s) -1.67 Zn2(aq)
  2e- ? Zn(s) -0.76 Mn2(aq) 2e- ?
  Mn(s) -1.18 Fe2(aq) 2e- ? Fe(s) -0.44
  Ni2(aq) 2e- ? Ni(s) -0.25 Sn2(aq)
  2e- ? Sn(s) -0.14 Pb2(aq) 2e- ?
  Pb(s) -0.13 2H(aq) 2e- ? H2(s) 0.00
  Cu2(aq) 2e- ? Cu(s) -0.34 Ag(aq) e-
  ? Ag(s) 0.80 Au(aq) e- ? Au(s) 1.68

51
The activity series of metals.

• This is a subset of the standard electrode
  potentials. The metals are arranged in the order
  of their reducing power. With the most reactive
  metals at the top. A metal placed in solution
  can displace a metal ion of a metal below it in
  the reactivity series so
• Zn(s) CuSO4(aq) ? ZnSO4(aq) Cu(s)

• Will proceed

52
Corrosion

• Many metals including iron corrode in air and
  with water. We can predict which metal which
  corrode with water by looking at the electrode
  potentials.
• Fe2(aq) 2e- ? Fe(s) E -0.44V
  H2O(l) 2e- ? H2(g) 2OH-(aq) E -0.42
  V
• So water has a slight tendency to cause iron to
  rust.

53
Iron nails stored in oxygen-free water (left) do
not rust because the oxidizing power of water
itself is weak. When oxygen is present (as a
result of air dissolving in the water, right),
oxidation is thermodynamically spontaneous and
rust soon forms. (Taken from Jones and Atkins
without permission)
54
The role of oxygen

• But when oxygen is present iron corrodes much
  more rapidly. This is because if oxygen is
  dissolved in water the following reduction
  potential can apply
• O2(g)4H(aq)4e- ? 2H2O (l) E 0.81 V
• Fe2(aq) 2e- ? Fe(s) E -0.44V
  O2(g)4H(aq)4e- ? 2H2O (l)
  E 0.81 V
• So we can see in this reaction there is a much
  greater difference in electrode potentials, so a
  greater voltage for a cell and hence the reaction
  will proceed.

55
Figure 18.22 The mechanism of rust formation.
(a) Oxidation of the iron occurs at a point out
of contact with the oxygen of the air, and the
surface of the metal acts as an anode in a tiny
galvanic cell. (b) Further oxidation of Fe2? to
Fe3? results in the deposition of rust on the
surface. (Taken form Jones and Atkins without
permission)
56
Rust the next step

• The Fe2 ions dissolves into solution where it is
  further oxidised to produce Fe3 which the
  deposits out of solution as hydrated iron oxide
  Fe2O3 xH2O ( the x shows an indeterminate amount
  of water). This rust is mechanically fragile and
  can be easily dislodged. Because the Fe
  dissolves first into solution no protective coat
  of a passivating oxide as in Al2O3 is formed to
  protect the surface.
• Note the presence of dissolved ions such as Cl-
  can speed up electrochemical reactions so that is
  why iron objects rust faster near the seaside in
  a salt water atmosphere.

57
Metals that rust but then are stable.
58
Prevention of rusting

• 1 Stop the air and water attacking the surface
  by (a) painting, oiling, greasing, covering with
  a plastic or by coating with a passivating oxide
  e.g. tin in tinplating.

59
Metal girders are galvanized by immersion in a
bath of molten zinc. (Taken from Jones and Atkins
without permission).

• Cover with a metal with a more negative E so that
  if the surface is scratched it will
  preferentially dissolve away. This can be done
  by coating with for example zinc (galvanizing) ,
  Note that zinc itself forms a passivating zinc
  oxide surface layer.

60

• 3 Sacrificial protection.
• Attach a more reactive metal e.g. Mg or Zn to
  the object, which will preferentially dissolve
  away.

61
Figure 18.24 In the cathodic protection of a
buried pipeline, or other large metal
construction, the artifact is connected to a
number of buried blocks of metal, such as
magnesium or zinc. The sacrificial anodes (the
magnesium block in this illustration) supply
electrons to the pipeline (the cathode of the
cell), thereby preserving it from oxidation.
(Taken from Jones and Atkins without permission)
