Title: Engine Nacelle Halon Replacement, FAA, WJ Hughes Technical Center


1

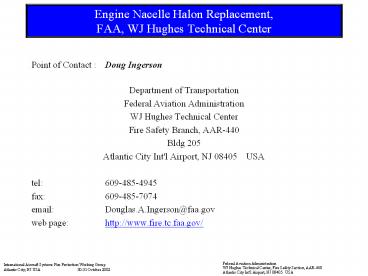

Engine Nacelle Halon Replacement,FAA, WJ Hughes
Technical Center
  • Point of Contact Doug Ingerson
  • Department of Transportation
  • Federal Aviation Administration
  • WJ Hughes Technical Center
  • Fire Safety Branch, AAR-440
  • Bldg 205
  • Atlantic City Int'l Airport, NJ 08405 USA
  • tel 609-485-4945
  • fax 609-485-7074
  • email Douglas.A.Ingerson_at_faa.gov
  • web page http//www.fire.tc.faa.gov/

2
  • Major Topics for Review
  • brief overview
  • revision to minimum performance standard for
    engine/apu (mpse)
  • foundation test plans and results
  • near term plans

3
  • BRIEF OVERVIEW
  • April - July 2002, Testing
  • Encountered difficulty with hot surface ignition
    (HSI) during initial MPSE tests
  • Ran series of tests and observed HSI behavior -
    determined phenomena is unreliable
  • Reviewed a sample of reported HSI behaviors
  • Results indicated current version of the MPSE was
    faulted by HSI unreliability
  • Ran 100 plus tests to find a way to circumvent
    HSI unreliability
  • 23 24 July 2002, Task Group Meeting
  • Convened and discussed issues involving MPSE and
    HSI
  • Agreed MPSE required revision
  • Conceived method to track Halon 1301 suppression
    performance using HSI reliably
  • Formulated rough revision of MPSE (revision 3)
  • Planned foundation testing to resolve potentially
    complicating issues
  • August 2002 - Present
  • Produced a crude flowchart of MPSE revision 3
  • Partially completed the foundation testing

4
  • REVISION OF THE MPSE
  • Evaluating the Basis for the Agent Comparison in
    the MPSE
  • MPSE process will have error in results due to
    environmental behaviors observed to date -
    conservatism is required, yet error must be
    minimized where possible
  • Experienced/reported difficulty with reliable HSI
    behavior would lead to greater expected error in
    final results
  • Equivalence method must represent the associated
    application in a reliable manner
  • Equivalence method relies on the occurrence of
    HSI as it is a threat in this application
  • Testing during
  • April - June 2002 the continually operating
    electrodes (COE) or a tube array of particular
    geometry reliably reignited JP-8
  • June - July 2002 primary ignition difficulty
    with low volatility fuel (oil) in the spray fire
    scenario - suspected impact on HSI behavior using
    the COE alone
  • July - August 2002 a combination of the COE and
    the tube array provided reliable HSI behavior for
    any fuel type evaluated

5
  • REVISION OF THE MPSE
  • The Significant Change to the MPSE
  • Former version of the MPSE
  • reliance upon the definition of a robust fire
  • equivalence process required finding a minimum of
    3 robust fires
  • the robust fire was a mixture of test conditions
    that would be extinguished by Halon 1301 for a
    portion of a fixed number of duplicate tests
    (80-90)
  • a successful quantity of the replacement
    candidate was to repeat Halon 1301 behavior
    against the same conditions
  • HSI in this geometry is an imprecise behavior and
    was buried in the robust fire
  • Version 3 of the MPSE
  • robust fire eliminated
  • changed performance measure to Reignition Time
    Delay - the time between fire extinguishment and
    reignition which is based on a video review of
    the test
  • Reignition Time Delay (RTD) is based on a
    minimum of 5 tests at like condition
  • a successful quantity of a replacement candidate
    will be required to repeat or exceed the RTD for
    Halon 1301 at the same test conditions
  • HSI is provided for with intentional secondary
    ignition sources

6
  • REVISION OF THE MPSE
  • Items of Concern for MPSE revision 3
  • Concerns are included for consideration in MPSE
    revision 3 to improve on the body of work to date
  • Concerns are reasoned as impacts on the
    credibility of the final results
  • compartment ventilation conditions
  • agent storage, release, and distribution
  • sufficient severity of the fire threat
  • variation in the RTD must be observed and
    understood
  • Concerns will be addressed with foundation
    testing and review of others work
  • Retain portions of previous MPSE revision to
    minimize loss of time

7
(No Transcript)
8
  • REVISION OF THE MPSE
  • Spray Fire Zone Configuration, MPSE revision 3

ELECTRODES
CORE
TUBE ARRAY
FUEL NOZZLES
2 TALL FLAME STABILIZATION RIB
sta 502
sta 510
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
  • REVISION OF THE MPSE
  • Process Overview
  • Parameter for comparing agent suppression
    performances is RTD not robust fire
  • RTD is the duration of time between fire
    extinguishment and reignition
  • RTD requires a test fixture which includes
    RELIABLE secondary ignition sources
  • Primarily, a single RTD will represent a group
    of duplicate agent suppression tests
  • Basis for success RTD Halon 1301 ? RTD
    Candidate replacement
  • Testing will account for representative
  • ventilation conditions
  • agent storage and discharge considerations
  • fuels types in a nacelle/APU
  • fire scenarios
  • Process will allow for rational test planning
  • test against the most challenging condition(s)
  • run verification tests against conditions not
    explicitly evaluated
  • attempting to separate fire suppression and agent
    distribution performances

13
(No Transcript)
14
  • FOUNDATION TESTING
  • Test Results - Purpose and General Comments
  • Testing to
  • answer questions conceived during initial
    discussions of MPSE revision 3
  • provide data to observe behaviors and uncover
    issues not initially recognized
  • Focused on previously stated concerns
  • List of issues to be addressed by this testing
  • verify the fire threats are sufficiently severe
  • minimize/understand varying RTD behavior
  • fuel type - observe/compare combustion behaviors
  • agent discharge - consistent preburn or tube
    array temperature
  • material changes in the tube array - determine
    its life span
  • explore residual fire scenario - determine
  • which fuel types can burn in this configuration
  • the significance of HSI phenomena
  • the effect of the orientation of the pan geometry
    on fire intensity

15
(No Transcript)
16
(No Transcript)
17
  • FOUNDATION TESTING
  • Test Results (continued) - Varying RTD/Decision
    to Release Agent
  • Run a series of spray fire tests and evaluate
    resulting RTDs
  • Purposes
  • determine if RTD variation can be better
    controlled by releasing the agent after
  • a consistent preburn duration expires
  • a consistent temperature in the tube array is
    attained
  • use results to refine MPSE version 3
  • Current test procedure relies on preburn duration
  • Control of the test article changed for the
    trials involving tube array temperature
  • Conditions
  • air flow ? 2.2 lbm/s _at_ 100F
  • JP-8 ? 0.25 gpm
  • agent ? HFC-125 _at_ 5.2 lbm
  • Fixed preburn duration ? 45 seconds
  • Fixed tube array temperature ? 1440F

18
(No Transcript)
19
  • FOUNDATION TESTING
  • Test Results (continued) - Varying RTD/Fuel-Spray
    Fire Intensity
  • Ran spray fire tests and recorded temperature
    profiles
  • Purposes
  • observe fire behaviors
  • compare energy signature for each fuel
    type/ventilation condition
  • use data in refining MPSE revision 3
  • Thermocouples spaced longitudinally in the flame
    path to provide representative picture of
    combustion behavior
  • Each individual test condition was repeated 3
    times
  • Fixture cooled down to near ambient condition
    between tests
  • Test conditions
  • fuels JP-8, oil (Mobil Jet Oil II), hydraulic
    fluid (Skydrol LD-4)
  • fuel flow rates 0.25 gpm /- 0.03gpm
  • ventilation conditions 2.2 lbm/s_at_100F 1.0
    lbm/s_at_300F
  • no fire suppression agent released

20
  • FOUNDATION TESTING
  • Test Results (continued) - Varying RTD/Fuel-Spray
    Fire Intensity
  • Created averaged temperature profile from data
    for each set of 3 tests
  • 8 thermocouples, sta 453, 4 (102 mm) 8 (204
    mm) above core, 2_at_0130, 0430, 0730, 1030
  • 1 thermocouple buried in tube array,
    approximately sta 510 (515), 1200
  • 1 thermocouple mounted on door exterior, sta 514,
    1130
  • 2 thermocouples, sta 518, 4 8 above core,
    1200
  • 4 thermocouples, sta 532, 4 8 above core,
    2_at_0100, 1100
  • 6 thermocouples, sta 551 upper, 4 8 above
    core, 2_at_0130, 1030, 1200
  • Calculated a relative heat production reference
    to compare combustion intensity
  • calculated areas under the averaged temperature
    traces from 30 to 80 seconds
  • summed all areas for thermocouples affected by
    fire (stas 510, 514, 518, 532, 551)
  • subtracted area for sta 453 thermocouples to
    remove heat present in air stream

21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
  • FOUNDATION TESTING
  • Test Results (continued) - Residual Fire
    Investigation/Fuel Ignition
  • Ran pool fire tests and recorded temperature
    profiles
  • Purposes
  • determine which fuels can be ignited in the
    residual fire scenario
  • use data to refine MPSE revision 3
  • Fixture geometry
  • master fuel pan in the simulator filled to make a
    water bath
  • smaller stainless steel fuel pan located in the
    water bath
  • Test conditions
  • fuels JP-8, oil (Mobil Jet Oil II), hydraulic
    fluid (Skydrol LD-4)
  • fuel quantity 0.47 gallon (1 deep puddle) in
    10.5 x 10.3 x 1.5 deep pan
  • fuel temperature prior to test 150F (by
    thermocouple submerged in fuel)
  • ignition exposure 10 - 30 seconds
    intermittently for 3 minutes
  • ventilation conditions 2.2 lbm/s_at_100F 1.0
    lbm/s_at_300F
  • no fire suppression agent released

28
(No Transcript)
29
(No Transcript)
30
  • FOUNDATION TESTING
  • Test Results - Conclusions
  • Fire intensity
  • clean simulator cross section was an insufficient
    threat
  • secondary ignition elements required to maintain
    sufficient threat
  • Varying RTD
  • no significant difference noted between releasing
    agent based on consistent preburn or tube array
    temperature
  • fuel types have varying energy signatures -
    expect impact on RTD to be noticeable
  • JP-8 worst case for 2.2 lbm/s air flow_at_100F
  • oil selected as worst case for 1.0 lbm/s air
    flow_at_300F
  • tube array has a life span of 10 fire tests
  • variation in environmental conditions observed as
    a noticeable impact
  • Residual fire scenario
  • JP8 was the only fuel ignited - oil and hydraulic
    fluid were not
  • remaining tests are incomplete

31
  • NEAR TERM PLANS
  • Complete foundation testing
  • Determine the impact/relevance of HSI on the
    residual fire scenario
  • Determine the impact of altering the fuel surface
    geometry in the residual fire scenario on
    combustion intensity
  • Ultimately, need to bench-mark Halon 1301 in
    this scenario in some manner
  • Finalize MPSE revision 3
  • Discuss/resolve issues
  • incorporate results of foundation testing
    completed to date
  • agent - storage/distribution criteria
  • final process - need to methodically evaluate
    replacement candidates without excessive test
    counts
  • Commit process to paper
  • Complete Testing for the replacement candidates
    by Jun 2003
Write a Comment
User Comments (0)
About PowerShow.com
