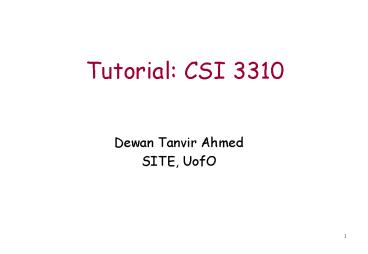

Tutorial: CSI 3310

1
Tutorial CSI 3310

• Dewan Tanvir Ahmed
• SITE, UofO

2
Todays Objective

• Go through the last lab
• Play with
• exec()
• fork()
• Dup2
• pipe

3
Process

1. A process in Unix terms is an instance of an
   executing program.
2. Each process incorporates program code, the data
   values within program variables, and values held
   in hardware registers, program stack etc.
3. Associated with each process is a process control
   block (PCB) which stores all the information
   related to the process.
4. fork .... Creates a new process.
5. exec .... Overlays the memory space of the
   process with a new program.
6. wait .... synchronizes processes.
7. exit .... Terminates a process

4
fork()

• fork() creates a new child process
• Points to note
• the OS copies the current program into the new
  process,
• resets the program pointer to the start of the
  new program (child fork location), and
• both processes continue execution independently
  as two separate processes
• The child gets its own copy of the parents
• data segments
• heap segment
• stack segment
• file descriptors

5
fork() Return Values

• fork() is the one Unix function that is called
  once but returns twice!!
• If fork() returns 0
• youre in the new child process
• If fork() returns gt 1 (i.e., the pid of the new
  child process)
• youre back in the parent process

6
fork()
7
Waiting on Our Children

• Unlike life, parents should always hang around
  for their childrens lives (runtimes) to end,
  that is to say
• Parent processes should always wait for their
  child processes to end
• When a child process dies, a SIGCHLD signal is
  sent to the parent as notification
• The SIGCHLD signals default disposition is to
  ignore the signal
• A parent can find out the exit status of a child
  process by calling one of the wait() functions

8
Problem ChildrenOrphans and Zombies

• If a child process exits before its parent has
  called wait(), it would be inefficient to keep
  the entire child process around, since all the
  parent is going to want to know about is the exit
  status
• A zombie is a child process that has exited
  before its parents has called wait() for the
  childs exit status
• A zombie holds nothing but the childs exit
  status (held in the program control block)
• Modern Unix systems have init (pid 1) adopt
  zombies after their parents die, so that zombies
  do not hang around forever as they used to, in
  case the parent never did get around to calling
  wait

9
Points to note

• include ltsys/types.hgt
• include ltunistd.hgt
• include ltstdio.hgt
• int main(void)
• pid_t fork_pid
• FILE my_file
• my_filefopen("MY_FORK_FILE.txt","w")
• fprintf(my_file," Hello from main \n")
• fork_pidfork()
• fprintf(my_file," After fork d\n",fork_pid)
• return 0

Hello from main After fork 0 Hello from main
After fork 14818
The first thing you should note is that the
output from the child process appears in the
same file as the parent process.
One characteristic of fork is that all file
descriptors that are open in the parent are
duplicated in the child.
10
Exec

• The only way in which
• a program is executed in Unix is for an existing
  program to issue an exec system call.
• The exec calls overlays the memory space of the
  calling process with a new program.
• When used together, fork and exec provides the
  means for the programmer to start another
  program, yielding multitasking.

11
Exec()..
12
The exec() FunctionsOut with the old, in with
the new

• The exec() functions all replace the current
  program running within the process with another
  program
• There are two families of exec() functions,
• the l family (list), and
• the v family (vector)
• What is the return value of an exec() call?

13
The execl... functions

• int execl(const char path, const char arg0,
  ...)
• executes the command at path,
• passing it the environment as a list arg0 ...
  argn
• thus, the execl family breaks down argv into its
  individual constituents, and then passes them as
  a list to the execl?
• int execlp(const char path, const char arg0,
  ...)
• same as execl, but
• uses PATH resolution for locating the program in
  path, thus an absolute pathname is not necessary
• int execle(const char path, const char arg0,
  ... char envp)
• allows you to specifically set the new programs
  environment, which replaces the default current
  programs environment

14
The execv... functions

• int execv(const char path, char const argv)
• executes the command at path,
• passing it the environment contained in a single
  argv vector
• int execvp(const char path, char const
  argv)
• same as execv,
• but uses PATH resolution for locating the
  program in path
• int execve(const char path, char const argv,
  char const envp)
• note that this is the only system call of the lot

15
File Descriptor

• Contains
• reference to system file structure
• Denoted by small integer
• passed to system calls to specify which
  process-to-file connection should be affected
• Created by open( ), dup( ), dup2( ), pipe( ),
  socket( )
• Removed by close( )
• Duplicated by fork()
• Retained across exec() (unless FD_CLOEXEC)

16
Standard File Descriptors

• Each process normally has file descriptors for
  standard input, standard output, standard error
• Denoted by
• STDIN_FILENO
• STDOUT_FILENO
• STDERR_FILENO
• Older programs use 0, 1, 2
• Provide unbuffered access to data in files via
• read( ), write( ), lseek( )
• Buffered FILE structures stdin (scanf), stdout
  (printf), stderr are layered on unbuffered files

17
Inter Process Communication (IPC)

• For processes to cooperate in performing a task,
  they need to share data.
• The fundamentals of network programming lies in
  processes' ability to share data among
  themselves.
• Unix allows concurrent processes to communicate
  by using a variety of IPC methods
• Signals
• message queues
• shared memory
• semaphores and
• sockets.

18
Pipe

• Pipe is called with a two integer array
• hold the file descriptors associated with the
  pipe
• the first element in the array (p0) opens the
  pipe for reading
• while the other file descriptor (p1) opens the
  pipe for writing.
• Once created we can use pipes to communicate with
  the process itself or with any child process.

19
Concept
Stage 1 The original process A (the shell for
example) creates a pipe, receiving descriptors on
each end.
Stage 2 Process A forks twice, creating child
processes B and C. The children inherit the
parent's open descriptors, including those on the
two ends of the pipe, so at this stage, all three
processes have descriptors on both ends of the
pipe.
20
Concept
Stage 3 Each process closes the descriptors it
doesn't need. B closes the downstream end, C
closes the upstream end, and A closes both. Note
that B and C inherit their own copies of A's
descriptors, so that closing a descriptor in the
parent doesn't affect the child's descriptors.
21
Concept
Stage 4 Processes B and C exec() the programs
they need to run. Again, the descriptors remain
intact across the exec() call. B can then write
to the upstream end of the pipe, and C can read
from the downstream end. Inter Process
communication!!!
22
Pipe

• Note A buffer is a system maintained data
  structure accessible to both ends of the pipe.
• The writer writes on to the buffer while the
  reader reads from it.
• How do we access the pipe?
• Obviously the array is not going to exist after
  the exec(), so how do we access the pipe?
• Before the exec(), we have to reassign the
  standard output of the process to the pipe.
• We can do this using a system call to duplicate
  file descriptors called dup2()

23
dup2()

• dup2(target, new)
• The file descriptor new will point to the same
  file as target after the call.
• If our target is the standard output stream of
  the process, then we will redirect the standard
  output to the pipe.
• The standard output will survive the exec() call.

24
close()

• The close() system call is used to close pipes
  and files.
• We need to close() the open pipes in the child
  process before we exec() the new process.
• If not, the open pipes may be destroyed by the
  exec() call, also destroying our newly created
  connection.

25
Example ls gt temp
Create a subprocess from program ls redirect
standard output of ls into file named temp
Unix shell notation ls gt temp
int main(int argc, char argv)
pid fork() if (pid 0) fd
open("temp", O_WRONLYO_CREATO_TRUNC, S_IRWXU)
dup2(fd, STDOUT_FILENO) if
(execl(/bin/ls, ls, NULL) -1)
perror("execl") else close(fd)
wait(status)
26
Example Execl/Execlp

• include ltunistd.hgt
• include ltstdio.hgt
• int main(void)
• int status
• if (fork())
• // Parent Do you know why?
• else
• // Child
• printf(" HELLO from Child \n")
• statusexecl("/bin/ls","ls","-l","-t",'\0')
• if (status ! 0)perror("execl error")
• return 0

27
Output

• HELLO from Child
• ncitl0dahmed(61) total 664
• -rwx------ 1 dahmed grad 5082 May 15 1737
  a.out
• -rw-r--r-- 1 dahmed grad 352 May 15 1737
  exels.c
• -rw-r--r-- 1 dahmed grad 528 May 15 1706
  pipe.c
• -rwx------ 1 dahmed grad 6371 May 15 1701
  mymon
• -rw-r--r-- 1 dahmed grad 1938 May 15 1701
  mymon.c
• -rw------- 1 dahmed grad 289 May 15 1608
  sat.c
• -rw-r--r-- 1 dahmed grad 478 May 15 1607
  redir.c
• -rw------- 1 dahmed grad 75 May 15 1528
  exeSleep.c
• -rwx------ 1 dahmed grad 4831 May 15 1512 sat
• -rwx------ 1 dahmed grad 5779 May 15 1400 pt
• -rw-r--r-- 1 dahmed grad 561 May 15 1400
  pt.c
• -rwx------ 1 dahmed grad 6272 May 15 1227
  procmon
• -rw-r--r-- 1 dahmed grad 2379 May 15 0515
  procmon.c
• drwx------ 3 dahmed grad 512 May 15 0450
  lab1
• -rw------- 1 dahmed grad 521096 May 14 1112
  Trash
• -rw-r--r-- 1 dahmed grad 61440 May 9 1417
  lab1.tar
• drwxr-xr-x 18 dahmed grad 1024 May 8 1643
  public_html

28
Question?

• Modify the above code so that it works when
  "/bin/ls" is replaced with "ls", i.e. which
  version of exec should you now be using?

statusexeclp("ls","ls","-l","-t",'\0')
29
Simple pipe Example

• int main()
• int i,j,p2
• char s100
• char s2100
• ipipe(p)
• printf("pipe returned d d d\n",i,p0,p1)
• for (j0 jlt5 j)
• sprintf(s,"I am a string d\n",j)
• iwrite(p1,s,strlen(s))
• printf("Write completed id\n",i)
• iread(p0,s2,100)
• printf("Read from the pipe completed
  id\n\ts\n",i,s2)

30
Sample output

• pipe returned 0 3 4
• Write completed i16
• Read from the pipe completed i16
• I am a string 0
• Write completed i16
• Read from the pipe completed i16
• I am a string 1
• Write completed i16
• Read from the pipe completed i16
• I am a string 2
• Write completed i16
• Read from the pipe completed i16
• I am a string 3
• Write completed i16
• Read from the pipe completed i16

31
Example dup2 and pipe

• include ltstdio.hgt
• include ltunistd.hgt
• define MSGSIZE 4096
• main()
• char inbufMSGSIZE
• int p2, j
• pid_t pid
• if (pipe(p) -1)
• printf("Error opening pipe\n")
• exit(1)
• switch(pid fork())
• case -1
• perror("Error with the fork()\n")
• exit(2)

case 0 close(p0) dup2(p1,
1) close(p1) execlp("ls", "ls", (char
)0) break default
read(p0, inbuf, MSGSIZE) printf("s",
inbuf) close(p0) close(p1)
32
Pipe drawbacks

• Pipes can only be used to connect processes that
  have a common ancestry, eliminating the
  possibility for a true client-server application
  to exist.
• Pipes cannot be permanent, as they have to be
  created and destroyed with the process.

33
Thank You!
