FPGA Architecture Evaluation and Technology Mapping using Boolean Satisfiability

1

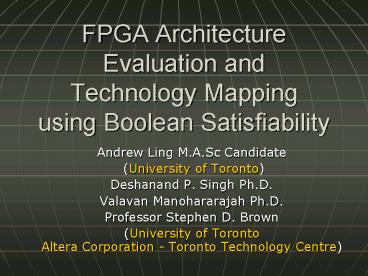

FPGA Architecture Evaluation and Technology
Mappingusing Boolean Satisfiability

• Andrew Ling M.A.Sc Candidate
• (University of Toronto)
• Deshanand P. Singh Ph.D.
• Valavan Manohararajah Ph.D.
• Professor Stephen D. Brown
• (University of TorontoAltera Corporation -
  Toronto Technology Centre)

2
Applications of SAT to FPGAs

• FPGA Routing (G. Nam et al. VLSID, 1999)
• Sliding Window Resynthesis
• PLB (Programmable Logic Block) technology mapping
• Verification of PLB Robustness

3
FPGA
4
K-LUT
5
Background LUT Mapping Problem

• Given a subject graph representing the circuit
  (usually a netlist of 2-input gates)
• Want a covering of the graph using LUTs.
• Equivalently - Want a covering of the graph
  using cones.

6
Cone

• A subgraph consisting of a root node and its
  predecessors such that any node within the cone
  has a path to the root that lies entirely within
  the cone.
• Constraint on the number of unique inputs (K).
• Cone K-LUT.

7
LUT Mapping Problem
8
LUT Mapping Problem
9
LUT Mapping Problem
10
Cone Selection

• Depth-oriented mapping
• Select the cones that guarantees the smallest
  depth.
• Area-oriented mapping
• Select the cones that cover the most gates per
  cone.

11
Satisfiability-based Technology Mapping (SATMAP)
12
K-Input PLB

• The 3-input PLB below CANNOT implement any
  arbitrary 3-input function

13
K-Input PLB
14
K-Input PLB
SAT ?
15
Deriving Characteristic FunctionT. Larrabee,
Test pattern generation using Boolean
satisfiability," TCAD, 1992 (Plaisted's and
Greenbaum's encoding which is based on Tseitin's
work)
16
Extending to Larger Circuits
17
SAT applied to PLBs
?

• Can function f be implemented in circuit g ?
• Does there exist a configuration to g such that
  for all inputs to g, f is equivalent to g

18
SAT applied to PLBs
?

• Derive characteristic function H for circuit g
• Replace all instances of g in H with f,
  Hg/f (g f )

19
SAT applied to PLBs
?

• Express as a QBF with inputs (x1xn) and
  configuration bits (l1lm)
• l1lm x1xn (g f )
• Remove quantifiers to form a SAT problem (A.
  Biere. Resolve and Expand, SAT04)

A
E
20
Evaluating PLBs

• Extract set of k-Input Cones from a large set of
  circuits.
• Examine the percentage of cones fit into PLB
  structure.

21
Evaluation of PLBs
22
Applying SAT to Techmapping

• Use any existing k-LUT techmapper and apply SAT
  verification step in addition k-LUT feasibility.
• We use IMAP (V. Manohararajah Technology Mapper)
  in our experiments.

23
Technology Map to the Apex20k PLB
24
Applied to Techmapping

• Depth-Oriented Techmapping using the Apex20K PLB.

25
Applied to Techmapping

• Area-Oriented Techmapping using the Apex20K PLB

26
Conclusions

• Novell function mapping technique based on
  Boolean satisfiability
• Introduced method to incorporate SAT into
  technology mapping
• Introduced a PLB evaluation method

27
Future Work

• Speed up SAT, use QBF solvers, ALL-solution SAT
  solvers
• Cannot evaluate area efficiency without looking
  at routing architecture
• Use Dont Cares when mapping functions
• Use genetic algorithms to create candidate PLBs,
  then pipe architectures to our PLB evaluator tool

28
Questions?
