OnDemand Process Collaboration in Service Oriented Architecture

1

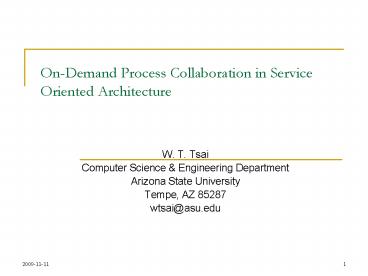

On-Demand Process Collaboration in Service
Oriented Architecture

• W. T. Tsai
• Computer Science Engineering Department
• Arizona State University
• Tempe, AZ 85287
• wtsai_at_asu.edu

2
Agenda

• Overview of Interoperability
• Data Provenance
• OASIS CPP/CPA Collaboration
• Use Scenarios
• Dynamic Collaboration Protocol (DCP)
• Verification Framework for DCP
• Case study
• Summary

3
Interoperability

• Interoperability is defined as
• The ability of two or more systems or components
  to exchange information and to use the
  information that has been exchanged.
• Interoperability is a critical issue for
  service-oriented systems.
• But interoperability of what?

4
Kinds of Interoperability

• Protocol interoperability
• Allow two parties (services, processes, clients,
  or systems) to communicate with each other. For
  example, WSDL, SOAP, OWL-S, HTTP, UDDI, ebXML.
• Protocol interoperability is the minimum
  requirements.
• Issues QoS, performance, implementation
• Data interoperability
• Allow two parties (services, processes, clients,
  or systems) to exchange data.
• MetaData, XML (data schema)
• Issues Security, integrity, data provenance

5
Kinds of Interoperability

• Process Interaction Allow two parties to
  communicate with each other while the processes
  are running.
• Static arrangement Both processes and
  interactions are specified (or fixed) before
  interaction. This is traditional SOA.
• For example, one of them is a workflow of an
  application, the other is a service.
• Both can be services.
• Dynamic arrangement
• While interaction protocols are established at
  runtime.
• But the first is to allow data exchange. (OASIS
  CPP/CPA)
• Allow these processes to interact with the
  workflow. (ECPP/ECPA)
• Issues This is the current challenge.

6
Interoperability in SOA

• Following the concept of SOA, each sub-system in
  the composed complex system
• Is a self-contained autonomous system
• Provides services
• Collaborates with each other and
• Loosely couples with other systems.
• To achieve interoperability, each system needs to
  be able to
• Exchange data and services in a consistent and
  effective way.
• Provide universal access capacities independent
  of platforms.

7
Interoperability in SOA (cont.)

• For service-oriented systems, services
• Exchange data and
• Collaborate with fellow services in terms of
  tasks and missions.
• While the current interoperability technologies
  such as standard interface and ontology are
  critical for SOA interoperability, they are not
  sufficient because
• The current interface technologies provide method
  signatures only for a single service.
• These method signatures do not provide sufficient
  information for another new system or user to
  properly use the service, e.g.
• What is the proper calling sequence among methods
  of this service
• What is the dependency among methods of a service
  or another service.

8
Interoperability in SOA (cont.)

• To achieve full function, we need to expand the
  interoperability because
• Data exchange is a small part of interoperability
  only
• Systems need to interact with each other at
  run-time
• One system may use the services provided by
  others and
• Systems may need to work with some legacy
  systems.
• To make heterogeneous systems working with each
  other, we need to have a framework which provides
  support for
• Platform independent system service
  specification,
• System wrapping for legacy systems, and
• System composition and re-composition.

9
Issues in Interoperability

• We need to design efficient, secure and scalable
  protocols at all levels.
• Data provenance is a serious challenge in SOA
  because we have numerous data going through a SOA
  system, and we need to know the history of
  data. How reliable is it? How secure is it? What
  is the integrity level? How accurate is it?
• Metadata how do we design the metadata we
  needed? How do we evolve metadata?
• Process Interaction how do we specify the
  possible interaction? How can two services
  establish a dynamic interaction at runtime? How
  can the two services verify/evaluate/monitor/asses
  s the dynamic interaction?
• Do we need this kind of interoperability?
• What are the implication of these kinds of
  interoperability?

10
Agenda

• Overview of Interoperability
• Data Provenance
• OASIS CPP/CPA Collaboration
• Use Scenarios
• Dynamic Collaboration Protocol (DCP)
• Verification Framework for DCP
• Case study
• Summary

11
Data Provenance (Pedigree) Issue in SOA Systems

• DoD defines the data provenance (pedigree) as
  followed
• Ensuring that data are visible, available, and
  usable when needed and where needed to accelerate
  decision-making
• Tagging of all data (intelligence,
  non-intelligence, raw, and processed) with
  metadata to enable discovery of data by users
• Posting of all data to shared spaces to provide
  access to all users except when limited by
  security, policy, or regulations
• Specifically, the questions that the pedigree
  study should answer are
• If you write a program to provide data services,
  can all potential consumers of the data determine
  the data pedigree (i.e., derivation and quality),
  the security level, and access control level of
  the data?
• Rationale Question will elicit how a consumer
  can determine data asset quality.
• In other words, data provenance is defined as
  the quality, including reliability, availability,
  trustworthiness, the derivation, and the process
  how the data is manipulated.

12
Data Provenance (Pedigree) Issue in SOA Systems

• Groth, Luck and Moreau stated the requirements
  for a data provenance system as
• Verifiability A provenance system should be able
  to verify a process in terms of the actors (or
  service) involved, their actions, and their
  relationship with one another.
• Accountability An actor (or service) should be
  accountable for its actions in a process. Thus, a
  provenance system should record in a
  non-reputable manner for any provenance generated
  by a service.
• Reproducibility A provenance system should be
  able to repeat a process and possibly reproduce a
  process from the provenance stored.
• Preservation A provenance system should have the
  ability to maintain provenance information for an
  extended period of time. This is essential for
  applications run in DoD enterprise system.
• Scalability Given the large amounts of data that
  DoD systems, such as GIG, need to handle, a
  provenance system must be scalable.
• Generality A provenance system should be able to
  record provenance from a variety of applications.
• Customizability A provenance system should allow
  DoD users to do customizations, such as types of
  provenance, time and events of recording, and the
  granularity of provenance.

13
Data Provenance (Pedigree) Issue in SOA Systems

• Rajbhandari and Walker stated two additional
  requirements for an SOA-based provenance system
• A provenance system should be able to collect and
  archive the provenance of the transformation of
  data during data processing by web services.
• The provenance data should be accessible and
  viewable by web browsers and query interface.
• Furthermore, provenance in SOA is often
  classified into two granularities
• Fine-grain provenance This refers to tracing the
  data movement between databases, including where
  the data come from and go to, the rational for
  the data, and the time points of data creation,
  manipulation, and termination.
• Coarse-grain provenance This refers to data
  generated through processing a work flow.

14
Existing Solution to Data Provenance

• Protocol for Data Provenance Groth, Luck, and
  Moreau proposed a protocol for recording
  provenance in a service-oriented environment.
  This protocol follows the following steps for
  provenance
• Negotiation This is the step that both clients
  and their service providers agree on the
  provenance agreement.
• Invocation Once a provenance agreement is
  reached, a client can start the provenance
  service by invoking it.
• Provenance Recording This step actually records
  the data communicated in a provenance database.
• Termination The provenance database has received
  all the relevant data, and it will store the data
  appropriately for future queries.

15
Existing Solution to Data Provenance (cont.)

• Data Provenance Framework Rajbhandari and Walker
  proposed a provenance system for SOA-based
  system. The basic idea is to incorporate a proxy
  before each consumer (client) and producer
  (server) process the data.
• In this framework, both consumer and producer can
  be services in an SOA. The proxy will record and
  track all the provenance information about the
  data that are going through the proxy to either a
  client or server.
• The proxy provides the following services
• Provenance Collection Service (PCS) This is
  responsible for collecting all the details of the
  transformation of data sets occurred during the
  workflow execution and recording them in a
  provenance database.
• Provenance Query Service (PQS) This is
  responsible for query processing of the
  provenance database.

Proxy-Based Data Provenance Framework
16
Existing Solution to Data Provenance (cont.)

• MetaData for Data Provenance Several preliminary
  studies suggested that metadata can play a key
  role in data provenance, however, much research
  is still needed to make metadata for data
  provenance practically usable.
• While XML meta-model is essential for data
  provenance, having meta-model is only one of the
  necessary ingredients. Many issues need to be
  addressed before data provenance can be
  successfully applied.

17
Issues for Data Provenance

• Data provenance is a serious problem, and its
  research is just beginning. Most of the proposed
  solutions are exploratory in nature and have not
  even been implemented and experimented. Issues
  such as the performance and quality of data
  provenance have not been addressed at all. The
  overall framework for data provenance is also
  missing. Existing studies addressed a small
  subset of issues related to data provenance.
• One of the key issues is the data volume. Some
  solutions are rather expensive such as require
  each client and service provider to have a
  PCS/PQS proxy to record all data transmitted. For
  a typical mission-critical application, the
  enormous amount of data can easily exceed the
  capacity of any vast storage systems and hinder
  the normal network operation for the designated
  missions. Furthermore, the data collected will
  continue to increase, as no effective technique
  is available to reduce the amount of data while
  keeping the data provenance requirement.
• Thus, it is necessary to determine what data and
  what aspects of the data must be tracked. This
  decision can be made at network design time as
  well as during network operation to support agile
  war-fighting.

18
Issues for Data Provenance

• Another issue related to data volume is data
  classification, reduction, and organization. It
  is necessary to develop policies and algorithms
  to classify data, reduce or eliminate the
  enormous obsolete and useless data that will be
  collected, and organize data for optimal
  performance in data provenance.
• Data can be at most as dependable as the services
  that process them. Thus, it is necessary to
  evaluate, rank, and label the dependability and
  integrity of services and data that they
  manipulate. This issue has not been addressed in
  the literature. In fact, few papers in the
  literature discussed verification and validation
  (VV) of services in service-oriented
  architecture. It is necessary to develop a formal
  integrity model for data and services in a
  service-oriented environment. Currently no such
  model is available.

19
Approaches to Address the Data Provenance Issues

• Not all data need to be tracked. For those data
  that need to be tracked, only selected aspects of
  these data need to be tracked.
• The decision concerning what data and what aspect
  of the data to track can be made at runtime
  during the mission to allow and to provide
  dynamic data provenance for agile commanding,
  decision, and action.
• A decision-support system is made available for
  operators to decide on demand what data and
  what aspects of data to track, and data priority.
• Use mature products. It is not necessary to
  re-invent the wheel. For example, many dependable
  database management systems are available today,
  and thus it is not necessary to re-develop a new
  database management system for data provenance.
• Modify and extend the existing networking
  protocols such as IPv6, XML, and OASIS
  collaboration protocols, so that data provenance
  can be automatically carried with minimum
  overhead. Most of the current data provenance
  protocols can be easily implemented by the
  existing protocols.
• Develop several data collection strategies
  embedded in IPv6, XML, and OASIS.

20
Approaches to Address the Data Provenance Issues

• The first task is to develop a data provenance
  classification system. The initial classification
  categories include
• Maximum provenance This is for priority one
  data. The complete history is needed.
• Time-based provenance The data provenance should
  be provided for certain time period only. For
  example, during the current mission plus 2 years
  (or 2 weeks).
• Event-based provenance The data associated with
  a specific event will be tracked.
• Actor-related provenance The data associated
  with a specific actor (person) will be tracked.
  For example, all the data related to the bank
  manager.
• Process-based provenance All data related to a
  specific process will be collected once certain
  conditions are activated. For example, a
  terrorist plot process alert will trigger all the
  relevant data about the participants in the
  process will be stored and processed with a high
  priority.
• Minimum provenance Only certain aspects of data
  will be tracked, e.g., sender, receiver,
  intermediate service names, and time of message
  delivery.
• No provenance The data essentially have no value
  and can be safely discarded.

21
Approaches to Address the Data Provenance Issues

• The second task is to develop various kind of
  data collection strategies
• Actor-based An actor (a system or service) can
  have a monitoring service or agent that tracks
  the data communicated. This is the approach
  adopted by current solutions.
• Message-based Instead of depending on a
  monitoring agent to collect data, the data may
  carry its own provenance, e.g., in its XML file.
  Each service that uses the XML file can leave a
  trace in the file so that data provenance can be
  tracked.
• In the message-based approach, it is necessary to
  apply digital signatures to ensure that no other
  services or systems can overwrite data during the
  subsequent communications.
• In both cases, it is necessary to design an
  intelligent algorithm to allow a key person,
  e.g., the commander, to make decisions to what
  data to track and what aspects of data will be
  tracked.
• To reduce the length of data file, each service
  can have an intelligent agent to reduce data
  history in an intelligent manner, i.e., useless
  data will be removed or summarized. Generally
  speaking, data should be ranked according to
  their criticality. The access history to more
  critical data should be stored with a high
  priority.

22
Approaches to Address the Data Provenance Issues

• The third task is to define the data integrity
  level the higher the level, the more confidence,
  data integrity refers to
• a program will execute correctly, and
• data is accurate and / or reliable
• Each service will have an integrity level, and
  data produced by a high integrity service can go
  into low-integrity service, but not the other
  way. This is opposite to the security management,
  where a low security-level data can go to a high
  security-level process, but a high security-level
  data cannot go to a low security-level process.
• Similarly, a service should also be ranked
  according to the data provenance and other
  criteria in the service-oriented environment.
  This ranking mechanism helps identifying the data
  provenance violation situations. Specifically, if
  a Low ? High data flow appears, the data
  provenance VV engine should be called to decide
  whether incorrect or unreliable data appear. The
  service integrity can be ranked by its
  performance under the CVV (Collaborative
  Verification and Validation).

23
Approaches to Address the Data Provenance Issues

• Service integrity level can be determined by VV
  techniques on the participating services. A
  faulty service naturally has low integrity, and
  vice versa.
• If a service is ranked according to its integrity
  in handling data, it is possible to use Clark
  Wilson Model for integrity checking. In this
  model, each service is ranked, and data are also
  ranked, the integrity can be checked by following
  the data flow and by applying operators in the
  model.
• One problem of applying Biba model and Clark
  Wilson model is that there are many services, and
  data are dynamic and of high volume. Thus, the
  complexity of tracking data integrity via the
  maze of the service-oriented environment will
  still be expensive.

24
Agenda

• Overview of Interoperability
• Data Provenance
• OASIS CPP/CPA Collaboration
• Use Scenarios
• Dynamic Collaboration Protocol (DCP)
• Verification Framework for DCP
• Case study
• Summary

25
OASIS CPP/CPA Collaboration

• Collaboration is an association, partnership, or
  agreement between two legal entities to conduct
  business. OASIS
• A collaboration likely results in at least one
  business process being implied between entities.

• Collaboration over the World Wide Web is a broad
  area of research involving wide-reaching issues
  W3C
• Knowledge representation
• Annotation of objects
• Notification and
• Any other issues which arise in the creation of
  shared information systems and collaborative
  development.

26
Collaboration Protocols

• To facilitate the process of conducting
  collaboration, potential collaborative services
  need a mechanism to publish information about the
  collaboration they support.
• This is accomplished through the use of a
  Collaboration Protocol Profile (CPP).
• CPP is a document which allows a service to
  describe their supported collaboration process
  and service interface requirements in a manner
  where they can be universally understood by other
  services.
• A special collaboration agreement called a
  Collaboration Protocol Agreement (CPA) is derived
  from the intersection of two or more CPPs.
• CPA serves as a formal handshake between two or
  more collaborative services wishing to
  collaborate with each other to achieve a mission.

• OASIS and UN/CEFACT sponsored ebXML as a global
  electronic business standard.
• Its Collaboration Protocol Profile (CPP) and
  Collaboration Protocol Agreement (CPA) are used
  to specify trading partners technical
  information for doing e-business.

27
OASIS ebXML CPP/CPA specification
http//www.ebxml.org/specs/ebcpp-2.0.pdf

• As defined in the ebXML Business Process
  Specification SchemaebBPSS, a Business Partner
  is an entity that engages in Business
  Transactions with another Business Partner(s).
• Collaboration-Protocol Profile (CPP) describes
  the Message-exchange capabilities of a Party.
• Collaboration-Protocol Agreement (CPA) describes
  the Message-exchange agreement between two
  Parties.
• A CPA MAY be created by computing the
  intersection of the two Partners' CPPs.
• Included in the CPP and CPA are details of
  transport, messaging, security constraints, and
  bindings to a Business-Process-Specification (or,
  for short, Process-Specification) document that
  contains the definition of the interactions
  between the two Parties while engaging in a
  specified electronic Business Collaboration.

28
OASIS ebXML CPP/CPA specification
http//www.ebxml.org/specs/ebcpp-2.0.pdf

• The objective of the OASIS ebXML CPP/CPA
  specification is to ensure interoperability
  between two Parties even though they MAY procure
  application software and run-time support
  software from different vendors.
• Both Parties SHALL use identical copies of the
  CPA to configure their run-time systems. This
  assures that they are compatibly configured to
  exchange Messages whether or not they have
  obtained their run-time systems from the same
  vendor.
• The configuration process MAY be automated by
  means of a suitable tool that reads the CPA and
  performs the configuration process.

29
OASIS Business Process Modeling

• A user creates a complete business process and
  information Model
• User creates an ebBP specification by extracting
  and formatting the nominal set of elements
  necessary to configure an ebXML runtime system
  based on the model.
• The ebBP specification becomes the input to the
  formation of ebXML trading partner CPP and CPA.
• CPP and CPA in turn serve as configuration files
  for BSI (Business Service Interface) software
  component.

30
Overview of ebXML Process Specification
A Business Collaboration Process Specification
consists of a set of roles collaborating through
a set of choreographed Business Transactions by
exchanging Business Documents.
31
Relation Between CPP Process Specification
CPP uses ltPartyInfogt element to reference the
corresponding Process Specification
32
Overview of Collaboration-Protocol Profiles (CPP)
Party A tabulates the information to be placed in
a repository for the discovery process,
constructs a CPP that contains this information,
and enters it into an ebXML Registry or similar
repository along with additional information
about the Party. The additional information might
include a description of the Businesses that the
Party engages in. Once Party A's information is
in the repository, other Parties can discover
Party A by using the repository's discovery
services.
33
Overview of Collaboration-Protocol Profiles (CPP)
Layered architecture of CPP specification
The ProcessSpecification, DeliveryChannel,
DocExchange, and Transport elements of the CPP
describe the processing of a unit of Business
(conversation). These elements form a layered
structure somewhat analogous to a layered
communication model.
34
Overview of Collaboration-Protocol Agreement (CPA)
Party A and Party B use their CPPs to jointly
construct a single copy of a CPA by calculating
the intersection of the information in their
CPPs. The resulting CPA defines how the two
Parties will behave in performing their Business
Collaboration.
35
Working Architecture of CPP/CPA with ebXML
Registry
36
Limitation of CPP/CPA

• Focus on message exchange only.
• Thus, any issues related to workflow will not be
  addressed at all.
• Common issues related to workflow during
  collaboration is
• Deadlock Each party is waiting for the other
  party to reply.
• Starvation The other party fails to respond, and
  the party waiting for the data is starving.
• Synchronization both parties need to synchronize
  with each other.
• Transaction all or nothing.
• Missing A message sent originally and received.
  But the message was discarded after a receiver
  rollback, and needs the message to be re-sent,
  but the sender never rolls back.
• Orphan A message has been sent, but the sending
  party rolls back, and this message becomes
  invalid, but it has been sent and received.

37
Limitation of CPP/CPA
Deadlock
Starving
38
OASIS CPP/CPA Example
Example of CPP Document
http//www.oasis-open.org/committees/ebxml-cppa/sc
hema/cpp-example-companyA-2_0b.xml
http//www.oasis-open.org/committees/ebxml-cppa/sc
hema/cpp-example-companyB-2_0b.xml
Example of CPA Document
http//www.oasis-open.org/committees/ebxml-cppa/sc
hema/cpa-example-2_0b.xml
http//www.oasis-open.org/committees/ebxml-cppa/sc
hema/cpp-cpa-2_0b.xsd
39
Agenda

• Overview of Interoperability
• Data Provenance
• OASIS CPP/CPA Collaboration
• Use Scenarios
• Dynamic Collaboration Protocol (DCP)
• Verification Framework for DCP
• Case study
• Summary

40
Use Scenarios

• Use scenarios
• Is designed for service interoperability
  specification
• It specifies how a service or system is used by
  other services or systems.
• It focuses on the work flow part of the service
  interoperability.
• It defines how a particular function can be used
  in a stepwise fashion.
• Use Scenario vs. Process Specification
• A process specification describes the behavior of
  a system when the system is activated with a
  specific input.
• A use scenario describes a possible sequence of
  actions to activate a service provided by the
  system.

41
Use Scenario Analyses

• With the use scenario specified, we can perform
• Automated interoperation generation
• Interoperation correctness checking
• Interoperability cross checking
• With the support of the analytic techniques
  mentioned above, users can verify the correctness
  of use scenario.
• This can further enhance the interoperability of
  systems.

42
System Service Specification

• For different systems to be interoperable with
  each other, system's service specification needs
  to conform to a common standard.
• Services designed using the same service
  specification language can have a higher level of
  interoperability.
• System service specification is a system profile
  which provides information of what the system is.
  The profile includes following information
• Interface Specification
• Describes the calling parameters and return
  values of the system.
• The ACDATE model in E2E automation provides the
  capability for interface specification
• System Scenario Use Scenario
• Describe how the system works and how to work
  with this system.

43
ACDATE / Process Overview

• The ACDATE (Actors, Conditions, Data, Actions,
  aTtributes, Events) modeling specification
• A language for modeling and specification in the
  domain of system engineering and software
  engineering.
• It facilitates the specification, analysis,
  simulation, and execution of the requirement and
  therefore the system.
• A Process is a semi-formal description of system
  functionality
• It is a sequence of events expected during
  operation of system products which includes the
  environment conditions and usage rates as well as
  expected stimuli (inputs) and response (outputs).
• ACDATE entities are the building blocks for
  Process specification.
• After ones system requirements have been
  decomposed into ACDATE entities, one can then
  specify Processes.
• This ACDATE/Process model allows for system
  modeling and provides the capability to perform
  various analyses of requirement VV.

44
Use Scenarios vs. System Scenarios

• A system scenario describes the behavior of a
  system when the system is activated with a
  specific input,
• A use scenario describes a possible sequence of
  actions to activate a service provided by the
  system.
• The use scenario, once specified, can greatly
  reduce the time needed for C2 systems to
  collaborate by properly calling each other in the
  specified order.

45
Use Scenario Specification -- syntax semantics

• structural constructs
• choice option option option
• choice means that the interoperation can select
  any single sub-process (listed as options) to
  continue the control flow.
• precond
• precond indicates the preconditions before a
  particular action
• postcond
• postcond indicate the postconditions after a
  particular action
• criticalreg
• criticalreg indicate a critical region such that
  no other actions can take place to interrupt the
  execution of actions within the critical region.
  Any action sequence outside a critical region can
  be intervened by any sub-process.
• ltgt
• Any entities enclosed by ltgt are parameter
  entities.
• With sub-processes, the use scenario can describe
  the interoperation of hierarchical systems in
  different levels.

46
Use Scenario Example

• This example use scenario is specified for a
  control system that is in charge of battle tank
  in a simple C2 system
• The control system, Tank, which has 5 functions
• Start
• Move
• LocateTarget
• Fire
• Stop
• The control system, BattleControl, which has 1
  function
• OrderToFire
• The control system, Security, which has 1
  function
• VerifyPassword

47
Use Scenario Example (Cont.)

• Use scenario for Tank
• do ACTIONTank.Start
• choice
• option
• do ACTIONTank.Move
• option
• do ACTIONTank.LocateTarget
• option
• do ACTIONTank.Fire
• do ACTION Tank.Stop

48
Automated Interoperation Generation

• If more than one systems specified with use
  scenarios are to be put together to compose a
  complex system, the interoperation can be
  generated by intervene the use scenario for
  individual systems.

49
Automated Interoperation Generation -- Example

• Automated generated interoperation
• lt Start, Move, Stopgt,
• lt Start, LocateTarget, Stop gt, and
• ltStart, Fire, Stop gt.
• When interoperate with BattleControl, following
  interoperation can be generated
• lt Start, BattleControl.OrderToFire, LocateTarget,
  Stop gt
• lt Start, LocateTarget, BattleControl.OrderToFire,
  Stop gt

50
Interoperation Correctness Checking

• There will be quite a lot of interoperation can
  be generated or specified by intervene the
  individual use scenarios for different systems.
• But not all generated interoperation are correct
  sequence according to the constraints specified.
• By the constraints checking we can identify the
  interoperation that do not satisfy the
  constraints.
• precondition checking
• postcondition checking and
• critical region checking.

51
Updated Use Scenario Example

• The use scenario is updated by adding a Critical
  Region .
• Updated use scenario for Tank
• criticalreg
• do ACTIONTank.Start
• choice
• option
• do ACTIONTank.Move
• option
• do ACTIONTank.LocateTarget
• option
• do ACTIONTank.Fire
• do ACTION Tank.Stop

52
Interoperation Correctness Checking -- Example

• With the Critical Region constraint specified for
  the Tank use scenarios, not all interoperation
  are correct.
• Interoperation for Tank and BattleControl
• lt Start, LocateTarget, BattleControl.OrderToFire,
  Stop gt is a correct interoperation.
• lt Start, BattleControl.OrderToFire, LocateTarget,
  Stop gt is NOT a correct interoperation.
• BattleControl.OrderToFire can not be put in the
  section tagged as criticalreg.

53
Interoperability Cross Checking

• The constraints may be specified in different use
  scenarios.
• If one wants to put the systems together, the
  interoperability cross checking needs to be done
  to identify potential inconsistencies.

54
Updated Use Scenario Example

• The use scenario is updated by adding
  Preconditions .
• Updated use scenario for Tank
• do ACTIONTank.Start
• choice
• option
• do ACTIONltSecuritygt.VerifyPassword precond
• do ACTIONTank.Move
• option
• do ACTIONltSecuritygt.VerifyPassword precond
• do ACTIONTank.LocateTarget
• option
• do ACTIONltSecuritygt.VerifyPassword precond
• do ACTIONTank.Fire
• do ACTION Tank.Stop

55
Use Scenario Example (Cont.)

• The use scenario for security control system is
• do ACTIONSecurity.VerifyPassword postcond
• do ACTIONltTankgt.Move
• do ACTIONltTankgt.Fire

56
Interoperability Cross Checking -- Example

• In the use scenarios specified above, system Tank
  requires verifying password before all following
  operations on the Tank
• Move
• LocateTarget
• Fire
• Security enables Fire and Move after verifying
  password, without mentioning LocateTarget.
• A cross checking shows a potential inconsistency,
  which is not necessary an error.
• Either Account enforces an unnecessary strong
  precondition on LocateTarget,
• Or Security enables an insufficient weak
  postcondition on VerifyPassword.

57
Extended Use Scenario

• Use scenarios are useful for efficient system
  composition. Yet, additional information can be
  added to use scenario to improve the system's
  selection and composition effectiveness and
  scalability.
• The following information can be added
• Dependency information
• Categorization and
• Hierarchical use scenarios.

58
Dependency Information

• In addition to the information specified in use
  scenarios for how to use the given system, it is
  useful to add dependency information.
• Dependencies Specification
• Describes other systems that need to be included
  for this system to function. Compatible
  components list
• Compatible components list
• A list of other systems that are known to be able
  to work with the system.
• With this list, the system composition and
  re-composition can be done more efficiently.

59
Dependency Information -- Example

• For an aircraft carrier
• Dependencies Destroyer, Frigate, and Submarine.
• Compatible components Helicopter, Fighter plane,
  and Scout.
• With the information specified above, the
  composition process will be greatly eased.
• When putting an aircraft carrier into a SOA
  system, users will know that the destroyer,
  frigate and submarine are also needed.
• From information above, the users will know it is
  compatible to put helicopters, fighter planes,
  and scouts on the aircraft carrier but not the
  battle tanks.

60
Categorization

• For better organization, the use scenarios need
  to be categorized since
• A system can provide multiple services.
• Different services provided by the system may
  have different use scenarios.
• A system working with different systems may have
  different use scenarios.
• A set of use scenarios describing the usage of
  one specific service provided by this system can
  be put into the same category.
• Each system can be assigned with a category tree
  of use scenarios.

61
Categorization -- Example

• In an SOA system, there is usually a command
  center which controls the overall battle.
• Since multiple units, say Fleet 1, Fleet 2, and
  Fleet 3, are all involved in the battle, the
  command center needs to coordinate the battle and
  provides services for the Fleets, respectively.
• To better organize the design, the use scenarios
  must be categorized accordingly.
• Use scenarios for Fleet1
• Use scenarios for Fleet2
• Use scenarios for Fleet3

62
Hierarchical Use Scenario

• Use scenario can be hierarchical.
• A higher level use scenario can call lower level
  use scenarios.
• A higher level use scenario may specify the use
  of more than one subsystem.
• The high level use scenario specifies the overall
  process and can be broken down into several low
  level use scenarios by scenario slicing.

63
System Composition

• Complex mission often requires collaboration
  among multiple participating systems.
• Each participating system (subsystem) in a
  complex system (system of systems) focuses on
  handling one aspect of the overall mission.
• It is important for each subsystem to be
  specified with system scenarios as well as use
  scenarios.

64
System Composition Approach

• The bottom-up approach is more efficient to build
  a new composite system once the system scenarios
  and use scenarios are known.
• With system scenarios, multiple analyses
  (dependency analysis, CC analysis, event
  analysis, simulation, model checking) can be done
  to evaluate the system.
• Automated system testing and verification with
  verification patterns can provide us with
  confidence of the quality assurance of the
  selected system.
• Once we have verified and validated the
  individual subsystems, we can build complex
  system on top of them.

65
System Composition Approach (Cont.)

• The system discovery and selection can be done by
  analyzing the system scenarios.
• Compose the individual subsystems into the
  complex system we need by connecting the systems
  according to the use scenarios.
• If a use scenario calls the use scenarios of
  subsystems, it specifies the interoperation among
  several different subsystems.
• In this case, the use scenarios play the role of
  system composition pattern.

66
System Composition Example
67
System Composition Example (Cont.)

• The System 1 composition figure in last page
  shows the composition information of a complex
  system 1 with three subsystems.
• 3 subsystems for system 1
• System A,
• System B, and
• System C.
• Each system is specified with system scenarios
  and use scenarios.
• System scenarios for each subsystem provide
  information on what services this system
  provides.
• Each subsystem is specified with use scenarios,
  the integration becomes possible.
• If we have interface information only for systems
  A, B, and C, we may not obtain the
  functionalities required by system 1 because we
  do not know how to call the interfaces of each
  subsystem.

68
System Composition Template

• A use scenario can have templates.
• In such a template, we may specify what
  functionalities we need.
• If a system provides the functionalities
  specified in the system scenario, it can be used
  as subsystem.
• In the system 1 composition figure
• There are three subsystems, system A.1, A.2, A.3
  provides the same functionalities.
• Each of these subsystems can be a valid candidate
  for the composition.
• These subsystems may be ranked with different
  criteria by the automated testing tools.
• Appropriate subsystem can be added to the
  composition system according to different system
  performance requirements.
• What system to be chosen will be decided at the
  system run-time (Dynamic Binding).

69
Agenda

• Overview of Interoperability
• Data Provenance
• OASIS CPP/CPA Collaboration
• Use Scenarios
• Dynamic Collaboration Protocol (DCP)
• Verification Framework for DCP
• Case study
• Summary

70
Process Collaboration

• Process collaboration is a higher-level
  collaboration than data collaborations.
• It requires higher interoperability of
  collaborative partners.
• It is more efficient, more adaptive and more
  dynamic than data collaboration.
• The development of process collaboration is shown
  as following

71
Dynamic Process Collaboration

• Dynamic allows different services to interoperate
  with each other at system runtime in SOA
• The Dynamic on-demand service-oriented
  collaboration architecture is a flexible
  architecture
• Application architecture, collaboration protocols
  and individual services can be dynamically
  selected and reconfigured to fit the new
  application environment.
• Dynamic collaboration includes
• A collaboration specification language based on
  PSML-S
• A set of on-demand process collaboration
  protocols by extending ebXML collaboration
  protocols and
• A collaboration framework based on CCSOA
  framework.

72
Service Specification

• To achieve interoperability through network, the
  services need to be modeled and annotated in a
  standard formal/semi-formal specification
• Different services can understand each other and
  communicate with each other.
• Service specification is a very important part
  for effective service collaboration and
  composition.

73
Service Specification Evolution

• Initial stage (interface stage)
• Service descriptions mainly contain the
  input/output information, such as function name,
  return type, and parameter types.
• Process description stage
• Service specifications contain an abstract
  process description in addition to interface
  information.
• Service collaboration specification stage
• The service specifications not only contain
  everything in the previous two stages, but also
  service collaboration protocols such as
  collaboration protocol establishment,
  collaboration protocol profiles, collaboration
  constraints, and patterns.
• WS-CDL
• WSFL
• Consumer-centric specification stage
• The entire application can be specified,
  published, searched, discovered, and composed.

74
PSML-C Service Specification

• PSML-C is designed to support the specification,
  modeling, analysis, and simulation of service
  process collaboration based on PSML-S.
• The PSML-C specification includes
• Process Specification
• Constraint Specification
• Interface Specification and
• Collaboration Specification.

75
PSML-C Collaboration Specification

• Collaboration specification consists of
• A set of extended CPPs (ECPP)
• A set of use scenarios and
• A set of predefined extended CPAs (ECPA).
• Each ECPP
• Describes one collaboration capability of the
  service
• Is associated with one use scenario that provides
  information on how the other services can use the
  interfaces published for this specific
  collaboration capability.
• Each ECPP references to a process specification
  as the internal control logic for this specific
  collaboration capability.
• The ECPA set which contains predefined ECPAs
  that have been used and evaluated in the
  previously carried out service collaboration for
  rapid collaboration establishment.

76
PSML-C Process Collaboration Protocols

• PSML-C Process Collaboration Protocol is derived
  from the ebXML CPP and CPA.
• ebXML CPP CPA primarily focus on the message
  exchange capabilities of collaborating services.
• They provide general information on collaboration
  in E-Business domain.
• But they lack of information on process
  collaboration.
• PSML-C, based on PSML-S, has a process oriented
  modeling language which provides rich information
  on process specification.
• This approach extends the ebXML CPP and CPA by
  adding more process related information to the
  service collaboration specification.
• Extended CPP and CPA specify more information on
  process collaboration and system workflow.

77
PSML-C Process Collaboration Protocols (Cont.)

• PSML-C Collaboration Protocol consists of
• Extended Collaboration Protocol Profile (ECPP)
  Describes the collaboration capabilities of the
  service.
• Extended Collaboration Protocol Agreement (ECPA)
  Describes the collaboration interactions among
  the collaborative services.
• Use Scenario Describes how to carry out a
  specific collaboration with respect to a given
  ECPP.
• Process Specification Reference References to
  the internal control logic of each service

78
Extended CPP (ECPP)

• An ECPP is a quadruple of (START, END, IN, OUT)
  where
• START is the set of start points where START ?
  ø.
• A collection of entry points to the process
  specification where the process begins to
  execute.
• The START set is a non-null set.
• END is the set of end points where END ? ø.
• A collection of exit points of the process
  specification where the process finishes
  executing.
• The END set is a non-null set.
• IN is the set of incoming collaboration points.
• A collection of collaboration points of the
  process specification that can take incoming
  events.
• The IN set specifies what Actions in the process
  specification can be triggered by incoming Events
  from other services.
• An in collaboration point will be further mapped
  to an in type interface of the service in the
  collaboration agreement.
• OUT is the set of outgoing collaboration points.
• A collection of collaboration points of the
  process specification that can issue outgoing
  events.
• The OUT set specifies what Actions in the process
  specification can issue outgoing Events to invoke
  other services.
• An out collaboration point will be further mapped
  to an out type interface of the service in the
  collaboration agreement.

79
Extended CPP (Cont.)

• Following constraints are highly recommended but
  not required to the ECPP specification to
  describe a well-formed collaboration model
• CardSTART 1 ? (CardIN gt 0 ? CardOUT gt 0)
• An example of an ECPP specification for a simple
  online banking service is
• START Login
• END Logout
• IN ApproveLoan
• OUT CreditCheck

80
Extended CPA (ECPA)

• PSML-C adds collaboration transaction to the
  ebXML CPA.
• When two processes need to collaborate with each
  other, they need to negotiate with each other to
  specify possible/valid collaboration transaction.

• An ECPA contains a set CT which specifies a
  collection of collaboration transactions.
• A collaboration transaction is a pair of (out,
  in) where in ? IN1 and out ? OUT2 and IN1 is the
  IN set and OUT2 is the OUT set of collaboration
  services respectively.

81
Extended CPA (Cont.)

• For two services to be able to collaborate, the
  set CT must be a non-null set.
• An example of an ECPA specification between a
  simple online banking service and a credit
  service is
• CT (CreditCheck, ProcessCreditChecking),
  (CreditOK, ApproveLoan)
• where
• CreditCheck an out collaboration point of online
  banking service
• ApproveLoan an in collaboration point of online
  banking service
• ProcessCreditChecking an in collaboration point
  of credit service and
• CreditOK an out collaboration point of credit
  service.

82
LTL Use Scenario Specification

• The Use Scenario specification also uses the
  Linear Temporal Logic (LTL) syntax and semantics
  to specify the usage pattern of the service with
  respect to a specific collaboration. As a result,
  a use scenario specification is built up from a
  set of
• proposition variables p1,p2,...
• the usual logic connectives ?, ?, ?, and ? and
• the temporal modal operators
• N (for next)
• G (for always)
• F (for eventually)
• U (for until), and
• R (for release).
• An example of a use scenario specification for
  online banking service is
• Login F Logout
• which means any login operation must finally
  followed by a logout operation.

83
Process Specification Reference

• Process specification reference is a reference to
  the process specification which specifies the
  internal control logic associated with an ECPP.
• With this reference information, service matching
  technologies can verify both the interface
  information as well as the internal process
  specification.
• An example of process specification reference of
  a simple online banking service is that the
  credit checking collaboration references to the
  auto loan application process specification.

84
PSML-C Composition Collaboration Framework
85
PSML-C Composition Collaboration Framework
(Cont.)

• The service broker stores not only service
  specifications, but also application templates
  and collaboration patterns.
• Application builders publish the application
  templates in the service broker.
• Service providers can subscribe to the
  application registry.
• The pattern repository stores different types of
  collaboration patterns including architecture
  patterns, process patterns, and constraint
  patterns.
• The Service Discovery Matching Agent (SDMA)
  discovers and matches not only the services but
  also the application templates.
• The Service Verification Validation Agent
  (SVVA) supports the verification and validation
  on both individual services and the composite
  service collaboration with CVV (Collaborative
  Verification Validation) technologies.

86
Collaboration Patterns

• Collaboration Patterns are repeatable techniques
  used by collaborative services to facilitate
  rapid and adaptive service composition and
  collaboration.
• Reduce effort for composition
• Reuse previously identified collaboration
• Compatible with the categorization in PSML-S
  specification and modeling process.
• Architecture Patterns
• Process (behavioral) Patterns
• Constraint Patterns
• When compositing a new service, we follow the
  order below
• Architecture -gt Process -gt Constraint

87
Application Composition Process

• When building a new service-oriented application
  which is a composite service consisting of
  multiple collaborative services, the service
  composition and collaboration process can be
  described as following
• Application builder submit a request to the
  application repository to retrieve an appropriate
  application template
• The application builder decides which
  architecture pattern needs to be applied to build
  the application
• Only if the architecture of the application has
  been identified, the application builder
  identifies what process patterns can be applied
• Then, the constraint pattern may be applied to
  the application based on the architectural and
  behavioral design
• Application builder retrieves different services
  from the service pool according to the
  application template subscription information
  provided by the service broker
• The services will be tested against different
  acceptance criteria provided by the application
  builder for service selection
• Application builder simulates the composed
  service to evaluate the overall performance
• Application builder integrate the selected
  services and deploy the application.

88
PSML-C Collaboration Architecture
89
PSML-C Collaboration Architecture (Cont.)

• For collaboration, each service will be specified
  with
• Process specification
• Interface specification
• Collaboration specification
• Before each service can be registered to the
  repository, it will be verified and validated by
  multiple static analyses including simulation.
• The collaboration protocol profiles will be
  registered in the registry and stored in the
  repository for discovery and matching.
• Once the collaboration is established, dynamic
  analyses can be performed to evaluate the runtime
  behaviors of the service collaboration.

90
PSML-C Collaboration Phases

• Collaboration Preparation
• Service specification
• Static analyses
• Service registration
• Application template registration
• Collaboration Establishment
• Service discovery and matching
• Service ranking
• Collaboration agreement negotiation
• Dynamic simulation
• Collaboration Execution
• Policy enforcement
• Dynamic reconfiguration and recomposition
• Dynamic monitoring and profiling
• Collaboration Termination
• Collaboration verification
• Collaboration evaluation

91
Agenda

• Overview of Interoperability
• Data Provenance
• OASIS CPP/CPA Collaboration
• Use Scenarios
• Dynamic Collaborati
