Software Testing

1
Software Testing

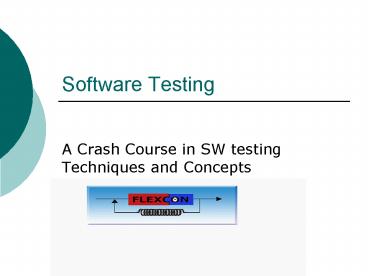

• A Crash Course in SW testing Techniques and
  Concepts

2
Overview

• Introduction to testing concepts
• Levels of testing
• General test strategies
• Testing concurrent systems
• Testing of RT systems

3
Testing is necessary

• To gain a sufficient level of confidence for the
  system
• Risk information
• Bug information
• Process information
• Perfect development process infeasible
• Building without faults implies early testing
• Formal methods not sufficient
• Can only prove conformance to a model
• Perfect requirements are cognitive infeasible
• Error prone

4
Testing for quality assurance

• Traditionally testing focuses on functional
  attributes
• E.g. correct calculations
• Non-functional attributes equally important
• E.g. reliability, availability, timeliness

5
How much shall we test?

• Testing usually takes about half of development
  resources
• Stop testing is a business decision
• There is always something more to test
• Risk based decision. Tester provides risk
  estimation

6
When do we test?

• The earlier a fault is found the less expensive
  it is to correct it
• Testing is not only concerning code.
• Documents and models should also be subject to
  testing.
• As soon as a document is produced, testing can
  start.

7
Levels of Testing

• Component/Unit testing
• Integration testing
• System testing
• Acceptance testing
• Regression testing

8
Component Testing (1/2)

• Require knowledge of code
• High level of detail
• Deliver thoroughly tested components to
  integration
• Stopping criteria
• Code Coverage
• Quality

9
Component Testing (2/2)

• Test case
• Input, expected outcome, purpose
• Selected according to a strategy, e.g., branch
  coverage
• Outcome
• Pass/fail result
• Log, i.e., chronological list of events from
  execution

10
Integration Testing (1/2)

• Test assembled components
• These must be tested and accepted previously
• Focus on interfaces
• Might be interface problem although components
  work when tested in isolation
• Might be possible to perform new tests

11
Integration Testing (2/2)

• Strategies
• Bottom-up, start from bottom and add one at a
  time
• Top-down, start from top and add one at a time
• Big-bang, everything at once
• Functional, order based on execution
• Simulation of other components
• Stubs receive output from test objects
• Drivers generate input to test objects
• Note that these are also SW, i.e., need testing
  etc.

12
System Testing (1/2)

• Functional testing
• Test end to end functionality
• Requirement focus
• Test cases derived from specification
• Use-case focus
• Test selection based on user profile

13
System Testing (2/2)

• Non-functional testing
• Quality attributes
• Performance, can the system handle required
  throughput?
• Reliability, obtain confidence that system is
  reliable
• Timeliness, testing whether the individual tasks
  meet their specified deadlines
• etc.

14
Acceptance Testing

• User (or customer) involved
• Environment as close to field use as possible
• Focus on
• Building confidence
• Compliance with defined acceptance criteria in
  the contract

15
Re-Test and Regression Testing

• Conducted after a change
• Re-test aims to verify whether a fault is removed
• Re-run the test that revealed the fault
• Regression test aims to verify whether new faults
  are introduced
• Re-run all tests
• Should preferably be automated

16
Strategies

• Code coverage strategies, e.g.
• Decision coverage
• Data-flow testing (Defines -gt Uses)
• Specification-based testing, e.g.
• Equivalence partitioning
• Boundary-value analysis
• Combination strategies
• State-based testing

17
Code Coverage (1/2)

• Statement coverage
• Each statement should be executed by at least one
  test case
• Minimum requirement

18
Code Coverage (2/2)

• Branch/Decision coverage
• All decisions with true and false value
• Subsumes all statements coverage
• MC/DC for each variable x in a boolean condition
  B, let x decide the value of B and test with true
  and false value
• Example
• if(x1 and x2)
• S
• Used for safety critical applications

19
Mutation testing

• Create a number of mutants, i.e., faulty versions
  of program
• Each mutant contains one fault
• Fault created by using mutant operators
• Run test on the mutants (random or selected)
• When a test case reveals a fault, save test case
  and remove mutant from the set, i.e., it is
  killed
• Continue until all mutants are killed
• Results in a set of test cases with high quality
• Need for automation

20
Specification-based testing (1/2)

• Test cases derived from specification
• Equivalence partitioning
• Identify sets of input from specification
• Assumption if one input from set s leads to a
  failure, then all inputs from set s will lead to
  the same failure
• Chose a representative value from each set
• Form test cases with the chosen values

21
Specification-based testing (2/2)

• Boundary value analysis
• Identify boundaries in input and output
• For each boundary
• Select one value from each side of boundary (as
  close as possible)
• Form test cases with the chosen values

22
Combination Strategies (1/5)

• Equivalence partitioning and boundary analysis
  give representative parameter values
• Test case often contain more than one input
  parameter
• How do we form efficient test suites, i.e., how
  do we combine parameter values?

23
Combination Strategies (2/5)

• Each choice
• Each chosen parameter value occurs in at least
  one test case
• Assume 3 parameters A, B, and C with 2, 2, and 3
  values

24
Combination Strategies (3/5)
Latin square

• Pair-wise combinations
• Each pair of chosen values occurs in at least one
  test case
• Efficiently generated by latin squares or a
  heuristic algorithm
• Cover failures due to pairs of input values

25
Combination Strategies (4/5)

• All combinations, i.e., n-wise
• Each combination of chosen values occurs in at
  least one test case
• Very expensive

26
Combination Strategies (5/5)

• Base choice
• For each parameter, define a base choice, i.e.,
  the most likely value
• Let this be base test case and vary one value at
  a time
• In the example, let A-1, B-2, and C-2 be base
  choices

27
State-Based Testing

• Model functional behavior in a state machine
• Select test cases in order to cover the graph
• Each node
• Each transition
• Each pair of transitions
• Each chain of transitions of length n

28
Concurrency Problems

• (Logical) Parallelism often leads to
  non-determinism in actual execution
• E.g. Synchronization errors may occur in some
  execution orders
• Order may influence the arithmetic results or the
  timing
• Explosion in number of required tests
• Need confidence for all execution orders that
  might occur

29
Silly example of Race Conditions with shared data
W(A,1)
W(B,1)
R(B,1)
R(A,1)
W(A,1)
W(B,1)
R(B,0)
R(A,0)
W(A,1)
W(B,1)
R(B,1)
R(A,1)
30
Observability Issues

• Probe effect (Gait,1985)
• Heisenbergs's principle - for computer systems
• Common solutions
• Compensate
• Leave probes in system
• Ignore
• Must observe execution orders
• Gain coverage

31
Controllability Issues

• To be able to test correctness of a particular
  execution order we need control
• Input data to all tasks
• Initial state of shared data/buffers
• Scheduling decisions
• Order synchronization/communication between tasks

32
Few testing criteria exists for concurrent systems

• Number of execution orders grow exponentially
  with synchronization primitives in tasks
• Testing criteria needed to bound and selecting
  subset of execution orders for testing
• E.g. Branch / Statement coverage not sufficient
  for concurrent software
• Still useful on serializations
• Execution paths may require specific behavior
  from other tasks
• Data-flow based testing criteria has been adapted
• E.g. define-use pairs

33
Summary Determinism vs. Non-Determinism

• Deterministic systems
• Controllability is high
• input (sequence) suffice
• Coverage can be claimed after single test
  execution with inputs
• E.g. Filters, Pure table-driven real-time
  systems
• Non-Deterministic systems
• Controllability is generally low
• Statistical methods needed in combination with
  input coverage
• E.g.
• Systems that use random heuristics
• Behavior depends on execution times / race
  conditions

34
Test execution in concurrent systems

• Non-deterministic testing
• Run, Run, Run and Pray
• Deterministic testing
• Select a particular execution order and force it
• E.g. Instrument with extra synchronizations
  primitives
• (No timing constraints make this possible)
• Prefix-based Testing (and Replay)
• Deterministically run system to a specific
  (prefix) point
• Start non-deterministic testing at that specific
  point

35
Real-time systems testing

• Inherits issues from concurrent systems
• Problems becomes harder due to time-constraints
• More sensitive to probe-effects
• Timing/order of inputs become more significant
• Adds new potential problems
• New failure types
• E.g. Missed deadlines, Too early responses
• Test inputs ? Execution times
• Faults in real-time scheduling
• Algorithm implementation errors
• Assumption about system wrong

36
Real-time systems testing

• Pure time-triggered systems
• Deterministic
• Test-methods for sequential software usually
  apply
• Fixed priority scheduling
• Non-deterministic
• Limited set of possible execution orders
• Worst-case w.r.t timeliness can be found from
  analysis
• Dynamic (online) scheduled systems
• Non-deterministic
• Large set of possible execution orders
• Timeliness needs to be tested

37
Testing Timeliness

• Aim Verification of specified deadlines for
  individual tasks
• Test if assumptions about system hold
• E.g. worst-case execution time estimates,
  overheads, context switch times, hardware
  acceleration efficency, I/O latency, blocking
  times, dependency-assumptions
• Test system temporal behavior under stress
• E.g. Unexpected job requests, overload
  management, component failure, admission control
  scheme
• Identification of potential worst-case execution
  orders
• Controllability needed to test worst-case
  situations efficiently

38
Testing Embedded Systems

• System-level testing differs
• Performed on target platform to keep timing
• Closed-loop testing
• Test-cases consist of parameters sent to the
  environment simulator
• Open-loop testing
• Test-cases contain sequences of events that the
  system should be able to handle

Test parameters
Environment Simulator
Real-time (control) system
Test Cases
Real-time (control) system
39
Approach of TETReS

• Real-time database background
• Dynamic scheduling, flexibility requirements,
  mixed load
• Two general approaches
• Investigate how architectural constraints impacts
  testability
• Keep flexibility Limit/avoid testing problems
• E.g. Database environment provide some nice
  properties
• Investigate methods for supporting automated
  testing of timeliness
• Testing criteria for timeliness
• Generation of tests automatically
• Automated, prefix-based test execution

40
Approach of TETReS test generation and execution

• Open-loop
• System-level testing of timeliness
• Model-based test-case generation
• Architecture information
• E.g. Locking policies, Scheduling etc
• Timing assumptions/constraints of tasks
• Assumptions about normal environment behavior
• Mutation-based testing criteria
• Prefix-based Test-case execution

41
Summary

• Motivation
• Test methods
• Examples on different test strategies has been
  presented
• Concurrency and Real-time issues
• TETReS approach

42
Testing Criteria
Counter Example Traces
Mutated Specs.
Spec.
Formal modeling
Model Checker
Test Specs. Generator
Mutant Generator
Task unit Testing
Test coordinator
Test Specs
Input Data to Tasks
Pre-State description
Parameterized event sequences
State Enforcer
Test Driver
RTS
