Title: cs2340:Design Principles

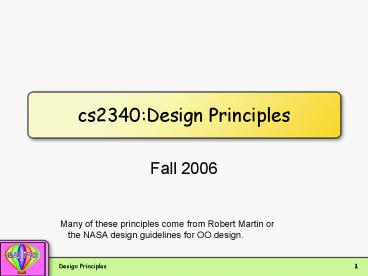

1
cs2340Design Principles
  • Fall 2006

Many of these principles come from Robert Martin
or the NASA design guidelines for OO design.
2
Single Responsibility Principle
  • Each class should have a single overriding
    responsibility (High Cohesion)
  • Each class has one reason why it should change

3
Law of Demeter
  • An Object only sends messages to
  • Itself (its own instance methods)
  • Objects sent as arguments to message m
  • Objects created as part of reaction to m
  • Objects directly accessible via attributes

Purpose Reduce coupling
4
Examples
  • g.add(button)
  • g.getContentPane().add(button)
  • process aString
  • aString size.
  • process aUser
  • aUser connection send message.

5
Examples
  • b User new.
  • b name.
  • b connection send aMessage.
  • myConnection send aMessage
  • myConnection socket send aMessage.

6
Open Closed
  • Objects are open for extension but closed for
    modification.

Extension via inheritance, polymorphism.
Related design patterns Template, State, Strategy
7
Example
  • computePay aCategory
  • aCategory salaried ifTrue
  • aCategory hourly ifTrue
  • aCategory bonus ifTrue
  • aCategory volunteer ifTrue

8
Liskov Substitution Property
What is wanted is something like the following
substitution property If for each object o1 of
type S there is an object o2 of type T such that
for all programs P defined in terms of T, the
behavior of P is unchanged when o1 is substituted
for o2, then S is a subtype of T.
Liskov88 Subclasses should be substitutable
for their base classes. Consider behavior, not
just is a Square/rectangle problem
9
Dependency Inversion Principle
  • Depend on abstractions, not concretions
  • Program to interfaces not implementations
  • Program to most abstract class possible
  • ArrayListltintgt list new ArrayListltintgt()
  • Listltintgt list new Listltintgt()
  • Collectionltintgt coll new Collectionltintgt()

10
Interface Segregation Principle
  • Dont make large multipurpose interfaces
    instead use several small focused ones.
  • Dont make clients depend on interfaces they
    dont use.

11
Packaging/Deployment Principles
  • ReleaseReuse
  • MaintenanceIsolated Changes
  • Inverse Reuse
  • Share same function/goal

12
Acyclic Dependency
  • Do not have cyclic dependencies in your packages
  • Decomposition into independent modules

13
Design Metrics
  • Instability measure The more concrete the more
    unstable the class is.
  • Depend on most stable classes
  • Ci incoming dependencies (packages that depend
    on me)
  • Co outgoing dependencies (packages that I
    depend on)
  • Instability Co / (Co Ci)

14
Design Metrics
  • Stable classes are abstract classes
  • Na Number of abstract classes
  • Nc Number of concrete classes
  • Abstractness Na / Nc

15
Design Metrics
  • So how good is my package?

Distance A I 1 Closer to zero,
better the design
16
Design Metrics
  • Class Size
  • Methods per class
  • Lack of Cohesion (count of methods with
    dissimilar purpose)
  • Coupling Between Classes (count of other classes
    that this class refers to)
  • Depth of Inheritance Tree
  • Method Complexity
