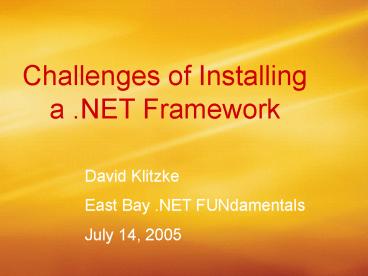

Challenges of Installing a .NET Framework
David Klitzke East Bay .NET FUNdamentals July 14,
2005
2
David Klitzke

• Software Consultant for IdeaBlade, a startup
  company providing a Rapid Application Development
  for .NET
• Develop and deliver training and webinars
• Develop software to install tutorial exercises
• Did the initial port to InstallShield
• Currently, assisting with port to .NET 2.0
• Previously, senior software engineering manager
  for Sun Microsystems and Unisys

3
Agenda

• Why is installation important for a Framework?
• Choices for Install Tools
• The Challenges
• Supporting Multiple Features
• Asking for a Serial Prompt
• Installing Assemblies into the GAC
• Installing a Visual Studio Add-In
• Adding Visual Studio ToolBox Items
• Installing and Attaching a Database
• Debugging Tips and Tricks

4
Why is installation important for a Framework?

• Frameworks are supposed to make life easy,
  therefore
• They must be easy to install
• They must not require additional steps after the
  installation to get started
• They must allow simple quick installations as
  full-featured installations
• The installation process should leave a favorable
  impression

5
General Challenges for Developing Installation
Software

• Requires esoteric knowledge
• Long times for builds, installs, and uninstalls
• Requires support for multiple versions of
  software
• Can be notoriously difficult to debug
• Not glamorous

6
Some Specific Challenges

• Supporting Multiple Features
• Asking for a Serial Prompt
• Installing Assemblies into the GAC
• Installing a Visual Studio Add-In
• Adding Visual Studio ToolBox Items
• Installing and Attaching a Database

7
Choices for Installation Tools

8
Choices for Installation Tools

• Microsoft Windows Installer
• InstallShield
• Wise
• Other

9
Microsoft Windows Installer

• Advantages
• Requires no additional purchase as it is built
  into Visual Studio
• Almost all other installation tools use the
  Windows Installer
• Installation technology most developers are
  familiar with
• Disadvantages
• Doesnt support multiple features
• Few options to modify installation sequence
• Opaque interface to Installer database
• Documentation is very poor

10
InstallShield

• Advantages
• Supports multiple features
• Many options for modifying and altering
  installation sequence
• Presents easy access to Installer database
• Lots of additional features
• Disadvantages
• Pricey
• Not familiar to most developers
• Proprietary scripting tools could lead to vendor
  lock-in

11
Supporting Multiple Features

• with InstallShield

12
InstallShield Installation Architecture
13
Feature Folder Hierarchy

• Each feature has a separate set of components in
  an independent folder hierarchy

14
Multiple Features allow Custom Installations
15
Pick and Choose your Features

• Default Feature is not selectable or visible
• Choose whether to display sub-features

16
Asking for a Serial Number

• with Windows Installer

17
Asking for a Serial Number

• Add a Screen during UI Phase
• Edit Serial Number Template
• Use a Windows Installer Class
• Add a Custom Action for the Commit Phase which
  executes the Installer Class
• Specify Custom Action Data
• During the install, get User Input
• Evaluate the Serial Number

18
Add a Screen during UI Phase

• Add Customer Information Dialog after prompt for
  Installation Folder

19
Edit Serial Number Template

• Set ShowSerialNumber to True
• Edit SerialNumberTemplate

20
Use a Windows Installer Class

• Windows Installer Classes used for Custom Actions
  during
• Install
• Commit
• RollBack
• Uninstall

21
Get User Input from Custom Action Data
22
Evaluate Serial Number

• Throw Exception on Failure

23
Demo Adding a Serial Number Prompt to the Install
24
Installing Assemblies into the GAC

25
Installing Assemblies into the GAC

• Goal is make your assemblies easily accessible to
  Visual Studio developers
• Strongly name your assemblies
• Install into Application Folder and Global
  Assembly Cache
• Modify Registry so developers can reference them
  with Visual Studio

26
Strongly Name the Assemblies
27
Add Global Assembly Cache Folder to the Setup
Project

• This folder is not included by defaut

28
Copy Assemblies into Application Folder and
Global Assembly Cache
29
Use Registry Editor to make Assemblies Visible to
Visual Studio

• Adding this to installation

Add this to the registry
30
Registry entry needed for Visual Studio for Add
References
With Registry Entry Without Registry
Entry
31
Simple Visual Studio Add-In Project

32
Simple Visual Studio Add-In Project

• IdeaBlade Object Relational Modeling (ORM) Tool
• Walkthrough on
• Example is from MSDN article
• How to use a wizard to create a Simple Add-In
• How to set breakpoints in a Simple Add-In

33
IdeaBlade Object Relational Modeling (ORM) Tool

• Visual Studio Add-In
• Appears in Visual Studio Tools menu

34
Demo Steps

• Create a Visual Studio Add-In Project
• Use Add-In Wizard to set Project Properties
• Add a MessageBox.Show to Project
• Set a Breakpoint
• Debug the project from within Visual Studio

35
Create a Visual Studio Add-In Project
36
Use Add-in Wizard
37
Add Properties with Wizard
Use C
Visual Studio is the application host
38
Add Properties with Wizard
Enter Name and Description
Yes, Create a Tools Menu Item
39
Add Properties with Wizard
Add an About Box
Summary
40
Registry Changes added by Wizard

• Registry changes to Setup Project

41
Add a MessageBox.Show statement with Breakpoint

• Add Reference to System.Windows.Forms
• Add using clause
• Add Message.Show statement in Connect.cs with
  breakpoint

42
Debug the project

• Press Debug, then Start
• When a new Visual Studio appears, press the Tools
  menu to reveal the simple Add-in

43
Reach the Breakpoint

• Select MyAddIn1 from Tools menu to reach the
  breakpoint
• Select Debug and Continue to reveal the
  MessageBox

44
Demo Debugging a Visual Studio Add-In Project
45
Adding Visual Studio ToolBox Items

46
Add Visual Studio Designers

• Automate adding of controls and tabs that would
  otherwise have been done manually within Visual
  Studio

47
IdeaBlade ToolBox Items
48
Implementation

• Use a Commit Phase Custom Action with a
  ToolBoxInstaller.exe
• Add Shortcut to Program Files
• Requires understanding DTE

49
A Few Words on DTE
50
Automatically Attaching a Database

• So your user is ready to start sample tutorials
  exercises

51
Problems with manually installing a database

• Many users dont have DB expertise and have
  trouble following database installation
  instructions
• Many users dont know relevant information such
  as DB instance name, host name, SQL Server
  password
• Even if database can be easily installed,
  connection strings in applications need to fixed
  up

52
Information needed for Automatic Database
Installation

• Is SQL Server installed?
• What is database service name?
• Is database service running?
• What is database instance name?
• Is database already attached?
• Does database require Windows Authentication or
  SQL Server paswords

53
Automatically Attaching a Database

• Case Example
• Implementation
• Discover the connection string
• Attach the database
• Modify the configuration files

54
Case Example

• To promote its .NET framework product, IdeaBlade
  makes it as easy as possible for potential
  customers to exercise the IdeaBlade software by
• Automatically attaching the Tutorial database
• Fixing up the connection strings in the
  configuration files for the sample applications
• Providing easy-to-use interface for trying the
  applications

55
Implementation Strategy

• Add starting solutions, completed solutions, and
  documentation during the installation using Merge
  Modules
• Add a Windows Installer Class that executes
  during the Commit phase of the installation
  which
• Discovers the connection string
• Attaches the Tutorials database if unattached
• Fixes up the configuration files for the Tutorial
  exercises

56
Merge Modules for Tutorial Exercises

• Merge Modules provide a modular approach to
  adding components to an installation
• Promotes reuse over different setup projects
• IdeaBlade Tutorials have over 300 folders and
  5,000 files

57
Database.Install Windows Installer Class

• Executes during Commit phase (after Tutorial
  solutions have been installed)
• Single input parameter is folder name of the
  target installation (TARGETDIR\)

58
Discover the Connection String

• Get the SQL Service Name
• Check if SQL Server SW is installed
• Check if the SQL Service is running
• If Service running, get the SQL Server Name
• Try Windows Authentication
• If Windows Authentication fails, prompt for SQL
  Server password

59
Attach Database and Fix-up Config Files

• Test if Tutorial Database already attached
• Attach database if not already attached
• Recursively look for config files
• Fix up connection strings

60
Get the SQL Service Name

• In this example, its MSSQLSERVER

61
Check if SQL Server Installed
62
Check if SQL Service Running

• If not running, user has the option of aborting
  the installation

63
Get the SQL Server Name

• If Service Name MSSQLSERVER
• Server Name .
• Else if Service Name is like MSSQLABC
• Server Name HOSTNAME\ABC

64
Try Windows Authentication

• See if you can access master database using
  Integrated security

65
If no Windows Authentication, prompt for SQL
Server password

• If first password check fails, ask if user wants
  to try again

66
Test if Tutorial Database already attached
67
Attach database if not already attached
Delete log file if it already exists
68
Recursively look for config files
69
Fix up connection strings
70
Automatic Database Installation makes it easy to
download and use IdeaBlade Tutorials
71
Installation Debugging Tips and Tricks

72
Turn on Windows Installer Logging
73
Use Fusion Log Viewer to debug assembly binding
redirection
74
Log Entry for failed assembly binding
75
Q A

76
References

• Referencing the DTE
• http//msdn.microsoft.com/library/default.asp?url
  /library/en-us/vsintro7/html/vxconreferencingdteob
  ject.asp
• Debugging a Simple Add-In Project
• http//msdn.microsoft.com/library/default.asp?url
  /library/en-us/vsdebug/html/vxwlkwalkthroughdebugg
  ingadd-inproject.asp
• Enable Windows Installer Logging
• http//support.microsoft.com/default.aspx?scidkb
  en-us223300

77
Thanks For Your Time
For more information davidk_at_ideablade.com
